P100 User Manual

Congratulations on your purchase of the Antec P100!

The P100 is an ATX case that epitomizes cool, quiet, and sophistication. It features Antec’s award

winning the Performance One series design and Quiet Computing™ technologies that minimize system

noise.

In addition to 7 expansion slots, the P100 also supports 2 tool-less 5.25” drives and 7 tool-less 3.5”/ 2.5”

drives. With a great price to feature ratio the P100 is the only economical case that delivers first class

silence performance. A balance of price and feature is achieved by integrating Antec design with

superior build quality. Engineered with Quiet Computing™ Technology, the P100 is truly in a class all its

own.

At Antec, we continually refine and improve our products to ensure the highest quality. As such, your

new chassis may differ slightly from the description in this manual due to improvements applied for the

optimal building experience. As of November 15, 2011, all features, descriptions, and illustrations in this

manual are correct.

Disclaimer

This manual is intended only as a guide for Antec’s computer

enclosures. For more comprehensive instructions on installing the

motherboard and peripherals, please refer to the manuals that

come with those components.

Table of Contents

Section 1: Introduction

1.1 Getting to Know Your Chassis............................................................................5

1.2 Chassis Specifications.........................................................................................6

1.3 Included Screws .................................................................................................6

1.4 Before You Begin................................................................................................7

Section 2: Hardware Installation

2.1 Setting Up ..........................................................................................................9

2.2 Motherboard Installation...................................................................................9

2.3 Installing KUHLER H2O Liquid Coolers................................................................11

2.4 Power Supply Installation ..................................................................................12

2.5 External 5.25” Device Installation......................................................................13

2.6 Internal 3.5” / 2.5” Device Installation ..............................................................14

2.7 Cable Management............................................................................................16

Section 3: Front I/O Ports

3.1 USB 2.0...............................................................................................................18

3.2 USB 3.0...............................................................................................................18

3.3 AC’97 / HD Audio Ports......................................................................................19

3.4 Power Switch / Reset Switch / Hard Disk Drive LED Connectors.......................19

3.5 Rewiring Motherboard Header Connections.....................................................20

Section 4: Cooling System

4.1 Included Fans .....................................................................................................22

4.2 Optional Fans .....................................................................................................22

4.3 Fan Switch Controller ........................................................................................23

4.4 Air Filters............................................................................................................24

Section 1

Introduction

P100 User Manual

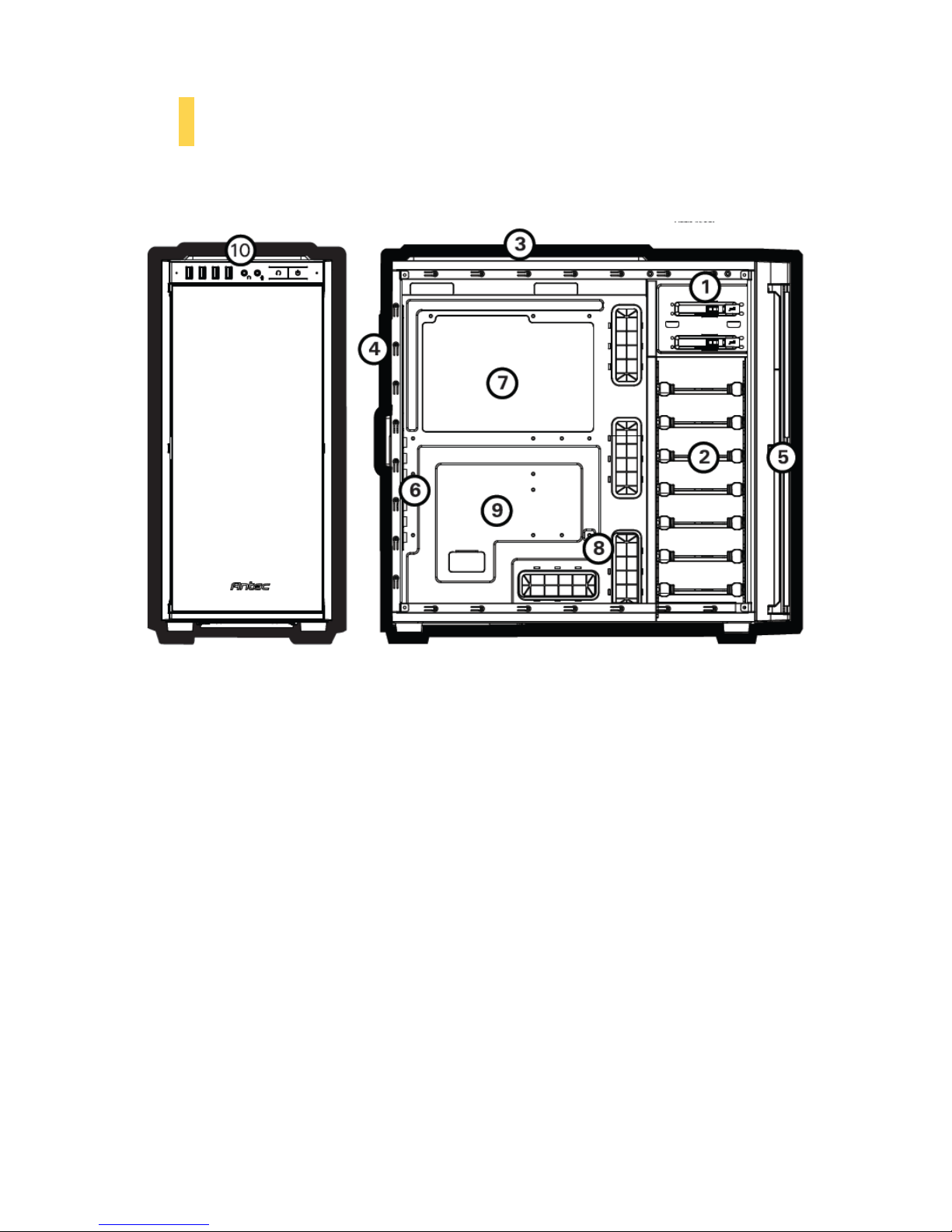

1.1 Getting to Know Your Chassis

1. 2 x 5.25” tool-less drive bays

2. 7 x 3.5” / 2.5” drive trays

3. 2 x 120 /140 mm top exhaust fans (optional)

4. 1 x 120 mm rear exhaust fan

5. 2 x 120 /140 mm front intake fans (optional)

6. 7 x PCI-E expansion slots

7. CPU cutout

8. Cable routing holes

9. Motherboard mount: ATX, Micro ATX or Mini-ITX

10. Front Ports (USB 3.0, USB 2.0, Audio I/O)

1.2 Chassis Specifications

Chassis Type

Mid-Tower

Chassis Color

Black with aluminum door

Dimensions

18.9” (H) x 8.6” (W) x 20.4” (D)

484 mm (H) x 220 mm (W) x 523 mm (D)

Weight

16.1 lbs / 7.3 kg

Cooling

Fan mounts:

- 1 x 120mm front intake fan mount

- 1 x 120mm rear exhaust fan mount

- 1 x 120/ 140 mm front intake fan mounts(optional)

- 2 x 120/ 140 mm top exhaust fan mounts (optional)

Included Fan:

- 1 x 120 mm Front FDB fan, 1200 r. p. m, 18dB(A)

- 1 x 120 mm Rear FDB fan, 1200 r. p. m, 18dB(A)

Drive Bays

- 2 x 5.25” tool-less drive bays

- 7 x 3.5” / 2.5” tool-less HDD bays

Expansion Slots

Motherboard Size

Standard ATX, Micro ATX, Mini-ITX

Front I/O Panel

- 2 x USB 3.0

- 2 x USB 2.0

- Audio In/Out

1.3 Included Screws

An inventory of all screws and intended usage and quantity is provided here:

A. Front fan screw (4)

B. HDD screw (30)

C. CD-ROM screw (4)

D. Motherboard screw (10)

E. Motherboard standoff(10)

F. Power supply screw(4)

G. 2.5” tray-mount screw (12)

1.4 Before You Begin

In order to ensure that your building experience with the P100 will be a positive one, please take note of

the following:

While working inside your P100, keep your chassis on a flat, stable surface. Make sure your build

environment is clean, well-lit, and free of dust.

Antec chassis feature rounded edges that minimize the occurrence of hand injuries. Nonetheless,

exercise caution and control when handling chassis interiors. We strongly recommend taking the

appropriate time and care when working inside the chassis. Avoid hurried or careless motions.

Handle components and cards with care. Do not touch the unshielded components or contacts

on a card. Hold a card by its edges. Hold a component such as a processor by its edges, never by

its pins.

To avoid electrostatic discharge, ground yourself periodically by touching an unpainted metal

surface (such as a connector or screw on the back of this computer) or by using a wrist

grounding strap.

Before you connect a cable, ensure that both connectors are correctly aligned and oriented.

Bent pins can be difficult to fix and may require replacement of the entire connector.

This manual is not designed to cover CPU, RAM, or expansion card installation. Please consult

your motherboard manual for specific mounting instructions and troubleshooting. Before

proceeding, check the manual for your CPU cooler to find out if there are steps you must take

before installing the motherboard.

Do not sit on your chassis. Although it is constructed of heavy-duty steel and internally

reinforced, it is not designed to support the weight of an adult, and may buckle.

Remember to use the right tools for each task. Do not use improvised screwdrivers like coins,

nails or knife blades as they may result in damage to screw threads or even injury. Do not use

your fingernails to separate edges or lift the sides of the chassis, as paint chipping or injury may

occur.

Section 2

Hardware Installation

P100 User Manual

2.1 Setting Up

Put the case upright on a flat, stable surface so that the rear panel

(power supply and expansion slots) is facing you.

To remove the left and right side panels, remove these

thumbscrews first.

Note: Place the panel thumbscrews aside carefully and remember

where they are.

Remove the panel by gripping the end of the panel

at the top & bottom and swinging the panel outward.

Do not pull the panel back toward the rear of the chassis.

CAUTION: Do not use your fingernails to pry or lift the panels. Damage to the panels or

injury to your fingernails may result.

2.2 Motherboard Installation

Before proceeding:

Check the manual for your CPU cooler to find out if there are steps you must do before installing the

motherboard.

Make sure you have the correct I/O panel for your motherboard. If the panel provided with the chassis

isn’t suitable, please contact your motherboard manufacturer for the correct I/O panel.

Make sure you have the correct I/O panel.

Remove the panel by the end of the panel at the top & bottom and

swing the panel outward.

The P100 comes with six preinstalled motherboard standoffs. These are positioned for Standard ATX

motherboards but can be relocated to accommodate other form factors.

1. Align the motherboard with the standoff holes

on the motherboard tray and remember or mark

which holes are lined up

2. Install standoffs as needed and put the

motherboard in.

3. Screw your motherboard into the standoffs with the provided motherboard mounting screws.

Install the motherboard standoffs by aligning the motherboard with

the standoff holes.

CAUTION

Make sure to remove any unused motherboard standoffs. They

may come into contact with the back of the motherboard and may

electrify your chassis exterior if left connected.

Use the provided motherboard mounting screws to secure your

motherboard into the standoffs.
