TECHNICAL NOTE

MD8470A

Signalling Tester

Application Test

ANRITSU CORPORATION

CONFIDENTIAL 1

The contents of this manual shall not be disclosed in any way or

reproduced in any media without the express written permission of

Anritsu Corporation.

Slide 1

MD8470A-E-E-1

Detailed Explanations

for Each Application

Slide 2

MD8470A-E-E-1

Contents

Part 1: Packet Communication

(HTML and WAP)

Part 2: Video Streaming

Part 3: Video Telephony

Part 4: SMS

Part 5: MMS

Part 6: DRM

Slide 3

MD8470A-E-E-1

Part 1: Packet Communication

(HTTP and WAP)

Slide 4

MD8470A-E-E-1

Packet Communication (HTTP)

HTTP : Hypertext Transfer Protocol

TCP : Transmission Control Protocol

UDP : User Datagram Protocol

IP : Internet Protocol

L2 (W-CDMA) : MAC / RLC

MAC : Media Access Control

RLC : Radio Link Control

L2 (GSM/GPRS) : DL /

DL : Data Link

L1 (W / G) : PHY(Physical Layer)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Stack

Slide 5

MD8470A-E-E-1

MD8470A

Control SW or

WNS DNS IIS Contents

PC inside of MD8470A

Port ‘A’ or Port ‘B’ Port ‘0’

File path(default contents)

can be defined in the IIS

MD8470A

DNS supports the conversion between a domain name

and an IP address.

(Ex : vodafone.com <--> 192.168.1.2 )

9DNS (Domain Name System)

All these parts are available in an

external PC

9IIS (Internet Information Server)

IIS supports the Web server function that sends the

contents and the default contents (default web site).

Packet Communication (HTTP)

Slide 6

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

PDP Activation (Wireless Protocol)

ARP Request(IP)

ARP Reply(IP)

Connection Request(TCP)

Protocol Sequence

Connection Ack & Request(TCP)

Connection Ack(TCP)

Get(HTTP)

OK(Response : HTTP)

Ack(TCP)

Disconnect(TCP)

PDP De-activation (Wireless Protocol)

Slide 7

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(ARP Request)

*1 : MS(IP : 192.168.1.1) searches the MAC address

of the Server(IP : 192.168.1.2)

Slide 8

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(ARP Reply)

*1 : Server (IP : 192.168.1.2) replies the MAC

address to MS(IP : 192.168.1.1)

Slide 9

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(Connection Req.)

*1 : data from ‘6616(port number of MS)’ to ’80(http

port number of the Server)’

*2 : connection request from MS to server

*1,2

Slide 10

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(Conn.Ack & Req.)

*1 : data from ’80(http port number of the Server)’ to

‘6616(port number of MS)’

*2 : Ack of ‘connection request’ and connection

request from server to MS.

*1,2

Slide 11

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(Connection Ack)

*1 : data from ‘6616(port number of MS)’ to ’80(http

port number of the Server)’

*2 : Ack of ‘connection request’

*1,2

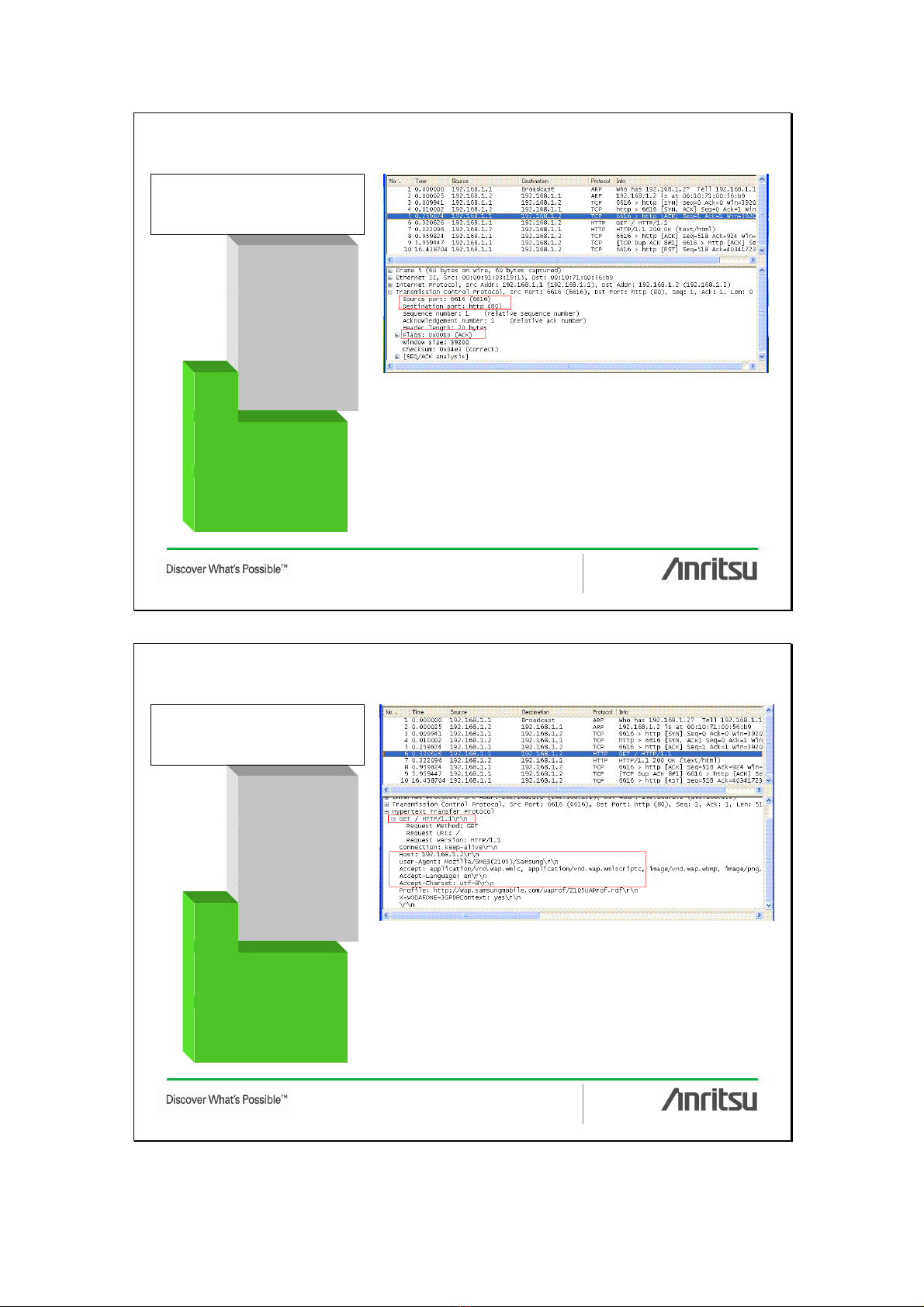

Slide 12

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(HTTP Get)

*1 : request the html contents. ‘ / ‘ means the relative

path. Only ‘ / ‘ case is root contents of the server.

*2 : Host : Server IP address

Application : supported MIME type

Language : en (English)

Charaset : utf-8(one of the common unicode)

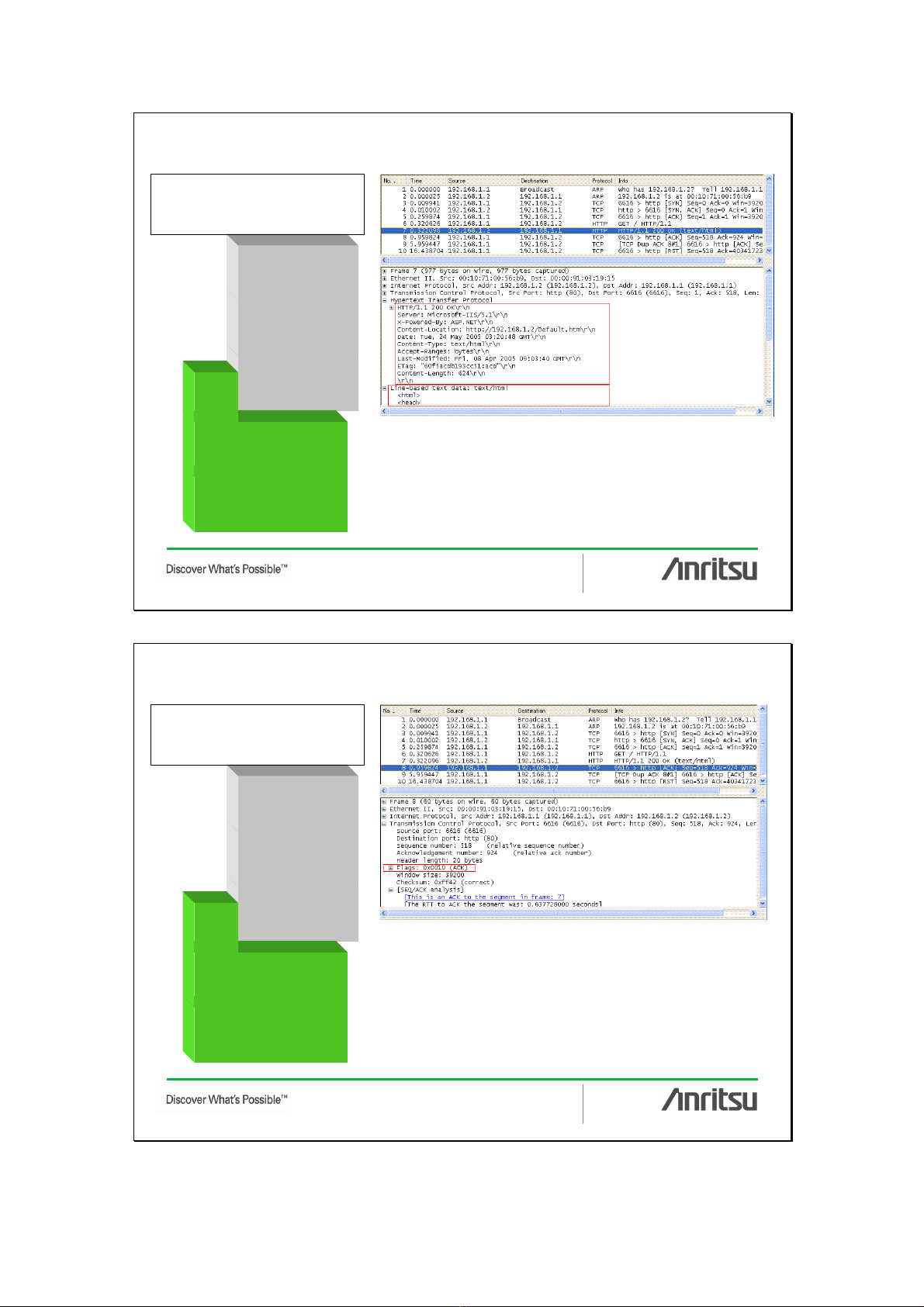

Slide 13

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(HTTP Response)

*1 : ‘Http/1.1 200 OK’ means ‘success of downloading’

‘Content-Location’ : path of the content

‘Content-Type’ : MIME type of the content

‘Content-Length’ : Length of the content

*2 : HTML content data itself

Slide 14

MD8470A-E-E-1

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(TCP Ack)

*1 : TCP level acknowledge of previous HTTP

content access

Slide 15

MD8470A-E-E-1

*1 : Disconnect request

Packet Communication (HTTP)

TCP / UDP

HTTP

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Sequence

(TCP Disconnect)

Slide 16

MD8470A-E-E-1

Packet Communication (WAP)

WSP : Wireless Session Protocol

WTP : Wireless Transaction Protocol

WDP : Wireless Datagram Protocol

IP : Internet Protocol

L2(W-CDMA) : MAC / RLC

MAC : Media Access Control

RLC : Radio Link Control

L2(GSM/GPRS) : DL /

DL : Data Link

L1(W / G) : PHY(Physical Layer)

L1(Wireless Protocol)

L2(Wireless Protocol)

Protocol Stack

WDP

WTP

WSP
