ANK Kit1 300B Mode d’emploi
ANKITS the authority in high end
audio kits
Kit1 300B
2014 Edition & Kit1-10 C-Core
Single Ended Monoblock Power/Pre Amplifier 8.5W 300B
Construction Manual & User Guide
Version: September 2014
1
1. Mechanical Preparation
Here is the latest version of the Kit1 300B Single Ended Chassis – It is made of 3mm
aluminum which has been powder coated black – the chassis is ultra sturdy and
aluminum is an ideal material for audio – If you ever need to drill the chassis – its easy
to drill through!
Here you can see the underside of the chassis – and this is the position you will be
working on the kit most of the time!
2
Grommet Installation : Install the 5 smaller grommets in the 5 holes that are ½” wide
Install the three larger grommets into the 3 larger holes :
3

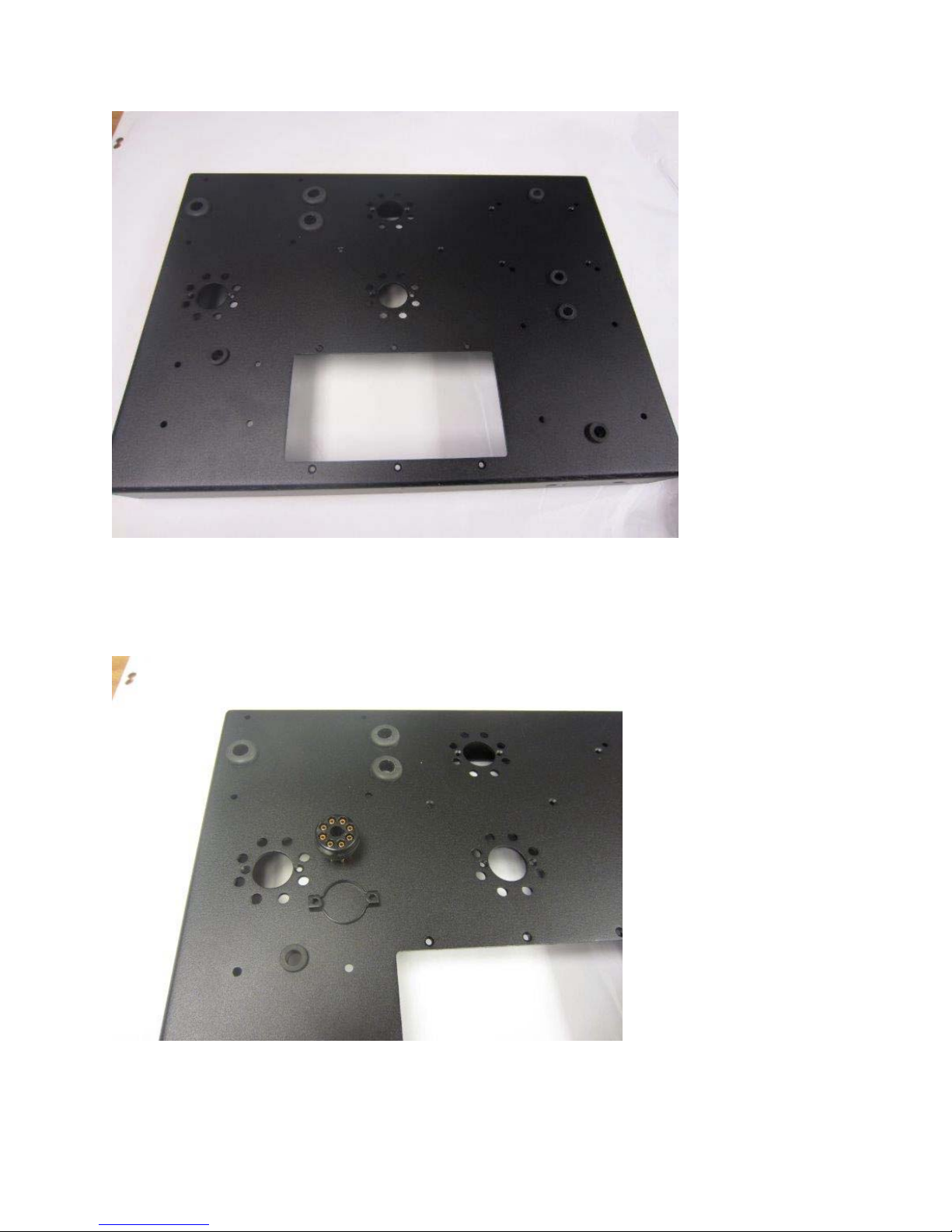

8 grommets installed correctly in chassis!
Lets install the 8 pin rectifier valve base – Find the KEY between pins 1 & 8 and make
sure this points to the center of chassis – Feed the valve base in from under the chassis
and secure with the mounting bracket and 2 black M3 10mm countersunk screws!
4
Note the orientation of the KEY on the 8 pin valve base ! Well done 8 pin base installed!
---------------------------------------------------------------------------------------------------------------------
-
Now lets install the 4 Pin valve bases in the center of the chassis – READ CAREFULLY
BELOW before you start
IMPORTANT: Note that each 4 pin valve base has two small holes and 2 larger
holes – the larger holes are for the FILAMENT Pins – make sure these are on the
OUTSIDE !!!!!
FILAMENT PINS
5

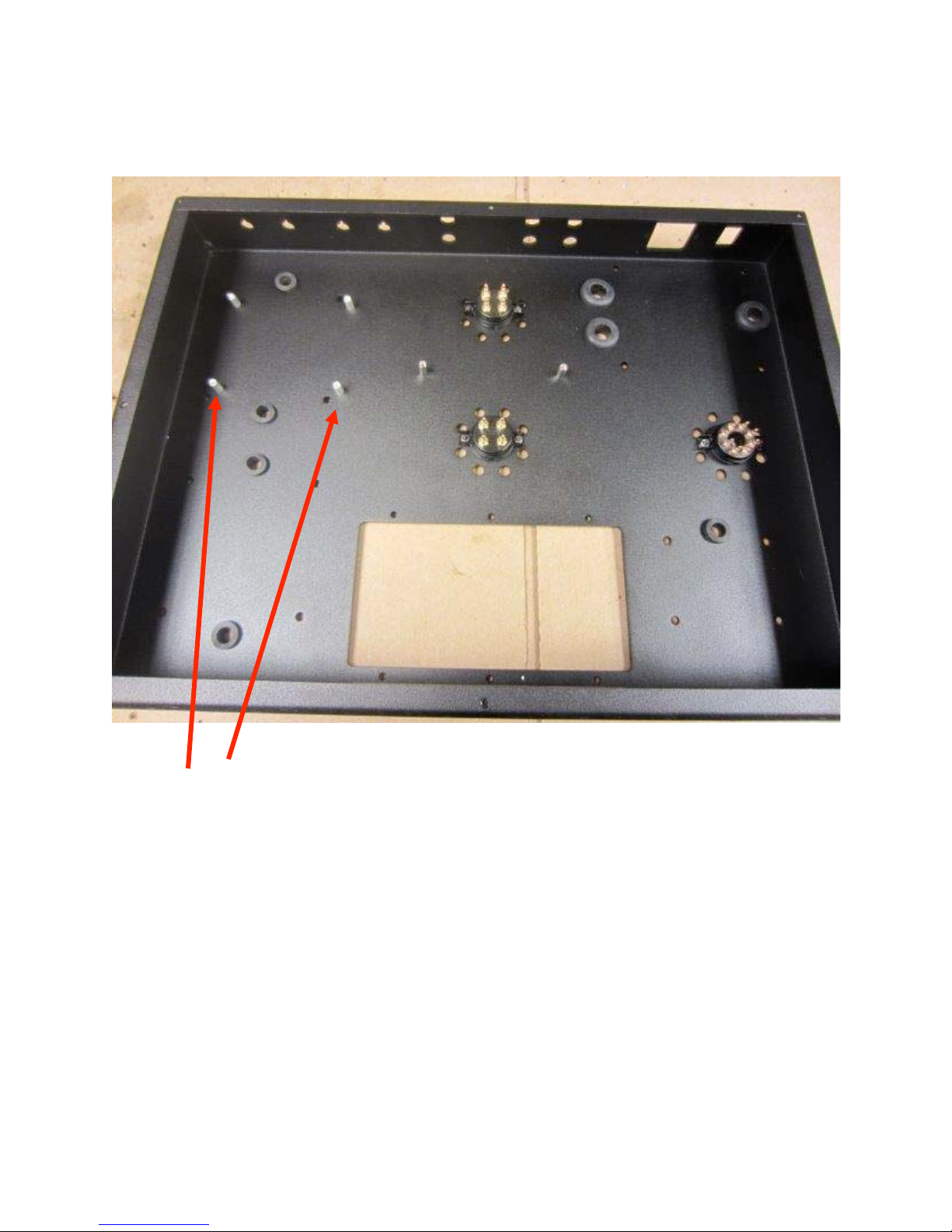

The next step after the valve bases have been installed is to install the two 10mm hex
standoffs in the center of the underside of the chassis as shown in the above pic – this
is the mounting for the tag strip that we will install later for all the hardwiring! Use the 2
x M3 10mm hex standoffs and 2 M3 6mm countersunk screws that screw in from the
top side of the chassis!
6
Filament stand offs and tag strips stand offs
Now install the 4 - 10mm hex standoffs in the position as shown above and secure
with the 6mm M3 countersunk screws – from the top of the chassis !
7
TANG STRIPS
Next task is to install the TANG strips – these strips are used to support the Front insert
plate
The two tang strips will require just 3 M3 x 10mm black countersunk screws and 3 M3
nuts to secure into position ! Position the TANG strip in the chassis as shown in the
next picture and then secure one of the 3 holes from the chassis with the tang strip –
see next photo(s)
8
Position the Insert plate in the chassis as shown with the PEMS faced up ( see below)
Used Black M3 CounterSunk screws and an M3 Nut to secure – but a good tip – DO
Not tighten them – keep them loose so they have some play – only tighten once the
insert plate is installed later on in the build!
9
Tang strips installed!
----------------------------------------------------------------------
