Angenieux OPTIMO ULTRA COMPACT Manuel utilisateur

User manual

OPTIMO ULTRA

COMPACT

User manual V1.1

Ref : 66070209AA

THALES LAS FRANCE ANGÉNIEUX division. Photos and drawings are not contractually binding. The data is given for information.

THALES LAS FRANCE ANGÉNIEUX division reserves the right to change the performances of its products without notice.

This document is the full and sole property of THALES LAS FRANCE ANGÉNIEUX division. Any reproduction, rights of reproduction,

translation, modification, publication on material or digital medium in whole or in part of the document, is strictly forbidden.

Before using the product described in this manual, be sure to read and understand all respective instructions. This instruction manual

applies to Optimo Ultra Compact lens.

Miscellaneous

Congratulations on the purchase of Angénieux Optimo Ultra Compact. The Optimo Ultra Compact provides full frame 46.3mm image

circle coverage with a minimum 2.9 T-stop and have identical colorimetry than the legacy Optimo zooms, and Optimo Primes.

Available with PL mount, it is the perfect companion for your digital camera.

Optimo Ultra compact has support Cooke/i and is ARRI LDS2 ready.

This user manual describes the different configurations and uses of your lens. If you need additional information, don’t hesitate to

service and support page: https://www.angenieux.com/service-and-support/.

Foreword

0 - Safety information............................................................................................................................................2

1 - What’s in the box? ...........................................................................................................................................2

2 –Technical information......................................................................................................................................2

3 - General view and installation ...........................................................................................................................2

4 - Spare parts and optional accessories ..............................................................................................................2

5 - Electronics specifications.................................................................................................................................2

6 - Ajustements.....................................................................................................................................................2

7 - Maintenance recommendations.......................................................................................................................2

8 - Outline drawings..............................................................................................................................................2

9 –Engraving distances detail ..............................................................................................................................2

Contents

CAUTION

Always follow these guidelines to ensure against injury to yourself or others and damage to the system or other objects.

This safety information comes in addition to the product specific operating instructions in general and must be strictly observed

for safety reasons.

Read and understand all safety and operating instructions before you operate or install the lens.

Do not use accessories or attachments that are not recommended by Angénieux, as they may cause hazards and invalidate

the warranty.

Do not attempt to repair any part of the system. Repairs must only be carried out by authorized Angénieux Service Centers.

WARNINGS

Handle any lens with care.

Do not expose lens to water or moisture.

Do not subject the lens to severe shocks.

Never insert objects of any kind into any part of the lens if these are not clearly qualified for the task in the manual.

Do not remove any paint marked screws.

Changing camera lenses should be done in a dry and dust-free environment. If this is not possible, take extra care that no dust

enters the camera while the lens is off.

Keep the protective caps on the lens when not set on camera or not in operation.

Follow the cleaning instructions in this manual to avoid damage of the lens.

Do not look at high intensity light directly through any lens.

0 - Safety information

STORAGE CONDITIONS

Store any lens in a dry place where the temperature does not exceed –40°C and +70°C (- 40°F and + 158°F).

Do not store the lens in places where it may be subject to extreme temperatures, direct sunlight, high humidity, severe vibration,

or strong magnetic fields.

Condensation: When moving the lens from a cold to a warm location or when the lens is used in a damp environment,

condensation may appear on glass surfaces and on internal or external electrical connections. Operating the lenses while

condensation is present may result in damage to the equipment. Condensation on the optical components may have a visible

effect on the output images. To prevent condensation, store the lens in a dry area. If the lens is in a humid area, dry it and

store it a plastic bag with desiccant before using it. After moving the lens from cold to warm and humid environment, wait for

some time for the lens to warm up to the ambient temperature to avoid condensation.

TEMPERATURE OF OPERATION

Any lens is designed to be used between - 20°C and + 45°C (- 4°F and + 113°F).

The opto-mechanical design is passively athermalized. It allows Optimo Ultra Compact to prevent from a back focus shift with

temperature changes.

RECYCLING AND ENVIRONMENT

Follow the guidance sets up by your local authority for recycling the Optimo Ultra Compact.

0 - Safety information

1 - What’s in the box?

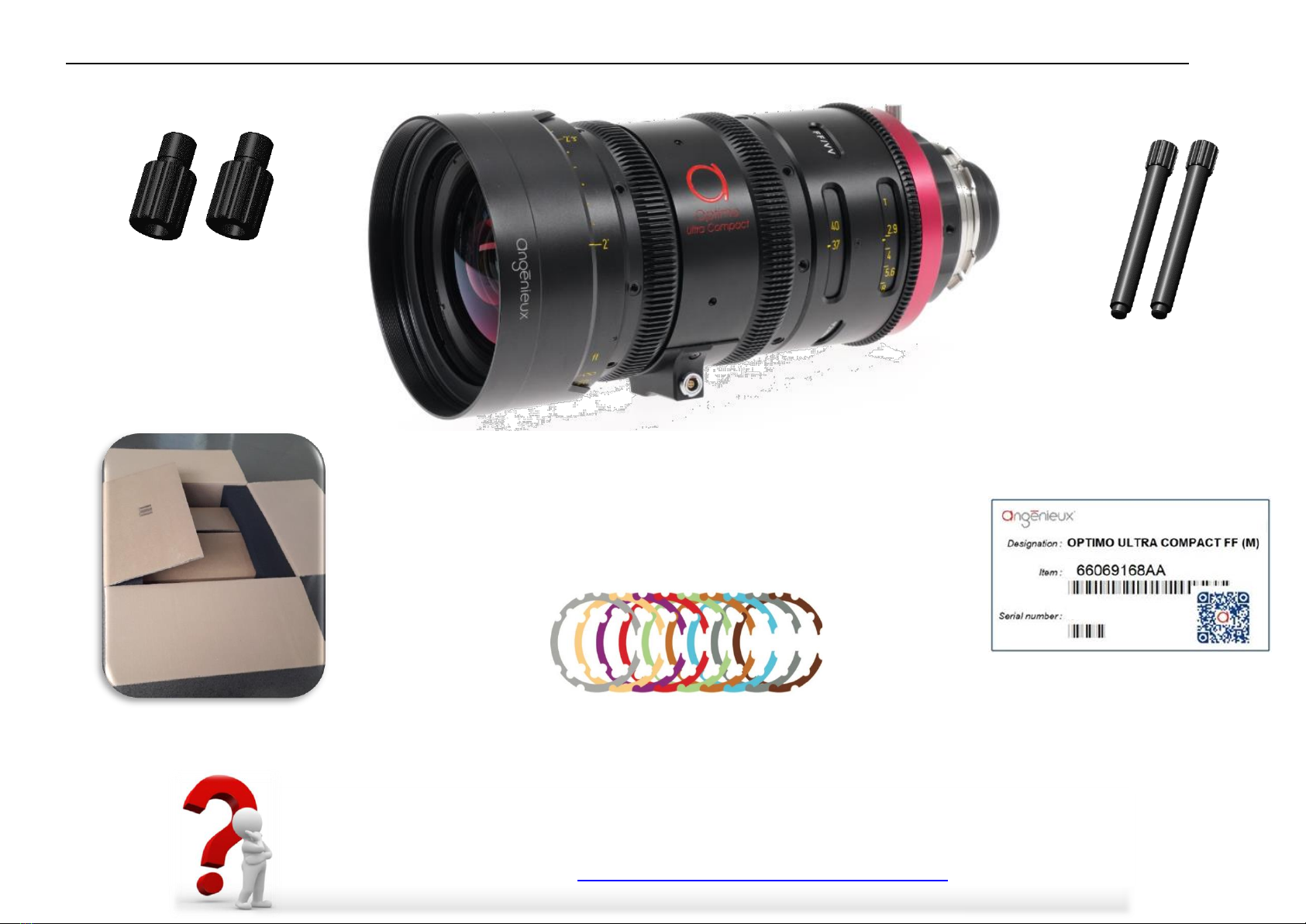

In case you require any assistance or noticed a missing or broken item please

contact our service team at: angenieux[email protected]sgroup.com

Set of 9x color shims for back focus

adjustment (see section 6)

Optimo Ultra Compact

Box

Levers x2

Intermediate lens

brackets x2

Product information and

QR code link to access

to the user manual

21XXXXX

ANGENIEUX OPTIMO ULTRA COMPACT

CONFIGURATION

FF/VV

Zoom ratio

2,7x

Focale Length (mm)

37-102

Maximum aperture

T2.9

Minimum Object Distance (ft)/(m)

2' / 0,6m

Image coverage (mm)

46,3

Weight (kg / lbs)

2,6 / 5,73

Front diameter (mm)

114

Max diameter (mm)

114

Length (front to mount) (mm)

235mm = 9 1/4 in

Mounts

Internal focus

Yes

Iris scales 2 opposite scales

2 opposite scales

Angular rotation of iris ring (°)

71,4°

Iris gear drive

126 teeth, pitch 32

Zoom scales

2 opposite scales

Angular rotation of zoom ring (°)

150°

Zoom gear drive

126 teeth, pitch 32

Focus scales

2 opposite scales, metric

or footage marked

Angular rotation of focus ring (°)

310°

Focus gear drive

126 teeth, pitch 32

Angular Field of View (for Full-Frame :40.96x21.6mm)

Focal Length

37mm / 102mm

Horizontal angular field of view

57.3° / 22.7°

Object dimensions at MOD (mm)

449 x 237 / 159 x 84

2 –Technical information

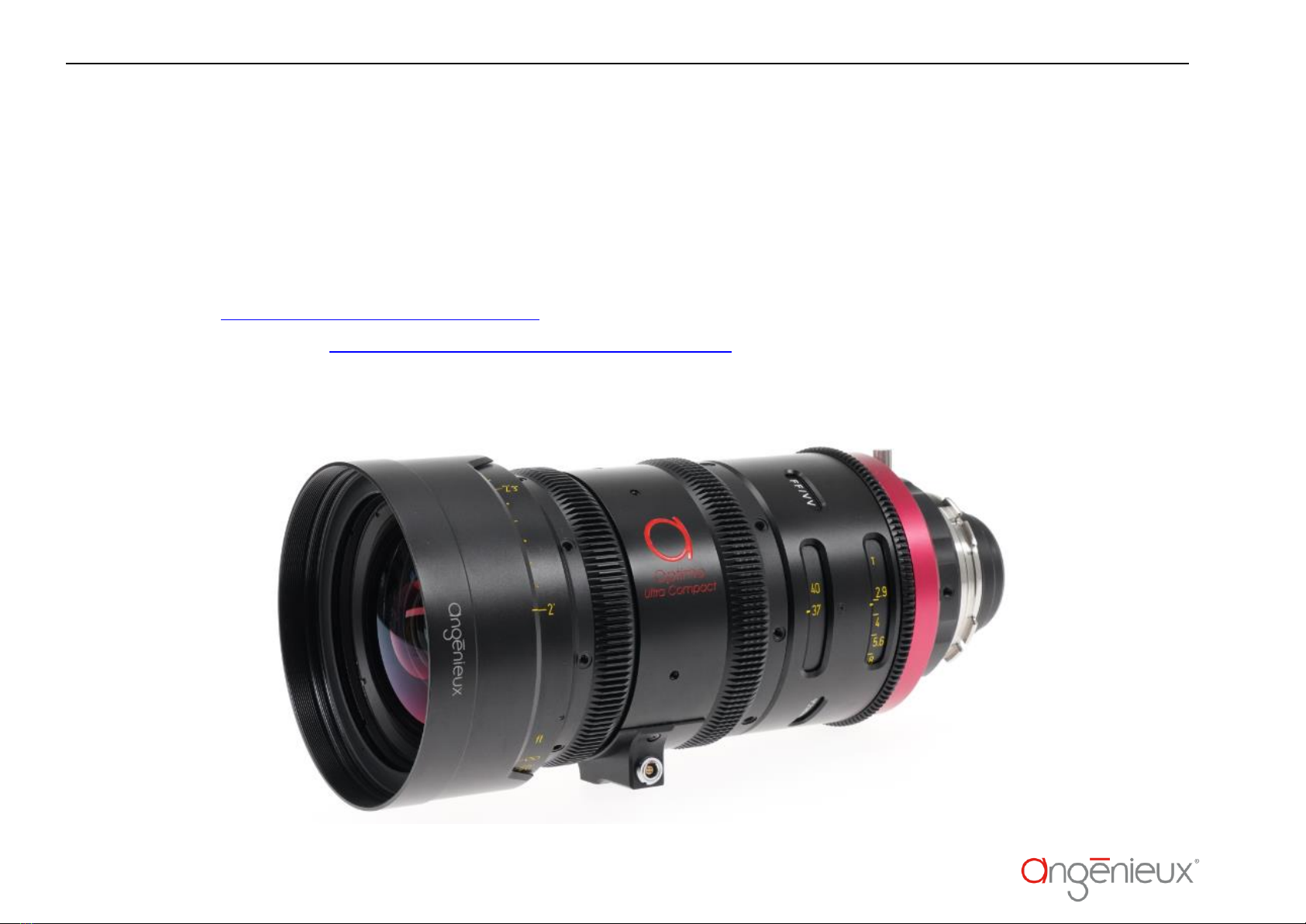

0 - Front cap

1 - Front protective glass

2 - Front element

4 - Front brand ring

5 - Engraved focus ring

Swappable feet ◄►meter

(see more in section 7)

Available in option

6 - Focus gear ring

7 - Lens support

8 - LEMO connector

9 - Focus ring screws (x3)

10 - Middle brand ring

3 - Front cover

12 - Connector for metadata

16 - Engraved zoom gear ring

18 - Zoom & iris index ring

15 –engraved iris gear ring

17 - Deco red ring

14 - PL mount

11 - Rear cap

13 - Rear Filter Sub assembly

For a standard installation on camera please proceed as below:

- Remove the rear cap (11) and make sure the rear filter (13) is clean. If not, please refer to maintenance (section 7)

- Make sure the Optimo Ultra Compact PL mount (14) and camera mount are perfectly clean

- Mount the Optimo Ultra Compact on the camera mount with electronic pins (12) in the correct orientation. Lock the camera

mount

- Remove the front cap (0) and make sure the front element (2) is clean. If not, please refer to maintenance (section 7)

- While using motors, to prevent damaging the lens mechanisms make sure the motors are calibrated properly before operating

them

3 - General view and installation

In case you need additional spare parts, please contact your local reseller or our service team at:angenieuxserv[email protected].

SPARE PARTS

(0) - Front cap

0311819

(2) - Front element

To be defined

(3) –Front cover

66068379AA

(4) - Front brand ring

66069059AA

(5) - Engraved focus ring

To be defined

(6) - Focus gear ring

66066724AA

(7) - Lens support / (8) - LEMO connector

66066730AA / 0319314

(9) - Focus ring screws (x3)

0990297

(10) - Middle brand ring

66069060AA

(11) - Rear cap

0311816

(12) - Connector for metadata

66066447AA

(13) - Rear Filter

66066659AA

(14) - PL mount

66066785AA

(15) - Iris gear ring

66069632BA

(16) - Engraved zoom gear ring

66066723BA

(17) - Deco red ring

66066352AA

(18) - Zoom & iris index ring

66066722AA

Flange shim set of 9 shims (see size detail in section 6)

0321060

Screws for lens support including LEMO connector holder (x2 with thread lock)

0982467

Screws for camera interface metadata connector (x2)

0913327

Screw for middle brand ring (x1)

0984957

Screws for front brand ring (x3)

0982397

Screw for zoom and iris index ring (x3)

0984957

Screws for engraved focus ring (x3)

0990297

ADDITIONAL ACCESSORIES COMPATIBLE

Lemo to USB cable for computer electronic settings

66068093AA

Electronic setting software to be downloaded

https://www.angenieux.com/service-and-support/

(1) - Front protective glass

66069167AA

Additional feet / meter focus ring (swapping procedure section 6)

Feet: 66066725BA / Meter: 66066725CA

4 - Spare parts and optional accessories
