Please read the manual fully before using the appliance and keep the
manual safe for future reference.
Electric Leaf Blower and Vacuum
2
Standard Safety Instrucons Page 3—4
Specic Safety Instrucons Page 4—5
Warning Symbols Page 6
Technical Data Page 7
Appliance Components Diagram Page 8
Preparing the blower vac prior to use Pages 9—12
Operang the blower vac Page 13 –14
Emptying the bag Page 15
Helpful hints and ps Page 15
Trouble shoong Page 16
Maintenance and storage Page 17
Disposal Page 18
Electrical Supply Informaon Page 18—19
UK and EU Guarantee Page 20
Contact details Page 21
Contents Page
3
General Safety Instrucons
When using any electrical power tool, basic safety precauons should always be
followed including:
Always ensure the voltage on the rang label corresponds to the voltage in
your home.
Check the power cord and plug regularly for any damage. If the cord or the
plug is damaged, it must be replaced by a qualied electrician or a service
repair centre. If in doubt please contact our customer service team.
The power tool is intended for domesc use only. Industrial or commercial
use will void the warranty. The supplier cannot be held responsible for injury
or damage if the power tool has been used for anything other than its
intended use.
Incorrect operaon and use can damage the power tool and cause injury to
the user.
Do not use the appliance if it has been dropped or damaged in anyway. If the
unit has been damaged take the unit for examinaon and or repair by an
authorised service agent.
Do not immerse or expose the motor assembly, plug or the power cord in
water or any other liquid for any reason.
If the supply cord is damaged, it must be replaced by the manufacturer or by
someone who is suitably qualied to avoid a potenal hazard.
If it is necessary to use an extension cord, ensure that the extension cord is
equal to or greater than the power consumpon of the appliance to avoid
overheang of the appliance and the extension cord. Do not use any other
power tool or appliance on the extension cord. Do not place the extension
cord in a posion where it can be pulled on by children or animals or be
tripped over. Ensure the extension cord is suitable for outdoor use.
Always remove the plug of the power tool safely. Do not pull on the power
tool cord to remove the plug from the electrical socket.
Never handle or operate the power tool with wet hands.
4
Specic Safety Instrucons
Work Area
Keep the work area clean and well lit.
Do not operate power tools in explosive atmospheres, such as in the
presence of ammable liquids, gases, or dust.
Keep children and bystanders away whilst operang a power tool.
Electrical Safety
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock.
Do not expose power tools to rain or wet condions. Water entering the
power tool will increase the risk of electric shock.
Personal Safety
Use safety equipment. Always wear eye protecon.
Avoid accidental starng. Ensure the switch is in the o posion before
plugging in.
Remove any adjusng key or wrench before turning the appliance on as a
wrench or key aached to a rotang part can cause injury.
Do not wear loose clothing or jewellery. Keep long hair, gloves and clothing
away from moving parts.
5
Power tool use and care
Do not force the power tool. Use the correct power tool for the job you are
doing.
Do not use a power tool if the switch cannot turn it on or o.
Disconnect the plug from the power source before making any adjustments,
changing accessories or storing power tools. Disconnect if the appliance is
le unaended, being cleaned, being moved from one place to another or
when the extension cord has become entangled.
Store power tools out of the reach of children.
Maintain power tools. Check the condion of the power tool prior to
operaon. If damaged have the power tool serviced by a qualied
electrician.
Use the power tool, accessories and tool bits etc., in accordance with these
instrucons and in the manner intended for the parcular type of power tool
(taking into account the working condions and the work to be performed).
Do not start the tool when it is upside down or when it is not in the
operang posion.
Do not allow the blower vacuum to pick up any smouldering or burning
materials like ashes, cigaree bus etc.
Do not aempt to pick up breakable objects like china, plascs, glass.
Do not use the vacuum without the collecon bag being ed.
Do not use the blower or vacuum funcons on gravel surfaces.
Only operate the power tool when there is adequate lighng.
6
Warning Symbols
Symbol
WARNING!
This warning symbol is displayed on the garden vacuum to remind you of the
safety precauons you should take whilst using it.
WARNING!
The garden vacuum should only be used by those persons who have read
and understood all the safety and operang instrucons contained in the
Instrucon Manual. Be aware of the safety of all persons in the work area at
all mes.
WARNING!
Switch the garden vacuum o and disconnect it from the mains supply
before making adjustments, cleaning blockages, or starng any cleaning and
maintenance procedures.
WARNING!
Keep other people out of the danger area!
WARNING!
Do not use the vacuum in the rain. Avoid damp condions.
WARNING!
When using this garden vacuum, always wear protecve glasses and ear
protectors.
WARNING!
Read this safety and operang instrucons in this booklet and keep it in a
safe place for future reference.
WARNING!
Dangerous feed orice. Keep hands and feet out of the openings while the
machine is running.
WARNING!
Rotang fans. Keep hands and feet out of the openings while the machine is
running.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste.
Please recycle where facilies exist. Check with your local authority for
recycling advice.
7
Technical Data
Voltage 240 V
Frequency 50Hz
Input power 2500 W
Insulaon Class ll
Maximum air speed 270 km/h
Idle speed 14000r/min
Net weight 3.4kg
Mulching rao 10:1
Sound pressure level; LPA 95dB (A), KpA:3.0 dB (A)
Sound power level; LWA 107dB(A)
Vibraon 4.95m/s2
8
Components Diagram
1. Shoulder harness 8. Collecon bag
2. Trigger 9. Hook for collecon bag
3. Strap 10. Wheel assemble
4. Power cord and plug 11. Blower head
5. Label sck locaon 12. Front tube
6. Selecon knob 13. Middle tube
7. Collecon bag connector
9
Preparing the Leaf blower prior to use
The leaf blower vacuum requires some assembly prior to rst me use. This
includes the ng of the blow/vac tube to the housing, the ng of the collecon
bag and the ng of the wheel.
Assembly of the tubes (Fig. A)
1. Insert the middle tube (13) into the front tube (12) aligning the screw hole in
the middle tube.
2. Place a screw in the screw hole on the middle tube and ghten with a
screwdriver unl secure.
Assembly of the wheel bracket
1. Insert the wheel bracket from the lower end tube unl it reaches the rib and
cannot move any further.
2. Place a clutch screw into the screw hole on the wheel bracket. This can be
ghtened using a normal 5mm at head screw driver.
3. Tighten the screw rmly.
Screw
Driver
10

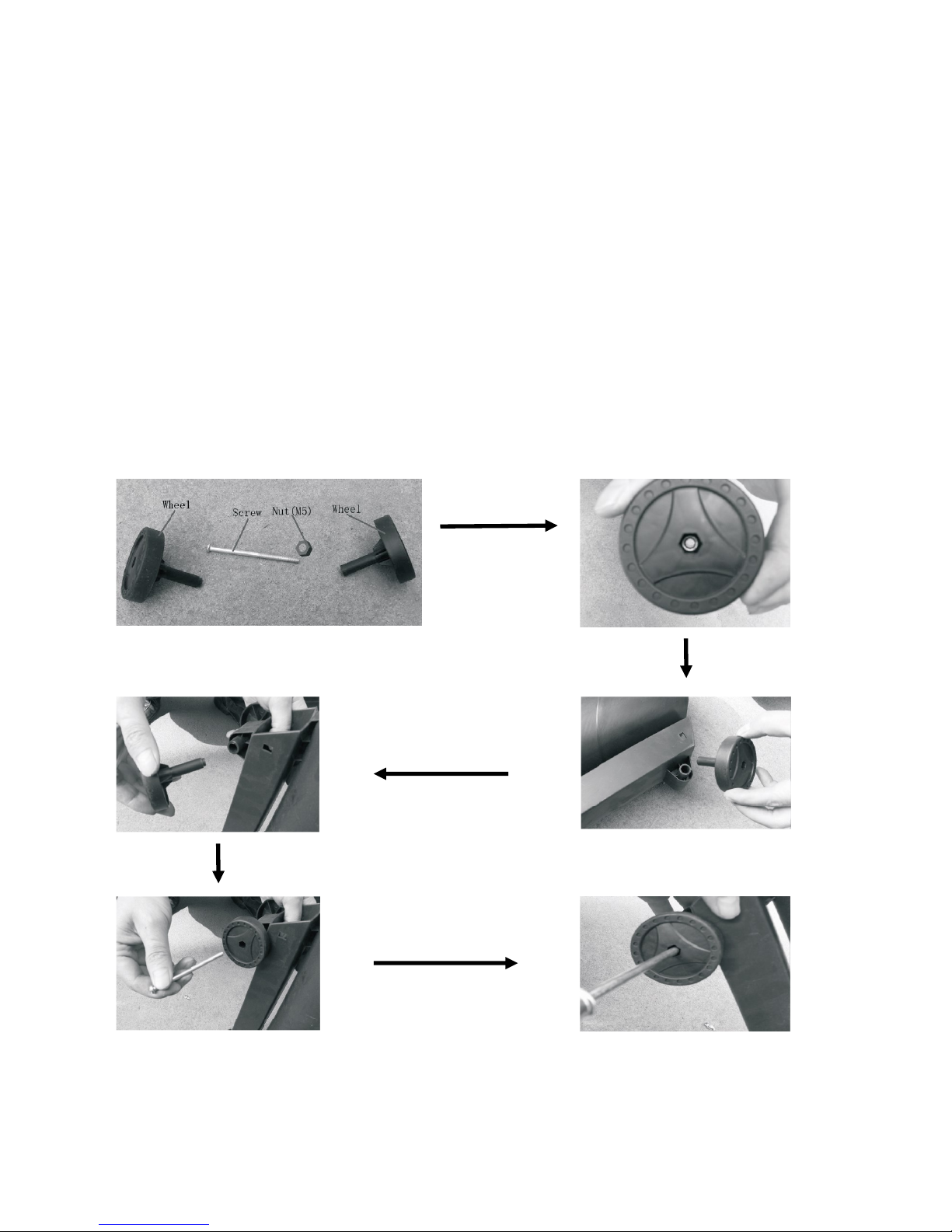

Assembly of the wheels (Fig. B)
1. Put the nut into the hexagon shaped hole on the wheel.
2. Insert the wheel axes into the front tube.
3. Insert the other wheel axes into the second side of the front tube.
4. Place the screw into the screw hole on the wheel and ghten rmly.
5. Insert the wheel bracket from the end of the lower tube unl it reaches the
rib posion and cannot move any further.
6. Place a screw in the screw hole on the wheel bracket and ghten rmly.
