Andamiro Joy-Ro Manuel utilisateur
Precautions for use
people's injuries and property damages.
• The following suggestions show the degree of danger and damage caused
• The following graphic suggestions describe the types of precautions to be followed.
The following safety precautions are given throughout this manual. They must
be strictly followed to protect those who install, use or maintain this product as
well as to prevent other
Be sure to read the following
WARNING
WARNING
Indicates a situation where disregarding the suggestions could result in death or serious injury.
CAUTION
CAUTION
Indicates a situation where disregarding the suggestions could result in injury or product damage.
Indicates a matter which should be performed without fail.
Indicates a matter which is forbidden.
In this instruction manual, some procedures require a qualified in-shop maintenance person or
industry specialist. For such instructions, a qualified person must take care of the jobs.
• Otherwise an electric shock, machine trouble, or a serious accident may result.
• Replacing the machine parts, inspecting and maintaining the machines, and troubleshooting must be
assigned only to a qualified in-shop maintenance person or industry specialist. This booklet gives
instructions that hazardous jobs in particular must be handled by an industry specialist. Qualified in-shop
maintenance persons and industry specialist are defined as follows.
Qualified in-shop maintenance persons
• A qualified in-shop maintenance person must have experience in maintaining amusement machines. Under
the supervision of an amusement machines shop owner or manager, he or she routinely assembles, installs,
inspects and maintains the amusement machines, or replaces their component units and consumable parts,
in the amusement machines workshop and/or location.
Jobs handled by qualified in-shop maintenance persons
•Assembling, installing, inspecting and maintaining amusement machines and replacing their component units
and consumable parts.
Industry specialist
•An industry specialist must be engaged in designing, manufacturing, inspecting and servicing amusement
machines. Or he or she must have an education in electrical, electronic and mechanical engineering, and
routinely maintain and repair amusement machines.
Jobs handled by industry specialist
•Assembling and installing amusement machines and repairing and adjusting their electrical, electronic and
mechanical component parts.
• The following graphic suggestions describe the types of precautions to be followed.
Indicates a matter of which care should be taken.
Be sure to consult your nearest dealer when
setting up, moving or transporting this product.
•This product should not be set up, moved or
transported by any one other than an industry
specialist. Doing so could result in injury or product
damage.
•When installing this product, set the 4 leg levelers
evenly on the floor and make sure that the product
is installed stably in a horizontal position. Unstable
installation may result in injury or accident.
•When installing this product, use caution not to
apply undue force to opening and closing parts and
other movable parts. Otherwise, injury and
accident may result, or the product may be
damaged.
This product is an indoor game machine. Never
set the game up outside.
•Setting this product up outside could result in
accidents or equipment failure.
Do not set the game up near emergency exits.
•Doing so could block exits in time of emergency
and could result in death or serious injury.
Do not set the game up.
•In a place exposed to rain or moisture.
•In a place exposed to direct sunlight.
•In a place exposed to direct heat from air-
conditioning and heating equipment, etc..
• Near hazardous flammable substance such as
thinner and kerosene.
•Otherwise an accident or malfunction may result.
Do not place containers holding chemicals or
water on or near the game machine.
•Electrical shock or damage could be caused by
water or foreign matter entering the inside of the
machine.
Do not place objects near the ventilating holes.
•Doing so could cause the internal temperature to
rise excessively, resulting in fire or equipment
failure.
Do not bend the power cord by force or place
heavy objects on it.
•Doing so could result in electrical shock or fire.
Never plug or unplug the power cord with wet
hands.
•Doing so could result in electrical shock or fire.
Never unplug the game by pulling the power
cord.
•Doing so could damage the cord, resulting in
electrical shock or fire.
Be sure to use indoor wiring for within the
specified voltage range. For extension cord,
use indoor wiring of the specified rating or
more.
• Failure to do so could result in fire or equipment
failure.
Be sure to use the attached power cord.
• Otherwise a fire or machine trouble may result.
Never plug more than one cord at a time in the
electrical receptacle.
• Doing so could result in fire or electrical shock.
Do not lay the power cord where people walk
through. You may trip on or stumble over the
cord.
• You may stumble down and get injured, or
damage the power cord.
Be sure to ground this product.
• Otherwise an electrical shock or machine
trouble may be caused.
Do not apply a strong force for moving the
machine.
• Otherwise, it may result in an accident or
breakage of the units.
Clearance of 100 mm (3.94in) or more should
be created between the game machine and
walls.
• Otherwise the machine (s) cannot be ventilated
well, resulting in malfunction.
Do not change the DIP switch setting of this
product to other than factory setting.
• Otherwise, the game can not be played
properly.
Setting Up
WARNING CAUTION
Inspection and cleaning / Moving and transportation
PERCAUTION IN HANDLING
• When setting up, inspecting. maintaining,
moving or transporting this product, follow
the procedures and instructions set forth in
this manual and perform such work safely.
• Do not set up, handle, inspect, maintain,
move or transport this product under
conditions equivalent to the condition of
"WARNING" or "CAUTION" specified in this
manual.
• If a new owner is to have this product as a
result of transfer, etc., be sure to give this
manual to the new owner.
Be sure to turn OFF the main power switch
and unplug the power cord from the
receptacle before inspecting or cleaning the
machine.
• Failure to do so could result in electrical shock.
When replacing parts, be sure to use parts of
the correct specifications. Never use parts
other than the specified ones.
• Using improper parts could result in fire or
equipment failure.
There is high voltage inside the machine.
Only qualified industry specialist is allowed to
open the machine's back door. With the back
door open, be very careful not to touch the
monitor and its nearby parts.
• Otherwise an accident or electric shock may
result. Never allow anyone else but
ANDAMIRO's service engineers to open the
upper door on the back of the machine.
If the sub power switch of the service panel is
turned OFF without turning OFF the main
power switch of the power supply unit, some
parts in the units remain live. When opening
the back door, be sure to turn OFF the main
power switch and unplug the power cord from
the receptacle.
• Otherwise, there may be danger an accident or
electric shock.
Strictly refrain from disassembly and repair of
parts which are not indicated in this manual,
as well as settings and remodeling.
• Otherwise, a fire, malfunction or trouble may
result. In case of any trouble, ask your nearest
dealer for repairs and other services.
ANDAMIRO will not resume any responsibility
for the damage to the product attributable to
disassembly and repair of parts which are not
indicated in this manual, as well as settings and
remodeling.
To clean the game machine, wipe it with a soft
cloth dampened in a neutral detergent.
• Using thinner of other organic solvent or alcohol
may decompose the material.
• Electrical shock or equipment failure could be
caused by water entering the inside of the
machine.
The game machine contains parts such as the
monitor, electronic components and precision
components which are sensitive to vibrations
and impacts, Great care therefore should be
taken when moving and transporting the
game machine.
Be sure not to let the machine tip over.
Before moving the machine, be sure to turn
OFF the main power switch, unplug the power
cord from the receptacle and remove the
power cord form the machine.
• Stepping on or tripping over the power cord may
result in an accident or damage to the machine.
Before moving the machine, be sure to fully
lift the four levelers and move it on the
casters.
• Otherwise, an accident, breakage or trouble
may result.
Do not apply a strong force for moving the
machine.
• Otherwise, it may result in an accident or
breakage of the units.
WARNING CAUTION
8
SPEAKER BILLBOARD PANEL
CRT(25”~29”)
FRONT CASE
BUTTON PANEL
MONITOR MASK
FRONT DOOR
MONEY BOX DOOR-DOWN
MONEY BOX DOOR-TOP
BACK CASE
SIDE COVER
1-1) NAME OF EACH PART
1. NAME OF EACH PART
10
STOP
POWER SUPPLY UNIT
GAME BOARD
COIN COUNTER
◎COIN COUNTER is located under the COIN BOX and counts number of coin to be
inputted.
2-3) COIN COUNTER & POWER SUPPLY UNIT
IMPORTANT
◎IfCOINCOUNTERandGAMEBOARDaredisconnectedelectrically,
gameoperationdoesnotfunction.
3. NOTICES IN TREATMENT
12
- When installing or checking machine, you must follow the following notices to
enable users to enjoy game safely.
◎Check the usage voltage, and then turn on the power button.
◎Do not insert or remove plug.
◎Do not use a non-standard fuse.
◎If GAME BOARD and other connection part are inserted completely, it is very risky. Please
check whether access is completed or not.
◎Temperature for operation must be maintained between 5℃and 40℃.
◎If you clean the surface of CRT, you can use smooth and dry cloth and cannot diluent,
which is diluted with chemicals such as benzene.
- This device is indoor game machine. Do not install and operate it outside.
In installation inside, you must avoid the following places.
◎If you install this product in the inclined or unstable place, it can cause damage or injury.
◎If you install this product in humid, dusty, water(rainwater)-spattered place, it can cause
electric shock and fire.
◎Do not place candle and cigarette on product, or install near heating engine.
◎Do not place very flammable chemicals or violently impactive things.
3-1) NOTICES IN TREATMENT
3-2) PRECAUTIONS IN TREATMENT
※For static electricity
◎When power supply is cut or off, you can feel turning on an little electric current in
touching monitor. But, this is resulted from staticc electricity and will not injure people.
14
WARNING
Acceptablemaximumcurrentofthismachineis10Awithoutlet.Youcan
connectupto6devices.Whenyouconnect7devicesormore,it
is prohibited strictly because the current is higher than 10A of the
designatedcurrent,itisvery
In transporting
machine, follow the
method as shown in
the right figure.
4-2) INSTALLATION
4-3) MACHINE
TRANSPORTATION
CASTER ROLLER
STOPPER
16
5-1) CRT SETTING ASS’Y
5. ASSEMBLY DIAGRAM AND PART LIST
M03009-006A
M14009-027A
M16001-006A
M16002-006A
M15001-006A
CRT SUPPORT PIN
SEMS
FLAT WASHER
SPRING WASHER
HEXAGON NUT
M10x52L
M6x16L
M8
M8
M8
SPEC Qty. CODE NO.PARTS NAMENO.
1
2
3
4
5
4
4
4
4
4
18
Assemble E on F and check whether CRT position D(MONITOR MASK part of FRONT CASE) and E is suitable.
If you change position of CRT, disassemble E in F, loosen flush BOLT of G, and adjust the position by moving F up
and down.
20

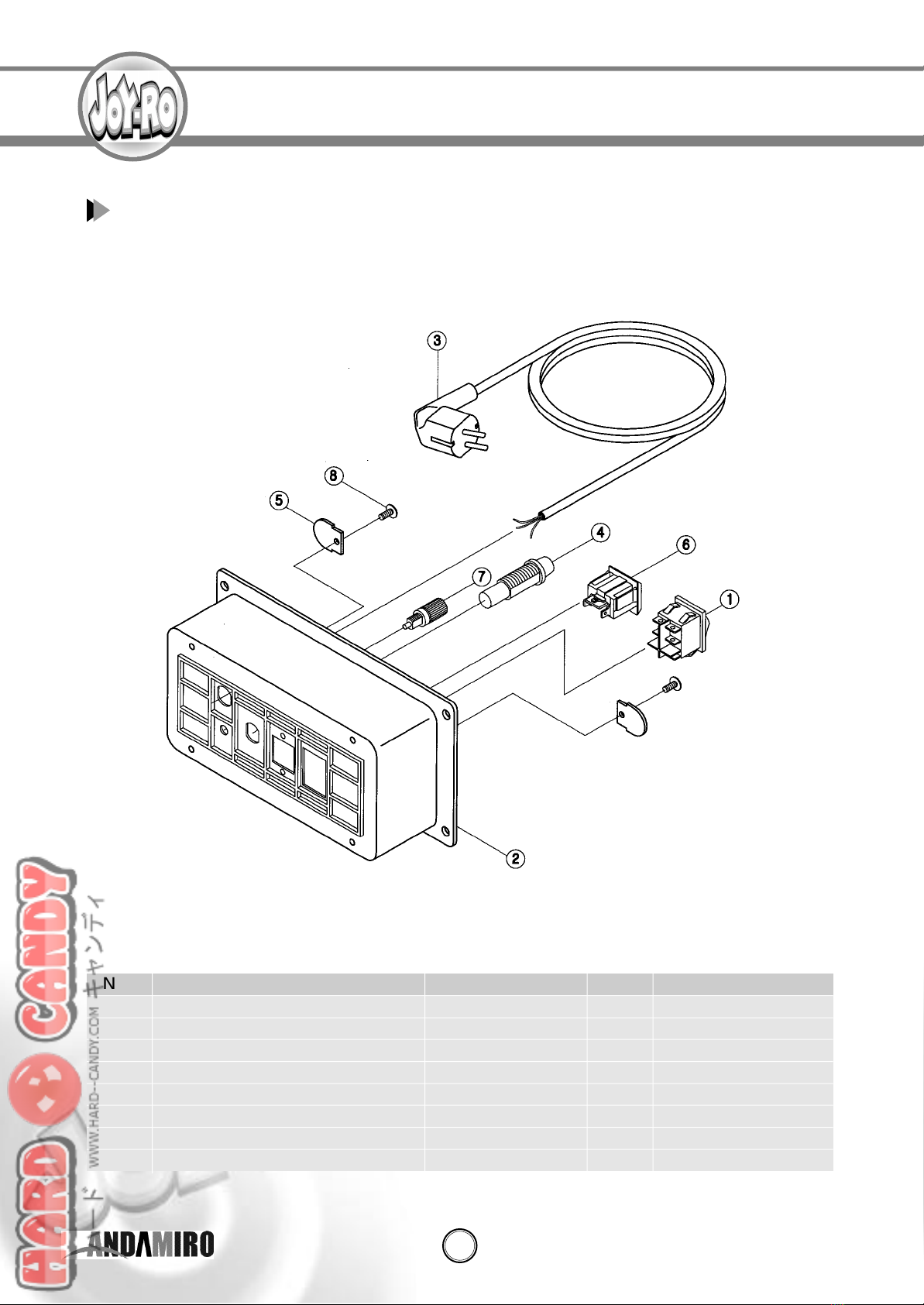

5-4) AC BOX ASS’Y
A04004-001A
C03009-026A
A01000-003A
A15004-001A
C03009-039A
A28000-001A
A29000-001A
M14010-032A
ROCKER SWITCH
AC BOX
AC POWER CORD
FUSE
AC CORD HANGER
AC RECEPTACLE
EARTH
FLUSH BOLT
T-120
250V-10A
5A
AC-011
M4×10L-2Types
SPEC Qty. CODE NO.PARTS NAMENO.
1
2
3
4
5
6
7
8
1
1
1
1
2
1
1
2
Table des matières
Autres manuels Andamiro Machine de jeu d'arcade
Andamiro
Andamiro Field Goal Manuel utilisateur
Andamiro
Andamiro OVER THE TOP Manuel utilisateur
Andamiro
Andamiro SHOOTING CHANCE Manuel utilisateur
Andamiro
Andamiro DRAGON PUNCH Manuel utilisateur
Andamiro
Andamiro HAMMER DX Manuel utilisateur
Andamiro
Andamiro Winners' Wheel Manuel utilisateur
Andamiro
Andamiro SpongeBob Squarepants VR Bubble Coaster Manuel utilisateur
Andamiro
Andamiro Bobblehead BASEBALL Manuel utilisateur
Andamiro
Andamiro KING OF THE HAMMER Manuel utilisateur
Andamiro
Andamiro HAMMER DX Manuel utilisateur
Manuels Machine de jeu d'arcade populaires d'autres marques
Universal Space
Universal Space COCONUT BASH Manuel utilisateur
Bay-Tek
Bay-Tek EVOLVE Manuel utilisateur
Global VR
Global VR America's Army Instructions d'installation et d'utilisation
Atronic
Atronic Cashline Manuel utilisateur
Universal Space
Universal Space Checky Monkey Manuel utilisateur
Bay-Tek
Bay-Tek Skee Ball 1908 Alley Manuel utilisateur
Aristocrat Technologies
Aristocrat Technologies Mars X Upright Manuel utilisateur
Family Fun Companies
Family Fun Companies Reactor Guide de démarrage rapide
Universal Space
Universal Space FRUIT MANIA Extreme Manuel utilisateur
falgas
falgas CARRUSEL FIESTA Manuel utilisateur
Konami
Konami DanceDanceRevolution Manuel utilisateur
Bay-Tek
Bay-Tek quik drop Manuel utilisateur
Bandai Namco
Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manuel utilisateur
Adrenaline
Adrenaline Flying Tickets Instructions d'installation et d'utilisation
Swinks
Swinks Stern Pinball Ghostbusters Manuel utilisateur
Innovative Concepts in Entertainment
Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manuel utilisateur
jakar
jakar SPEED CARS Manuel utilisateur
Carmelli
Carmelli HAT TRICK NG1015H Manuel utilisateur
