Anchor ClassACT CA-130U1 Manuel utilisateur

ClassACT

Rated power: 30 watts continuous

Max SPL@Rated Power 101 dB @ 1 meter

Wireless Antenna Range 30 feet / 9.14 meter

Frequency Response 65 Hz - 18 KHz ± 3 dB

Speaker Type 4.5” woofer, 10 mm dome tweeter

AC Power Reqs. 110-125 VAC, 50/60 Hz

Export Model 208 - 240 VAC, 50/60 Hz (50W max)

Fuse Rating T 1.0A / 250V

Export Rating T 0.5A / 250V (internally mounted)

Inputs

Line (2) Hi-Z, unbalanced, RCA unbalanced

(summing L + R)

Microphone Lo-Z, unbalanced, 1/4” phone

Output

Line Lo-Z, buffered, 1/4” phone

Sensitivity for Rated Output

Line -20 dBV (100 mVrms)

Microphone -43 dBV (7.5 mVrms)

Dimensions (HWD): 5.25 x 8.4 x 9", 13 x 21 x 23 cm

Weight: 8.5 lbs, 3.8 Kg

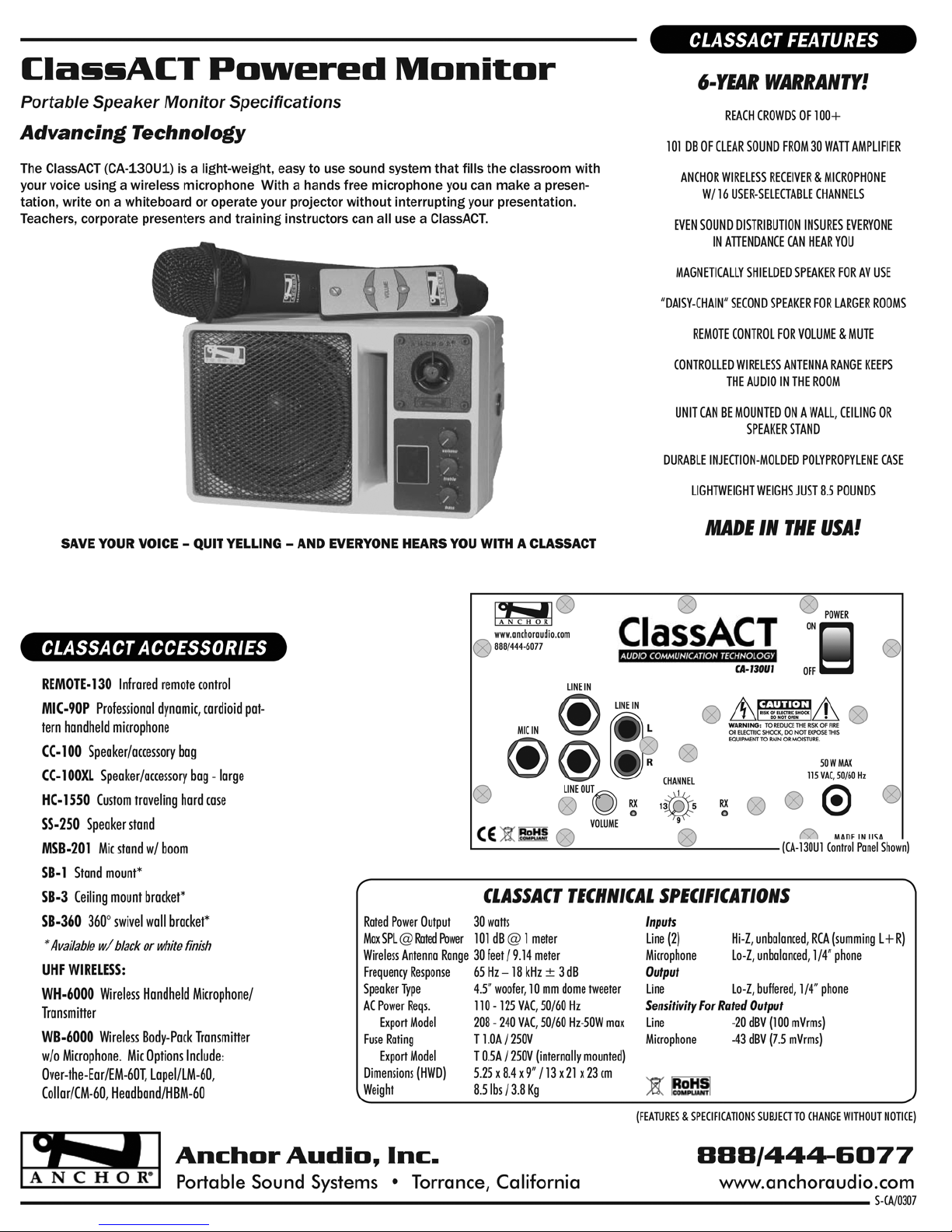

SPECIFICATIONS

ClassACT

CONTROLLED WIRELESS RANGE

MADE IN THE USA!

Reach crowds of 100+

Delivers up to 101 dB of clear sound

Anchor wireless receiver & Mic w/16 user-selectable channels

Even sound distribution insures everyone can hear you

Remote control for Volume and Mute

Controlled wirerless antenna range - Keeps the audio in the room

Magnetically shielded speaker for AV use

Unit can be mounted on a wall, ceiling or speaker stand

“Daisy Chain” second speaker for larger rooms

Durable injection-molded polypropylene case

Weighs just 8.5 pounds

Carbon Fiber Cone

6-YEAR WARRANTY!

ClassACT BASIC PACKAGE INCLUDES:

• CA-130U1 w/built-in wireless receiver and remote control

• WB-6000 Handheld mic or

• WB-6000 Body Pack and choice of mic:

- LM-60 Lapel Mic, HBM-60 Headband Mic, CM-60 Collar

Mic or EM-60T UltraLite Mic

FOR MORE INFORMATION PLEASE CALL:

800.262.4671

www.anchoraudio.com

The ClassACT (CA-130U1) is a light-weight, easy to use sound system that fills

the classroom with your voice using a wireless microphone With a hands free

microphone you can make a presentation, write on a whiteboard or operate your

projector without interrupting your presentation. Teachers, corporate presenters and training

instructors can all use a ClassACT.
