INSTALLATION &

OPERATION MANUAL

8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA)

www.analyticsystems.com

An ISO9001 Registered Company Battery Chargers •Inverters •Power Supplies •Voltage Converters

BCA150

AC SOURCE

BATTERY CHARGER

2 3

AC SOURCE BATTERY CHARGER

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS — This manual contains important safety and operating

instructions for the battery charger.

BATTERY CHARGER PRECAUTIONS

1. Do not expose the battery charger to rain or snow unless it is a sealed model.

2. Use of an attachment not recommended or sold by the battery charger manufacturer may

result in a risk of re, electric shock, or injury to persons.

3. Do not disassemble the battery charger; return it to the manufacturer or an authorized

service center when service or repair is required. Incorrect reassembly may result in a

risk of electric shock or re. Voltages in excess of 350 volts are present inside the charger

anytime it is plugged into an AC outlet, even if it is switched off.

4. To reduce risk of electric shock, unplug the battery charger from the AC outlet before at-

tempting any maintenance or cleaning. Turning off controls will not reduce this risk.

5. Never place battery charger directly above battery; gases from battery will corrode and

damage battery charger.

6. Never allow battery acid to drip on the battery charger.

BATTERY SAFETY

1. WARNING — RISK OF EXPLOSIVE GASES

i. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES

GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS

REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE SERVICING

EQUIPMENT IN THE VICINITY OF THE BATTERY, YOU READ THIS USER GUIDE AND

FOLLOW THE INSTRUCTIONS EXACTLY.

ii. To reduce risk of battery explosion, follow these instructions and those published by

the battery manufacturer and manufacturer of any equipment you intend to use in

vicinity of battery. Review the cautionary marking on these products.

2. PERSONAL PRECAUTIONS

i. Someone should be within range of your voice or close enough to come to your aid

when you work near a battery.

ii. Have plenty of fresh water and soap nearby in case battery acid contacts skin,

clothing, or eyes.

iii. Wear complete eye protection and clothing protection. Avoid touching eyes while

working near battery.

iv. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid

enters eye, immediately ood eye with running cold water for at least 10 minutes and

get medical attention immediately

2 3

Medical Equipment Notice

Analytic Systems does not recommend the use of their products in life support

applications where failure or malfunction of this product can be reasonably

expected to cause failure of the life support device or to signicantly affect its

safety or effectiveness. Analytic Systems does not recommend the use of any

of its products in direct patient care. Examples of devices considered to be life

support devices are neonatal oxygen analyzers, nerve stimulators (whether used

for anesthesia, pain relief, or other purposes), auto-transfusion devices, blood

pumps, debrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis

systems, peritoneal dialysis systems, neonatal ventilator incubators, ventilators

for both adults and infants, anesthesia ventilators, and infusion pumps as well as

any other devices designated as “critical” by the U.S. FDA.

DANGER Never alter the AC power cord or plug provided. If it will not t the

output, use an approved adapter or have the proper AC power cord installed by a

qualied electrician. Improper connection can result in the risk of electric shock.

i. NEVER smoke or allow a spark or ame in the vicinity of a battery.

ii. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or

short-circuit the battery or other electrical part that may cause a re or explosion.

iii. Remove personal metal items such as rings, bracelets, necklaces, and watches when

working with a lead-acid battery. A lead-acid battery can produce a short- circuit current

high enough to melt metal, causing a severe burn.

iv. NEVER charge a frozen battery.

v. If it is necessary to remove a battery from service, always remove grounded terminal from

battery rst. Make sure all accessories connected to the battery are off, to prevent an arc

when reconnecting the new battery.

vi. Be sure area around battery is well ventilated.

vii. Clean the battery terminals. Be careful to keep corrosion from coming in contact with eyes.

viii. Study all the battery manufacturer’s specic precautions such as removing or not

removing cell caps while charging and recommended rates of charge

GROUNDING AND AC POWER CORD CONNECTION INSTRUCTIONS

The plug must be plugged into an outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

4 5

TABLE OF CONTENTS

• Front Cover

• Product Warnings and Advisories

• Table of Contents

• Introduction

• Box Contents

• Main Parts

• Operation

• Two-Stage Charging

• Installation

• Troubleshooting

• Specications

• Warranty

Revised - April 11, 2018

4 5

Page intentionally left blank

The BCA150 AC-source battery charger provides up to 150 watts of precision charging power

to charge your one or two bank battery system. The batteries must share a common ground.

This unit features advanced Power Factor Correction circuitry on the AC input to use the

electricity in the most effective and efcient way possible and will work from any standard

AC voltage worldwide (85-265 VAC). The recently updated single board design incorporates

modern switch-mode technology for unmatched efciency and ultra-quiet operation. In the

absence of a battery, the BCA150 can also function as a power supply up to its continuous

current rating.

Designed for maximum safety, unit’s reliability features include spark-free battery connections

reverse battery connection protection, over temperature shutdown with automatic recover and

both input and output fuses Additional features include a drip shield for wall mounting and

visual indicators for the presence of AC power as well as charging progress.

Introduction

The box you’ve received should contain the following:

• One BCA150 battery charger

• One IEC320 AC cable

• This manual

• One warranty card

If anything is damaged or missing from your box, please contact your dealer or Analytic Systems for a

replacement.

Box Contents

1. Output Voltage Adjust

2. AC Input Connection:

Bulgin IEC320 Flange Mount Inlet

6.3mm

3. DC Output Connections: 2 sets

Phoenix VDFK4 Terminal Blocks

(Red and Black)

4. Chassis Grounding Screw

Main Parts

Front Panel

Top Panel

1. Lighted Power Switch

2. Power Indicator LED

3. Drip Shield

4. Integrated Digital Voltmeter

5. Load Indicator LEDs (Output 1&2)

8 9

Operation

The BCA150 is designed for simple and intuitive operation. Before operating the charger,

it must be properly connected to a source of AC Power and to the batteries as shown in

Installation.

Charging a battery

1. Move the Power Switch to the ON position.

2. The Power LED will glow green indicating that the unit is powered ON. The Output LED(s)

will also glow corresponding to the charge of the battery. See LED Indicators.

3. Once the batteries are fully charged, the Output LED will glow green. The unit will

maintain the batteries at the oat voltage as long as they connected.

4. You can check the battery’s charge using a voltmeter or multimeter at the battery.

Adjusting the charging voltage

The charging voltage can be adjusted over a range of ±0.6V (±1.2V for the 24V model) to suit

your specic charging needs. To adjust the charging voltage:

1. Using a small at-blade screwdriver rotate the Output Voltage Adjust potentiometer.

Rotate clockwise to increase the output voltage.

2. Rotate it counterclockwise to decrease the output voltage.

3. You can check the charging voltage using the integrated digital voltmeter.

LED Indicators

The BCA150 features several indicator LEDs on its top panel to display the unit’s operating

condition. Their meanings are detailed below.

POWER:

This LED glows green when the unit is connected to an AC power source and energized.

OUTPUT 1 & OUTPUT 2:

These LEDs indicate what stage of charging that the connected battery is undergoing.

• If the LED is glowing red, the battery is in the Bulk stage of the charging cycle.

• If the LED is glowing yellow, the battery is in the Float stage of the charging cycle.

• If the LED is glowing green, the battery is completely charged. The unit will maintain

the battery in this state as long as it is connected, so it always ready for service.

8 9

The BCA150 charges batteries using either a two-stage charging prole. A two-stage

charging prole occurs in two stages.

During the bulk stage, the battery draws a constant current (Output Current) from the charger.

This causes the battery’s voltage to rise until nally reaching a voltage slightly higher than the

battery’s rated capacity, the oat voltage. The oat voltage is higher than the rated voltage to

compensate for the characteristic discharge of idle batteries.

Then during the oat stage, the battery is held at the oat voltage the current reduces as

necessary to maintain it at this voltage. The battery can be left connected to the charger inde-

nitely, which will maintain it.

A two-stage charger is recommended in most instances (over a three-stage charger) since it is

the most versatile. The battery is also subjected to lower voltages than in three-stage charging

and therefore is less stressed. In addition, a reasonable load can be put on the battery without

altering its ability to keep the battery at full charge.

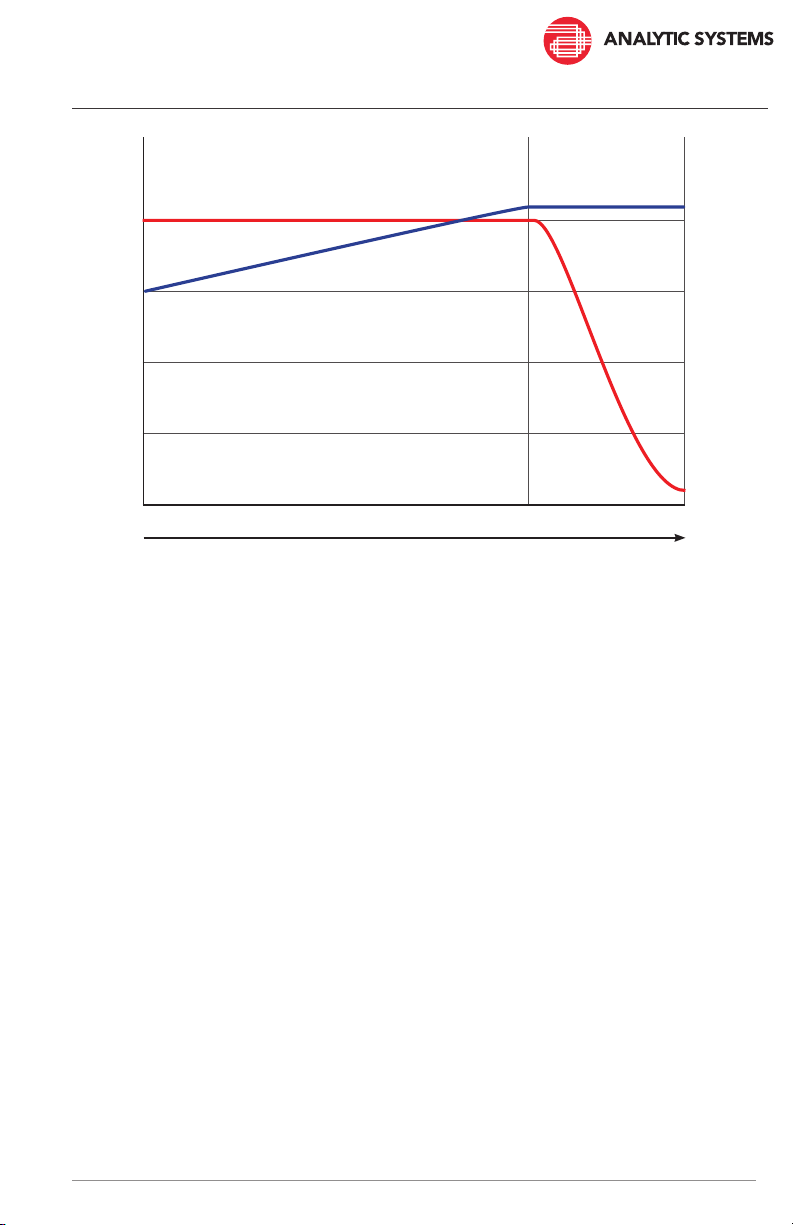

Two-Stage Charging

100%

75%

50%

25%

Bulk

(Constant Current)

Float

(Constant Volts)

Time

Two Stage Charge

Volts

Amps

10 11

Mounting

Mount the unit in a WELL VENTILATED and DRY area with at least one inch (2.54 cm) of clear-

ance around the extruded vents. The unit should be mounted on a vertical surface with the

drip shield facing upward as shown below.

Installation

DC Output Connection

This unit is equipped with two sets of Phoenix VDFK block connectors to serve separate DC

output connections. Connect the batteries to this connection using an appropriate gauge of

wire for the current (see Specications for more information). These connections are wired as

follows:

RED: Positive Battery Terminal

BLACK: Negative Battery Terminal

These connections can be used to charge up to two battery banks simultaneously. If charging

a single battery, connect the positive terminal of that battery to both positive DC outputs, this

will reduce strain on the connection.

AC Input Connection

This unit is equipped with a 3-pin Bulgin AC Inlet (6.3mm) Tab Flange Mount to serve as an AC

input connection. Your unit is supplied with an IEC320 cable for connection to an AC power

source, if the supplied cable does not t your AC receptacle, any other IEC320 cable can be

used.

Table des matières

Autres manuels Analytic Systems Chargeur de batteries

Analytic Systems

Analytic Systems BCA1505 SERIES Manuel utilisateur

Analytic Systems

Analytic Systems BCA1000 Manuel utilisateur

Analytic Systems

Analytic Systems BCD615-48-48 Manuel utilisateur

Analytic Systems

Analytic Systems BCD1015R-72-12 Manuel utilisateur

Analytic Systems

Analytic Systems BCD1015 SERIES Manuel utilisateur

Analytic Systems

Analytic Systems BCD310 Series Manuel utilisateur

Analytic Systems

Analytic Systems BCA1505U-24DW Manuel utilisateur

Analytic Systems

Analytic Systems BCD315-12-24 Manuel utilisateur

Analytic Systems

Analytic Systems BCA1050 Manuel utilisateur

Analytic Systems

Analytic Systems BCA1505MS Series Manuel utilisateur

Analytic Systems

Analytic Systems BCD610 Manuel utilisateur

Analytic Systems

Analytic Systems BCA-PWS-480-36 Manuel utilisateur

Analytic Systems

Analytic Systems BCA1505M Series Manuel utilisateur

Analytic Systems

Analytic Systems BCD180 Series Manuel utilisateur

Analytic Systems

Analytic Systems BCD305-12-24 Manuel utilisateur

Analytic Systems

Analytic Systems BCD805W-24-24 Manuel utilisateur

Analytic Systems

Analytic Systems IBC320 Manuel utilisateur

Analytic Systems

Analytic Systems BCD600 Series Manuel utilisateur

Analytic Systems

Analytic Systems BCD600-32-12 Manuel utilisateur

Analytic Systems

Analytic Systems BCD615 SERIES Manuel utilisateur

Analytic Systems

Analytic Systems BCA610V Series Manuel utilisateur

Analytic Systems

Analytic Systems BCD605 Manuel utilisateur

Analytic Systems

Analytic Systems IBC320 Manuel utilisateur

Analytic Systems

Analytic Systems BCA1505MW-24 Manuel utilisateur

Manuels Chargeur de batteries populaires d'autres marques

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuel utilisateur

Enelion

Enelion Vertica Manuel utilisateur

RCA

RCA CHU6 Manuel utilisateur

ANSMANN

ANSMANN ALCT 6/24-10 Manuel utilisateur

Hitachi

Hitachi UC 18YRSL Guide de dépannage

Olympus

Olympus B-20 LPC Manuel utilisateur

Exibel

Exibel ZH1708143 Manuel utilisateur

Lenmar

Lenmar Mach 1 Manuel utilisateur

CTEK

CTEK MXS 5.0 Manuel utilisateur

ABB

ABB HT842379 Manuel utilisateur

Nitecore

Nitecore Superb Charger SC4 Manuel utilisateur

Renogy

Renogy RBC2125DS-21W Manuel utilisateur

Braun

Braun BWC02M Manuel utilisateur

CTEK

CTEK MXS 3.6 Manuel utilisateur

Black & Decker

Black & Decker BDV090 Manuel utilisateur

Trinity

Trinity DPD Manuel utilisateur

Hulkman

Hulkman Sigma 1 Manuel utilisateur

IKEA

IKEA koppla Manuel utilisateur
