Introduction
Congratulations on buying the Vostok synthesiser. Vostok is part of the Analogue Solutions
range of analogue music equipment. Vostok is a highly versatile electronic musical instrument. It
combines all the often needed music electronic circuitry to make a powerful music synthesiser in
one compact module.
No compromise has been made with the construction of Vostok. Cheaper options in have not
been used
• Full rugged steel/aluminium/wood case - no plastic mouldings
• Good quality smooth potentiometers, fully sealed against dust
•Good quality knobs
• Solid construction
• Very simple to use - no menus or manual diving required
• Wonderful pin matrix
• Stable analogue oscillators (not too stable though! Need character!)
• Designed, built, tested and assembled in the UK
• True retro analogue voice and modulation circuits.
Why Do I need this synth? What’s So Special?
Vostok has that great vintage analogue sound that Analogue Solutions products are renowned
for having. The circuits are real analogue circuits. No trickery or playing with words.
When we say ‘real analogue’ we mean that the entire audio path, including the reverb, and all
modulation are entirely analogue, using circuits based on awesome sounding vintage 1970s
designs. Their circuits are not locked down by CPUs. Controls are not quantised and read by
CPUs. With the exception of the essential digital elements (that is MIDI conversion, sequencer
control), Vostok really is analogue and the sound benefit is immediately apparent!
We get many good comments about how good Analogue Solutions products sound. How
wonderful, warm and full of character they are.
The synth has been designed by Tom Carpenter, a musician and a big fan of electronic music.
He knows how to program a synth and what should be expected. It was not designed by an
engineer or steered by committee or men/women/etc in suits. Design wasn’t constrained in order to
bring maximum profit to share holders! So, the modulation choices and range of sounds they
produced have all been carefully thought out and quickly give you those sounds you want: huge
bass, synth leads, percussion, effects, modular style sounds.
Vostok2020
Analogue Solutions
3
Safety Instructions
PLEASE READ CAREFULLY BEFORE USING:
• Only use the correct power adaptor; 24V DC 0.75A.
• Never handle the adaptor with wet hands.
• Never excessively bend the adaptor cable or get it trapped or place heavy objects on it. If the
adaptor cable becomes damaged, replace the adaptor.
• Ensure the unit is disconnected from the mains before moving or cleaning.
• Always disconnect the unit from the mains if there is lightning in your area.
• Ensure the unit is on a stable surface, and never place heavy objects on top of it.
• Never allow young children, hippies or animals to operate the unit or adaptor.
• Do not use excessive force when using the controls or inserting cables to the
connectors.
• The unit should not be operated in the rain, near water, or at a foam party, and should not be
exposed to moisture.
• If the unit is brought from a cold environment to a warm one, the unit should be left to reach
the ambient temperature.
•Keep away from heat sources, such as radiators, ovens, heaters, jet exhaust etc.
•Keep away from kale.
• Never allow it to get wet. Do not operate it near water, like pools, sinks,
bathrooms etc.
• Do not place beverages on or near it, and certainly not in it.
• Never open the case or attempt to make repairs. Refer any servicing to qualified
service personnel.
PREVENTING DAMAGE TO OTHER CONNECTED DEVICES
This synth has a very high dynamic range. It is capable of produce loud signals of very high and
sub-sonic frequencies that could blow inadequate speakers if played too loud. It is recommended
that input levels to external equipment (mixers, amps etc.) are kept low when first connected, and
then slowly increased to a useable level.
MAINTENANCE INSTRUCTIONS
Any cleaning of the synth case should be done with a clean lint-free cloth. !
DO NOT USE SOLVENTS OR CLEANERS, as this will deteriorate the exterior appearance of the
equipment. Do not use a car wash or jet wash to clean this synth.
PLACE
Place the synth soundly on a stable surface so it cannot fall off or over, causing it or yourself
injury.
POWER
The unit needs a 24V DC regulated adaptor, minimum 0.75A.
Vostok2020
Analogue Solutions
4
The Manual
This manual doesn’t aim to teach you about synthesis - what it is, how it works, and how to do
it. We’ll describe the functions briefly, and expand on anything unusual. It is up to you to self
educate yourself about synths in general, how to patch, what to patch. Fundamentally the
methodology of creating a sound on this is the same as with say a Eurorack. With the internet and
YouTube full of ‘how to’ videos and text, it seems pointless for me to repeat it all here.
CIRCUITS IN DETAIL
Here follows details on the sockets and controls, with brief simplified explanations of what the
circuits do. We have not gone into technical details on how or exactly what each circuit does but
tried to explain each control's function and effect.
Anyone who has used synthesisers before should be familiar with the terms used and therefore
be able to predict their behaviour and how they affect the sound. The best way to learn how to use
Vostok is to go straight ahead and play with it. Reading of this manual may only be necessary for
finer operational detail.
There are many many web resources and books available if you need actual tuition or
explanation of how functions like LFO, ADSR, etc work or can be used.
EXPERIMENT!
Please don’t just jump right in with emails on day one to Analogue Solutions on what to turn or
to flick. This synth is a journey of discovery. You will take the occasional wrong turn, but you will
take many exhilarating turns also, and each destination will be nirvana. Life is all about the journey.
So experience and play.
CRAZY OR SUBTLE?
This synth is ‘perfect’ for those weird other worldly sound (think VCS3!!). It also does heavy crazy
stuff. However, Vostok can do ‘normal’ and subtle. It is a great tool for sounds design of all types."
Vostok2020
Analogue Solutions
5
Panel Overview
"
Vostok2020
Analogue Solutions
6
Features
MIDI to CV Converter with Velocity CV."
Transposable MIDI note sequencer."
3 Oscillators with Saw, Square, Pulse Width."
Sub Oscillators."
Ring Modulation."
2 VC LFOs with Saw, reverse Saw, Square, Triangle."
CV / Gate step sequencer."
Moving coil signal meter."
Joystick controller."
2 Envelope generators each with repeat feature."
White noise."
Sample and hold."
Unity gain mixer."
Multi-mode VCF."
VCA."
Pin matrix!"
Spring Reverb (3 real springs!)"
Rear panel jack patch point."
Optional rack mount."
All analogue voice & modulation circuits."
Vostok2020
Analogue Solutions
7

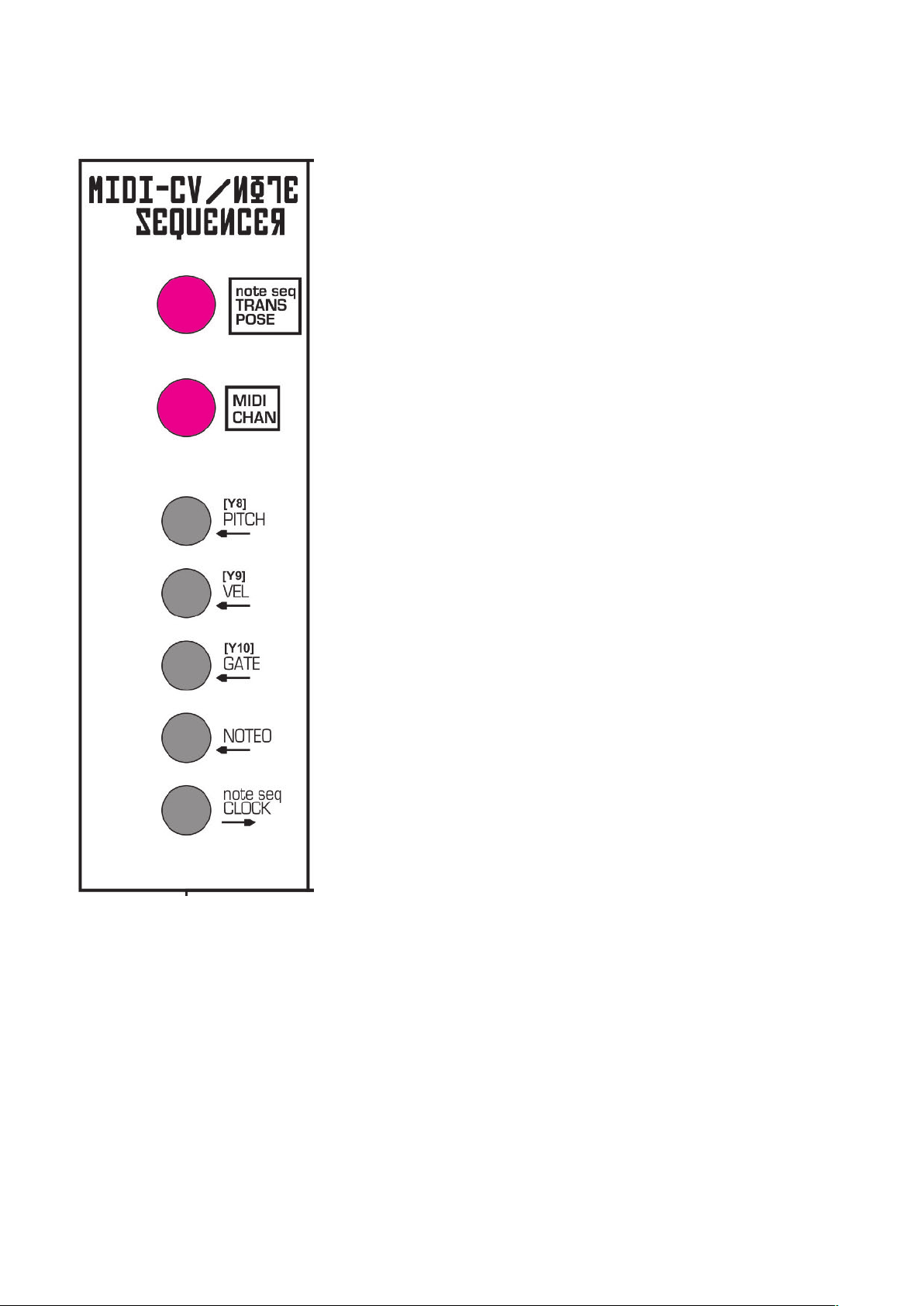

MIDI to CV Converter / MIDI Note
Sequencer
This block serves two purposes."
THE MIDI CONVERTER
1/ A MIDI to CV converter."
This converts MIDI notes to the voltages needed to change the
pitch of the VCOs and trigger the envelopes (in a typical patch)."
Pitch CV is 1V/Octave."
The Gate voltage is +5V."
VEL is MIDI velocity CV."
MIDI In and Thru do what you would expect."
To change MIDI channel simply press MIDI CHAN whilst playing a
few notes."
The new change is set (and stored) as the channel or the last
MIDI message received."
THE NOTE SEQUENCER
The Note sequencer is a simple yet highly effective note loop
sequencer. The sequencer will record and store the last MIDI note
received. It stores 16 notes in total, and will then loop round and
overwrite starting from the beginning."
Each time a new MIDI note is played (to the MIDI In socket) the
sequencer stores the note and advances the sequencer one step."
The sequencer is always listening for new notes and will store
them as they come in, into the 16 note loop - even whilst the
sequencer is running. However it will ignore input notes when
Transpose is on."
Vostok2020
Analogue Solutions
8
ENTERING NOTES
Simply play a string of 16 MIDI notes to set up your sequencer."
PLAYBACK AND SYNC / NOTE0 OUT / CLOCK IN
To play back the sequencer you simply apply a clock or gate signal to the Note Seq Clock input."
This can be from an LFO, MIDI Gate, or from some external source."
It is a simple matter to sync to your external MIDI sequencer or DAW. Patch NOTE0 to NOTE SEQ
CLOCK. Each time MIDI Note 0 is played, a clock/gate signal is sent out of the jack. You need to
program a string of short notes a 16th apart into your sequencer."
The note length needs to be shorter than the step, so use 32nd notes. You are effectively
programming your own clock signal using DAW."
Of course it doesn’t have to be a rigid string of 16ths. You can create a rhythm, mute, solo, apply
swing and other timing effects from within your DAW."
Note0 can of course also be used to sync the CV sequencer too, or simply use as a gate signal to
trigger one of the envelopes."
Note0 can also be programmed into hardware sequencers and most MIDI drum machines."
TRANSPOSE
It is possible to transpose the Note sequencer using MIDI Notes. Simply press Note Seq
Transpose - now any key your press will transpose the sequence up or down. Press middle C to
cancel the transposition. Press Transpose button to exit transpose mode."
Whilst in Transpose mode you cannot enter new notes into the sequencer. This makes it a handy
‘note lock’ workaround - to stop accidentally entering new notes."
Vostok2020
Analogue Solutions
9

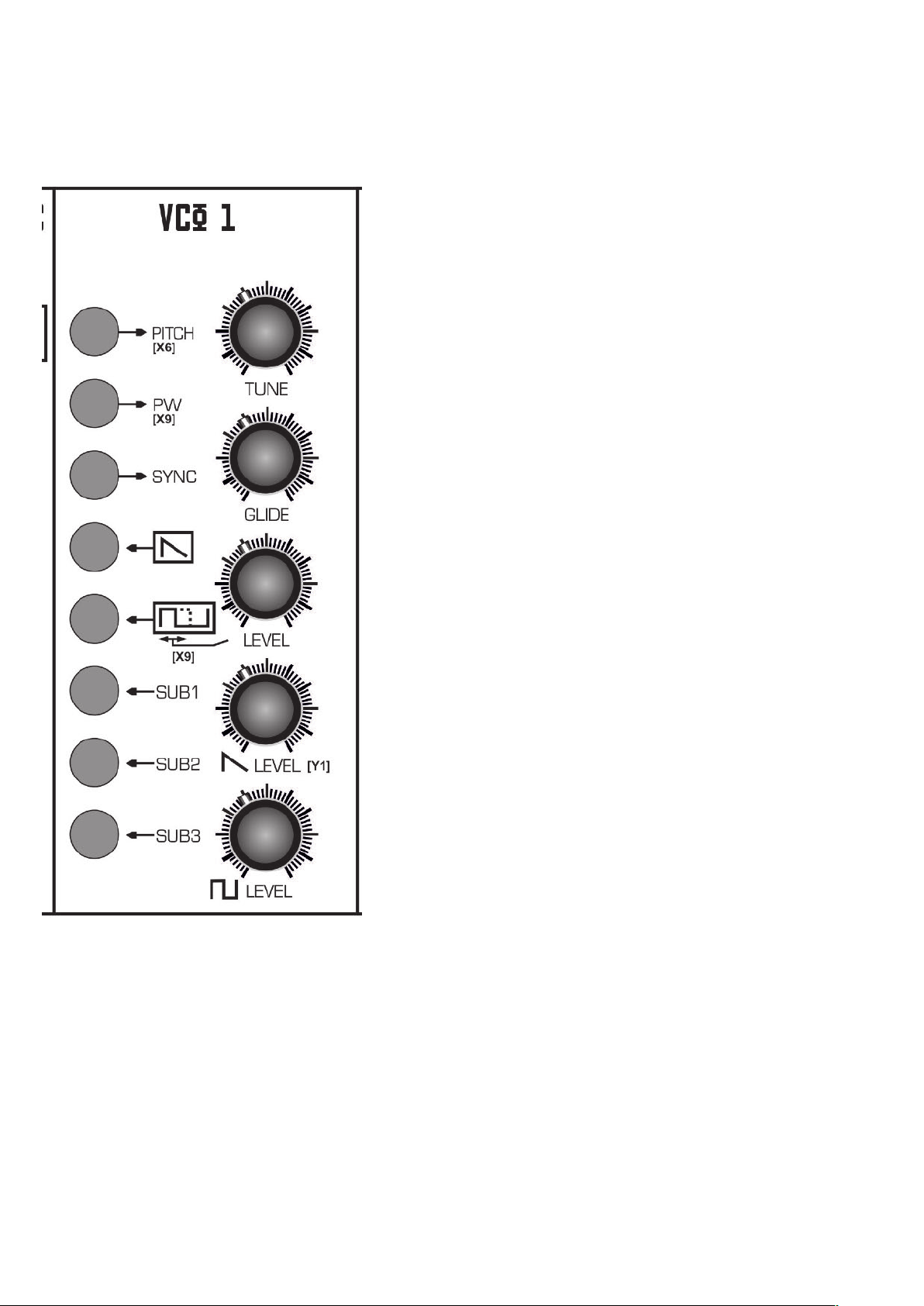

Voltage Controlled Oscillators
The three analogue VCOs are basically identical. Most of
the controls are straight forward: Tune, Pulse Width, Level."
Glide is like portamento - to allow note to slowly bend up or
down to the next new note."
SUBS
Oscillators 1 and 2 have Sub-Osc outputs. These are
square wave outputs that are 1,2 and 3 octaves below the
main Saw and Square outputs."
Typically use Sub-Osc mixed with the VCO outputs to really
beef up the sound."
Note on pitch scaling: The VCOs have been calibrated with
MIDI Pitch CV patched to each VCO’s pitch CV input using
the pin matrix, with 10K resistor pins. If you use 0 Ohm pins
or other pin values, or use patch cables, this could affect
pitch scaling. So if normal music temperament is needed,
use 10K pins. If you are making crazy sounds, then don’t
worry."
Note on glide: Adding resistance between the CV source
and the pitch CV input can add a little extra portamento. "
Vostok2020
Analogue Solutions
10

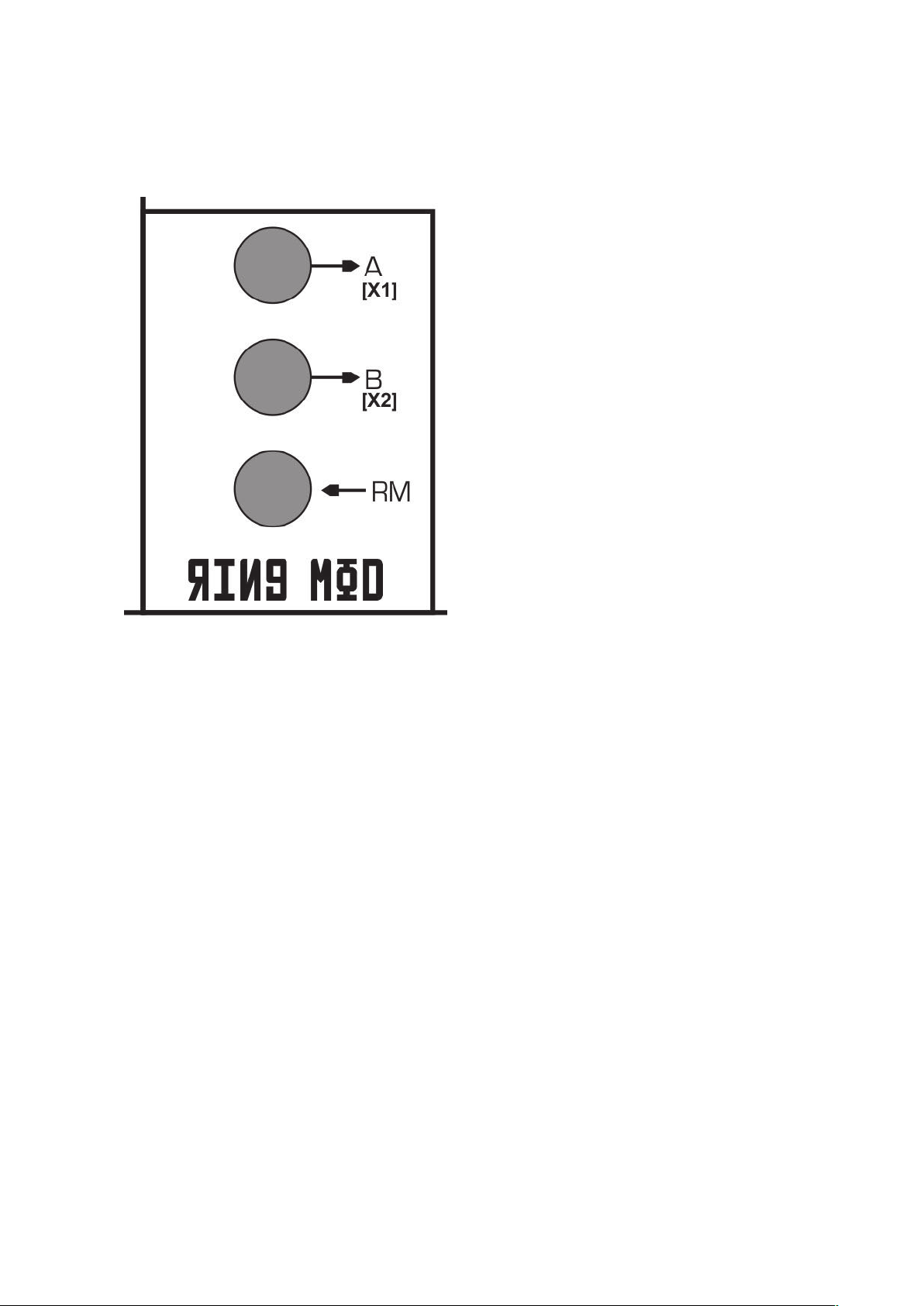

Ring Modulation
"
Ring Mods are great for metallic and general crazy sounds. To use patch a VCO into each of the
two inputs. Play around with VCO pitch."
