MVP-5200i DATA SHEET

Modero®Touch Panels

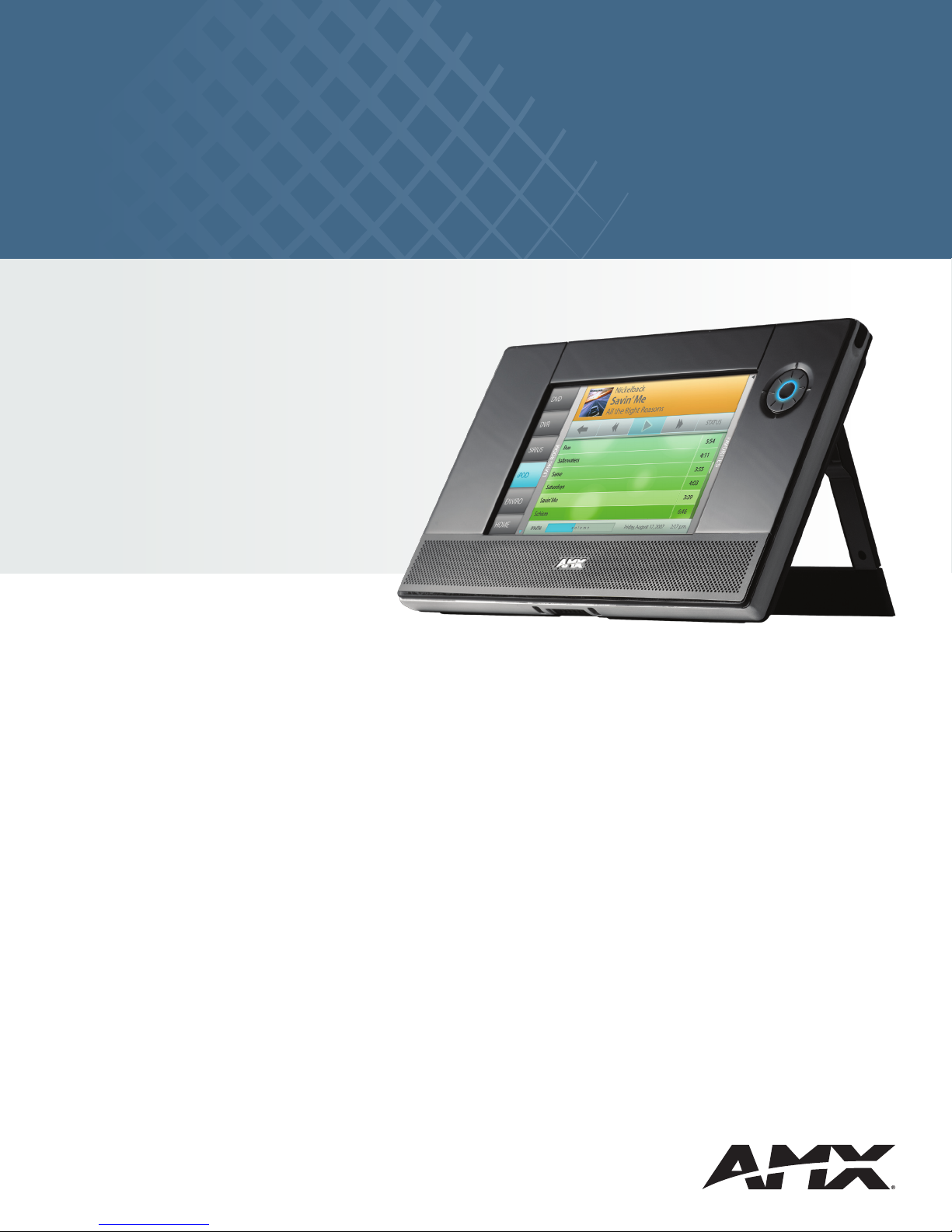

5.2” Modero

V i e w P o i n t ®

Widescreen

Touch Panel

Featuring Intercom with VoIP

Sleek. Sexy. Powerful. No other words come to mind so quickly when describing the small, yet powerful

5.2” Modero ViewPoint Widescreen (MVP-5200i). Whether you need to instantly light every inch of a

20,000 square foot estate, turn down the A/C throughout a corporate campus, or simply shufﬂe through

your favorite MP3s, the MVP-5200i rises to the occasion - discreetly from the palm of your hand.

ULTRA BRIGHT WIDESCREEN DISPLAY

With 800x480 pixel resolution, the MVP-5200i is our brightest touch panel display. Colors are displayed crisply, clearly and

accurately. Its 16x9 screen size provides plenty of widescreen multimedia display options.

WIRELESS CONVENIENCE AND SECURITY

Fully integrated 802.11b/g wireless communications give users outstanding wireless mobility and total system control.

And communications remain secure utilizing network security standards including: WEP, WPA, WPA2, EAP-TLS, EAP-TTLS

and PEAP.

DIGITAL INTERCOM BUILT IN

The integrated digital intercom featuring VoIP technology gives users the ability to create a high-quality intercom network

with no additional equipment required. Calls sound incredibly clear and an unlimited number of intercom calls can occur

simultaneously.

• Ultra-light,compactandthinformfactor

• Availableinyourcolorchoiceofhigh-glossblackorhigh-glosswhite

• Navigationwheelprovidessimple(up/down)orsophisticatedcontrol(up/down,right/left,select)

• Enhancedusabilitywithmicrophoneandspeakers

• Fasterprocessinganduseslessenergy

• Versatileplacementandchargingoptionsincludingintegratedkickstand,tablechargingstation(MVP-TCS52)

 andwallchargingstation(MVP-WCS52)

MVP-5200i DATA SHEET

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com

MVP-5200i-GB, Gloss Black (FG5966-01)

MVP-5200i-GW, Gloss White (FG5966-02)

DIMENSIONS (HWD)

4 5/8” x 7 1/2” x 3/4” (11.7 cm x 19.1 cm x 2.0 cm)

POWER

110-240VAC +/- 10%, 50/60Hz

MINIMUM POWER SUPPLY REQUIRED

PS3.0 Power Supply (FG423-30):

All MVP-5200i models are shipped with this power supply

POWER MODES

•ON: Panel is fully functional

•STANDBY: Panel uses low power, the LCD/backlight is shutdown, LEDs still

function. Panel resumes the ON mode in ~ 1 second

•Power down mode: panel resumes ON with a touch in about 1 minute

CERTIFICATIONS

•FCC Part 15 Class B and CE

•IEC60950

BATTERY DURATION

•Eight hours of continuous use

•Four days in standby mode

MEMORY

•128 MB NAND FLASH

•256 MB Mobile DDRAM

WEIGHT

1.2 lbs (0.6 kg)

SCREEN PROPERTIES

•Screen Resolution: 800 x 480 pixels WVGA

•Aspect Ratio: 16 x 9

•Brightness (Luminance): 400 cd/m2

•Display Colors: 262,144 colors (18-bit color depth)

•Dot/Pixel Pitch: 180 dpi

•Panel Type: TFT Color Active-Matrix

VIEWING ANGLE

Vertical: + 80° (up from center) and - 40° (down from center)

OPERATING/STORAGE ENVIRONMENTS

•Operating Temperature: 0° C (32° F) to 40° C (104° F)

•Operating Humidity: 20% - 85% RH

•Storage Temperature: -20° C (-4° F) to 60° C (140° F)

•Storage Humidity: 5% - 85% RH

INCLUDED ACCESSORIES

•PS3.0 Power Supply (FG423-30)

•Stylus (pre-installed onto the left side of the unit)

•Integrated battery

MVP-5200i

(Front View)

MVP-5200i

(Right View)

MVP-5200i

(Isometric View)

5.00

[127 mm]

7 1/2”

(19.1 cm)

4 5/8”

(11.7 cm)

3/4”

(2.0 cm)
