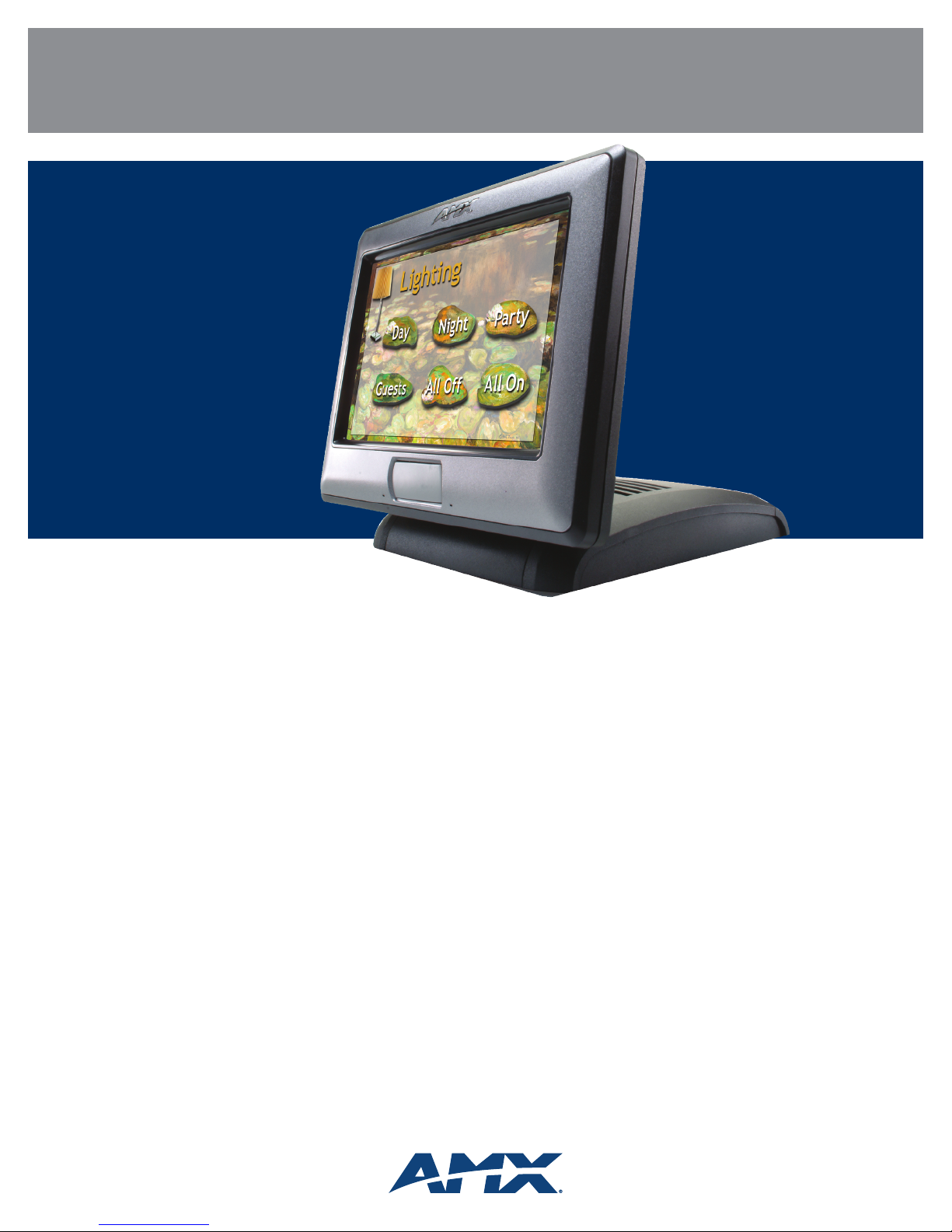

7" modero®widescreen touch panel

WIDER IS BETTER

The popular Modero Widescreen is available in a compact 7" model. For

applications that requirethe extra on-screen real estate but call for a

smaller,sleeker panel size, the 7" Modero Widescreen is the perfect fit.

Now you have the option to choose from an expanded line of feature-

intensive ModeroTouch Panels, all designed to meet specific needs

today and in the future.

NO BOUNDARIES

The 7” Modero Widescreen provides more than enough space to display

colorful and animated graphics and icons, to watch multiple windows and

to control a variety of audio/video equipment. The Table Top version is

available with optional wireless capabilites. The Wall/Flush Mount comes

with optional external buttons located on the panel's bezel.

AUDIO/VIDEO FEATURES

Multimedia options include built-in speakers and microphone, a

headphone connection, and the ability to play MP3 and WAV audio files.

The 7” Modero Widescreen also converts NTSC, PAL and SECAM video

formats, all delivered over a CAT-5 cable.

7" modero®widescreen touch panel

ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN

LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA

ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com

7.96 [202MM]

6.86 [174MM]

NXT-CV7 (Front View)

NXT-CV7 (Rear View)

6.93 [176MM]

7.47 [190MM]

NXT-CV7 (Right Side)

6.86(174MM)

7.96 (202MM)

7.47 (190MM)

6.93 (176MM)

NXT-CV7 TOUCH PANELS (FG2258-01)

LCD

•7" Color active-matrix LCD 16x9 (800 x 480 pixel resolution)

•Brightness: 350+ cd/m2

•Contrast: 200:1

•Viewing Angle: 100° (top/bottom/left/right)

•Display colors: 256K (18-bit color depth)

•Active Viewing Area: 6.00" x 3.60" (152.4 mm x 91.44 mm)

POWER

•1.0 Amps @ 12.0 VDC (wired)

•2.4 Amps @ 12.0 VDC (with battery base & charging)

MEMORY

•64MB RAM

•64MB Compact Flash (upgradable to 1 GB)

factory programmed with panel firmware

DIMENSIONS (HWD)

•6.864" x 7.932" x 7.462"

(17.43 cm x 20.15 cm x 18.95 cm)

ENCLOSURES

•ABS Polycarbonate enclosurein black matte finish

with platinum color bezel trim

FRONT PANEL

•Light Sensor: Photosensitive light detector for automatic

adjustment of the panel brightness

•Motion Sensor (PIR): Proximity Infrared Detector to wake the

panel when the panel is approached

•Front Setup Access Button: Pushbutton (grey) used to either

put the panel into a "sleep" or "wake" state and/or access the

Setup and Calibration pages

•Speakers: 2 - Frequency response 450 Hz - 7 KHz

•Microphone: Used for audio/intercom applications

OPTIONAL ACCESSORIES

•PSN4.4 Power Supply (13.5 VDC) with 3.5mm Phoenix

connector (FG423-45)

•Upgrade Compact Flash (factory programmed with firmware):

NXA-CFSP128M 128MB Compact Flash Card

NXA-CFSP256M 256MB Compact Flash Card

NXA-CFSP512M 512MB Compact Flash Card

NXA-CFSP1G 1GB Compact Flash Card

•NXA-BASE/1: Includes 1 battery, Provides 4 hours continuous

operation and 8 hours in normal operation

•NXA-WC80211b/CF: 802.11b wireless interface card

•NXT-BP: Battery pack for Table Top Touch Panel.

Provides 4 hours of continual operation (NXT versions only)

•NXT-CHG: Battery charger for NXT-BP batteries. Charges

batteries in 8 hours. Includes two batteries.

WEIGHT

•3.49 lbs (1.58 kg)

INCLUDES

•NXA-AVB: Provides audio/video distribution to the CV7 over

CAT-5 cable up to 200 feet. Accepts either composite or S-Video

ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN

LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA

ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com

NXD-CV7 TOUCH PANELS (FG2258-02)

LCD

•7" Color active-matrix LCD 16x9 (800 x 480 pixel resolution)

•Brightness: 350+ cd/m2

•Contrast: 200:1

•Viewing Angle: 100° (top/bottom/left/right)

•Display colors: 256K (18-bit color depth)

•Active Viewing Area: 6.00" x 3.60" (152.4 mm x 91.44 mm)

POWER

•1.0 Amps @ 12.0 VDC (wired)

MEMORY

•64MB RAM

•64MB Compact Flash (upgradable to 1 GB)

factory programmed with panel firmware

DIMENSIONS (HWD)

•5.923" x 7.955" x 3.328"

(15.04 cm x 20.21 cm x 8.45 cm)

ENCLOSURES

•ABS Polycarbonate enclosure in black matte finish

with platinum color bezel trim

FRONT PANEL

•Light Sensor: Photosensitive light detector for automatic

adjustment of the panel brightness

•Motion Sensor (PIR): Proximity Infrared Detector to wake the

panel when the panel is approached

•Front Setup Access Button: Pushbutton (grey) used to either

put the panel into a "sleep" or "wake" state and/or access the

Setup and Calibration pages

•Speakers: 2 - Frequency response 450 Hz - 7 KHz

•Microphone: Used for audio/intercom applications

OPTIONAL ACCESSORIES

•PSN4.4 Power Supply (13.5 VDC) with 3.5mm Phoenixconnector

(FG423-45)

•Upgrade Compact Flash (factory programmed with firmware):

NXA-CFSP128M 128MB Compact Flash Card

NXA-CFSP256M 256MB Compact Flash Card

NXA-CFSP512M 512MB Compact Flash Card

NXA-CFSP1G 1GB Compact Flash Card

•Optional Rackmount kit for 7" Wallmount Panels

•Optional Conduit Box for 7" Wallmount Panels

WEIGHT

•1.85 lbs (0.839 kg)

INCLUDES

•NXA-AVB: Provides audio/video distribution to the CV7 over

CAT-5 cable up to 200 feet. Accepts either composite or S-video.

7" modero®widescreen touch panel

7.94 [202MM]

NXD-CV7 (Front View)

7.07 [180MM]

6.10 [155MM]

NXD-CV7 (Left Side)

5.93 [151MM] 5.33 [135MM]

NXD-CV7 (Right Side)

2.83 [72MM]

.94 [24MM]

3.33 [84MM]

NXD-CV7 ( Top View)

NXD-CV7 (Rear View)

7.94 (202MM)

7.07 (180MM)

6.10 (155MM)

2.83 (72MM) 3.33 (84MM)

.94 (24MM)

5.33 (135MM)

5.93 (151MM)
