AMX Modero NXD-CV5 Manuel utilisateur

5" modero®widescreen touch panel

EXPECT NOTHING LESS

Using a smaller touch panel shouldn’t mean you have to sacrifice the range

of multimedia features you get with larger models. The 5" Modero

Widescreen offers what no other panel of its size on the market can —

audio/video-ready capabilities, a 16x9 widescreen user interface and the

unique AMX Moderodesign all rolled into an unbelievably sleek Wall/Flush

Mount display.

PEFECTLY DISCREET.

The 5" Modero Widescreen fits discreetly on the wall, making it the perfect

solution for smaller wall spaces. In the home, for example, it offers just the

right amount of control in the foyer,hallways, kitchen, bedroom and bath-

room. A popular solution in education and corporate settings, this panel

provides convenient and seamless one-touch control from the entryways

into offices, at the head of meeting rooms, and in lecterns and podiums. In

fact, you'll hardly know its therethanks to the panel's ultra-slim bezel

design.

PREPARE TO FLIP OUT

Literally. Feel free to position the 5" Modero Widescreen with programma-

ble pushbuttons located across the top or bottom of the bezel. It simply

depends on how you prefer to view and take control of the user interface.

Aunique AMX feature “flips” the text, icons and video windows as need-

ed, so no matter which way you choose to display the panel — pushbut-

tons up or pushbuttons down — everything appears on-screen as it should.

NXD-CV5 TOUCH PANELS (FG2261)

LCD

•5” Color active-matrix LCD 16x9 (800 x 480 pixel resolution)

•Brightness: 170+ cd/m2

•Contrast: 250:1

•Viewing Angle: left/right 45º, down 30º, up 15º

•Display colors: 256K (18-bit color depth)

•Active Viewing Area: 4.3”x 2.58” (109.2 mm x 65.2mm)

POWER

•1.0 Amps @ 12.0 VDC (wired)

MEMORY

•64B Extended Memory Module

•64MB Compact Flash

DIMENSIONS (HWD)

NXD-CV5

•Faceplate included: 4.15" x 5.59" x 3.23"

(10.50 cm x 14.20 cm x 8.20 cm)

NXA-RK5 (Optional)

• 3 RKU (rack units) high (13.26 cm)

5.22" x 19.0" x 0.50" (13.26 cm x 48.26 cm x 1.27 cm)

CB-TP5 (Optional)

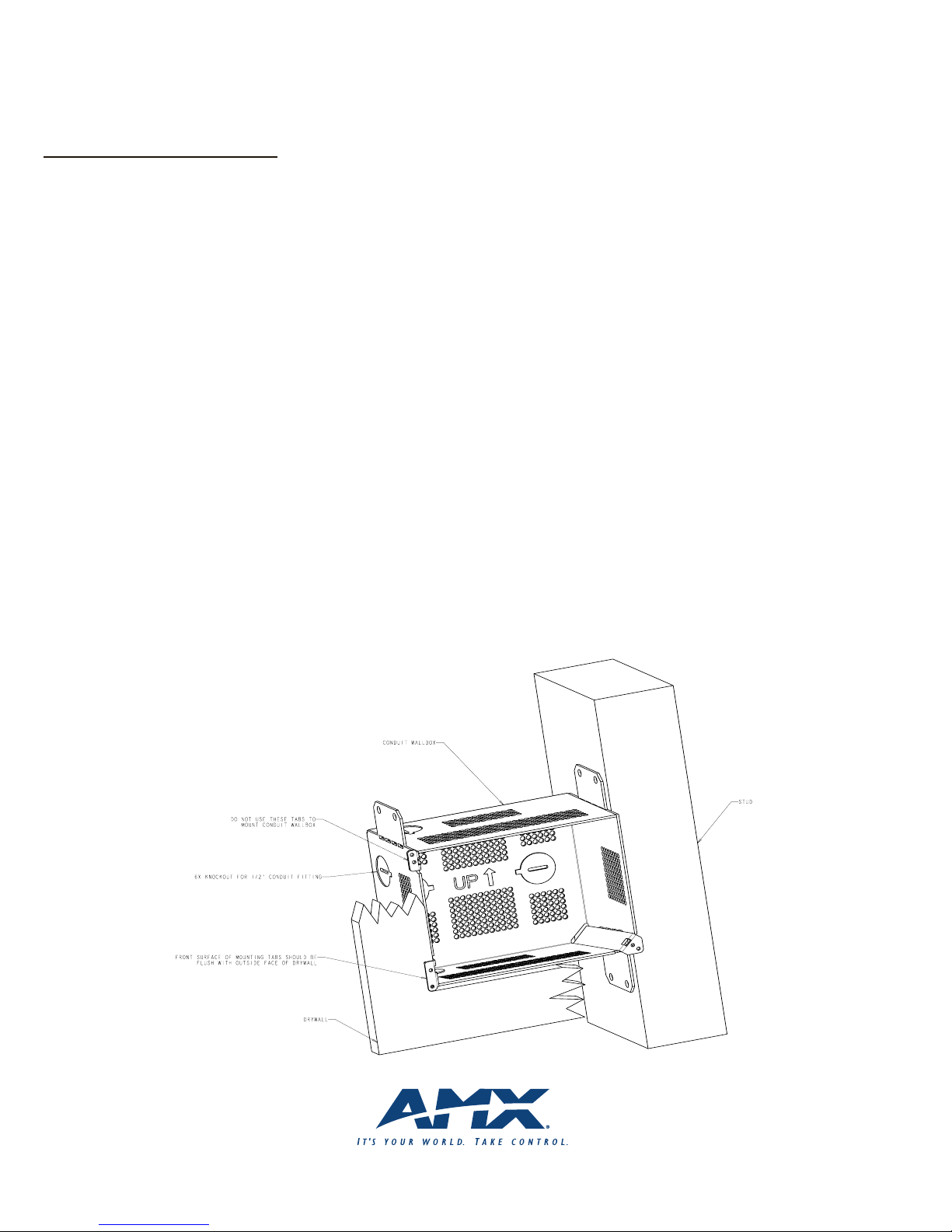

•Conduit/wallbox: 4.27" x 5.14" x 3.40"

(10.86 cm x 13.06 cm x 8.64 cm)

ENCLOSURES

•ABS Polycarbonate enclosure in black matte finish with platinum

color bezel trim

FRONT PANEL

•Light Sensor: Photosensitive light detector for automatic adjust-

ment of the panel brightness

•Motion Sensor (PIR): Proximity Infrared Detector to wake the

panel when the panel is approached

•Front Setup Access Button: Pushbutton (grey) used to either put

the panel into a “sleep” or “wake” state and/or access the

Setup and Calibration pages

•Speakers: 2 - Frequency response 450 Hz - 7 KHz

•Microphone: Used for audio/intercom applications

OPTIONAL ACCESSORIES

•PSN4.4 Power Supply (13.5 VDC)

with 3.5 mm Phoenix connector (FG423-45)

•Optional Rackmount kit for 5” Wallmount Panels

•Optional Conduit Box for 5” Wallmount Panels

•Optional NXA-AVB/Ethernet Breakout Box

WEIGHT

•1.0 lbs (0.45 kg)
