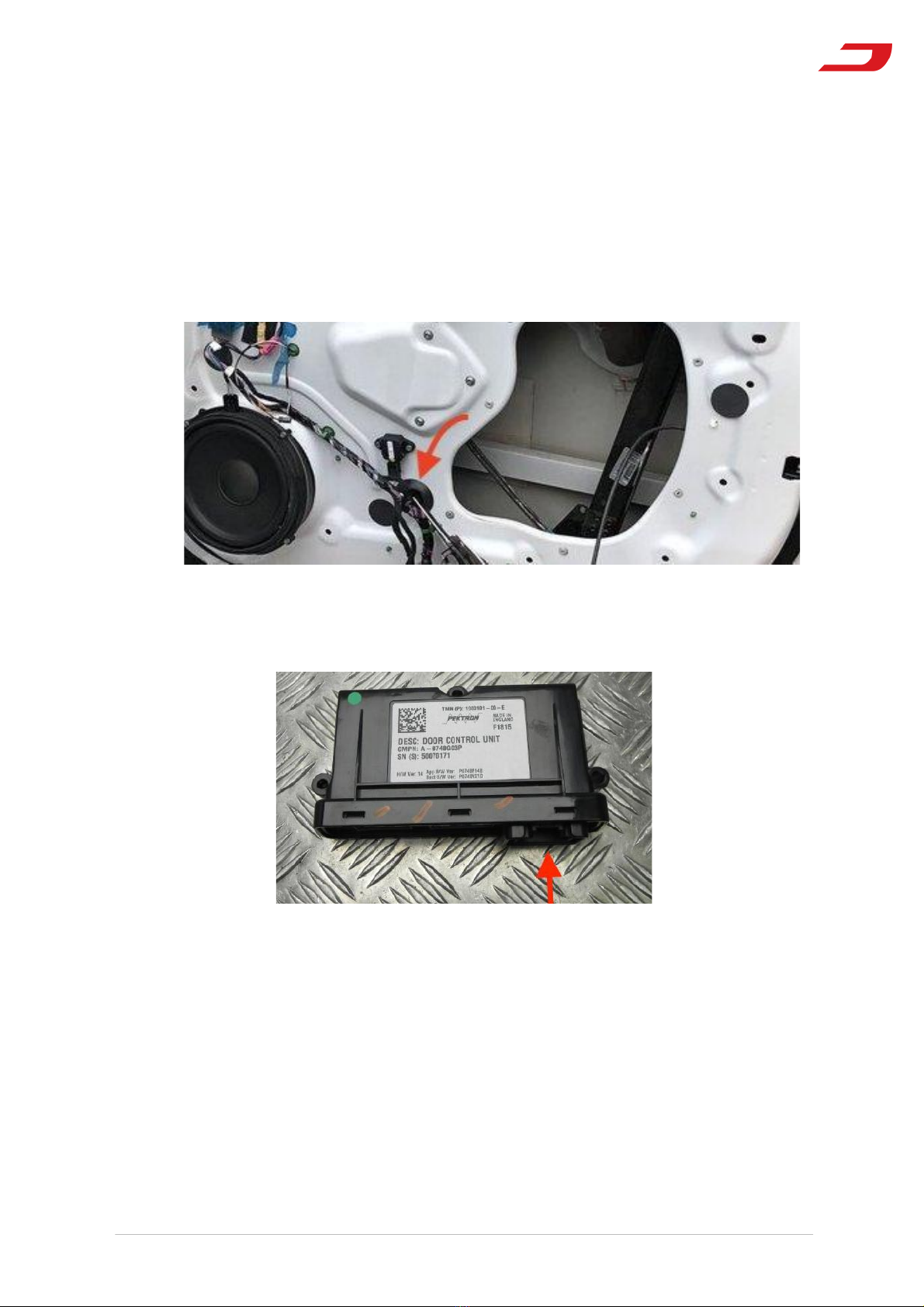

● 6 T20 screws are removed so that the plastic inner lining can be
dismantled
The speaker is also dismantled by removing 4 screws
● The next step is to remove 2 T30 screws from the lock unit so that the
lock can be carefully lifted out through the opening behind the
windowpane guide. The plug connected to the lock unit must be
disconnected before lifting it out.
ATTENTION:The window must be fully raised during this step.
● The Bowden cable must be removed from the old lock and connected
to the new lock unit. To do this, loosen the plastic barbs with a slotted
wrench.
The lock unit with yellow Styrofoam is used for the right side of the
vehicle (analogously, unit with blue Styrofoam is for the left side of the
vehicle).
First, the Bowden cable must be attached to this lock.
ATTENTION: The end piece of the Bowden cable must be hooked
behind the lug provided for this purpose in the new lock.
● Attach the plug for the lock unit to the new lock unit
● The new lock unit can now be inserted into the door behind the
windowpane guide. The two T30 screws previously loosened on the
old lock are used to secure the new lock unit.
● In the next step, the soft close motor is glued to the door body facing
outwards with the butyl already attached to the motor. Make sure
that the pull cable of the motor is not kinked and leads straight from
the motor to the lock unit.
