Ethernet Connection System for
Harsh Environment
The Industrial Ethernet Solution
Description
Description
The RJField allows you to use an Ethernet Class D / Cat. 5e connection
for 10 BaseT,100 BaseTX or 1000 BaseT networks in harsh
environments:
• Sealed against fluids and dusts (IP67)
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Improved EMI Protection
With the patented RJStopsystem you can use a standard RJ45
cordset in a protective composite plug which will protect it from shocks,
dust and fluids.
No hazardous in-field cabling and grounding !
This RJF 544 plug is connected into a receptacle, using a quick user-
friendly Push Pull coupling mechanism.
On the receptacle, one female RJ45 is soldered onto a PCB allowing for
the following back terminations :
• another female RJ45
• a RJ45 cordset
• a solder termination
The RJ45 cordset shielding is transmitted to the RJ45 receptacle through
lateral grounding fingers.
For an outstanding EMI protection, a metallized (Ni) version of the RJF
544 receptacle is available and transmits the shielding directly to the
panel.
Applications
Applications
• Telecom Equipments
• Video Controls
• Robotics
• Industrial Process Control
• CNC Machines
• Special Machines
• Motion Control
• Tele-maintenance
RJF 544
RJF 544
Amphenol ®
DOC-000043-ANG-C April 2003 AALBNA
Transform your RJ45
cordset into a Push Pull
IP67 Connector !
NEW
http://www.RJField.com
RJF awarded “Best Automatic
Control Component”
Amphenol 2003 All rights reserved
2
Amphenol – 295 Kesmark, Dollard-des-Ormeaux, Quebec, Canada H9B 3J1
Tel. : + 1 514 421 2153 - Fax : + 1 514 421 3408
http://www.RJField.com
Amphenol ®
Main
Main Characteristics
Characteristics
Environmental Protection
•Sealing : IP67 with recommended 5 to 12 mm cable diameter
•Salt Spray > 1000 h
•Fire Retardant / Low Smoke : UL94 V0 and NFF 16102, DIN 5510-2
•Vibrations : 10 – 500 Hz, 10 g, 3 axes : no discontinuity > 10 nano s.
•Thermal Shock : 5 cycles at - 40°C / +100°C
•Operating Temperature : - 40°C / +85°C
Data Transmission
•10 BaseT, 100 BaseTX and 1000 BaseT networks
Cat 5e per TIA/EIA 568B and ClassD per ISO/IEC 11801
Mechanical
•Quick Push Pull coupling
•RJ45 cordset retention in the plug : 100 N in the axis
•Mating cycles : 500 min
Universal : Can be used with all standard * RJ45 Cat.5e cordset brands
RJStop
Patent

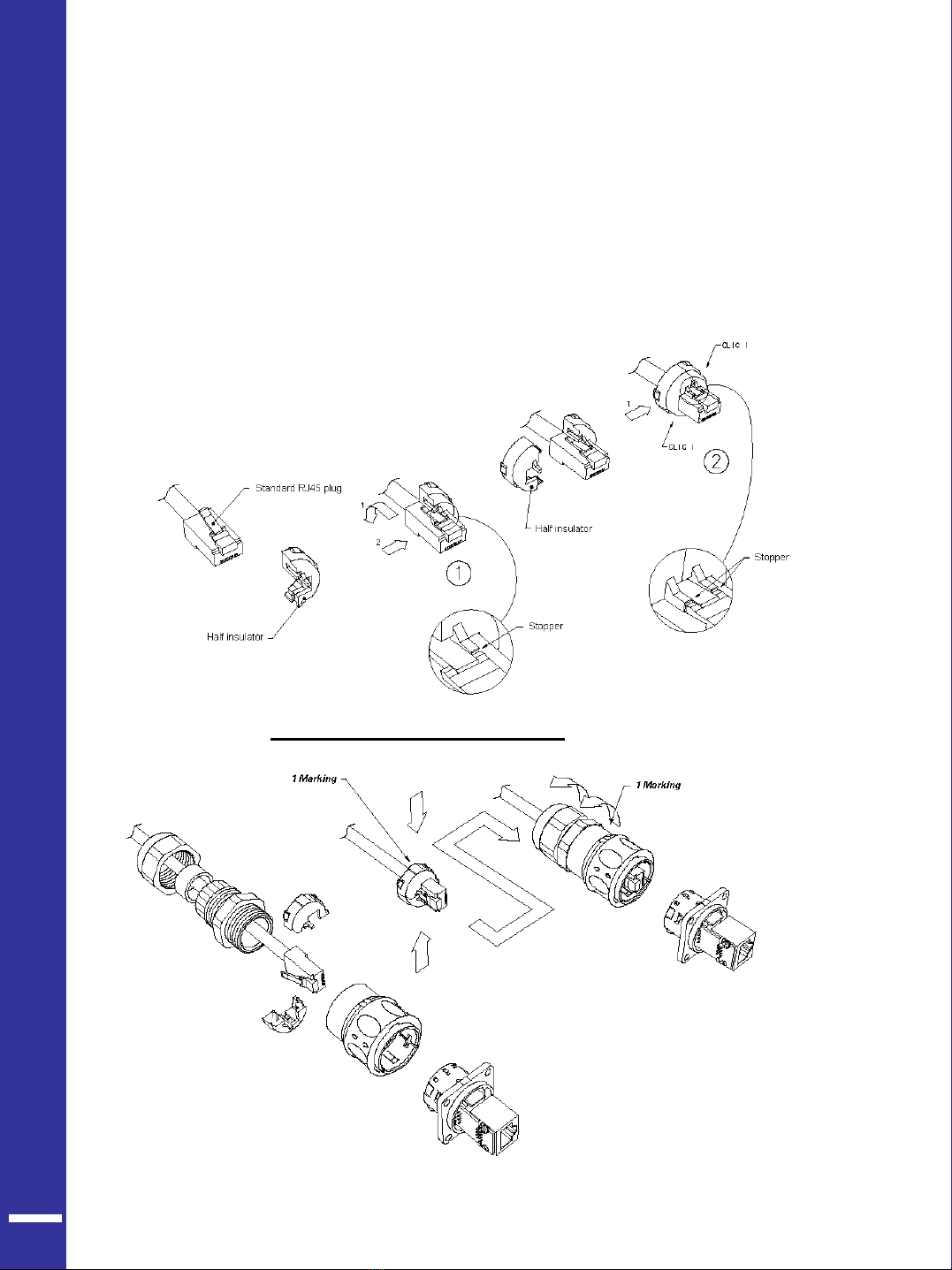

Assembly instructions
1. Push down the RJ45 cordset latch, and fix it inside
the insert
2. Press in and click the other part of the insert
3. Insert in the plug housing
Easy and Safe : No field cabling tool required
* The RJStopsystem allows the use of standard RJ45 cordsets regardless their Brand. However, Amphenol can also
provide Cat5-5e cordsets with reinforced jacket to be used in harsh environments (shocks, oils, fuel,…).
3
Amphenol – 295 Kesmark, Dollard-des-Ormeaux, Quebec, Canada H9B 3J1
Tel. : + 1 514 421 2153 - Fax : + 1 514 421 3408
http://www.RJField.com
Amphenol ®
Locking and Unlocking sequences
In unlocked position, the locking ring cannot move forward.
Once the plug has been inserted into the receptacle, the
locking ring is free and can be pushed forward.
The connector is unlocked by pulling back the locking ring,
and withdrawing the plug.
Plug Type 6 Shell with Plastic Gland
Receptacle Type 2 Shell : Square flange receptacle with 4 mounting holes
Panel Drilling
(same as #16 MIL-C-5015)
Back Termination
Type 2 - 00 : Solder – 8 tined holes
Type 1 : Female RJ45 Type 2 : RJ45 Cordset
Notes : - Type 1 is also available with 90° female RJ45 : please consult factory for details
- Type 2 without RJ45 plug at the end of the cable is also available : please consult factory for details
4
Amphenol – 295 Kesmark, Dollard-des-Ormeaux, Quebec, Canada H9B 3J1
Tel. : + 1 514 421 2153 - Fax : + 1 514 421 3408
http://www.RJField.com
Amphenol ®
Part
Part Number
Number Code
Code
2 2 03 100 BTX
RJField 544 - Push Pull
Shell Type
6 : Composite Push Pull Plug, Plastic Gland
2 : Composite Square Flange Receptacle
2M : Metallized (Ni) Composite Square Flange Receptacle
Back Termination (For Receptacles only)
1 : Female RJ45
2 : RJ45 Cordset
Cordset Length (For Receptacles with "2" Back Termination only)
03 : 0.3 meters [11.81 inches]
05 : 0.5 meters [19.68 inches]
10 : 1 meter [39.37 inches]
15 : 1.5 meters [59.05 inches]
00 : 8 tined holes at the rear of the PCB to solder the cable
Cabling Configuration (For Receptacles with "2" Back Termination only)
100BTX : 10/100 Base TX
568A
568B
Series RJF 544
HOW TO ORDER
Examples : - Plug: RJF 544 6
- Square flange receptacle, Female RJ45 Back termination: RJF 544 21
- Metallized Square flange receptacle, Female RJ45 Back termination: RJF 544 2M 1
- Square flange receptacle, 1,5m [59.05”] 100 BTX cordset termination: RJF 544 22 15 100BTX
- Square flange receptacle, solder termination : RJF 544 22 00
Accessories
•IP67 Dust Caps
For the Receptacle : 544 02 BE For the Plug : 544 02 BM
•Panel Gasket (Thickness : 1 mm [.039]) : Part No. 544 02 JE
•Plug Insert removal tool : Part No. 5440 OT 02
•Cat5 and 5e cordsets with reinforced jacket to be used in harsh environments (shocks, oils,
fuel,…). Please consult corresponding data sheet.
