AMP®LOW VOLTAGE LANDSCAPE LIGHTING

AMP® Mini PinnaclePro Black Spotlight

ITEM: AAL-1018-4-B-BK

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

- 1 -

IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION

INSTALLATION & MAINTENANCE GUIDE

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that are suitable

for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or ﬁtting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact

www.amplighting.com or call 1-813-978-3900.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

LIGHTED LAMP IS HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire ﬁtting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

AMP® Mini PinnaclePro Black Spotlight -AAL-1018-4-B-BK

813.978.3900 • [email protected]om • www.amplighting.com

PACKAGE CONTENTS

PRODUCT DIMENSIONS

REMOVE GLARE GUARD AND SHIELD FROM FIXTURE

813.978.3900 • [email protected]om • www.amplighting.com

A. (1) Fixture

B. (1) Stake

2.75”

4.5”

2.75”

1.75”

Loosen the set screw and remove

the glare guard from the shield.

Loosen the shield and remove it

from the ﬁxture.

Glare Guard

Shield

Set Screw

Fixture

INSTALL MR11 LAMP

INSTALL GLARE GUARD AND SHIELD TO FIXTURE

813.978.3900 • [email protected]om • www.amplighting.com

Insert the lamp with the correct

wattage and type marked on the

ﬁxture label.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

NOTE: DO NOT touch lamp with

bare hands. Use soft cloth to

handle lamp.

Socket

MR11 Lamp

Attach the shield back onto the

ﬁxture. Place the glare guard over

the shield and secure with the set

screw. Tighten until snug.

Fixture

Set Screw

Shield

Glare Guard

INSTALLATION & MAINTENANCE GUIDE

AMP® Mini PinnaclePro Black Spotlight -AAL-1018-4-B-BK

INSTALL STAKE

INSTALL FIXTURE TO STAKE

813.978.3900 • [email protected]om • www.amplighting.com

Determine the desired location for

mounting the ﬁxture. Hammer the

stake into the ground until ﬂange

of stake is ﬂush to grade. To avoid

damage to the stake, place a board on

top of the stake while hammering.

NOTE: If the ground is hard and the

stake is difﬁcult to install, make a

crosscut in the ground using a ﬂat

shovel.

Board

Soil

Stake

Ground

Clear away an area in the ground

at the wireway slot on top of the

stake. Lay the luminaire pigtail

into the wireway slot and screw

the ﬁxture onto the stake. Tighten

until snug.

Wireway Slot

Fixture

Pigtail

Stake

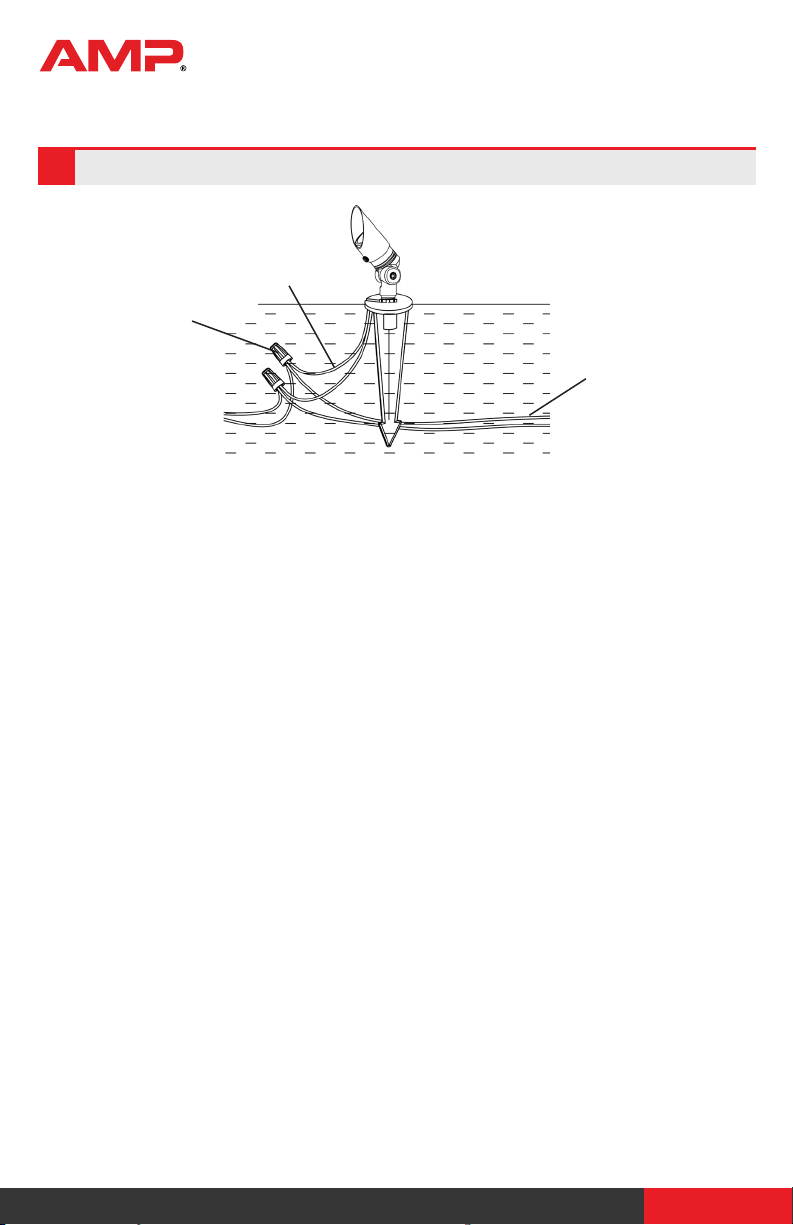

WIRE CONNECTIONS

813.978.3900 • [email protected]om • www.amplighting.com

Strip both leads from the luminaire pigtail. Using two wire connectors

(sold separately), connect the leads from the luminaire to the main

supply cable leads.

Pigtail

Main Supply Cable

Wire Connectors

INSTALLATION & MAINTENANCE GUIDE

AMP® Mini PinnaclePro Black Spotlight -AAL-1018-4-B-BK

Remove the glare guard and the lens to expose the MR11 lamp and replace it

with the correct wattage and type marked on the ﬁxture label. Then,

reinstall the lens and the glare guard.

IMPORTANT: MR11 lamp must be protected from moisture and dust at all

times. Always reinstall the lens and the glare guard when removed.

INSTALL/REPLACE LAMP

813.978.3900 • [email protected]om • www.amplighting.com 813.978.3900 • [email protected]om • www.amplighting.com

Speciﬁcations and product details subject to change without notice.

[email protected]om • amplighting.com

1-813-978-3900 • Mon-Fri 9am-6pm (EST)
