Amino AmiNET110 Manuel utilisateur

Issue 1.1 January 2006

AmiNET110 Set-Top Box

User Guide

©Amino Communications Ltd 2006

Your AmiNET110 IP based set top box is a state of the art

gateway to the next generation of interactive digital television

services. It gives you access to Video on Demand, Multicast

Video and the World Wide Web on a standard television.

2©Amino Communications Ltd 2006

AmiNET110 - FCC Statement of Compliance

USAcontact:

AminoCommunicationsLLC,

3625BrooksideParkway

Suite 150

Alpharetta,GA30022

USA.

Tel: +1 (678) 636 6000

Fax: +1 (678) 636 6001

stbsuppor[email protected]

Unit should only be powered using plug-top PSU supplied.

Ethernet must be connected using CAT5 STP cable through out the complete

network.

AV connection must be connected using the AV cable supplied.

S/P-DIF must be connected using standard digital audio cable.

RF connections should be made using standard 75 Ohms TV coax cables.

USB connection should use a standard screened cable, max length 1 metre.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

©Amino Communications Ltd 2006

Contents.............................................................................................3

Your AmiNET110...............................................................................4

AmiNET110 Features.......................................................................4

Installation..............................................................................6

AmiNET110connectedtoTV, noRF.........................................................6

AmiNET110 connected to TV via RF.........................................................7

AmiNET110 connected to TV via Amino A/V,

toamplifier viaSPDIF & toVCRvia RF......................................................8

Mounting the AmiNET110................................................................9

Horizontal Mounting..........................................................................9

Vertical Mounting..............................................................................9

Using the AmiNET110...................................................................10

Buttons&keycombinations...................................................................11

Standards.......................................................................14

Table of Contents

4©Amino Communications Ltd 2006

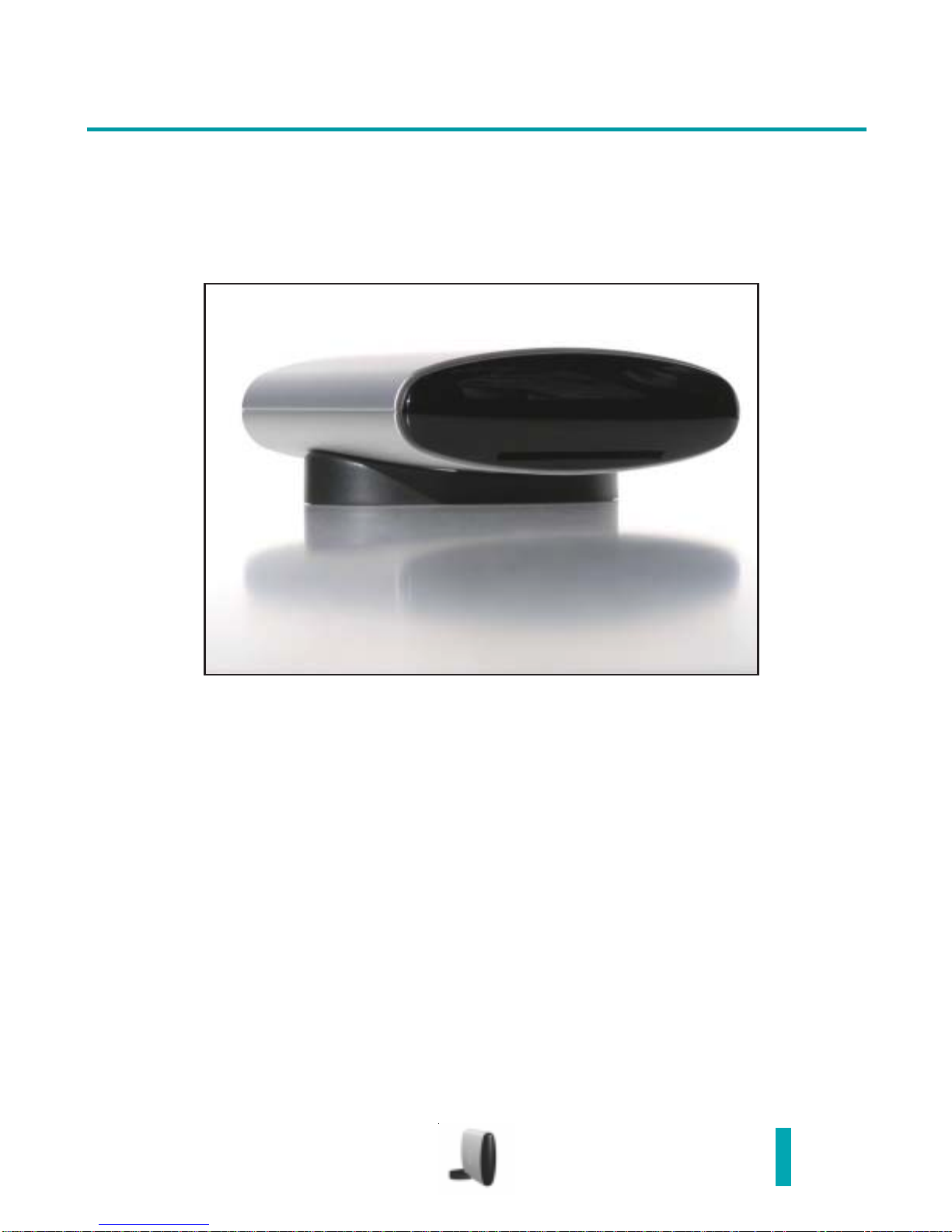

Your AmiNET110 IP based set top box is a state of the art gateway to

the next generation of interactive digital television services. It gives

you access to Video on Demand, Multicast Video and the World Wide

Web on a standard television.

The AmiNET110 is simple to install and use. After unpacking your box

you should have the following:

•This User Guide

•1 x AmiNET110 Set Top Box

•1 x Plug top power supply suitable for your location

•1 x Stand

•1 x IR Remote Control

•3 x AAA Batteries

•1 x Amino A/V cable

The adjacent images will help you familiarize yourself with the

AmiNET110 before you connect it to your television.

The front of the STB has a single LED that indicates power and IR

reception. While the AmiNET110 is powered the LED will illuminate.

During IR reception (e.g. when you use the remote control) the LED

will flicker to indicate that the product is receiving the signal. The

front of the unit also has a slot for a Smart Card (not supplied).

The AmiNET110 can be installed horizontally or vertically. (See later

section on mounting.)

AmiNET110 Features

Your AmiNET110

©Amino Communications Ltd 2006

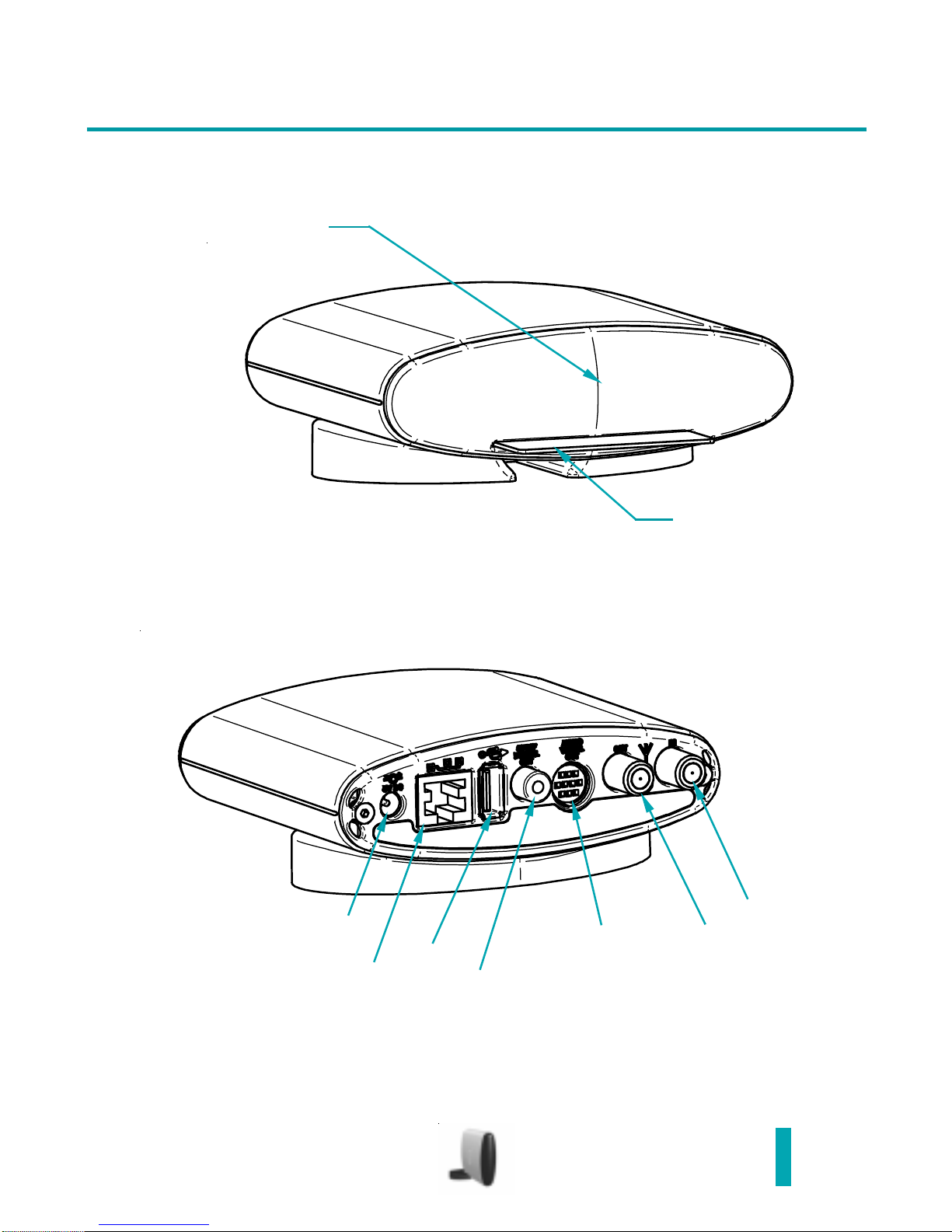

Power/Ir Receive Indicator

Smart Card

(Not supplied)

Power Input USB

Ethernet

RJ-45 SP-DIF Digital Output

RCA-Phono

AV Output

Mini-DIN RF Output

RF Input

6©Amino Communications Ltd 2006

The AmiNET110 can be installed quickly and easily by following these

step-by-step instructions. You can use the Amino A/V Cable (supplied)

or an RF cable to connect the AmiNET110 to your Television. If you

have the capability, you can also connect the AmiNET110 to a stereo

amplifier via the SP-DIF digital output.

This is the simplest installation and gives access to the majority of the

functionality of the box. The first time it is powerede it is possible that

the box will spend a few moments updating itself with the latest

software (available from your service provider). Once completed, the

box will navigate to your service provider’s home page.

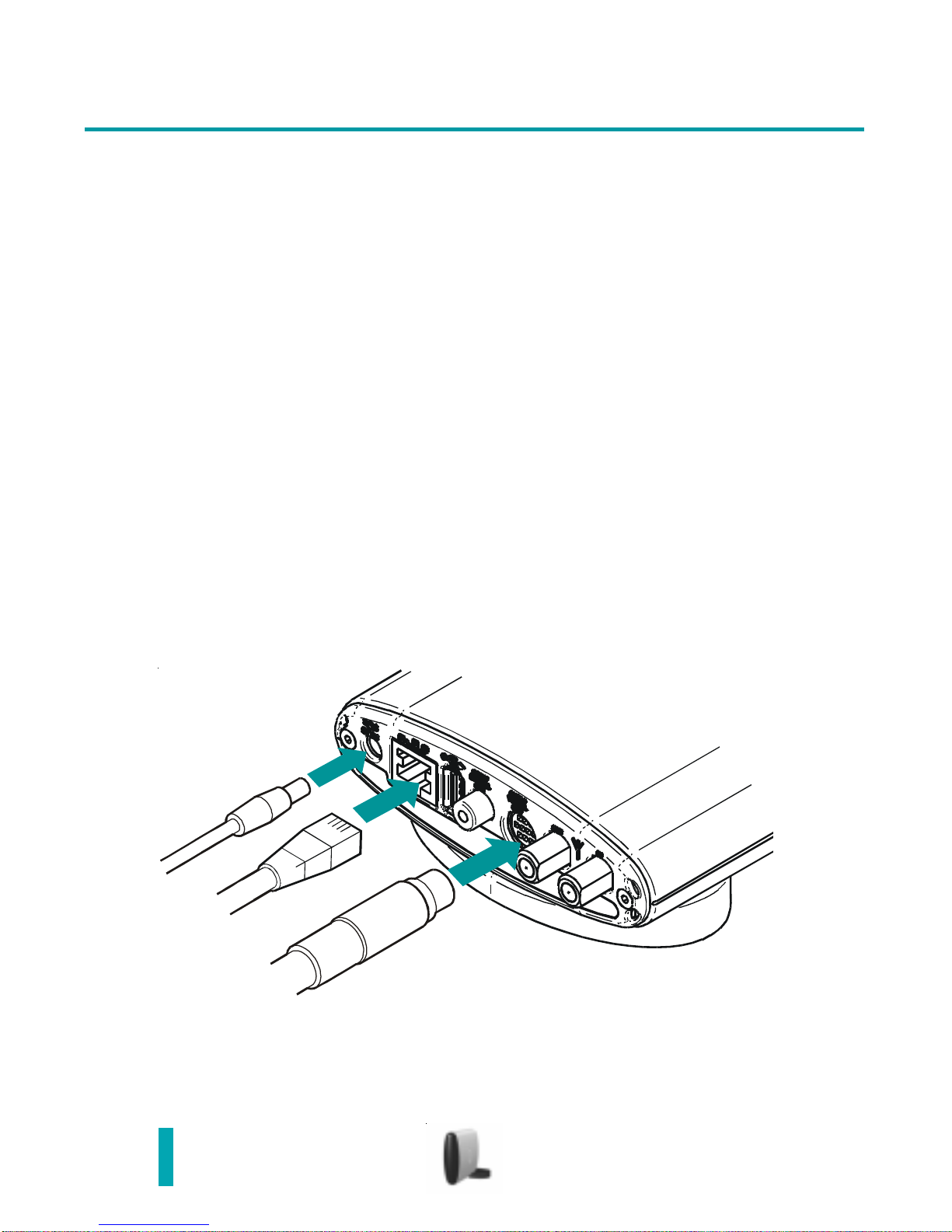

•Connect the Amino A/V lead to the AmiNET110 and to your TV.

•Connect the Ethernet cable to the AmiNET110 and to your service

providers Network Access point.

•Connect the power supply.

Installation

AMINET110 connected to TV, no RF

Power Supply

Amino AV Lead

Network RJ45

©Amino Communications Ltd 2006

This scenario should be used if your television has no composite, s-

video or SCART inputs. (Where available it is recommended to

connect via the composite, s-video or RGB SCART inputs).

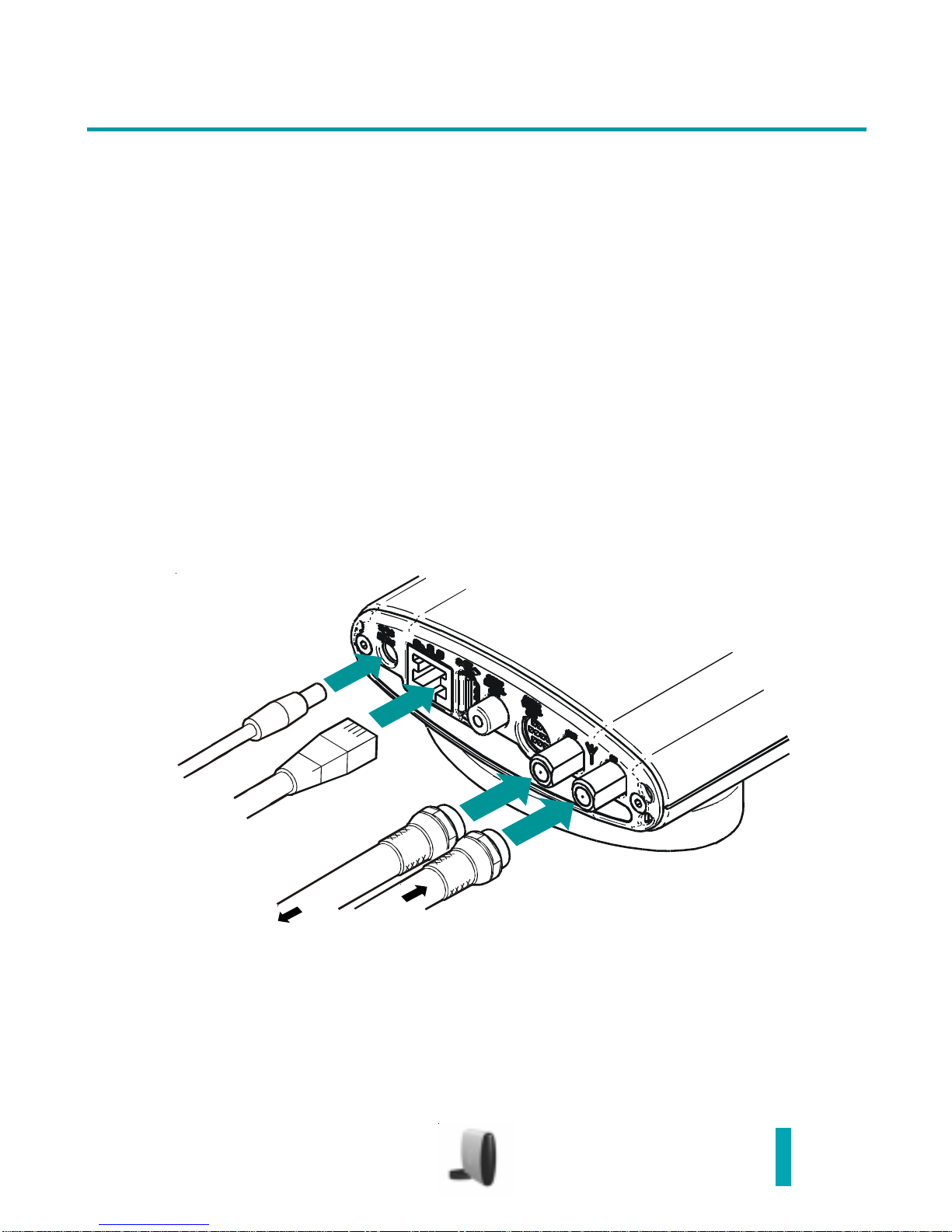

•Connect your incoming RF cable (from your aerial, cable TV box,

etc) to the RF In on the AmiNET110 and connect an RF cable from

the AmiNET110’s RF Out to your television.

•Connect the Ethernet cable to the AmiNET110 andto your service

providers Network Access point.

•Connect the power supply.

AMINET110 connected to TV via RF

Power Supply

Network RJ45

Outgoing RF

Incoming RF

8©Amino Communications Ltd 2006

This scenario gives you access to all the functionality of the

AmiNET110. Digital Audio is delivered to your Home Theater system

via SPDIF, video is delivered to your television via the Amino A/V lead,

and your existing RF signal is passed through the AmiNET110 to your

VCR.

•Connect the Amino A/V lead to the AmiNET110 and your television.

•Connect a coaxial SPDIF cable to the AmiNET110 and your Digital

Audio capable amplifier.

•Connect the incoming RF signal from your aerial/cable box to the

RF In on the AmiNET110.

•Connect an RF cable from the RF Out on the AmiNET110 to the RF

Input on your VCR.

•If required, connect the RF Out on your VCR to your television

•Connect the Ethernet cable (not supplied) to the AmiNET110 and

to your service providers Network Access point.

•Connect the power supply.

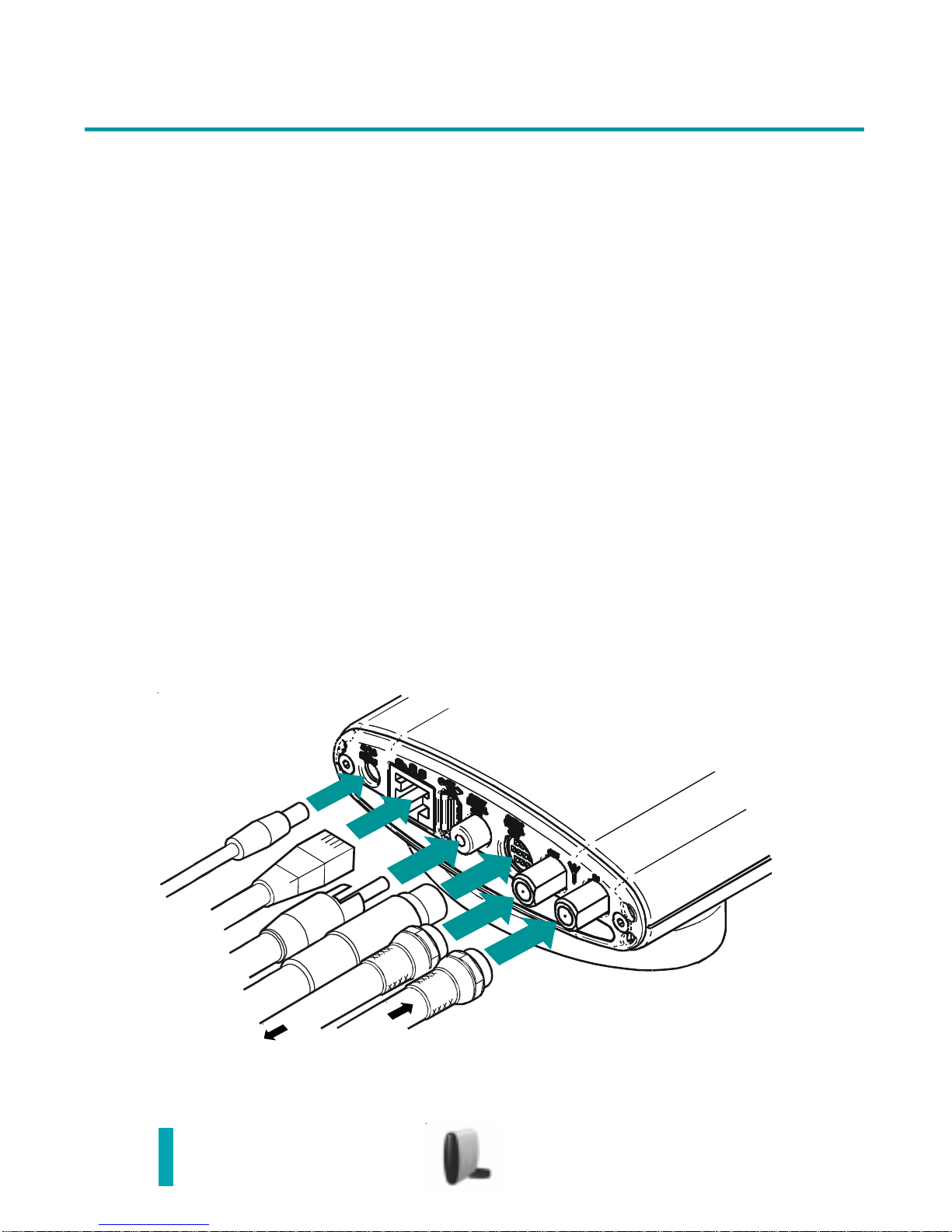

AmiNET110 connected to TV via Amino A/V, to amplifier via

SP-DIF and to VCR via RF

Power Supply

Amino AV Lead

Network RJ45

Outgoing RF

Incoming RF

SP-DIF

©Amino Communications Ltd 2006

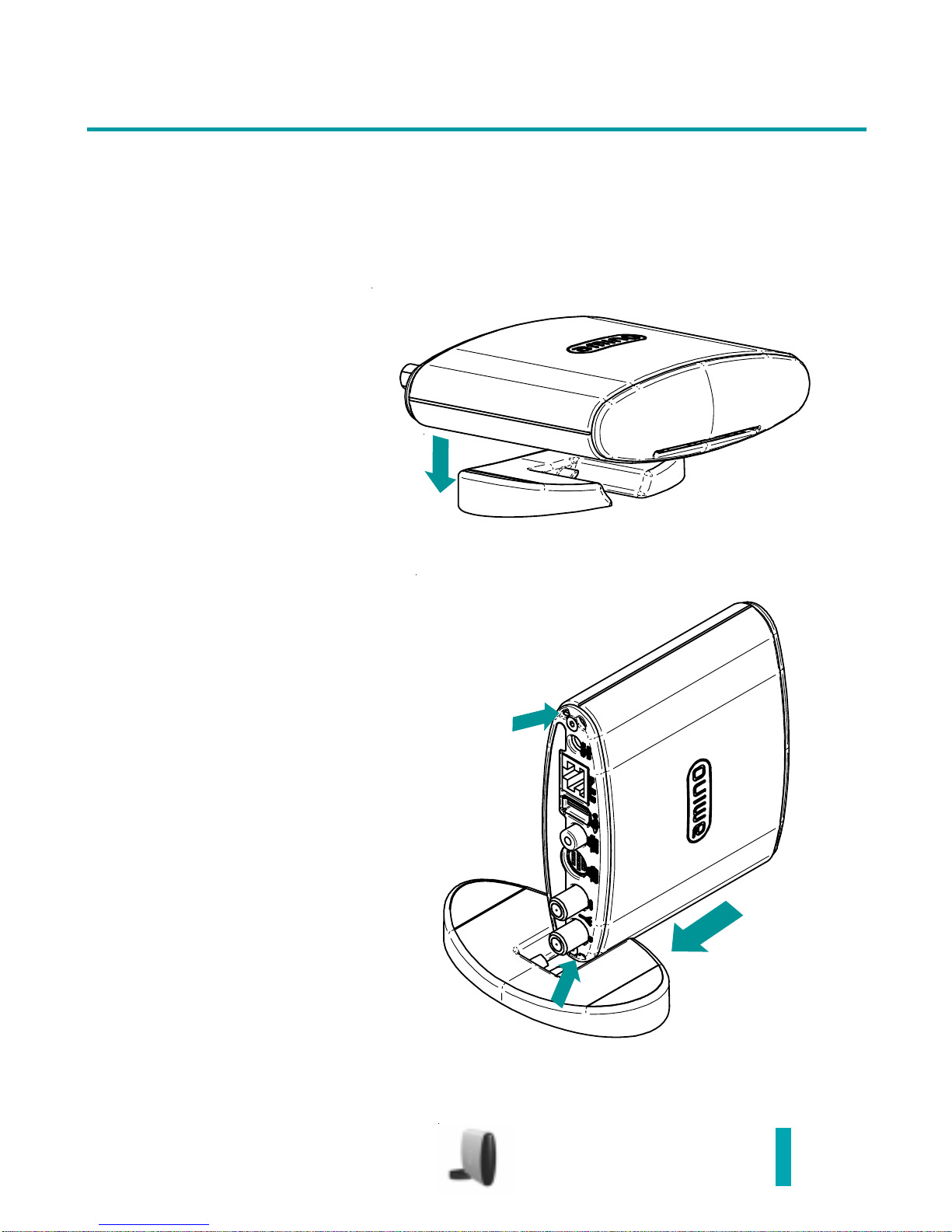

Mounting the AmiNET110

The AmiNET110 can be mounted either horizontally or vertically, and

is supported securely in both orientations.

Horizontal mounting

Vertical mounting

To ensure stability the

AmiNET110 can be mounted

vertically. At either end of

the rear panel moulding

there are a pair of elliptical

holes which can be pushed

onto the 2 elliptical prongs

on the base moulding. Push

the AmiNET110 onto the 2

prongs firmly to mount the

product vertically

To mount the unit

horizontally simply

place it down onto the

upper surface of the

base moulding, which

is contoured to reflect

the product’s shape.

The 2 rubber pads will

retain the AmiNET110

in position.
