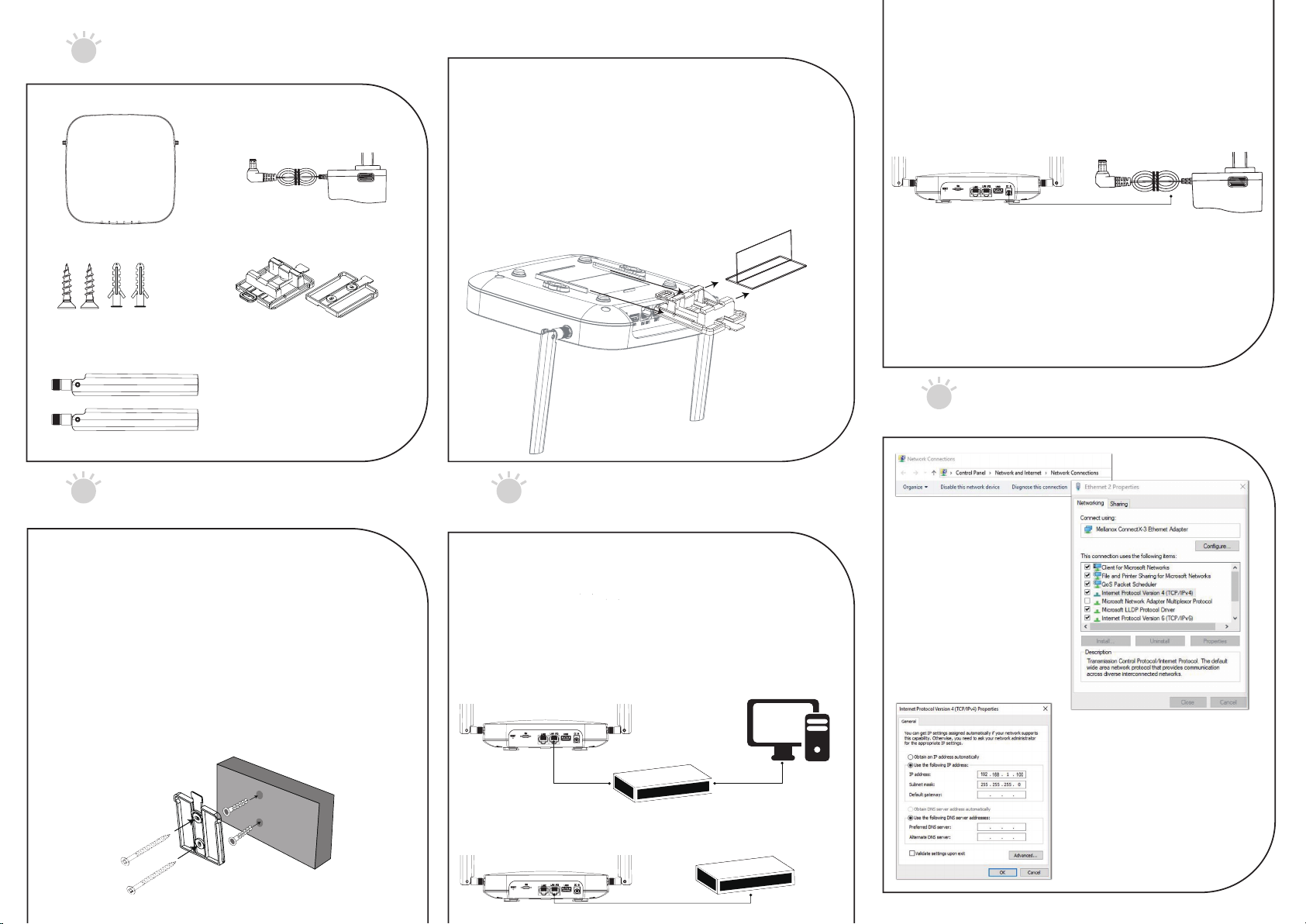

Quick Installation Guide
Step 5
Access Point Setup
Open a web browser on your computer. In the
address bar of the web browser, enter
192.168.1.254 and enter.
A login screen will appear. By default, the username
of the Access Point is admin and the password is
admin. Enter the current username and password of
the Access Point and then click Login.
(Username: admin, Password: admin)
TThe Access Point User Interface will appear. This
device can operate in Access Point operating mode.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment.
RF Exposure warning
This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
This radio transmitter FCCID: RC6-APL5XX has been approved by FCC to
operate with the antenna types listed below with the maximum permissible
gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this
device.
(2)
(1)
(3)
Indoor Access Point
Trade Name Model No. Difference
Amigo Technology
APL52X
2x2 11ax AP
Amigo Technology
APL54X
2x2 11ax AP with LTE option (module)
Model variants
Antenna List (for APL54X)
No.
Manufacturer Part No. Antenna Type Max Antenna Gain
1
ANJIE AELQ2S-W6159 Dipole 4.4 dBi
2
ANJIE
AELQ2S-W6959
Dipole
3.0 dBi
Step 1
Package Content
(1) Access Point
Step 3
Connecting the Device for Configuration
Step 4
IP Address Configuration
(1)Once your computer
is on, ensure that your
TCP/IP is enabled.
Open Network
Connections and then
click Local Area
Connection. Select
Internet Protocol
Version 4 (TCP/IPv4).
(2)If your computer is already
on a network, ensure that you
have set it to a Static IP
Address on the interface.
(Example: 192.168.1.2 , the
Subnet Mask address as
255.255.255.0. and Default
Gateway is 192.168.1.254 )
(2) Power Adapter
(3) Wall Mounting screw kit
(1)Determine where the mounting plate of Access Point to
be placed and mark location on the surface for the two
mounting holes. Use the appropriate drill bit to drill two
26mm depth holes in the markings and hammer the bolts
into the openings.
(2)Screw the anchors into the holes until they are flush with
the wall.
(3)Put mounting plate on the wall to map with hole of
anchor then screw the included screws into the anchors.
(4)Place the Access Point against wall fitting throughout the
slots of the Access Point.
Step 2
Mounting Kits Installation
▉ For Ceiling mount Installation:
(1)Slide the ceiling mount base into the slot of the
Access Point.
(2)Hold the Access Point with one hand to reach the
other hand over the T-Rail sides of the bracket. Then
hook the stationary end of the ceiling mount bracket
onto the T-Rail.
▉ For Wall Mount Installation:
(4)Ceiling mounting bracket
(5)External Antenna If you are initiating the
APL54X which is the 2x2
11ax DBDC access point with
the LTE option, the Package
Content included (Illustration)
Sw
i
t
c
h
Inj
e
c
to
r
(B) PoE Injector (Plug in from LAN1 Port)
(1)Connect one end of the Ethernet cable into the LAN1
port of the Access Point and the other end to the Ethernet
port on the computer.
(2)Plug in power source by different ways that depends on
user setup
environment
(A) PoE Switch (Plug in from LAN1 Port)
(C) DC Power Adapter (Plug in from DC Jack)
-Connect the Power Adapter to the DC-IN port of the
Access Point and plug the other end into an electrical
outlet.
Note: The Access Point supports both IEEE 802.3at
PoE (Power over Ethernet) or the included power
adapter. You may use either one as the power
source. DO NOT use both at the same time.
