Installation & Operation Manual | Sigma Pro

Ref. 910101-000855 / 05.2018

Installation & Operation Manual

4" Sigma Pro

6''/''8Sigma Pro

Installation & Operation Manual | Sigma Pro

Disclaimer

The contents of this document, including without limitation all information and materials, images,

illustrations, data, drawings, names and any other such materials that appear in this document are the

sole property of Amiad Water Systems Ltd., including any intellectual property rights, whether

registered or not, and all know-how contained or embodied therein. Amiad may alter, remove or

change the Content without any further notice. You may not reproduce, copy, modify, create

derivative works from, sell or participate in any sale of, or exploit in any way, in whole or in part, any of

this document or its content.

The confidential nature of and/or privilege in the file enclosed is not waived or lost as a result of a

mistake or error in this file. If you received this file in error, please notify Amiad immediately at

[email protected].

This document does not replace any certified drawing, procedure or information provided by Amiad in

reference to a specific customer, site or project.

Amiad assumes that all users understand risks involved within this file and/or its attached materials.

This document is given in good faith and is not intended to impose any obligation to Amiad. While

every effort has been made to ensure the information in this manual is accurate and complete, we

would appreciate if you can bring any errors or omissions to the knowledge of Amiad or consult Amiad

experts or its authorized representatives if you have any questions.

Amiad Water Systems Ltd. D.N. Galil Elyon 1, 1233500, Israel Tel: 972 4 690 9500 | Fax: 972 4 814 1159

Email: [email protected]

Installation & Operation Manual | Sigma Pro

Push

Pull

Rotate

Screw

Unscrew

Measure

Water

pressure

Attention

Apply

Caution

Read

Center

Sigma

multi-tool

Legend

Installation & Operation Manual | Sigma Pro

Technical Specification

General data

4" Sigma Pro

6" Sigma Pro

8" Sigma Pro

Max. flow rate* (130μ)

in average water quality

120 m3/h

(528 GPM)

180 m3/h

(792 GPM)

280 m3/h

(1233 GPM)

Min. operating pressure

when cleaning

1.5 bar (22 psi) - electronic controller

2.5 bar (36 psi) - hydraulic controller

Max. operating pressure

10 bar (145 psi)

Filtration area

6000 cm2(930 in2)

8000 cm2(1240 in2)

Inlet/Outlet diameter

4”(100 mm)

Flange & Victaulic

6” (150 mm)

Flange

8”(200 mm)

Flange

Weight

Empty: 75 kg (165 lb)

Full: 145 kg (320 lb)

Empty: 110 kg (243 lb)

Full: 225 kg (496 lb)

Empty: 120 kg (264 lb)

Full: 235 kg (518 lb)

* Maximum flow rates depends on water quality and micron size.

Hydraulic controller

Rinse controller

PP (Polypropylene), PA (Polyamide)

DP switch

Built-in rinse controller set at 0.5 bar (7 psi)

Operation mode

3-way ball valve, indicate: automatic or manual

Electronic controller

Control power supply

4 X AA type 1.5V batteries / External 7-14V DC

Solenoid operation data

12-9V DC latching solenoid

DP switch

Integral sensors

Flushing data

Exhaust valve

2”(50mm)

Flushing time

10 seconds

Reject water volume

per flush cycle

75 liters (20 gallons)

90 liters (23 gallons)

Min. flow for flushing

(at 1.5 bar/22 psi)

34 m3/h

(150 GPM)

36 m3/h

(158 GPM)

Construction materials

Filter housing and lid

RPP (reinforced polypropylene)

RPA (reinforced polyamide)

Screens

Molded weavewire stainless steel 316L

Cleaning mechanism

PBT (Polybutylene)

Exhaust valve

Polymeric

Seals

EPDM

Control command tubing

PE (Polyethylene)

Standard filtration degrees

Micron

500

300

200

130

100

0.5

0.3

0.2

0.13

0.1

0.08

Installation & Operation Manual | Sigma Pro

General Safety Instructions

•Amiad Water Systems Ltd. ("Amiad") filtration products operate as components in a larger system. It

is essential for the system designers, installers, and operators to comply with all the relevant safety

standards and regulations, including the use and wear of appropriate safety equipment.

•Prior to installation, operation, maintenance, or any other type of action carried out on the filter,

carefully read the safety, installation, operation and warranty instructions.

•During installation, operation, commissioning, or maintenance of the filter, all conventional safety

instructions should be observed to avoid danger to any person, including the workers performing the

said activity, or to property in the vicinity.

•Please note: the filter enters a flushing mode automatically, without warning.

•Manual cleaning of filter element using high water pressure or steam should be performed in

accordance with the cleaning system instructions, the local standards, and regulations.

•Manual cleaning of filter element using acid or other chemical agents should be performed in

accordance with the relevant material safety instructions, the local standards, and regulations.

Observe and act according to the requirements detailed in the safety stickers on the filter, if any.

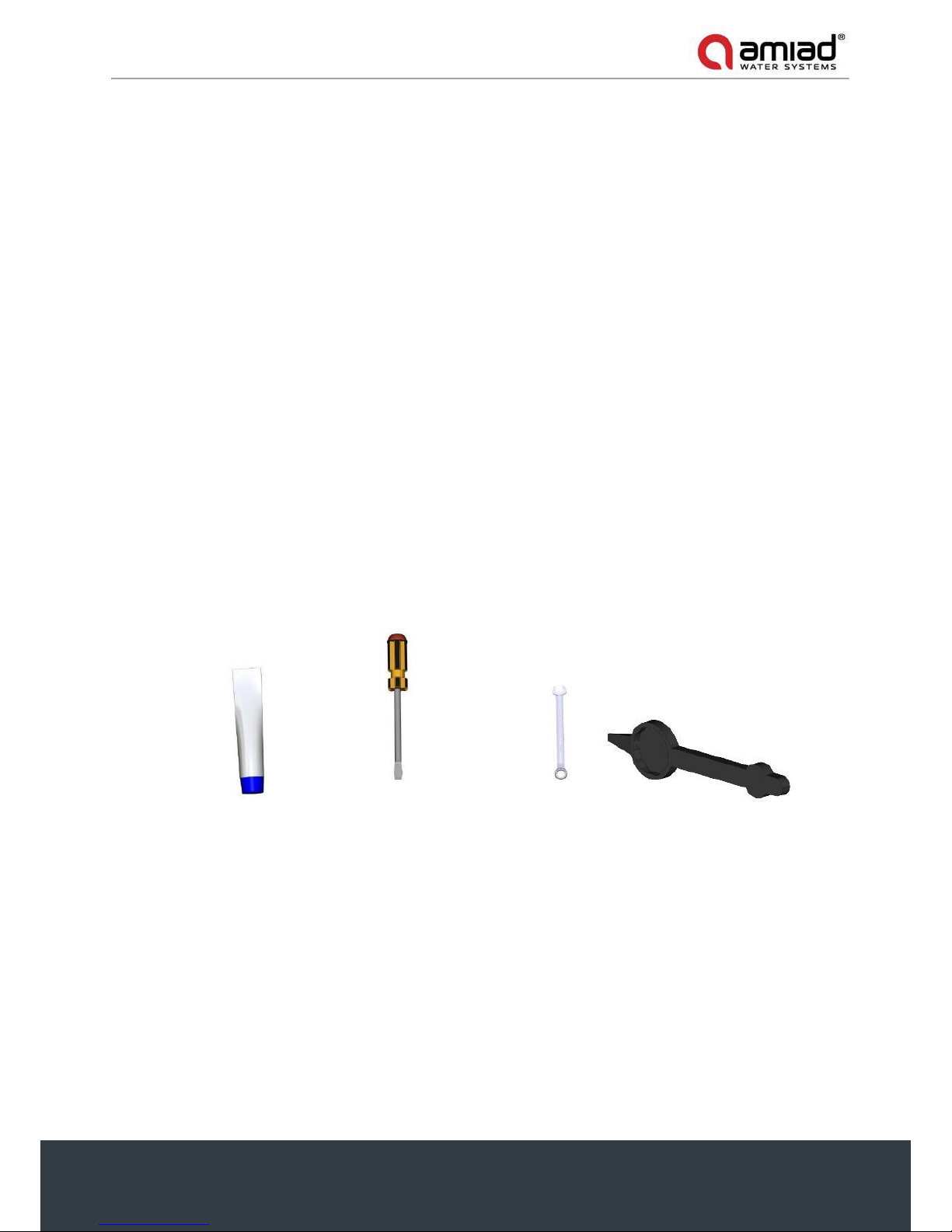

Tools needed for installation

Use only appropriate standard tools and equipment operated by qualified operators when

installing, operating and maintaining the filter.

*Amiad supplys the Sigma multi-tool only.

Grease

760190-000127

Flathead screwdriver

Open wrench

11mm (1/4'')

Sigma multi-tool

710101-001445

Use only with

Rinse controller

Installation & Operation Manual | Sigma Pro

Installation

General

➢Install the filter according to the detailed Installation Instructions provided with the filter by Amiad.

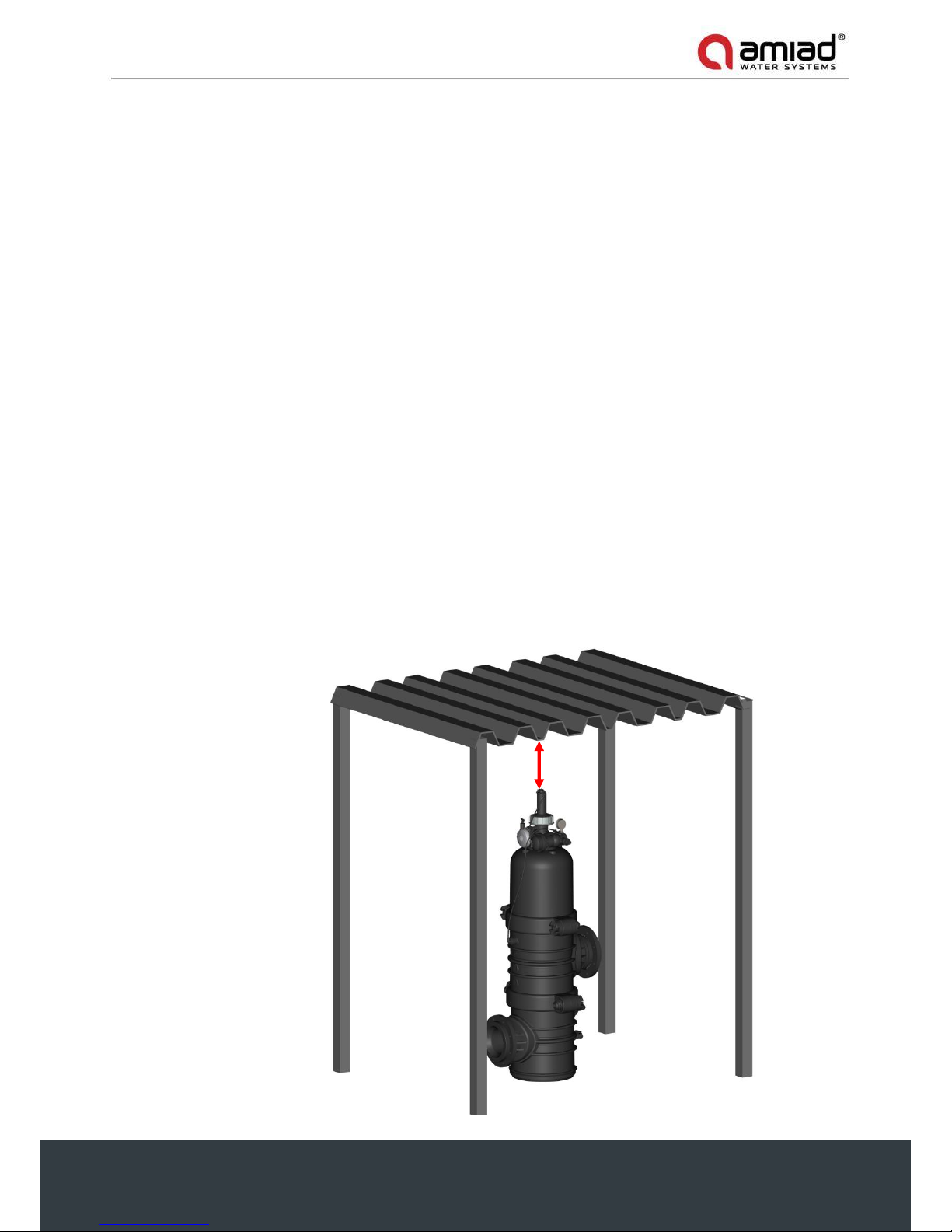

➢Make sure to leave enough space (height 70 cm/ 27") to enable easy access for future treatments

and safe maintenance operations.

➢The user should arrange suitable lighting at the area of the filter to enable good visibility and safe

maintenance.

➢Check and retighten all bolts during commissioning and after the first week of operation.

➢Use only appropriate tools and equipment or recommended tools and equipment, if any, all

operated by qualified operators when installing, operating, and maintaining the filter.

Civil Engineering

➢While using lifting equipment, make sure that the filter is lifted in a safe manner.

➢Do not leave equipment lifted if not necessary. Avoid working below lifted equipment.

Shipping and Transporting

➢Shipping and transporting the filter must be done in a safe and stable manner and in accordance

with the relevant standards and regulations.

➢For shipping, lifting and positioning the filter, use only approved lifting equipment and authorized

employees and contractors.

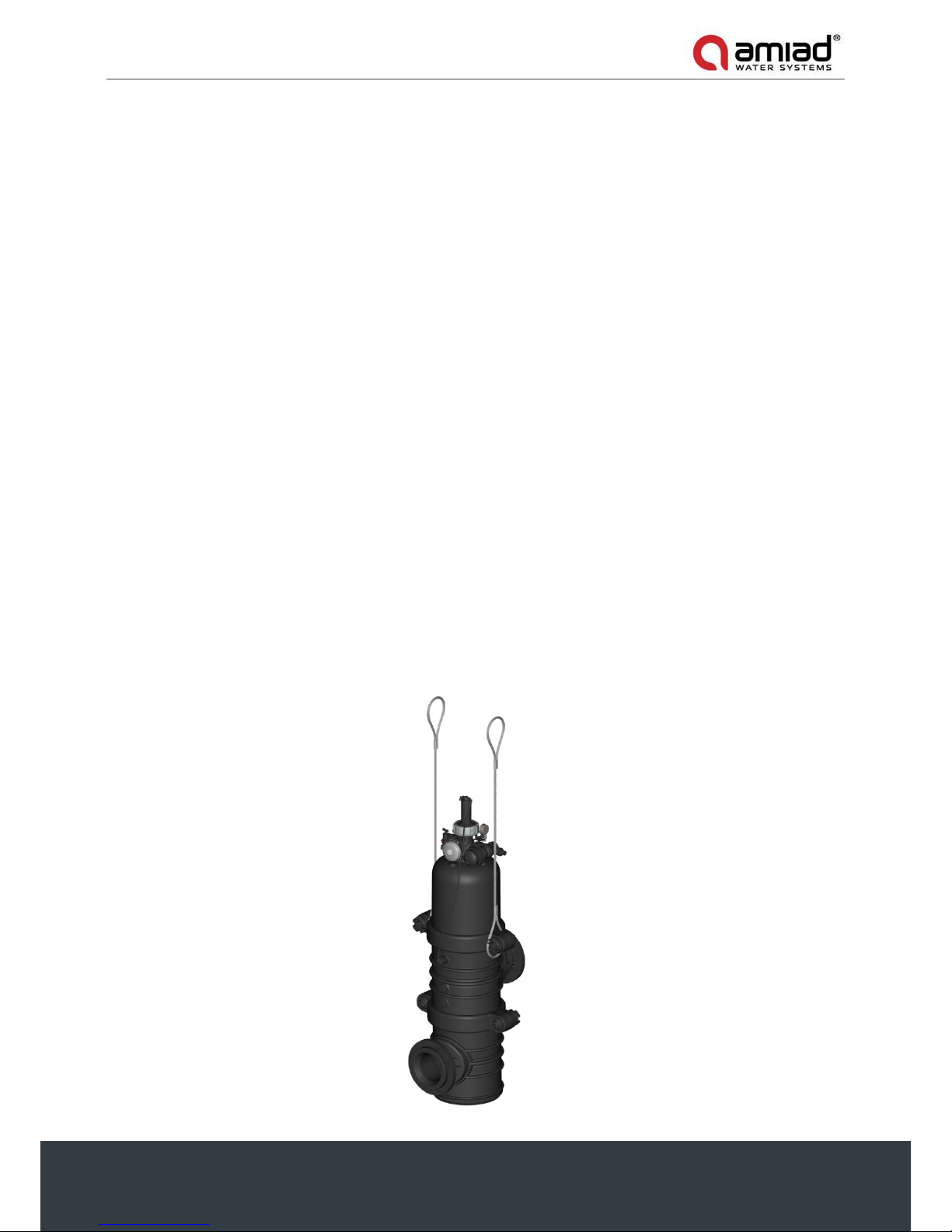

➢Whenever lifting the filter is required, connect suitable hoisting equipment to the filter's clamps at

both sides of the filter, connect the ropes to a crane hook and carefully lift the filter.

Installation & Operation Manual | Sigma Pro

70 cm/27''

Min

Hydraulics

➢The user should install a manual water cut-off valve next to the filter’s inlet port.

➢In installations where the piping network downstream of the filter is pressurized, an additional

manual water cut-off valve should be installed next to the filter's outlet port.

➢The user should make sure that the system includes a pressure release / drainage valve to enable

release of residual pressure prior to any maintenance procedure is performed on the filter.

➢The user should make sure that the filter is never exposed to water pressure exceeding the

maximum designated pressure for this filter. When necessary, a pressure reduction valve should

be installed upstream of the filter’s water inlet port.

➢Please note that the maximum working pressure indicated in the filter’s specifications table

includes the pressure caused by fluid hammer and pressure surge effects.

➢If possible, prior to installing the filter, thoroughly flush the main line at the connection point in

order to remove large objects that may damage the filter’s internal mechanism.

Important installation note

➢Install the filter vertically. Please note that a minimum clearance of 70 cm (27") is required in order

to disassemble the unit.

Attention

➢Ensure that the direction of the flow is aligned with the arrows marked on the filter housing.

➢To prevent static backpressure or reverse flow through the filter, it is recommended to install a

non-return valve.

Installation & Operation Manual | Sigma Pro

Changing Installation Configuration

Changing the inlet/outlet direction:

If the original configuration does not match the required installation position, the lower

body can be rotated 360°.

In order to change the configuration of the filter, follow these steps:

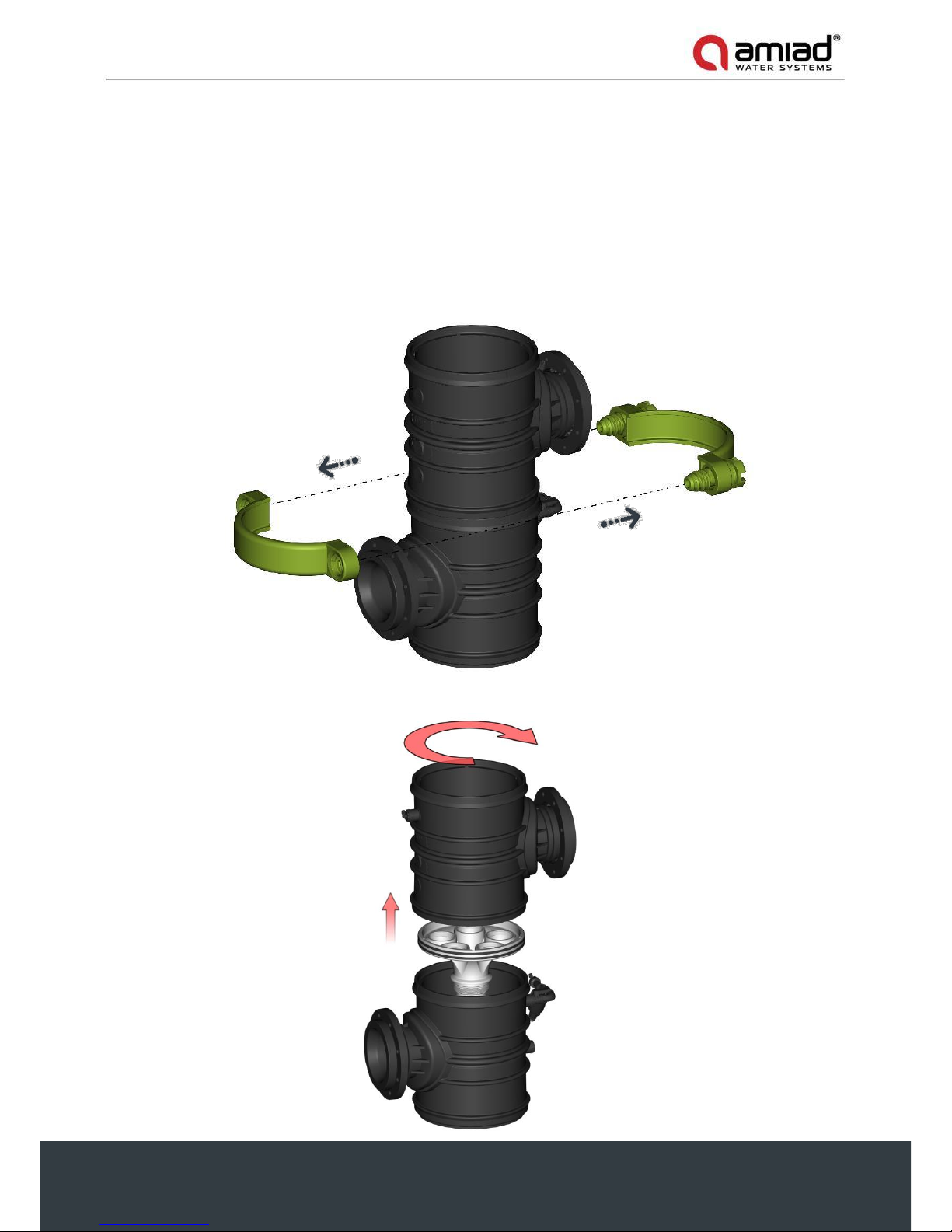

1. Disassemble the filter according to "Basic Maintenance Disassembly" (on page 13)

2. Disconnect the pipeline from the Sigma lower body

3. Remove the clamps that connect the Sigma body to the lower body

4. Lift and rotate the Sigma body and plate to the desired position

Installation & Operation Manual | Sigma Pro

180°

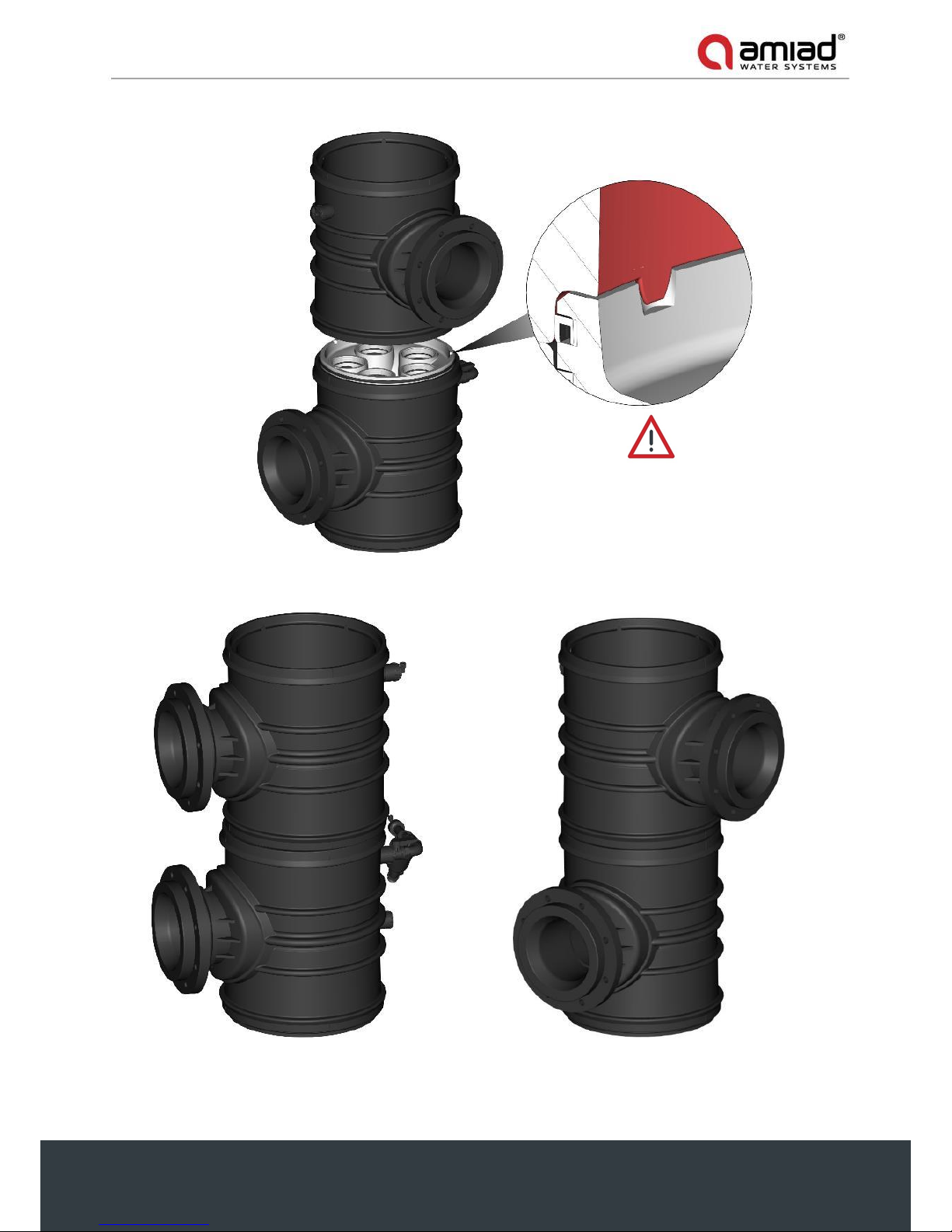

5. Make sure that the fittings on the Sigma body are set in place with the lower body

6. Connect the Sigma body to the lower body in the desired position

90°

Attention

Installation & Operation Manual | Sigma Pro

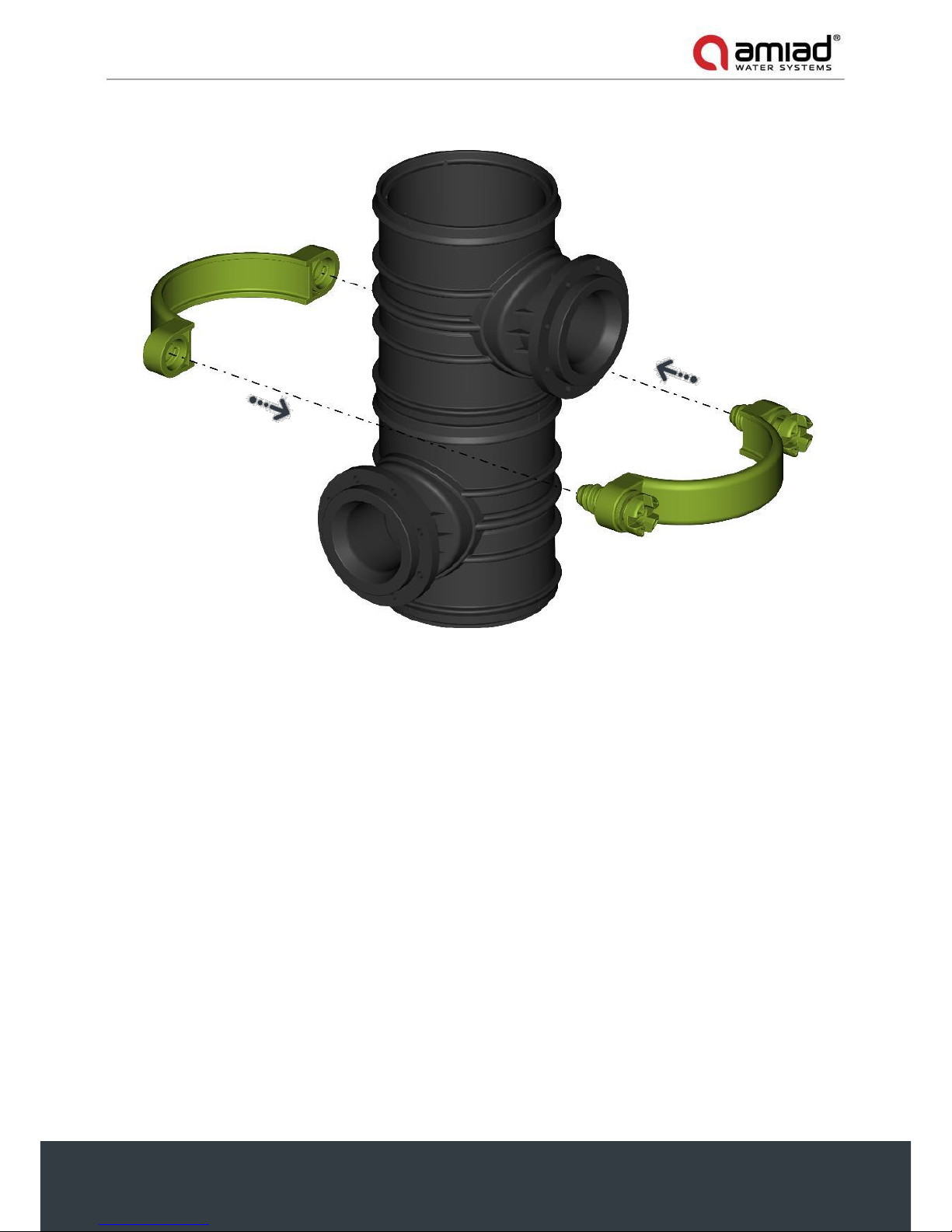

7. Connect the clamps and tighten the bolts using the Sigma multi-tool

8. Assemble the filter according to chapter "Basic Maintenance assembly" (on page 21).
