AMG5514R

Instruction Manual

Receive Unit with one Bi-directional Data Channel and one

Bi-directional Alarm for a Singlemode Fibre Link

The AMG5514R is a rackmount receive unit designed to transmit and receive 1 data signal plus 1 Bi-

directional alarm over one Singlemode optical fibre.

The AMG5514R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a

19" rack system.

The AMG5514R is designed to operate with an AMG5513 / AMG5513R transmit unit in a point to

point configuration. The R suffix in the partno. indicates a rackmount configuration.

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 2 of 8 AMG5514R Instruction Sheet D17366-

00.doc



Contents

Introduction 3

Unit Functional Schematic.................................................................................................................. 3

Optical Connection ............................................................................................................................. 3

Connections 4

Optical Connections Singlemode ....................................................................................................... 4

Power Connection .............................................................................................................................. 4

Data and Alarm Channel Connections ............................................................................................... 4

Front Panel Indicators 5

Power / Opto LED............................................................................................................................... 5

Low Speed Data LEDs ....................................................................................................................... 5

Alarm LEDs ........................................................................................................................................ 5

Data and Alarm Channel Configuration 6

Data Channel Configuration ............................................................................................................... 6

Data Interface Connections ................................................................................................................ 7

Alarm Channel Configuration ............................................................................................................. 7

Alarm Interface Connections .............................................................................................................. 7

Physical Information 8

Dimensions......................................................................................................................................... 8

Mounting Details................................................................................................................................. 8

Safety 8

Maintenance and Repair 8

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 3 of 8 AMG5514R Instruction Sheet D17366-

00.doc



Introduction

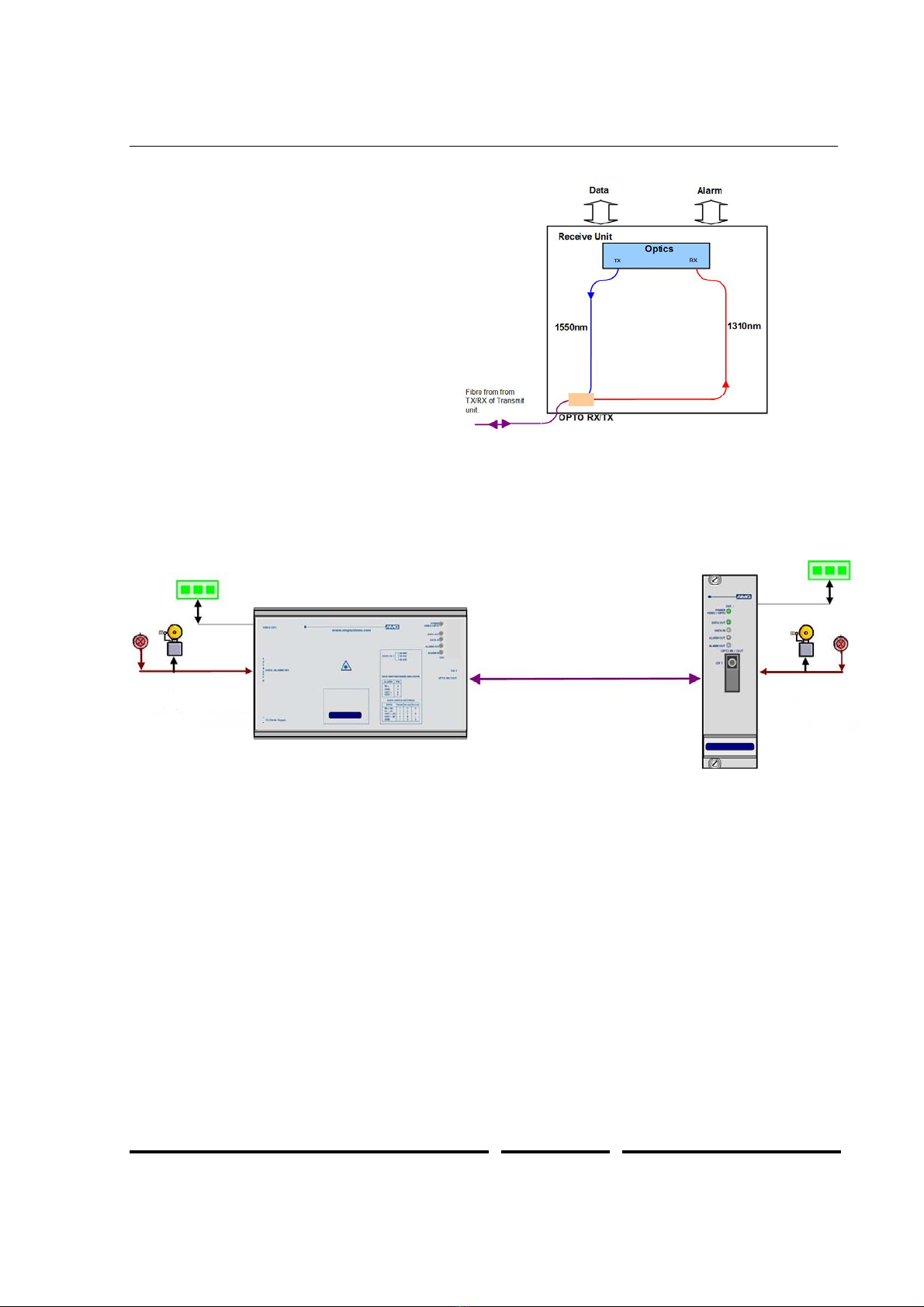

Unit Functional Schematic

The AMG5514R transmits 1 data channel

and 1 uni-directional alarm signal to the

AMG5513 transmit unit.

It also receives 1 data channel and 1 Bi-

directional alarm transmitted from the

AMG5513.

Optical Connection

The AMG5514R connections are illustrated in the following example which shows an AMG5513

transmit unit together with an AMG5514R rackmount receive unit configured as a single channel point

to point system.

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 4 of 8 AMG5514R Instruction Sheet D17366-

00.doc



Connections

Optical Connections Singlemode

No. of Optical Connections..................1

Optical Fibre ........................................Singlemode

Connector ............................................SC/PC

Primary Optical Launch Power ............-10dBm

Transmit Wavelength...........................1310nm

Primary Optical Sensitivity...................-30dBm

Receive Wavelength............................1550nm

Minimum Optical Dynamic Range .......20dB.

Power Connection

Power supply .......................................From plug in connection on the AMG2009 or AMG2015 subrack

Power consumption .............................3.0 Watts max.

Data and Alarm Channel Connections

No. of Data Channels ..........................1

No. of Alarms ......................................1

Connectors ..........................................Removable 8-pin, 2.5mm, Spring Terminal

Connector Partno.................................Phoenix 1881383

Data Interfaces ....................................RS-232, RS-422 or R-S485. Selected by slide switch inside

enclosure. *See appropriate section on how to remove the case

for access to the data switches

RS-485 – Switch Position - Top

RS-422 – Switch Position - Middle

RS-232 – Switch Position - Bottom

Alarm input...........................................Contact Closure pull-up is 330R to +3V3

Alarm Output........................................Solid-state Relay, maximum 150mA at 125Vac/dc, Ron < 6.5Ω

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 5 of 8 AMG5514R Instruction Sheet D17366-

00.doc



Front Panel Indicators

Power / Opto LED

Power / Opto........................................ Green - Unit powered, Opto sync.

Red - Unit powered, no Opto sync.

Off - No power applied to unit

Low Speed Data LEDs

Data Present IN (RS485 or RS422) .... Green - logic zero (+V, -V) present on IN+, IN-

Red - logic one (-V,V+) present on IN+, IN-

Off - tri-state off or no connection on IN+, IN-

Data Present IN (RS232) .................... Green - logic zero (+V) present on input IN+

Red - logic transitions present on input IN+

Off - logic one (-V) present on input IN+

IN corresponds to the data signals being transmitted onto the optical fibre.

Data Present OUT (RS485 or RS422) Green - logic zero (+V,-V) present on OUT+, OUT-

Red - logic one (-V,+V) present on OUT+, OUT-

Off - tri-state off or no connection on OUT+, OUT-

Data Present OUT (RS232) ................ Green - logic zero (+V) present on OUT+

Red - logic transitions present on OUT+

Off - logic one (-V) present on OUT+

OUT corresponds to the data signals being received from the optical fibre.

Alarm LEDs

ALARM IN............................................ Green - Alarm ON / Contacts closed.

Off - Alarm OFF / Contacts open.

ALARM OUT........................................ Green - Alarm ON / Contacts closed.

Off - Alarm OFF / Contacts open.

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 6 of 8 AMG5514R Instruction Sheet D17366-

00.doc



Data and Alarm Channel Configuration

The AMG5514R sends and receives data to/from a AMG5513 transmit unit. The physical data

interface RS-485, RS-422 or RS-232 is individually selectable by the user with the corresponding slide

switch mounted on the main PCB inside the enclosure.

One bi-directional alarm is also provided. The alarm input is typically connected to a contact closure

switch. The alarm output can receive an on/off signal from an AMG5513 and is typically used to

convey contact closure status.

Data Channel Configuration

Each low speed data channel provides an RS-232, RS-422 (full duplex, four wire) or RS-485 (half

duplex, two wire) interface defined by the corresponding mode switch inside the enclosure. Every data

channel as shipped from the factory is set up for RS-485 operation unless otherwise requested.

The data input for both the RS-485 and the RS-422 modes detects a tri-state input condition by

monitoring the differential voltage level across the input. A differential level below 600mV positive or

negative will be detected as a tri-state condition. A level above 600mV positive or negative will be

detected as a logic 1 or logic 0 respectively. It is important therefore to terminate the RS-485 bus or

the RS-422 input bus using 120Ωif a pre-bias is present on the RS-485 or RS-422 bus.

A large number of third party equipment manufacturers apply a pre-bias on their RS-485 bus. This pre-

bias is applied by pulling one arm of the RS-485 bus high (+5 volts) and the other arm low (0 volts)

using high value resistors within the third party equipment. In order to ensure that the AMG equipment

detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party

bias resistors are less the 750Ωthe bus can be multiple terminated as required to ensure that a tri-

state level is detected.

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 7 of 8 AMG5514R Instruction Sheet D17366-

00.doc



The system detects a tri-state input condition on the data channel bus when in RS-485 or RS-422

mode.

Data Interface Connections

Connector

Pin No.

Data Channel

RS-485

[switch top]

RS-422

[switch middle]

RS-232

[switch bottom]

1IN + (A) IN

2IN - (B)

3GND GND GND

7IN/OUT + (A) OUT + (A)

8IN/OUT - (B) OUT - (B) OUT

Note: (A) or (B) in brackets in the above table refers to RS-485 / RS-422 data specification.

Alarm Channel Configuration

The AMG5514R provides one bi-directional alarm output / contact closure input.

The alarm input is typically connected to a contact closure switch. An ALARM IN+ input incorporates a

330R pull-up resistor to the internal +3V3 supply.

The alarm output can receive an on/off signal from an AMG5513 and is typically used to convey

contact closure status. An alarm output uses a solid-state relay, with a maximum load current of

150mA at 125Vac/dc and Ron < 6.5Ω.

Alarm Interface Connections

Connector

Pin No.

Alarm Interface

Alarm IN Alarm OUT

3GND

4ALARM IN +

5ALARM OUT -

6ALARM OUT +

AMG Systems Ltd. reserves the right to make changes to this

document without notice. The information herein is believed to

be accurate. No responsibility is assumed by AMG for its use.

Page 8 of 8 AMG5514R Instruction Sheet D17366-

00.doc



Physical Information

Dimensions

Height ..................................................3U Plug-in

Width....................................................7HP

Depth ...................................................170mm excluding connectors

Weight..................................................200grams

Mounting Details

The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card

guides.

Safety

AMG Optical Fibre Products use Class 1 laser systems in accordance with EN 60825-2:2000.

It is always advisable to follow good practice when working with optical fibre systems. This includes:

Do not stare with unprotected eyes or with any unapproved collimating device at fibre

ends or connector faces, or point them at other people.

Use only approved filtered or attenuating viewing aids

For other safety issues and advice on good practice associated with optical fibre systems, please see

EN 60825-2:2000 or your local safety officer.

Maintenance and Repair

There are no user serviceable parts within AMG products. See unit data sheet for full specification.

In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at

3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.

Phone +44 (0) 1767 600 777

Technical Support +44 (0) 1767 604 491

Email techsupport@amgsystems.com

Table des matières

Autres manuels AMG Récepteur

AMG

AMG AMG4708AE Manuel utilisateur

AMG

AMG AMG5804-2A9R-DF Manuel utilisateur

AMG

AMG AMG4642ER Manuel utilisateur

AMG

AMG AMG4748AG-SF Manuel utilisateur

AMG

AMG AMG4788AR-SF Manuel utilisateur

AMG

AMG AMG3784ER Manuel utilisateur

AMG

AMG AMG5804A966G-DF Manuel utilisateur

AMG

AMG AMG5904A9B9G Manuel utilisateur

AMG

AMG AMG5716A8R-DR Manuel utilisateur

AMG

AMG AMG3782RN-DR-SF Manuel utilisateur

AMG

AMG AMG5714A9-DIN Manuel utilisateur

AMG

AMG AMG3784EBxR-DRCWDMn/m Manuel utilisateur

AMG

AMG AMG2684 Manuel utilisateur

AMG

AMG AMG5902R Manuel utilisateur

AMG

AMG AMG2648R Manuel utilisateur

AMG

AMG AMG4788AR Manuel utilisateur

AMG

AMG AMG4784E Manuel utilisateur

AMG

AMG AMG3708BRN-DR-SF Manuel utilisateur

AMG

AMG AMG4748AR-SF Manuel utilisateur

AMG

AMG AMG3788BERN-DR-CWDMn/m Manuel utilisateur

AMG

AMG AMG4684BxR Manuel utilisateur

AMG

AMG AMG5526 Manuel utilisateur

AMG

AMG AMG3788ERN-DR-1550-HP Manuel utilisateur

AMG

AMG AMG3703B2-DR-SF Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
