AMF Reece S-101 Manuel utilisateur

3-1

S-101

Released 09/2004

E-mail: [email protected]; [email protected] ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

TABLE OF CONTENTS

Covers & Supporting Members ............................................................................... 3-2

Drive Shaft.................................................................................................................. 3-6

Main Cam and Brake Band ...................................................................................... 3-8

Starting lever and switch lever assembly ............................................................ 3-10

Combination Lateral Lever .................................................................................... 3-12

Flybar Control & Turning Sectors &Levers ........................................................ 3-14

Race............................................................................................................................ 3-16

Thread Take up & Looper Drive ........................................................................... 3-20

Upper Thread Trimmer............................................................................................ 3-22

Clamp Yoke Assembly ........................................................................................... 3-24

Cutting Lever Assembly ......................................................................................... 3-28

Length Gauge ........................................................................................................... 3-30

Stitch Feed ................................................................................................................ 3-32

Three Fork Lever ..................................................................................................... 3-34

Rocking Lever .......................................................................................................... 3-36

Needle Bar Drive and Vibrator .............................................................................. 3-40

Needle Bar and Gear .............................................................................................. 3-42

Thread Handling ...................................................................................................... 3-44

Regular Table............................................................................................................ 3-48

Tools, Supples & Accessories................................................................................ 3-50

From the library of: Superior Sewing Machine & Supply LLC

3-2

Released 10/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

S-101 COVERS & SUPPORTING MEMBERS

33 34

24 22

40 41

36 37

44 45

From the library of: Superior Sewing Machine & Supply LLC

3-3

S-101

Released 09/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

DET PART NUMBER DESCRIPTION QTY.

01 10.1194.0.023 Top Right Cover Assembly 1

02 10.1194.0.020 Cover Support (1)

03 10.1194.0.008 Hinge (1)

04 01.1194.0.019 Hinge Support (1)

05 01.4472.0.000 Washer (3)+2

06 01.4407.0.000 Lock Washer (3)+2

07 01.2247.0.003 Screw (3)+2

08 01.2247.0.001 Screw (3)

09 12.8000.1.001 Label (1)

10 10.1194.0.004 Right Bottom Cover (1)

11 01.3402.0.000 Nut (3)

12 01.5062.0.000 Spring Washer 1

13 10.1151.0.000 Screw 1

14 10.1082.0.051 Plate - Cover *Front Assembly 1

15 10.1082.0.001 Plate (1)

16 01.3040.0.000 Knob (1)

17 01.2101.0.000 Screw (1)

18 10.1145.2.000 Shield 1

19 01.4672.0.002 Lock Washer 1

20 01.2078.0.000 Screw 1

21 10.1194.0.024 Top Right Cover Assembly 1

22 01.2241.0.103 Screw (4)+2

23 10.1194.0.009 Clip (1)

24 01.4406.0.000 Lock Washer (4)+2

25 01.3401.0.000 Nut (2)

26 01.4411.0.000 Washer (2)

27 01.2241.0.103 Screw (2)

28 10.1194.1.012 Hinge (1)

29 10.5001.2.051 Line Stand Assembly 1

30 10.5001.2.000 Stand (1)

31 05.1385.0.000 U - Chanel Eding (1)

32 01.7329.0.000 Oilite Bushing (2)

33 01.3001.0.000 Nut (2)

34 10.5002.0.000 Thread Guide (1)

35 01.2888.0.402 Screw (1)

36 10.2003.0.000 Hinge Screw 1+(1)

37 01.3014.0.000 Nut (1)

38 10.0625.0.000 Cover Front 1

39 01.2050.0.000 Screw (1)

40 01.4019.0.000 Washer (1)

41 10.5006.1.000 Clip (1)

42 10.5005.1.900 Cover (1)

43 01.3040.0.000 Knob (1)

44 10.2004.1.000 Screw 1

45 10.2005.0.000 Latch 1

46 01.2340.0.000 Screw 2

47 10.5019.0.000 Bracket 1

48 10.5021.0.000 Oil Pan 1

49 10.1194.0.025 L.H. Cover Aqssembly 1

50 01.5123.0.000 Spring (1)

COVERS & SUPPORTING MEMBERS

From the library of: Superior Sewing Machine & Supply LLC

3-4

Released 10/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

S-101 COVERS & SUPPORTING MEMBERS

33 34

24 22

40 41

36 37

44 45

From the library of: Superior Sewing Machine & Supply LLC

3-5

S-101

Released 10/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

COVERS & SUPPORTING MEMBERS

DET PART NUMBER DESCRIPTION QTY.

51 01.4407.0.000 Lock Washer (6)

52 01.3402.0.000 Nut (6)

53 10.1194.0.010 Hinge (1)

54 10.1194.2.006 Left Bottom Cover (1)

55 01.4472.0.000 Washer (6)

56 01.2247.0.003 Screw (3)

57 01.2247.0.001 Screw (3)

58 10.1194.1.005 Top Left Cover (1)

59 10.1194.0.028 Latch (1)

60 10.1081.0.000 Screw 1

61 10.1080.0.000 Cover 1

62 01.2547.1.441 Screw 4

63 10.2017.0.000 Hinge Screw 1

64 10.1001.7.050 Head White 1

65 01.1147.0.003 Screw 1

From the library of: Superior Sewing Machine & Supply LLC

3-6

Released 01/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

S-101 DRIVE SHAFT

10 14

18 19 17

From the library of: Superior Sewing Machine & Supply LLC

3-7

S-101

Released 01/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

DRIVE SHAFT

DET PART NUMBER DESCRIPTION QTY.

01 10.3039.1.050 Cutting Wheel Assembly 1

02 01.6422.0.005 Retainer Ring (1)

03 01.4764.0.000 Washer (1)

04 01.5017.0.000 Spring (1)

05 10.3042.0.000 Dog Strike (1)

06 10.3040.1.000 Anchor Stud (1)

07 10.3039.0.000 Left Pully (1)

08 10.1194.0.013 Screw 1

09 10.1194.0.007 Hub 1

10 10.1194.0.016 Floating Shaft 1

11 10.1194.0.014 Crank Handle 1

12 10.3051.0.000 Drive Pin 1

13 10.3050.0.000 Worm Gear 1

14 01.4009.0.000 Lock Washer 1

15 10.3049.0.000 Collar 1

16 01.4007.0.000 Washer 2

17 01.5683.0.000 Curved Spring Washer 3

18 10.3045.0.000 Shifter Spool 1

19 01.2035.0.000 Screw (1)

20 01.2002.0.000 Screw 2

21 10.3148.0.000 Ratchet 1

22 01.6023.0.000 Pin (1)

23 10.3047.1.050 Worm Shaft Assembly 1

24 10.3054.2.000 Inner Case Cover 1

25 01.2037.0.000 Screw 4

26 01.2075.0.000 Screw 4

27 10.3080.0.000 Outer Plate 2

28 13.3079.0.000 Slide Stud 1

29 10.3082.0.000 Inner Plate 2

30 01.2008.0.000 Screw 4

31 10.3053.1.000 Pawl Case 1

32 10.3052.0.000 Pawl 4

33 01.5018.0.000 Spring 4

34 13.3083.0.000 Suppert 1

35 01.4412.0.000 Washer 2

36 01.4572.0.000 Lock Washer 2

37 01.2128.0.000 Screw 2

38 01.2493.0.000 Screw (1)

39 10.3046.0.000 Friction Collar 1

From the library of: Superior Sewing Machine & Supply LLC

3-8

Released 10/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

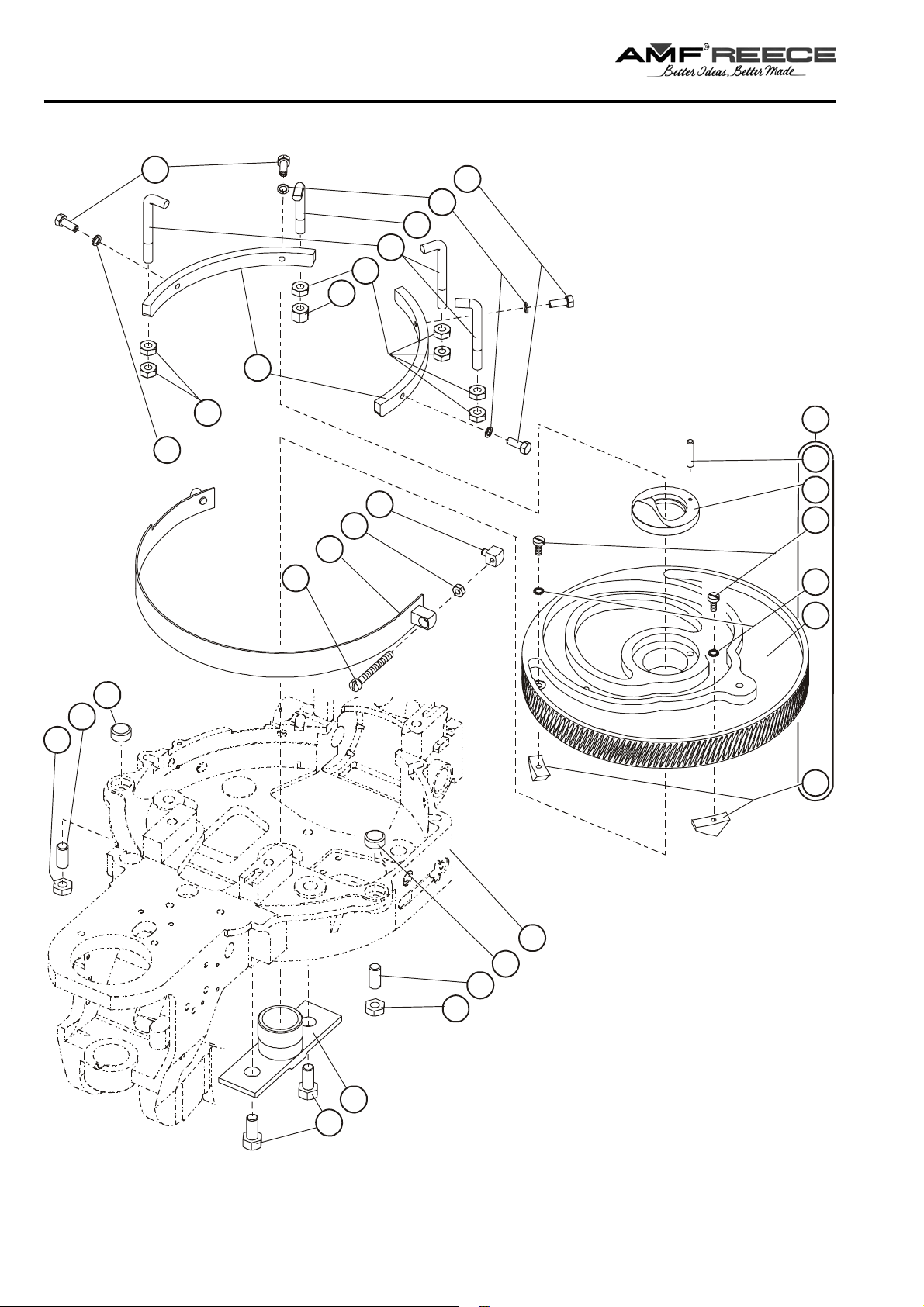

S-101 MAIN CAM AND BRAKE BAND

92 1

12 25

From the library of: Superior Sewing Machine & Supply LLC

3-9

S-101

Released 10/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

MAIN CAM AND BRAKE BAND

DET PART NUMBER DESCRIPTION QTY.

01 01.2386.0.000 Screw 2

02 01.4018.0.000 Washer 4

03 10.3066.0.008 Short Hook 1

04 10.3066.0.011 Long Hook 3

05 01.3007.0.000 Nut 6

06 01.3059.0.000 Nut 1

07 10.3035.1.000 Hold Down Gib 2

08 01.6345.0.000 Lug 1

09 01.3005.0.000 Nut 1

10 10.3036.0.000 Brake Band 1

11 01.2033.0.000 Screw 1

12 10.3028.0.000 Button 2

13 01.2067.0.000 Adjustments Screw 2

14 01.3015.0.000 Nut 2

15 10.3027.0.000 Cam Center 1

16 01.2031.0.000 Screw 2

17 10.3064.0.830 Main Cam Assembly 1

18 — Pin (1)

19 10.3062.1.000 Cam - Cutting* CB/CA (1)

20 01.2347.0.000 Screw (2)

21 01.4061.0.000 Washer (2)

22 14.3064.0.001 Main Cam (1)

23 10.3061.0.300 Wedge - Clamping CB/CA (2)

24 01.2388.0.000 Screw 2

25 10.3001.3.000 Cam Case 1

From the library of: Superior Sewing Machine & Supply LLC

3-10

Released 09/2005

E-mail: [email protected]; parts@amfreece.cz ; website: www.amfreece.com

Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts) ; Fax: +420 582 360 606

S-101

STARTING LEVER AND SWITCH LEVER ASSEMBLY

27 29 30 31

24 25

32 34 35 39

3637

From the library of: Superior Sewing Machine & Supply LLC
