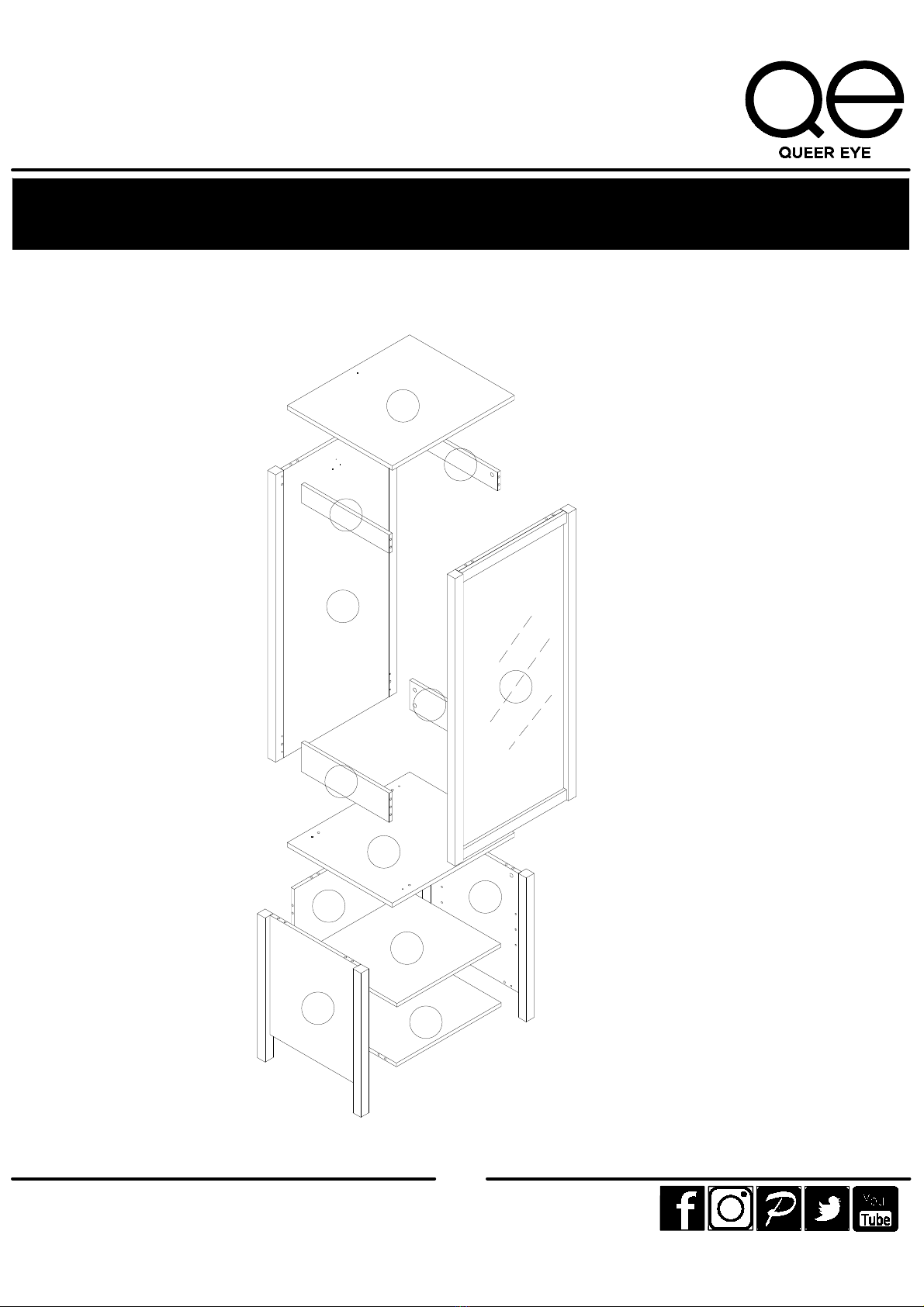

Ameriwood HOME QUEER EYE 6624348COM Manuel utilisateur

6624348COM

Wardrobe Reclaimed Oak

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B34 6624348 COM00SF

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

TOP PANEL

T6624348010SF

Front Frame

T6624348020SF

Back Frame

T6624348030SF

Side Upper Rail

T6624348040SF

QTY: 2 PCS

Side Lower Rail

T6624348050SF

QTY: 2 PCS

Mid Shelf

T6624348060SF

ameriwoodhome.com

Board Identification

Not actual size

Left Side Frame

T6624348070SF

Right Side Frame

T6624348080SF

Bottom panel

T6624348090SF

Back panel

T6624348100SF

Adjustable Shelf

T6624348110SF

ameriwoodhome.com

Board Identification

Not actual size

Actual Size

ameriwoodhome.com

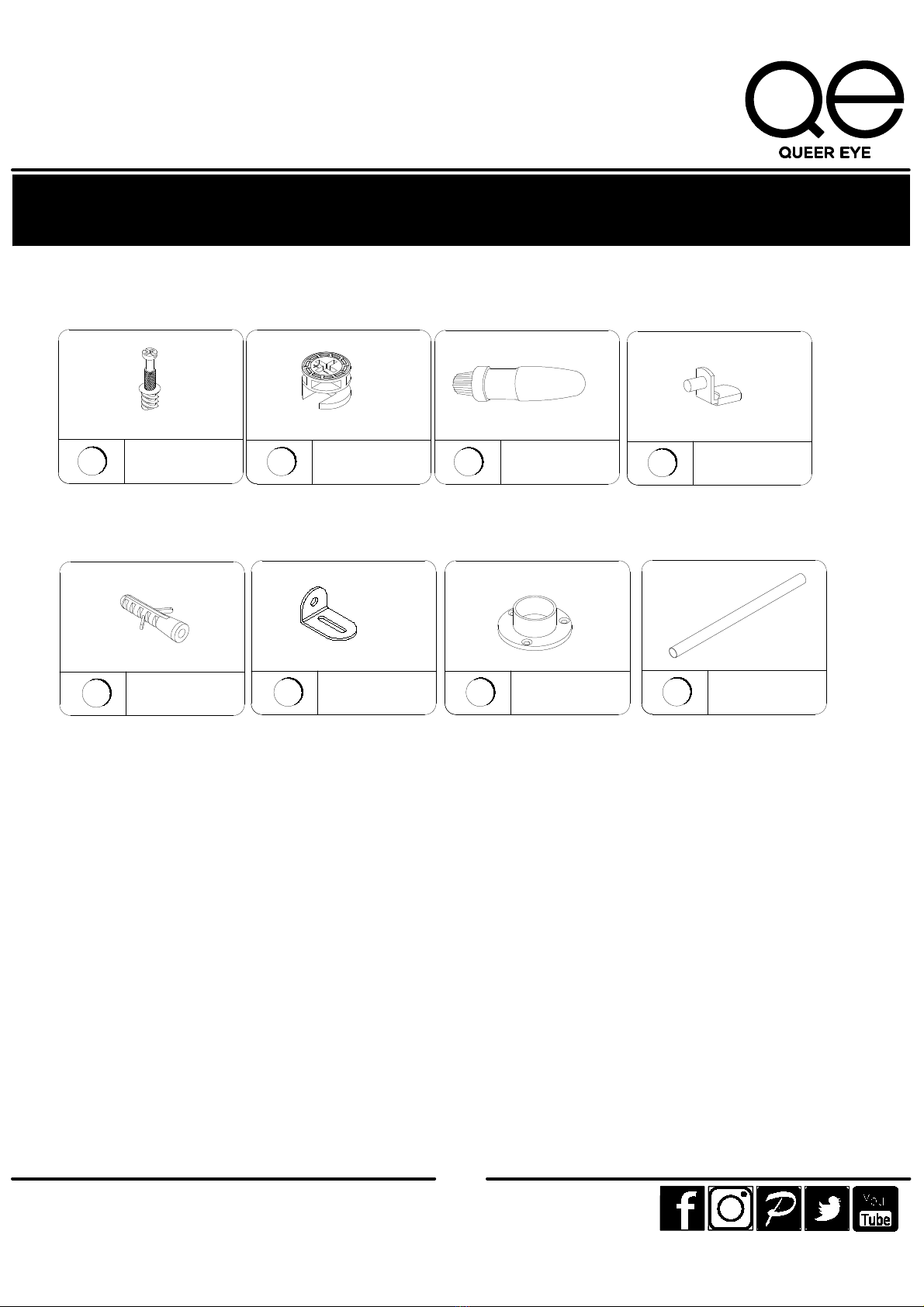

Part List

Hardware Bag Reference Number:

26624348COM0SF

x 30

Ø8X30mm

Wood dowel

TSF0501

x 6

Screw

TSF0801

Ø3.5X12mm

3x 1

Screw

TSF1006

Ø4X38mm

Ø4X14mm

4 x 1

Screw

TSF1005

Not Actual Size

ameriwoodhome.com

Part List

Hardware Bag Reference Number:

26624348COM0SF

Cam bolt

TSF0355

5x 34

Cam lock

TSF0308

6x 34 x 1

Ø15x12mm

Ø7x34mm

Wall anchor

TSF0025

9x 1

Wall bracket

TSF2626

10 x 1

Shelf support

TSF0554

8x 4

Hanger rod flange

TSF0060

11 x 2

Hanger rod

TSF0061

12 x 1

Glue

TSF0015

ameriwoodhome.com

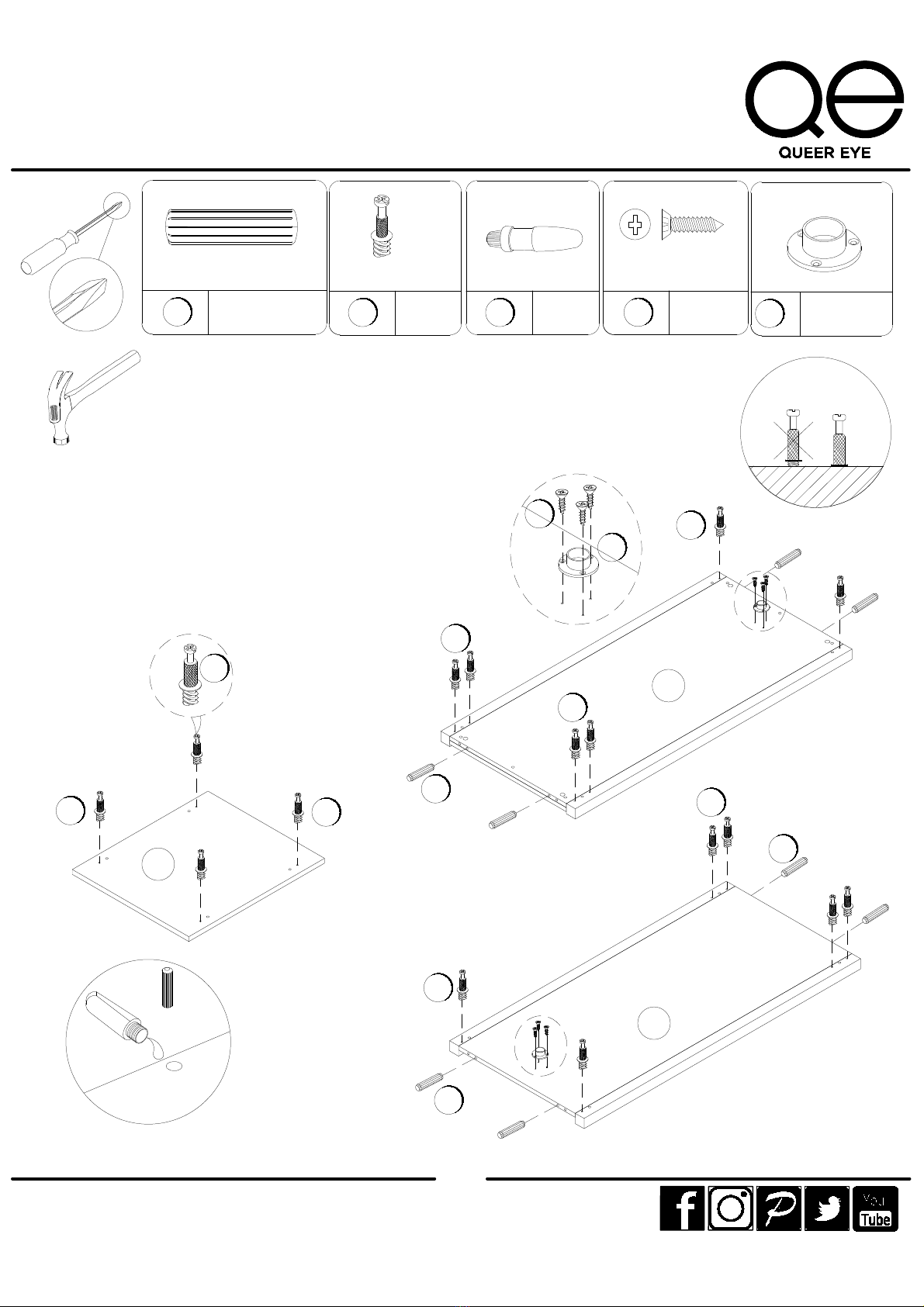

STEP

lue

Wooden

Dowel

Hole for

wooden dowel

Use one drop of glue

in dowel hole.

x 8

Ø8X30mm

5x 16

Ø7x34mm

x 6

Ø3.5X12mm

11 x 2

1.1 Attach (11) to (B), (C) with (2) as below illustrated.

1.2 Attach (5) to (A), (B), (C) as below illustrated.

1.3 Attach (1) to (B), (C) as below illustrated.

ameriwoodhome.com

STEP

lue

Wooden

Dowel

Hole for

wooden dowel

Use one drop of glue

in dowel hole.

x 4

Ø8X30mm

5x 18

Ø7x34mm

2.1 Attach (5) to (F), (G), (H) as below illustrated.

2.2 Attach (1) to (G), (H) as below illustrated.
