XL-50 AMPLIFIED TELEPHONE

The Extra Powerful

with lighted keypad!

IMPORTANT INSTRUCTIONS

Important Safety

Instructions

When using your telephone

equipment, basic safety precautions

should always be followed to

reduce the risk of fire, electric

shock and persons including the

following:

1.Read and understand all

instructions.

2.Follow all warnings and

instructions marked on the

telephone.

3.Do not use this telephone

near a bathtub, wash basin,

kitchen sink or laundry tub, in

a wet basement, near a

swimming pool or anywhere

else there is water.

4.Avoid using a telephone

(other than a cordless type)

during a storm. There may be

a remote risk of electrical

shock from lightning.

5.Do not use the telephone to

report a gas leak in the

vicinity of the leak.

6.Unplug this telephone from

the wall outlets before

cleaning. Do not use liquid

cleaners or aerosol cleaners

on the telephone. Use a damp

cloth for cleaning.

7.Place this telephone on a

stable surface. Serious damage

and/or injury may result if the

telephone falls.

8.Do not cover the slots and

openings on this telephone.

This telephone should never

be placed near or over a

radiator or heat register. This

telephone should not be

placed in a built-in installation

unless proper ventilation is

provided.

9.Operate this telephone using

the electrical voltage as

stated on the base unit or the

owner’s manual. If you are

not sure of the voltage in your

home, consult your dealer or

local power company.

10. Do not place anything on

the power cord. Install the

telephone where no one will

step or trip on the cord.

11. Do not overload wall outlets

or extension cords as this

can increase the risk of fire or

electrical shock.

12. Never push any objects

through the slots in the

telephone. They can touch

dangerous voltage points or

short out parts that could

result in a risk of fire or

electrical shock. Never spill

liquid of any kind on the

telephone.

13. To reduce the risk of electrical

shock, do not take this phone

Important Safety

Instructions

apart. Opening or removing

covers may expose you to

dangerous voltages or other

risks. Incorrect reassembly

can cause electric shock when

the appliance is subsequently

used.

14. Unplug this product from the

wall outlets and refer

servicing to the manufacturer

under the following conditions:

A. When the power supply

cord or plug is frayed or

damaged.

B. If liquid has been spilled

into the product.

C. If the telephone has been

exposed to rain or water.

D. If the telephone does not

operate normally by

following the operating

instructions. Adjust only

those controls that are

covered by the operating

instructions. Improper

adjustment may require

extensive work by a

qualified technician to

restore the telephone to

normal operation.

E. If the telephone has been

dropped or the case has

been damaged.

F. If the telephone exhibits a

distinct change in performance.

15. Never install telephone

wiring during a lightning

storm.

16. Never install telephone

jacks in wet locations

unless the jack is specifically

designed for wet locations.

17. Never touch uninsulated

telephone wires or terminals

unless the telephone line

has been disconnected at

the network interface.

18. Use caution when installing

or modifying telephone lines.

19. Use only the power cord

and batteries indicated in

this manual. Do not dispose

of batteries in a fire. They

may explode. Check with

local codes for possible

special disposal instructions.

ADDITIONAL SAFETY NOTES

FOR CANADIAN USERS

The following items are included

as part of the CS-03 Requirements.

The standard connecting

arrangement for the equipment is

CA11A. This product meets the

applicable Industry Canada

technical specifications.

NOTICE: The Canadian

Department of Communications

Important Safety

Instructions

label identifies certified equipment.

This certification means that the

equipment meets certain

telecommunications network

protective operational and safety

requirements. The Department

does not guarantee that the

equipment will operate to the

user’s satisfaction. Before installing

this equipment, users should

ensure that it is permissible to be

connected to the facilities of the

local telecommunications company.

The equipment must also be

installed using an acceptable

method of connection. In some

cases, the company’s inside

wiring associated with a single

line individual service may be

extended by means of a certified

connector assembly (telephone

extension cord). The customer

should be aware that compliance

with the above conditions may not

prevent degradation of service in

some situations. Repairs to certified

equipment should be made by an

authorized Canadian maintenance

facility designated by the supplier.

Any repairs or alterations made

by the user to this equipment, or

equipment malfunctions, may give

the telecommunications company

cause to request the user disconnect

the equipment.

Users should ensure for their own

protection that the electrical

ground connections of the power

utility, telephone lines and internal

metallic water pipe system, if

present, are connected together.

This precaution may be particularly

important in rural areas.

CAUTION: Users should not

attempt to make such connections

themselves, but should contact the

appropriate electric inspection

authority, or electrician, as

appropriate. The Ringer Equivalent

Number is an indication of the

maximum number of terminals

allowed to be connected to a

telephone interface. The

termination on an interface may

consist of any combination of

devices subject only to the

requirement that the sum of the

Ringer Equivalent Number of all

the devices not exceed five.

SAVE THESE INSTRUCTIONS

Contents

Introducing the XL-50

Warranty Service..............................................................................1

Sales Receipt....................................................................................1

Help from Ameriphone ......................................................................1

Package Checklist..............................................................................2

Features ..........................................................................................3

Setting up Your XL-50

Installing the Backup Batteries ............................................................4

Setting the Dial Mode........................................................................5

Connecting for Desk or Wall Mount ..................................................5

Desktop Use ..............................................................................5

For Wall Mounting......................................................................6

Using Your XL-50

Incoming Voice Volume......................................................................7

Incoming Voice Tone..........................................................................8

Ringer Volume and Tone ....................................................................8

Hold................................................................................................8

Last Number Redial ..........................................................................9

Flash................................................................................................9

Special Features

Unanswered Call/Voice Mail Message Light ......................................10

Programming the Memory Buttons......................................................10

Direct Audio Output ........................................................................11

Cochlear Implant Adapter Cord ........................................................12

Connecting to Speech Processor........................................................12

Regulatory Compliance ....................................................................13

Warranty ........................................................................................19

Troubleshooting Chart ......................................................................21

Specifications ..................................................................................21

Index..............................................................................................22

Help from Ameriphone

For help with using your XL-50, call

our Customer Relations department

at 800-874-3005.

Please make sure your XL-50

package includes the items shown

in Figure 1.

Introducing the XL-50

Thank you for selecting the XL-50

Amplified Telephone from

Ameriphone. These Operating

Instructions and the associated

Quick Operating Guide provide

you with the information you

need to use your XL-50 effectively,

easily and safely. Read this

manual thoroughly before using

your telephone. Keep the manual

near the telephone for easy

reference.

Warranty Service

Your telephone is designed to

provide years of quality service.

But, should the phone malfunction

and the Trouble-shooting Chart

on page 21 not resolve the

problem, follow the Warranty

procedure on page 19.

Sales Receipt

Be sure to save your sales receipt

as proof of purchase date should

you need warranty service.

Package Checklist

OPERATING

INSTRUCTIONS

AND

QUICK GUIDE

XL-50

Handset Base Unit

Telephone Line Cords

Handset

Coil Cord

Operating Guides

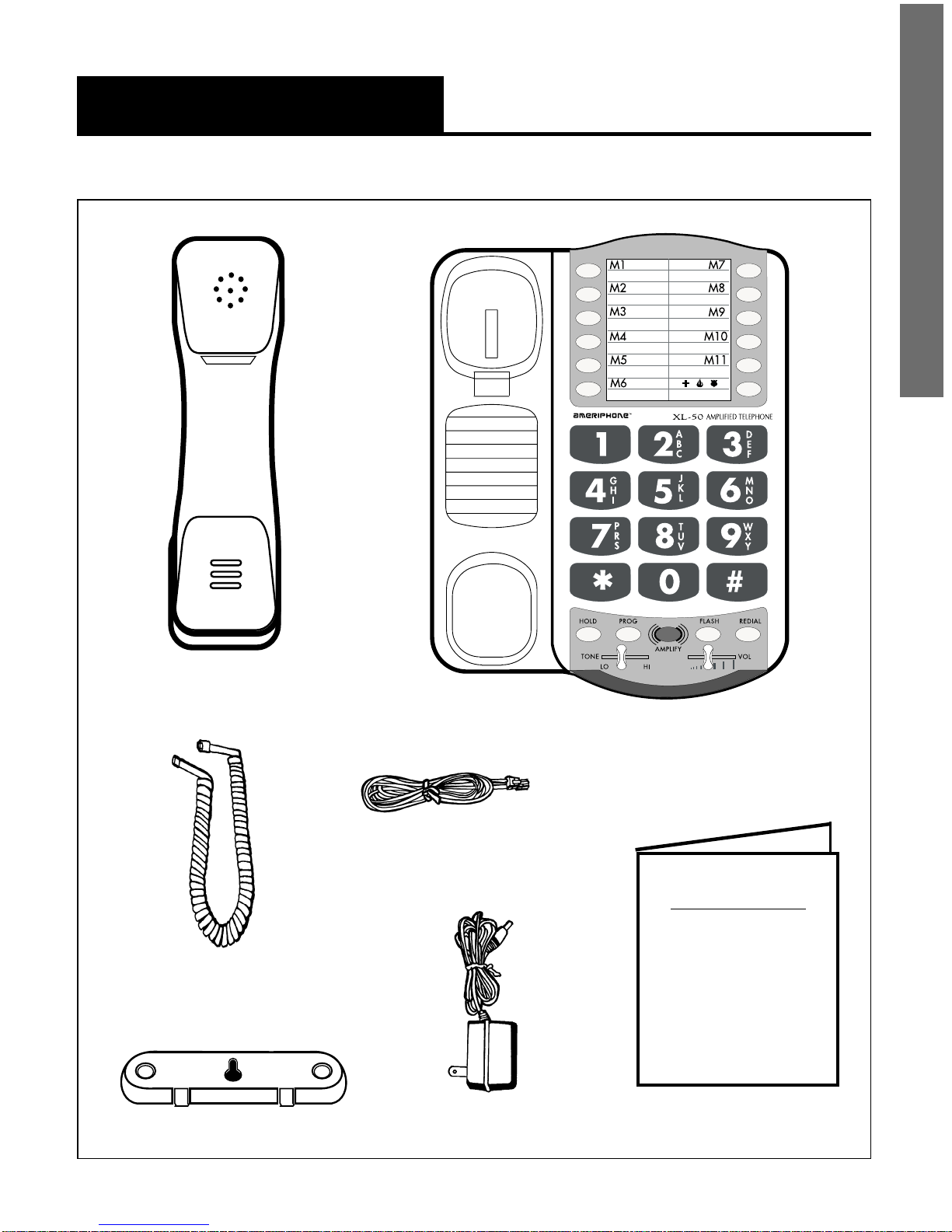

Figure 1 - Package Components

Mounting Bracket AC Adapter

Features on the XL-50

RINGER volume switch

AUDIO OUTPUT jack

AC adapter and phone

line connection

TONE/PULSE switch

RING TONE switch

Phone number

directory

MEMORY button

REDIAL button

FLASH button

VOL volume slider

LOW BATTERY indicator

RING flasher

AMPLIFY button

AMPLIFY/MISSED CALLS/

VOICE MAIL/EXTENSION

IN USE indicator

PROG program button

TONE

slider

HOLD

button

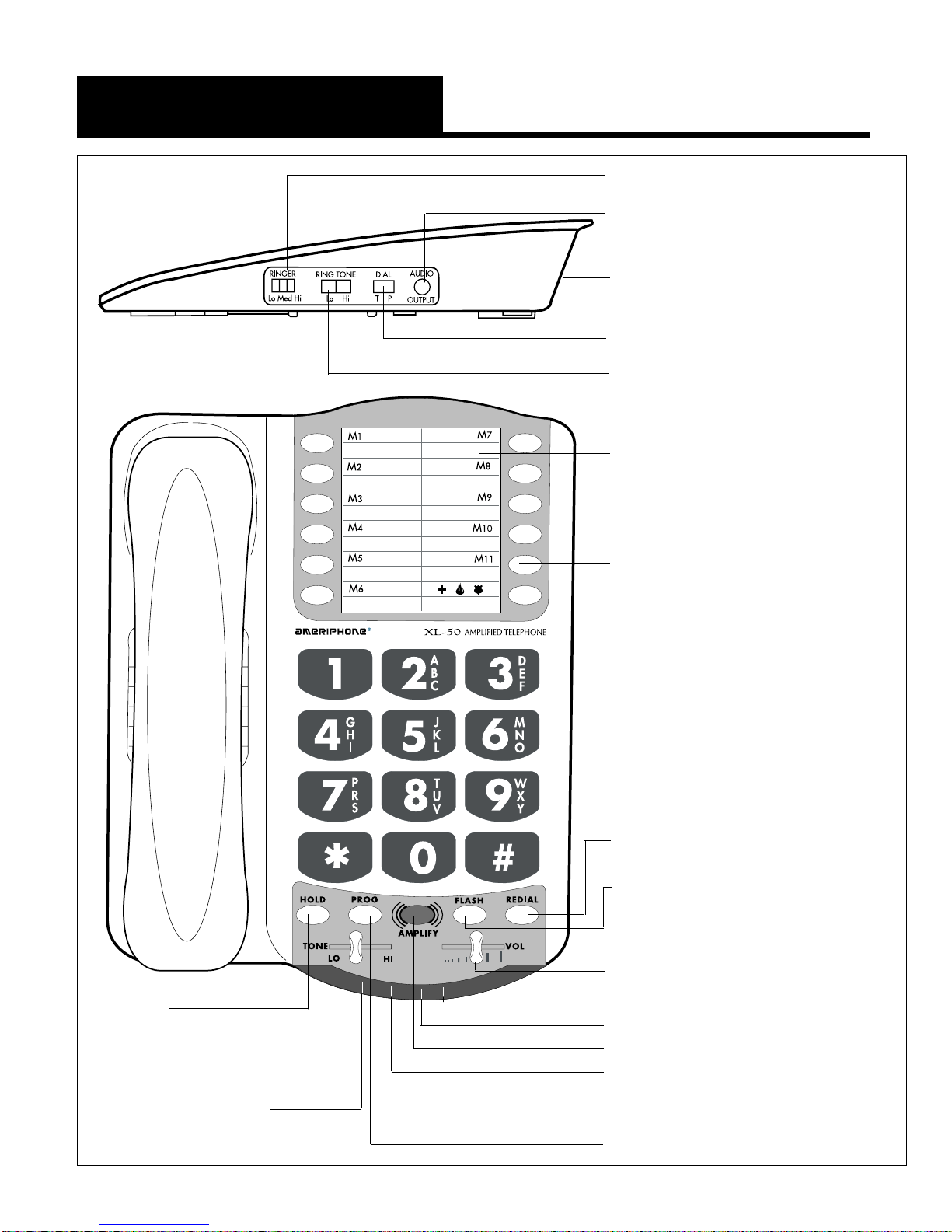

Figure 2 - Base Unit Controls

HOLD

indicator

Setting up Your XL-50

There are five initial steps involved

in setting up your XL-50.

1. Insert four AA alkaline batteries

for back-up in case of AC

power outage.

2.Decide if you want the

phone to sit on a desk or

hang on the wall.

3. Connect the telephone

components.

4.Program up to 12 telephone

numbers to call with the

press of a memory button.

5.Set up special features

Installing the Backup Batteries

If there is a power outage, the

XL-50 will operate for up to 48

hours with four AA alkaline

backup batteries (not included). If

the phone is not in use, the batteries

will stay charge for several months.

To install new batteries:

1.Slide open the battery

compartment cover on the

bottom of the telephone

(Figure 3).

2.Install four fresh batteries. Be

sure to observe battery polarity

as imprinted on the base of

the

compartment. The battery

indicator

on the top panel will

light up if the batteries are

running low.

The phone operates as a regular

phone if there is no power or battery

XL-50 Low Battery Indicator

If the batteries are weak or not

installed, the Low Battery indicator

will light up. Install fresh batteries

according to the directions above.

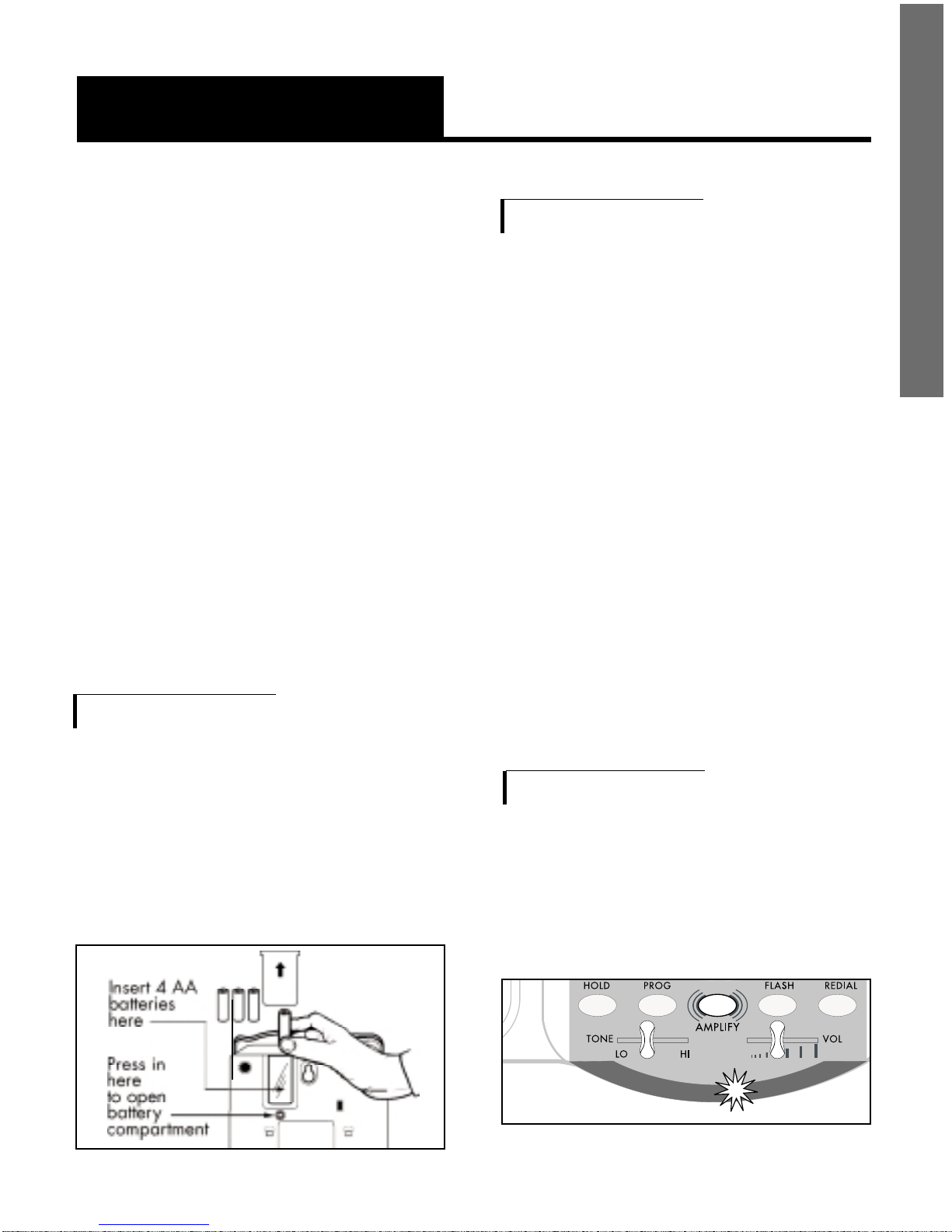

Figure 3 - Accessing the Batteries

Figure 4 - Low Battery Indicator Light

Autres manuels pour DIALOGUE XL 50

Table des matières

Langues :

Autres manuels Ameriphone Téléphone

Ameriphone

Ameriphone Talking Phone JV-35 Manuel utilisateur

Ameriphone

Ameriphone DIALOGUE XL 30 Manuel utilisateur

Ameriphone

Ameriphone SR200 Manuel utilisateur

Ameriphone

Ameriphone SR200 Manuel utilisateur

Ameriphone

Ameriphone Photo Phone P-300 Manuel utilisateur

Ameriphone

Ameriphone DIALOGUE XL 50 Manuel utilisateur

Ameriphone

Ameriphone DIALOGUE XL 50 Manuel du propriétaire

Ameriphone

Ameriphone ER Telephone Manuel utilisateur

Ameriphone

Ameriphone VCO Manuel utilisateur

Ameriphone

Ameriphone DIALOGUE XL 30 Manuel utilisateur

Ameriphone

Ameriphone JV-35 Manuel utilisateur

Ameriphone

Ameriphone VCO Manuel utilisateur

Ameriphone

Ameriphone The Talking Phone Manuel utilisateur

Ameriphone

Ameriphone JV-35 Manuel utilisateur

Ameriphone

Ameriphone DIALOGUE VCO Manuel utilisateur

Ameriphone

Ameriphone Photo Phone P-300 Manuel utilisateur

Ameriphone

Ameriphone DIALOGUE XL-25S Manuel utilisateur

Ameriphone

Ameriphone Photo Phone P-300 Manuel utilisateur

Ameriphone

Ameriphone Dialogue RC-100 Manuel utilisateur

Ameriphone

Ameriphone VCO Manuel utilisateur

Ameriphone

Ameriphone SR100 Manuel utilisateur

Ameriphone

Ameriphone AMPLIFIED TELEPHONE Manuel utilisateur

Ameriphone

Ameriphone Q90 Manuel utilisateur

Ameriphone

Ameriphone JV-35 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
