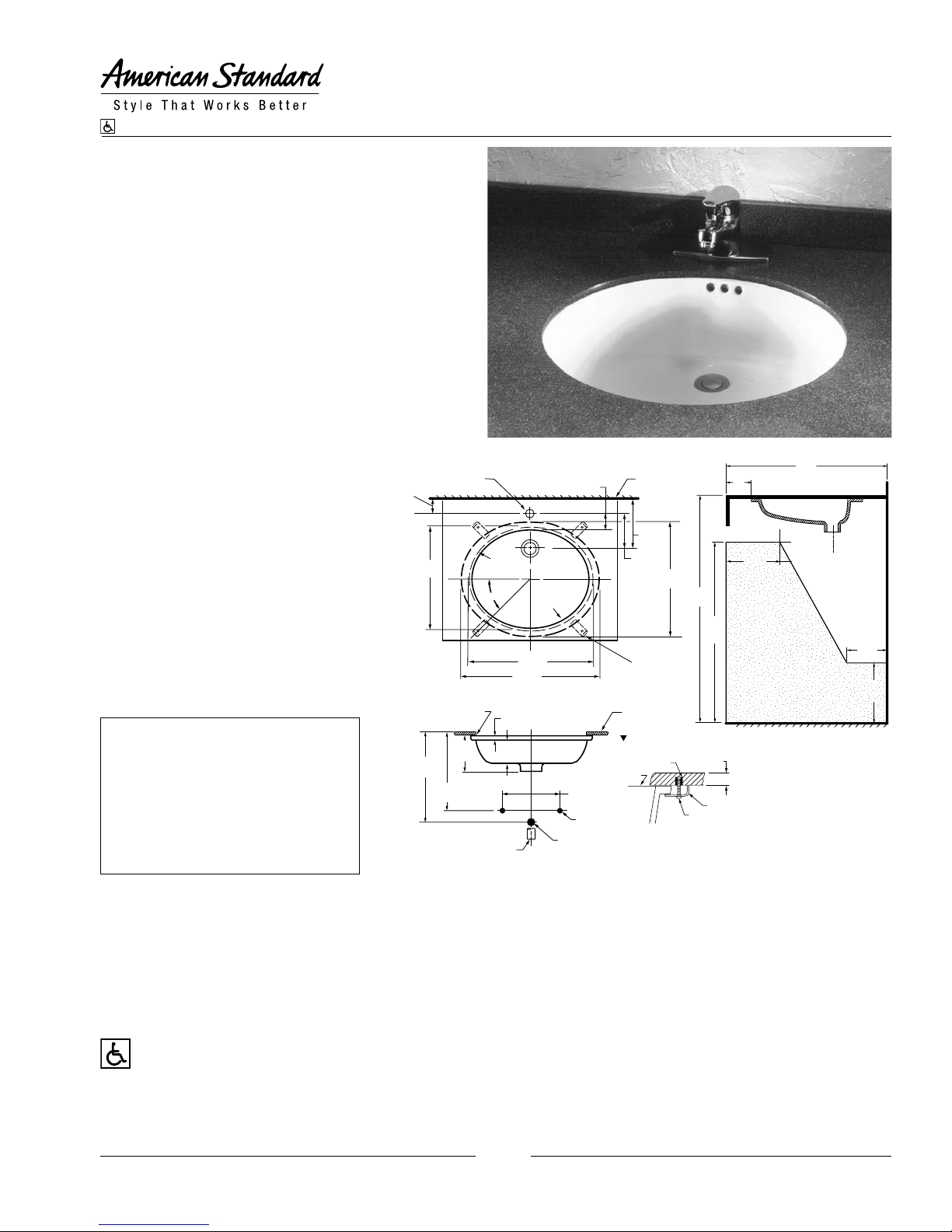

American Standard Ovalyn Universal Access 9482.000 Manuel utilisateur

J55

BARRIER FREE

FINISHED WALL

267mm

(10-1/2)

140mm

(5-1/2)

51mm

(2) MIN.

COUNTER

TOP

CUTOUT

UNDER

COUNTER

BASIN RIM

C/L

489mm

(19-1/4)

37mm(1-7/16) DIA.

HOLE TYP.

SEALING

COMPOUND COUNTERTOP

(BY OTHERS)

140mm

(5-1/2)

203mm

(8)

92mm

(3-5/8)

1-1/4 O.D. TAILPIECE

1-1/4

O.D. WASTE

SUPPLIES

AS REQ'D

45°

MOUNTING

CLIP

(SEE DETAIL)

337mm

(13-1/4) 400mm

(15-3/4)

16mm

(5/8) -2mm(1/16)

+3mm(1/8)

*311mm

(12-1/4)

*262mm

(10-1/2)

425mm

(16-3/4)

70mm

(2-3/4)

DETAIL OF MOUNTING CLIP

(KIT No.047194-0070A)

LAVA

BRASS

INSERT

19mm

(3/4) MIN.

REFER TO INSTRUCTIONS

PROVIDED WITH KIT FOR

ADDITIONAL INFORMATION

CLIP

MACH.

SCREW

864mm

(34)

51mm

(2)

610mm

(24)

152mm

(6)

MAX.

BARRIER FREE

CLEARANCE

686mm

(27)

MIN.

203mm

(8)

MIN.

229mm

(9)

MIN.

DRAWING FOR

DIMENSIONAL

PURPOSES ONLY.

IT IS NOT AN EXACT

REPRESENTATION.

OVALYN UNIVERSAL ACCESS™

UNDERCOUNTER SINK

VITREOUS CHINA

Revised 2/08

OVALYN UNIVERSAL ACCESS™ SINK

• Made from vitreous china

• Unglazed rim for under counter mount

• Rear overow

• Supplied with mounting kit (047194-0070A)

and template

❏ 9482.000

Nominal Dimensions:

489 x 400mm

(19-1/4" x 15-3/4")

Bowl sizes:

425mm (16-3/4") wide

337mm (13-1/4") front to back

140mm (5-1/2") deep

102mm (4") bowl depth

Compliance Certications -

Meets or Exceeds the

Following Specications:

• ASME A112.19.2M for

Vitreous China Fixtures

• CAN/CSA B45 series

• 1995 National Building Code, section 3.7

and CAN/CSA-B651-M90 and OBC 3.7.

MEETS THE AMERICANS WITH DISABILITIES ACT

GUIDELINES AND ANSI A117.1 ACCESSIBLE AND

USABLE BUILDINGS AND FACILITIES -

CHECK LOCAL CODES.

Countertop 864mm (34") from finished floor. Lavatory

installed 51mm (2") MIN. from front edge of countertop.

Countertop thickness to be 25mm (1") maximum.

NOTES:

* DIMENSIONS SHOWN FOR LOCATION OF SUPPLIED AND “P" TRAP ARE

SUGGESTED.

▼ UNDERCOUNTER MOUNTING KIT SUPPLIED WITH BASIN.

FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED

SEPARATELY.

USE ENCLOSED TEMPLATE FOR COUNTERTOP CUTOUT

SEALING COMPOUND SUPPLIED BY OTHERS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the

range of tolerances established by ANSI Standard A112.19.2.

These measurements are subject to change or cancellation. No responsibility

is assumed for use of superseded or voided pages.

For Universal Design Options, top of counter may be

mounted at 813mm (32") minimum from nished oor

to meet ADA and ANSI A117.1 requirements. A 838mm

(33") minimum mounting height is required for Ontario.

Check local codes for heights and faucet handles

requirements.

To Be Specied:

❏ Color: ❏ White ❏ Bone

❏ Linen ❏ Silver

❏ Fawn Beige ❏ Black

❏ Faucet*:

❏ Faucet Finish:

❏ Supplies:

❏ 1-1/4" Trap:

* See faucet section for additional models available
