American Standard WALK-IN BATH Guide de démarrage rapide

WALK-IN BATH INSTALLATION

INSTRUCTIONS AND OWNER’S MANUAL

CONGRATULATIONS!

You are now the owner of a walk-in bathtub from the most trusted name in plumbing.

We thank you for your purchase. Your American Standard ® walk-in bath is a true

investment in your health and peace of mind.

Customer Support: (866) 423-0800

OWNERS MANUAL

TABLE OF CONTENTS

UNPACKING THE UNIT………………………………………………………………. Page 3

RESPONSIBILITIES OF THE INSTALLER…………………………………………… Page 4

TESTING YOUR TUB BEFORE INSTALLATION…………………………………… Page 5

INSTALLATION PREPARATION…………………………………………………….. Page 6

ELECTRICAL INSTALLATION………………………………………………………. Page 7

INSTALLATION PROCEDURES…………………………… ………………………... Page 8-17

SAFETY INSTRUCTIONS ……………………………… ……………………………. Page 18

OPERATING INSTRUCTIONS…………………………… ………………………….. Page 19-20

CLEANING & MAINTENANCE……………………………………………………..... Page 21

WARRANTY…………………………………………………………………………..... Page 22

TROUBLESHOOTING………………………………………………………………..... Page 23-25

OWNERS MANUAL

UNPACKING THE UNIT

1. FIRST, inspect the carton for damage: CAREFULLY DOCUMENT AND

PHOTOGRAGH ALL PERCEIVED DAMAGE. Report all damage claims to

customer service at 1-866-423-0800.

2. DO NOT LIFT THE TUB BY THE PLUMBING. Doing so can result in leaks, for

which the installer is responsible. All Walk-In Tubs are water tested before they

leave our factory and the bathtub you have purchased has passed inspection.

3. Immediately inspect the unit for damage even if there is no carton damage. All

product damage must be reported within 72 hours of receipt from American

Standard®. Once the unit is installed, surface damages will be assumed to be

installation-related if not reported prior to installation. Installers are also responsible

for damage that occurs once the unit is placed in its niche.

NOTE: Remove all packaging material except for the protective plastic. This has

been placed on the tub at the factory to eliminate abrasions from handling. This

should only be removed at final clean up.

4. Inspect the plumbing for any fittings that may have loosened in transit.

5. Read the following instructions completely before installing this product. If the

home-owner or installer has any questions, please call us at 1-866-423-0800.

6. You must follow all the instructions in this manual.

FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN

PRODUCT DAMAGE OR INJURY TO BOTH INSTALLER AND HOMEOWNER. IT

WILL ALSO RESULT IN ASSUMPTION OF ALL LIABILITY BY SAID INSTALLER.

OWNERS MANUAL

RESPONSIBILITIES OF THE INSTALLER

The Installer must inspect and water test the product prior to installation to ensure the unit is free of defect

and /or damage. In the event of a problem, the unit must not be installed. If the packaging or product has

been damaged, please call immediately at 1-866-423-0800.

This product has been listed by INTERTEK / ETL and IAPMO / C UPC. The product has been tested and

complies with the following standards and guidelines: IAPMO /C UPC, UL-1795, ANSI Z-124.1.2,

ASME A 112.19.7, ASME A 112.19.15 & CSA B-45. The installer is responsible for compliance to

state and local codes.

This product is designed to be installed by a licensed tradesperson. Licensed plumbers and electricians

should be employed to insure proper installation. Installer assumes all liabilities for installation

procedures.

Although American Standard® has taken reasonable precautions to ensure that the Quick Drain TM is

suitable for residential plumbing; it is the responsibility of the installer to insure that the plumbing is

acceptable for use of the Quick Drain TM. American Standard® does not accept responsibility for

damage arising from use of the Quick Drain TM.

Only accessories authorized by manufacturer should be used with this product.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO RISK OF FIRE,

ELECTRICAL SHOCK OR INJURY TO PERSONS

SAVE THESE INSTRUCTIONS!

WARNING! ALL INSTRUCTIONS LISTED IN THIS MANUAL SHOULD BE READ AND

FOLLOWED CAREFULLY. ALL PRECAUTIONS PERTAINING TO RISK OF FIRE,

ELECTRIC SHOCK, OR INJURY TO PERSONS MUST BE UNDERSTOOD AND

EXPLAINED TO OWNER.

TO REDUCE THE RISK OF INJURY, CHILDREN OR PERSONS WITH INFIRMITIES

MUST NOT BE PERMITTED TO USE THIS PRODUCT WITHOUT CLOSE AND

CONTINUOUS SUPERVISION.

OWNERS MANUAL

TESTING YOUR WALK-IN TUB BEFORE INSTALLATION

1. All American Standard® walk-in baths are 100% water tested at the factory and have passed inspection.

Transportation and mishandling may loosen fittings and cause leaks. It is therefore necessary to test the

bathtub while there is access to all sides of the bath.

2. The unit needs to be filled with water and inspected for leaks along the door as well as the whirlpool and

air systems if equipped. The inspection needs to be performed with and without the whirlpool and / or air

systems operating. It is best to test the unit outside by filling with a garden hose.

a. Place the tub on a completely flat surface in an area where it may be drained after testing.

b. Using a clean rag and warm water wipe down seal to insure it is free of debris.

c. Seal the drain hole (this can be done with tape) and fill the tub to at least three inches above the

highest jet, or to the bottom of the safety bar if no jets are present.

d. Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for

leaks.

e. Using appropriately rated three-prong extension cords, all plugged in to separate outlets,

operate all electrical components (air blower, water pump, and heater if applicable) for another

30 minutes and inspect for leaks again. Inspect the unions around the pump and heater.

f. If a leak persists at a union after tightening, it may have been over-tightened or might have a

displaced O-ring. Disassemble it and make sure the O-ring was seated properly. Do the same if

a leak persists at the heater. Verify that the heater threads match the pipe threads.

g. Ensure that all jets are open and working, some jets are adjustable for both flow rate and

direction of flow. The jet water flow rate is adjusted by turning either the outside ring or the

inside nozzle clockwise or counterclockwise. Some jets are not adjustable at the jet face, but

can be adjust by the “Leg’s Only Massage”. The “Legs Only Massage” Valve is located near

the seat. (If equipped.) .

3. If the pump/blower/lights/heater does not operate:

a. Check the breaker to ensure that power is on and make sure that any cables and / or air lines

connecting the control boxes to the switches and pumps are firmly attached. Verify the correct

electrical circuit and amps of the electrical cord.

b. Go to Trouble Shooting Guidelines. (See pages 23-25.)

c. Do not run any pumps unless the tub is filled with water to the proper level. Damage due to

dry operation of pumps is not covered under the warranty period. (See pg. 22.)

Failure to perform these tests before installation will make the installer liable for future repair costs.

OWNERS MANUAL

INSTALLATION PREPARATION

1. Check the floor area where the tub is to be installed.

a. Clean area of any debris or trash.

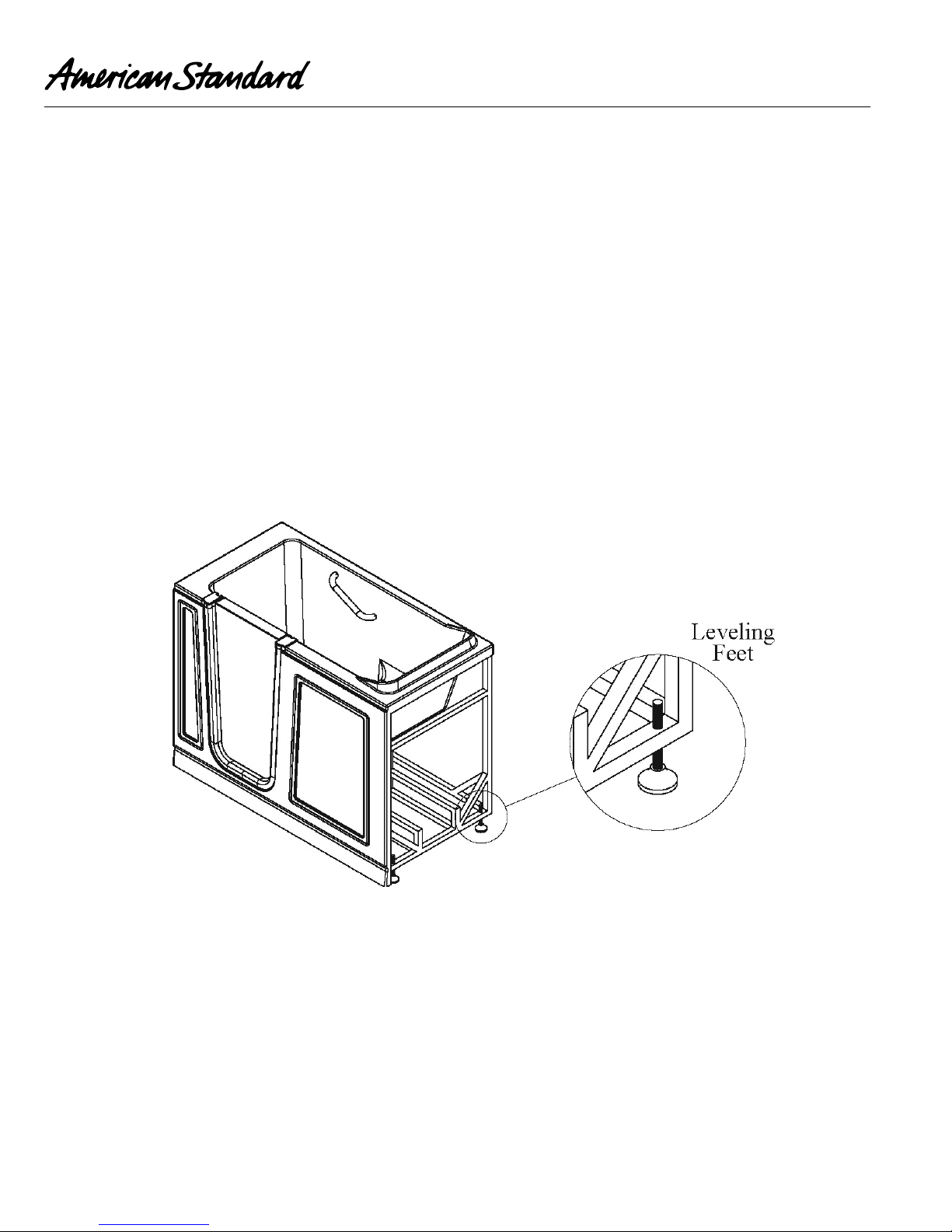

b. Use a 5 or 6-foot level and determine if the floor is level. If the floor is not level,

adjust all leveling feet to perfectly level the tub.

Note: It is important that all leveling feet are completely touching the floor and

level for the door system to work properly.

2. Check to ensure that the drain piping has been “roughed-in” at the proper location. See

specification sheets (installation detail) included in this manual.

3. Ensure that the proper electrical service has been installed at the pump location. See electrical

Requirements in the manual. (See page 7.)

OWNERS MANUAL

ELECTRICAL INSTALLATION

All electrical wiring must be installed in accordance with the National Electrical Code and with all

local codes. All wiring shall be done by a qualified electrician. Run one, two or three branch circuits

(as required) from the main electrical service panel to the pump area of the framing structure to

provide power to the unit.

Electrical components have specific wiring requirements. Refer to the matrix below for the electrical

supply requirements for the whirlpool bathtub and factory installed components.

Branch circuits must be rated for 110 – 120 volts. Use 12 Gauge, 3 conductor cable for the circuits.

If the length run exceeds 100 feet, check with local codes for requirements. Install moisture proof

junction box(s) 6” above the floor at the pump end of the framing for each circuit.

DO NOT INSTALL THE JUNCTION BOX(S) WHERE IT CAN BE REACHED WHILE SITTING OR

STANDING IN THE TUB OR TOUCHING THE FAUCETS.

QUICK DRAIN™, LIGHTS, WHIRLPOOL, AIR SPA, COMBO & HEATER

ELECTRIAL REQUIREMENTS

This section lists the factory installed components of the Whirlpool and/or Air Spa Systems.

Note the required number of circuits and their rating for the Whirlpool & Air Spa unit you are planning to install.

ELECTRICAL REQUIREMENTS FOR FACTORY INSTALLED COMPONENTS

Systems

Electrical Rating

Circuit 1

Electrical Rating

Circuit 2

Dedicated

Circuit

Soaker w / Quick Drain™ 15 Amp GFCI

Soaker w / Light 15 Amp GFCI

Soaker w / Quick Drain™ w / Light 15 Amp GFCI

Whirlpool or Air Spa 15 Amp GFCI

Whirlpool or Air Spa w / Light 15 Amp GFCI

Whirlpool or Air Spa w/ Quick Drain™ 15 Amp GFCI 15 Amp GFCI

Whirlpool or Air Spa w/ Light & Quick Drain™ 15 Amp GFCI 15 Amp GFCI

Whirlpool & Air Spa (Combo) 15 Amp GFCI 15 Amp GFCI

Whirlpool & Air Spa (Combo) w/ Light 15 Amp GFCI 15 Amp GFCI

Whirlpool & Air Spa (Combo) w/ Quick Drain™ 20 Amp GFCI 15 Amp GFCI

Whirlpool & Air Spa (Combo) w/ Light & Quick Drain™ 20 Amp GFCI 15 Amp GFCI

Whirlpool Inline Heater - Dedicated Circuit 15 Amp GFCI

All electrical connections must be carried out by a certified electrician in accordance with local electrical

requirements and codes.

OWNERS MANUAL

INSTALLATION PROCEDURES

▲WARNING: When installing whirlpool massage baths, air spa baths, combo baths, or Quick Drain™

equipped baths, the following precautions must be followed:

▲WARNING: Danger: Risk of electrical shock; connect components to separate circuits, EACH protected

by a ground fault circuit interrupter (GFCI)

▲WARNING: Installation must provide access for servicing the pump and motor (all American

Standard® walk-in baths come with access panels for the pump, motor and faucet).

1. Install tub waste/overflow according to instructions included with the provided kits. The Gel Coat Series

requires the installation of a door drain with check valve. The check valve and tubing must be installed

horizontal to the floor. Some installations will require the purchase of additional fittings.

2. American Standard Faucet Installation # 9FHS-CH

Review the installation instructions packed with the faucet set.

Mask off the tub’s deck with a protective tape.

Locate and mark the center line of the overflow fitting

Locate and mark 1 ½” line either side of the tub’s center line to establish the overflow clearance.

Follow the drill template and faucet installation instructions.

3. Other Faucet Model and / or Brand

Review the installation instructions packed with the faucet set.

Mask off the tub’s deck with a protective tape.

Locate and mark the center line of the overflow fitting

Locate and mark 1 ½” line either side of the tub’s center line to establish the overflow clearance.

Verify the first two component mounting clearance on either side of the waste overflow as well as

above and below the tub’s deck.

Verify the remaining component mounting clearance on both sides of the overflow as well as above

and below the tub’s deck.

It is recommended the hand held shower be installed on the corner closest to the wall to prevent water

from leaking off the deck and on to the floor.

4. Install the optional in-line water heater per manufacturer’s instructions.

5. Standard Walk-In Bath Installation - After framing is complete, set product in place to check fit and make

certain that the tub can be properly leveled. (Caution: If the bathtub is not resting on all leveling feet, water

will not drain properly and this may cause the door to leak). Secure tub frame to the studs using metal

straps. (Not provided.)

5a. Fire-Rated Drywall – If fire-rated drywall is specified, the finished fire-rated wall must be in place before

the tub is installed. The dimensions of the framing structure must be increased by the thickness of fire-

rated drywall.

OWNERS MANUAL

INSTALLATION PROCEDURES

WARNING: Never allow the weight of the tub to be supported by wood support stringers and do not use

integral tile flange (if equipped) to screw or nail in place, as this will result in product failure and will

void the warranty.

6. Verify the product is completely level by checking tub deck surface and ensure all leveling feet are

touching the ground.

7. Electrical connection is made by simply plugging each cord into the GFCI outlet.

8. After plumbing and electrical connections have been made, the tub and door seal should be cleaned of dirt

and debris. Use warm water and a non abrasive cleaner for clean up.

9. Installation is not complete until the bathtub has been water-tested in place and does not leak.

Autres manuels pour WALK-IN BATH

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels American Standard spa

American Standard

American Standard Lifetime 7236L Manuel utilisateur

American Standard

American Standard Cadenza Elite 6060E Manuel utilisateur

American Standard

American Standard Cadet 2770.018 Manuel utilisateur

American Standard

American Standard Cadet 2772.018H Manuel utilisateur

American Standard

American Standard Cadet 6'x42 2774.018H Manuel utilisateur

American Standard

American Standard Cadet Whirlpool with Integral Apron... Manuel utilisateur

American Standard

American Standard Williamsburg 2806E Series Manuel utilisateur

American Standard

American Standard Cadet 2773.018H Manuel utilisateur

American Standard

American Standard Cadet 2776 W Series Manuel utilisateur

American Standard

American Standard CADENZA 751711-100 Manuel utilisateur

American Standard

American Standard Cadet 6'x42 2774.018 Manuel utilisateur

American Standard

American Standard CADET ELITE CORNER 2775E SERIES Manuel utilisateur

American Standard

American Standard Cadet 2770.002 Instructions d'utilisation et de sécurité

American Standard

American Standard 1748 Manuel utilisateur

American Standard

American Standard SAVONA 2901.028 SERIES Manuel utilisateur

American Standard

American Standard 153 Manuel utilisateur

American Standard

American Standard Cadet 2776.XXXW Series Manuel utilisateur

American Standard

American Standard Cadet 2773E Manuel utilisateur

American Standard

American Standard Cadet 5' x 36" Manuel utilisateur

American Standard

American Standard Cadet 2773.XXXW Series Manuel utilisateur

American Standard

American Standard Belmor 5' Cast Iron Tub 2697.102 Instructions d'utilisation et de sécurité

American Standard

American Standard WILLIAMSBURG ELITE 2806E Manuel utilisateur

American Standard

American Standard Cadet 2772.002 Manuel utilisateur

American Standard

American Standard Cadet Elite Corner Whirlpool 2775E Manuel utilisateur

Manuels spa populaires d'autres marques

Bestway

Bestway Lay-Z-Spa 54189 Manuel utilisateur

Jacuzzi

Jacuzzi ARGA ARG101C0110 Manuel de la liste des pièces

Morphy Richards

Morphy Richards Essentials PC4006 Manuel utilisateur

Softub

Softub PRESTIGE Manuel utilisateur

JNJ SPAS

JNJ SPAS SPA-318 Manuel d'installation

KIRAMI

KIRAMI Comfort Family Manuel utilisateur

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) Manuel utilisateur

HoMedics

HoMedics FB-655HJ-GB Manuel utilisateur

Everyday Hot Tubs

Everyday Hot Tubs 530 Manuel utilisateur

anko

anko SS-601A Manuel utilisateur

Jacuzzi

Jacuzzi Duetta 6042 Manuel utilisateur

Pooli

Pooli OS030979B Manuel utilisateur

Jacuzzi

Jacuzzi alimia Manuel utilisateur

ab Solares Smart Spa Manuel utilisateur

CalderaSpas

CalderaSpas CalderaSpas Utopia Series Manuel utilisateur

Outsunny

Outsunny 848-047V70 Manuel utilisateur

Aquatic

Aquatic INFINITY 1 Manuel utilisateur

Master Spas

Master Spas MP Force Manuel utilisateur
