COLONY CORNER™

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

Revised 2/08

COLONY CORNER™ WHIRLPOOL AND

BATHING POOL

❏ 1730.018 Whirlpool featuring System I

• Acrylic with berglass reinforcement

• Molded-in seat

• Center drain outlet

• 1.25 HP single speed, self-draining pump/motor

• Factory installed power cord with plug

• Six multi-directional and ow-adjustable jets

• Deck-mounted air switch On/Off

• Two air volume controls

• Factory installed and tested whirlpool system

❏ 1730.018C EverClean® Whirlpool

Featuring System I:

• Same as 1730.018 except with the

EverClean System

❏ 1730.002 Bathing Pool only

Nominal Dimensions:

1524 x 1524 x 495mm

(60" x 60" x 19-1/2")

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

American Standard whirlpools and air baths with

EverClean® incorporate a patented silver-ion

additive right into the circulation piping to protect

the pipes from mold, mildew, algae and fungus that

could cause deterioration or staining of the pipes.

SEE REVERSE FOR PRODUCT DIMENSIONS

AND SPECIFICATIONS

To Be Specied - Required:

❏ Color:

❏ Bath Filler: (specify nish)

❏ Bath Drain: 1583.470 (specify nish)

To Be Specied - Optional:

❏ Corner Apron: 0730.121 (specify color)

❏ Jet Trim Ring Kit: 9860.200-two per kit (specify nish)

❏ Universal Tile Bead Kit: 751755-100

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

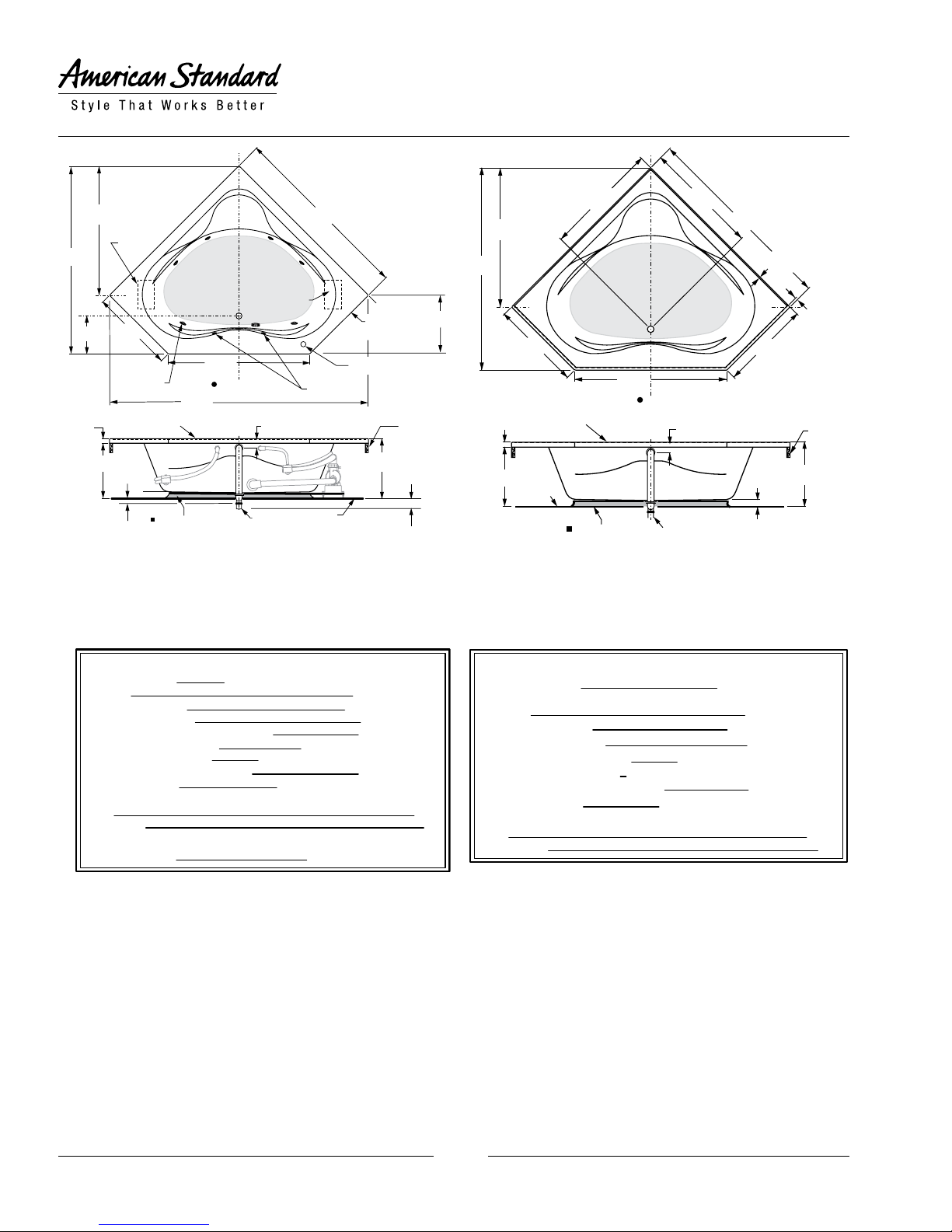

H72

COLONY CORNER™

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

495mm

(19-1/2)

117mm

(4-5/8)

C/L OF DRAIN

OUTLET

51mm

(2)

1546mm

(60-7/8)

ALT.

PUMP

1064mm

(41-7/8)

686mm

(27)

318mm

(12-1/2)

1168mm

)(46

1514mm

(59-5/8)

TOP OF

DECK

445mm

(17-1/2)

70mm

(2-3/4)

ROUGH

FLOOR

83mm

(3-1/4)

BATH SUPPORT

MATERIAL

38mm (1-1/2)

O.D. TAILPIECE

PUMP

PROVIDE ACCESS

FOR SERVICING

PUMP & CONTROLS

(6) JETS

ON/OFF

SWITCH

2 AIR

VALVES

LEVELING

STRINGER

NOT FOR

SUPPORT

483mm

(19)

2134mm

)(84

BATH SUPPORT

MATERIAL

495mm

(19-1/2)

6.3mm (1/4) INTEGRAL

TILE FLANGE (2 SIDES)

19mm ( )3/4

C/L OF DRAIN

OUTLET

LEVELING STRINGER

NOT FOR SUPPORT

457mm

)(18

38mm

(1-1/2)

1549mm

)(61

1064mm

( )41-29/32

686mm

)(27 686mm

)(27

1168mm

)(46

1511mm

(59-1/2)

876mm

(34-1/2) 876mm

(34-1/2)

TOP OF

DECK

56mm

)(2-7/32

ROUGH

FLOOR

79mm ( )3-1/8

101x101mm

4 x 4” FEET 38mm (1-1/2) O.D. TAILPIECE

60 x 60 x 19-1/2 In.(1524 x 1524 x 495mm)

115 Lbs. (52 Kg.)

908 Lbs. (412 Kg.)

95 Gal. (360 L.)

65 Gal. (246 L.)

30 x 50 In. (762 x 1270mm)

45-1/2 x 63-1/2 In.(1156 x 1613mm)

13 In. (330 mm)

36 Lbs./Sq. Ft. (177 Kgs/Sq. m.)

27.8

GENERAL SPECIFICATIONS FOR 1730 WHIRLPOOL

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

WHIRLPOOL ELECTRICAL SPECIFICATIONS

1.25 HP, 9.9 AMPS, 120V.SYSTEM I PUMP

60 x 60 x 19-1/2 In.

(1524 x 1524 x 495mm)

95 Lbs. (43 Kg.)

888 Lbs. (403 Kg.)

95 Gal. (360 L)

30 x 50 In. (762 x 1270mm)

45-1/2 X 31-1/2 In. (1156 x 1613mm)

13 In. (330mm)

36 Lbs./Sq.Ft. (174 Kgs./Sq.m)

27.8

GENERAL SPECIFICATIONS FOR 1730 BATHING POOL

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUMP OF

BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIAL BY OTHERS.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

CONCEALED PIPING NOT INCLUDED.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

● IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING

SYSTEM PIPING, DRAIN OVERFLOW, AND APRON INSTALLATION. MOUNTING HOLES DRILLED BY INSTALLER.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1. These

measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

Revised 2/08
