American Standard 7010 Manuel utilisateur

Certiﬁed to comply with ANSI A112.18.1

M968630 Rev. 1.1

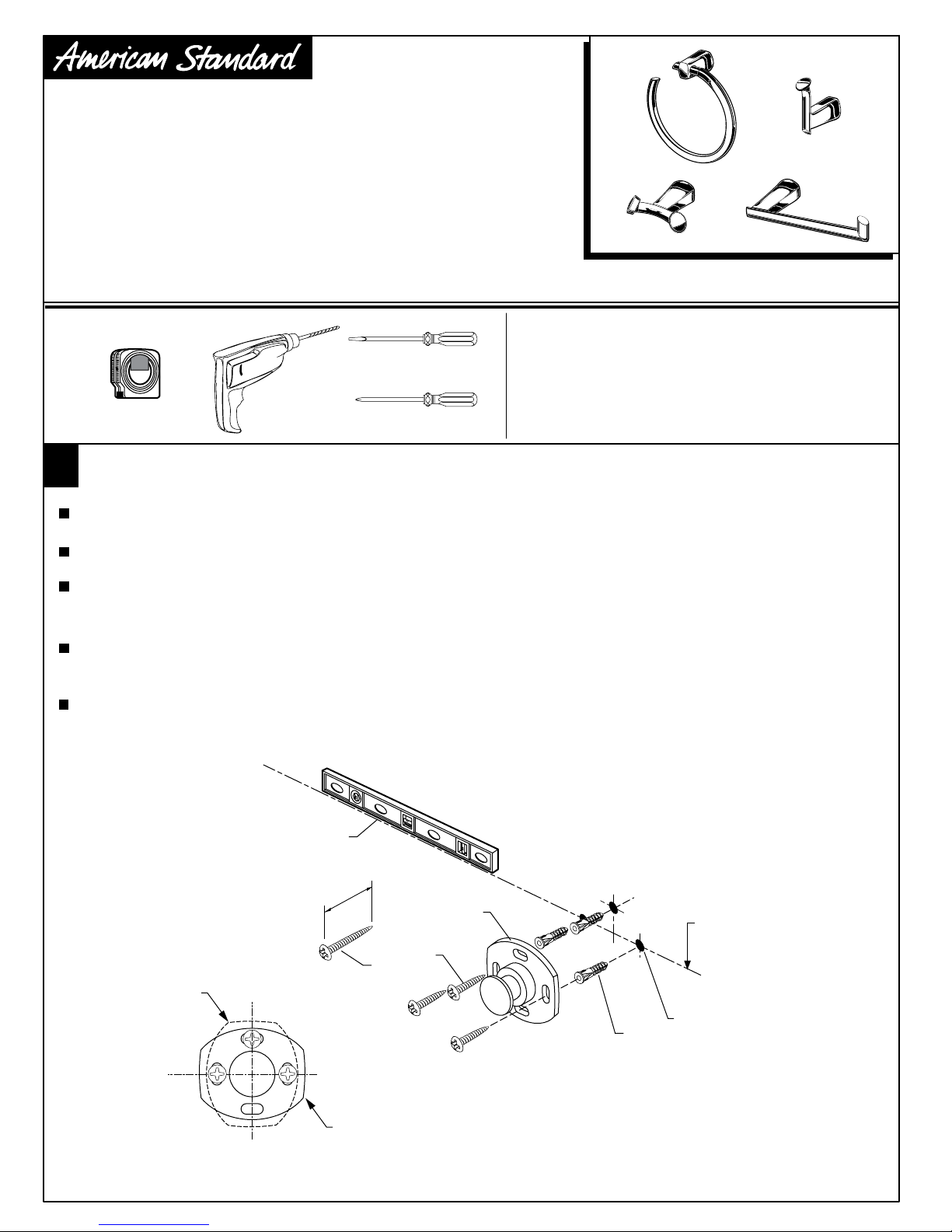

TOWEL RING, ROBE HOOK and TISSUE HOLDER

MOUNTING BRACKET INSTALLATION

GREEN TEA ACCESSORIES

Installation

Instructions

7010.190

7010.210

7010.211

7010.230

Thank you for selecting American-Standard...the benchmark

of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please

read instructions carefully before you begin.

TOWEL RING

ROBE HOOK

DOUBLE ROBE HOOK

TISSUE HOLDER

Regular Screwdriver

Recommended Tools

Phillips Screwdriver

Drill

10'

Tape Measure

CARE INSTRUCTIONS:

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR

WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID,

POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH

WITH A COARSE SURFACE.

The TOWEL RING, ROBE HOOK and TISSUE HOLDER work best if secured to a wall stud or cross brace within the wall, using 1-1/2"

long SCREWS (3) not supplioed.

If the TOWEL RING, ROBE HOOK and TISSUE HOLDER are to be installed on a tile or plaster wall the ANCHORS (4) and SCREWS (2)

should be used.

Secure MOUNTING PLATES (1) to wall with SCREWS (2).

Determine desired height and location (optional) for the accessory and mark a center line. If MOUNTING BRACKET (1) is secured to a

stud or cross brace drill small pilot holes for SCREWS (3). (NOTE PROPER POSITION OF MOUNTING BRACKET FOR ACCESSORY

TO BE INSTALLED.}

For installations on drywall or tiled walls, use ANCHORS (4) and SCREWS (2) for securing MOUNTING BRACKETS (1) to wall. Use MOUNTING

BRACKET (1) as a template and mark the mounting holes. Drill three 1/8" diameter holes a minimum of 1-1/4" deep. Insert the three

ANCHORS (4) ﬂush with face of the ﬁnished wall.

1-1/2"

DRILL 3 PILOT HOLES FOR

WOOD SCREWS (2) OR

1/8" DIA. HOLES FOR

ANCHORS (4)

CENTER

LINE

LEVEL

POSITION OF

MOUNTING BRACKET

FOR TOWEL RING

AND ROBE HOOK

POSITION OF MOUNTING

BRACKET FOR DOUBLE ROBE

HOOK AND TISSUE HOLDER

TOWEL RING INSTALLATION

Align accessory (A, B) and place ESCUTCHEON (1) onto MOUNTING BRACKET (2).

Secure accesory with SET SCREW (3) using 2.5mm HEX WRENCH (4) supplied.

(NOTE POSITION OF MOUNTING BRACKET.}

ROBE HOOK AND TISSUE HOLDER INSTALLATION

Align accessory (C, D) and place ESCUTCHEON (1) onto MOUNTING BRACKET (2).

Secure accesory with SET SCREW (3) using 2.5mm HEX WRENCH (4) supplied.

(NOTE POSITION OF MOUNTING BRACKET.}

POSITION OF

MOUNTING BRACKET

FOR TOWEL RING

AND ROBE HOOK

POSITION OF MOUNTING

BRACKET FOR DOUBLE ROBE

HOOK AND TISSUE HOLDER

M968630 Rev. 1.1
