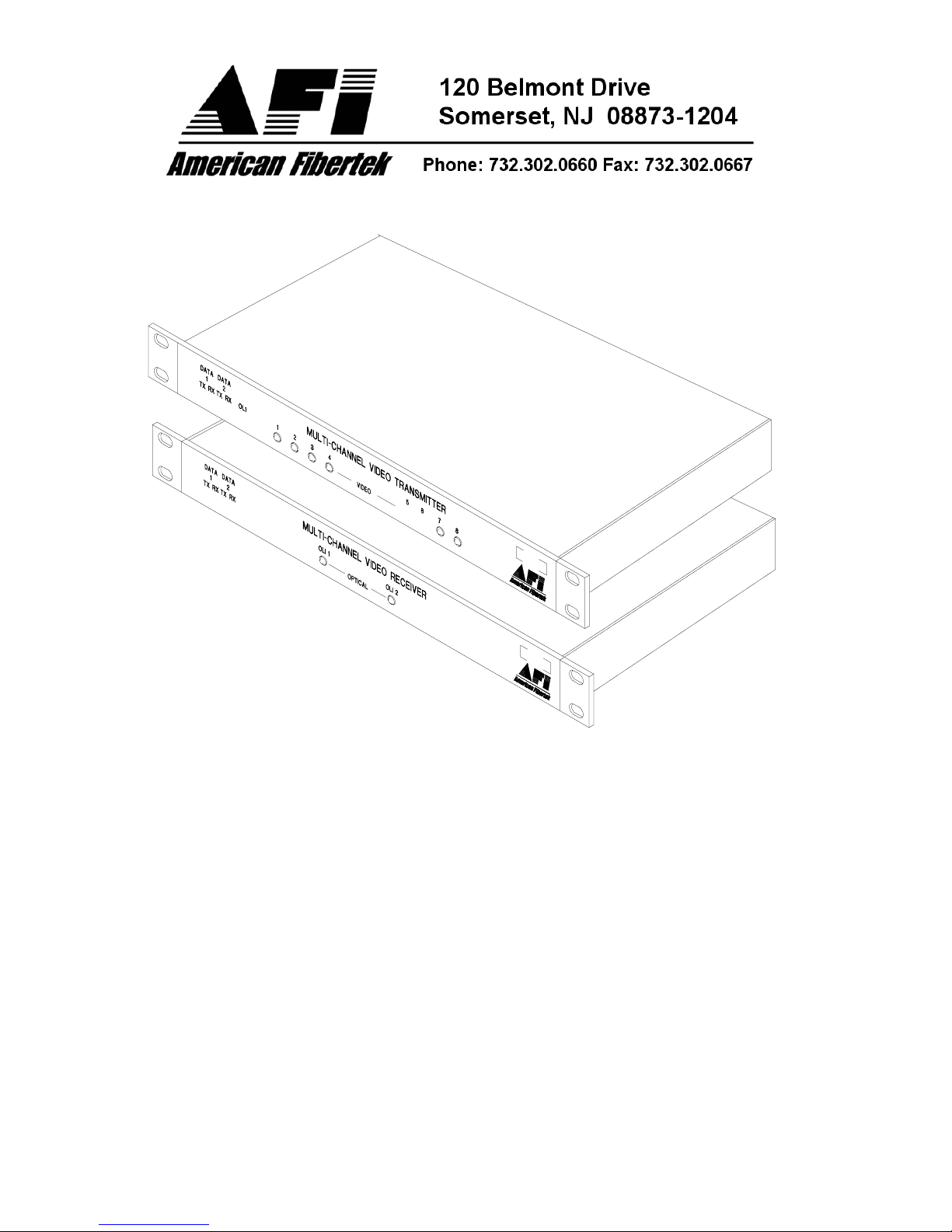

Instruction Manual

MRT-860

MRR-860

Six Channel Video Multiplexer

Table of Contents

Functional Description....................................................................... 4

Installation......................................................................................... 4

Power Source.................................................................................... 5

Power Connection............................................................................. 5

Input / Output Connections ............................................................... 5

MRT-860 Status LED Indicators........................................................ 6

MRR-860 Status LED Indicators ....................................................... 7

Warranty ........................................................................................... 8

Service Information ........................................................................... 8

This unit complies with 21 CFR

1040.10 and 1040.11

INSTALLATION AND OPERATION INSTRUCTIONS

INTRODUCTION

Thank you for purchasing your American Fibertek Series 860 multimode six channel

video multiplexer. Please take a few minutes to read these installation instructions in

order to obtain the maximum performance from this product.

FUNCTIONAL DESCRIPTION

The 860 Series units operate as a transmitter / receiver pair for the transmission of six

simultaneous, real time baseband NTSC/PAL video signals over a single multimode

fiber optic cable.

The MRT-860 transmitter accepts six video inputs and multiplexes these signals onto a

single optical output port for connection to the fiber transmission system.

Correspondingly, the MRR-860 receiver converts the optical signal to six independent

video output signals.

The 860 Series units operate on 50 um or 62.5 um multimode fiber. Refer to the data

sheets for detailed performance specifications.

The individual units may be configured for rack mounting or wall mounting depending

upon the position of the included mounting hardware.

INSTALLATION

THE INSTALLATION OF THESE UNITS SHOULD BE MADE BY A QUALIFIED

SERVICE PERSON(S) AND MUST CONFORM TO ALL LOCAL CODES.

To install the MRT-860 or MRR-860 it is first necessary to mount the rack flanges to the

unit.

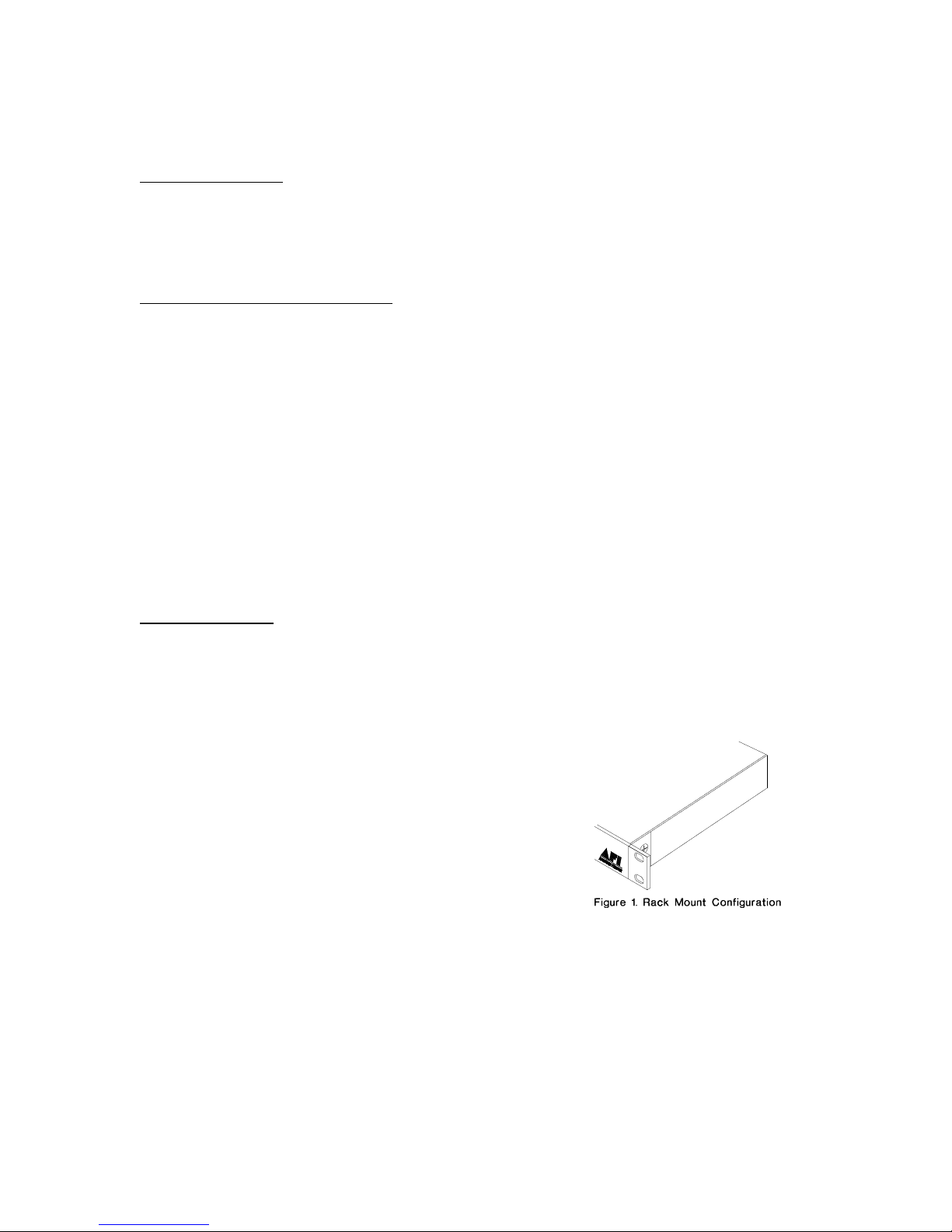

For rack mounting the ears are installed on the

sides of the unit with the surfaces that have

oval holes flush with the front of the unit as in

Figure 1. Mount the ears with the #10 flathead

screws provided. To mount in the rack cabinet,

use mounting screws that are appropriate for

the rack cabinet being used.

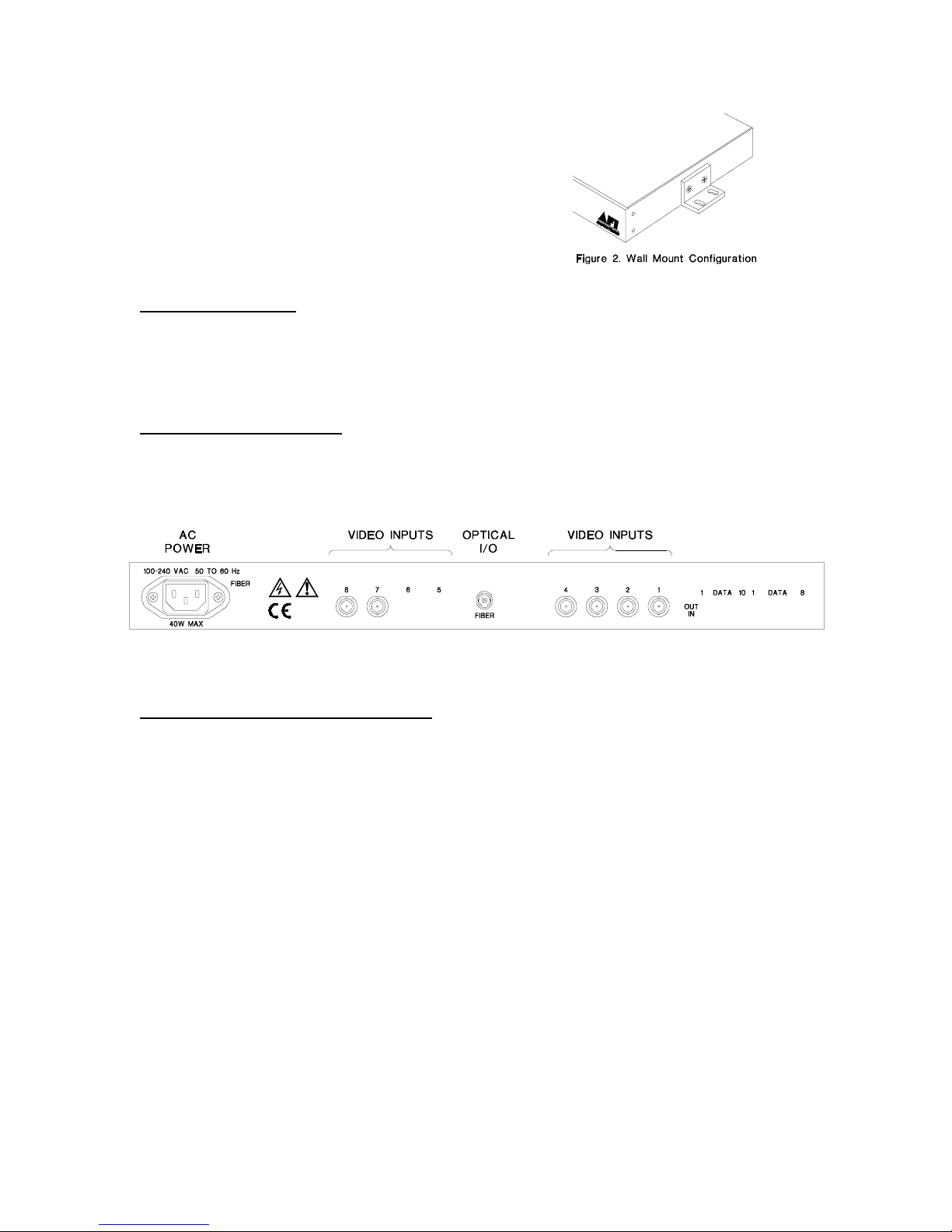

For mounting the unit flush to a wall or other

rigid surface, the ears may be installed on the

sides with the oval holes flush with the bottom of

the unit as in Figure 2. Mount the ears with the

#10 flathead screws provided. Mount the unit to

a rigid surface using #10 (5mm) screws.

POWER SOURCE

The internal power supply accepts universal line voltage. Any mains supply from 100 to

240 VAC, 50 to 60 Hz, may be used without modification or adjustment. A universal

power connector is provided on the rear of the unit to facilitate connection to the power

mains.

POWER CONNECTION

The unit is supplied (in the US and UK only) with a three conductor power cord. The

“ground” conductor is directly connected to the chassis.

INPUT / OUTPUT CONNECTIONS

The fiber optic connection is made via a ST connector located at the back of the unit. Be

sure to allow sufficient room for the required minimum bend radius of the fiber cable

used.

Video input and output connections are located on the rear of the unit. A BNC connector

is provided for each channel. The video inputs are connected to an appropriate 75Ω

baseband video source such as a camera or a video recorder output. The 75Ωvideo

outputs can be looped through typical baseband video inputs of switchers, recorders

and other equipment as required. For proper operation, the outputs must be terminated

with 75Ω. For optimum performance the video cables should be the shortest length of

coax practical.

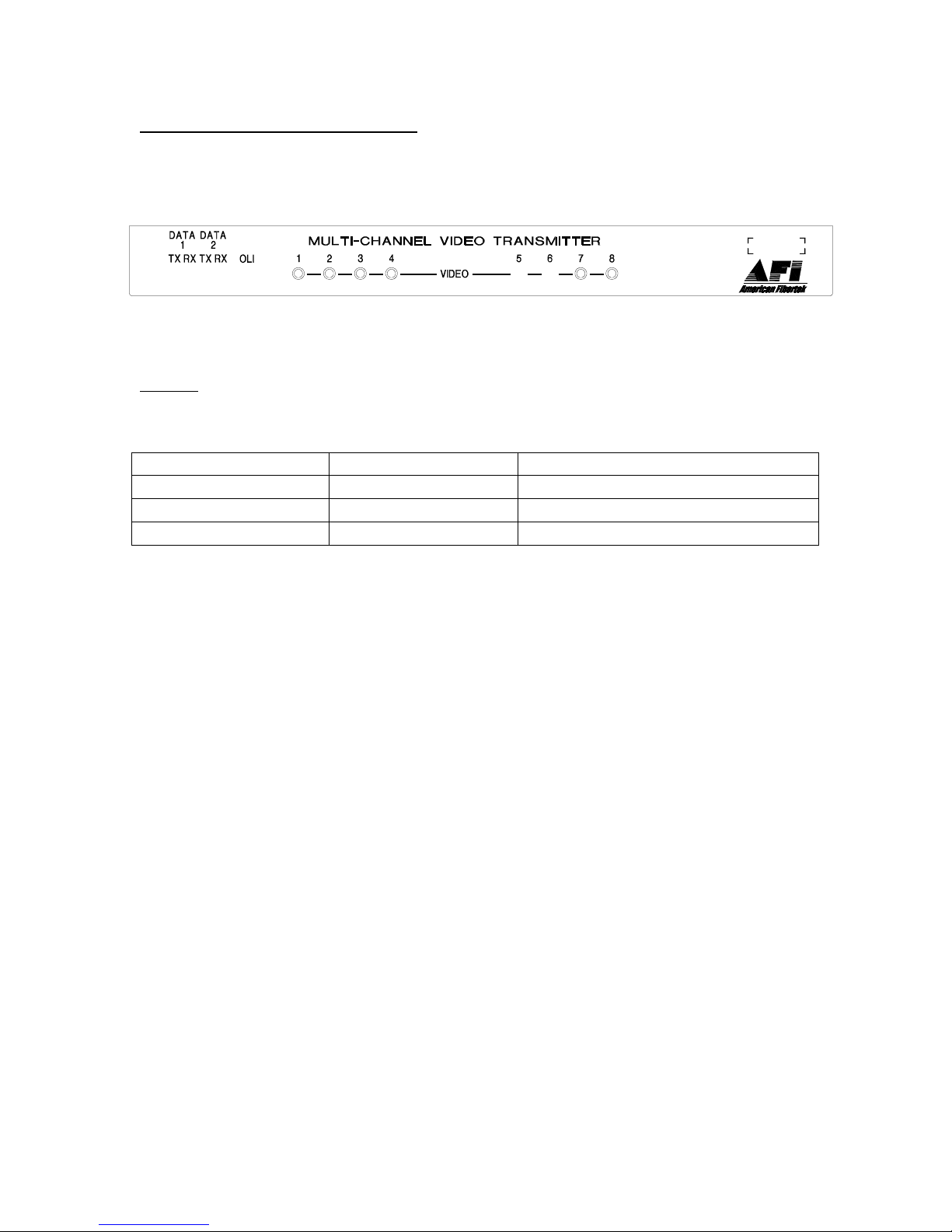

MRT-860 STATUS INDICATORS

The MRT-860 transmitter provides the following front panel LED status indicators to aid

in installation and troubleshooting:

VIDEO

A bi-color LED indicator is provided for each of the six video channel inputs. AC power

and video status associated with each of these LEDs are summarized below.

Video Presence LED AC Power Status Video Status

Green On Proper Input Video Present

Red On Input Video Not Detected

Off Off Check Power Supply Input

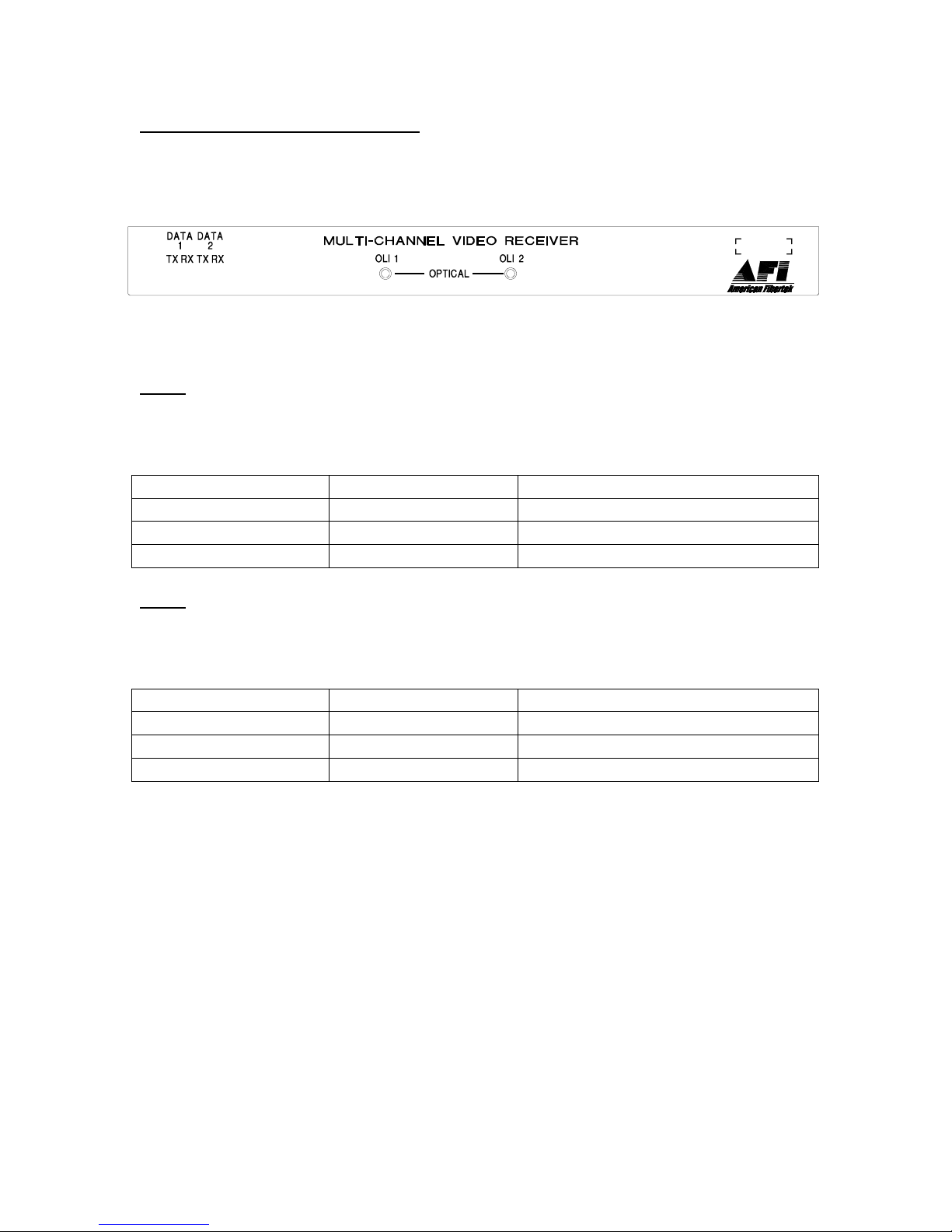

MRR-860 STATUS INDICATORS

The MRR-860 receiver provides the following front panel LED status indicators to aid in

installation and troubleshooting:

OLI 1

A bi-color LED indicator monitors the power of the optical input signal that is being

received at the MRR-860 from video channels one through four of the MRT-860. AC

power and optical input status associated with this LED are summarized below.

Optical Level Indicator AC Power Status Optical Status

Green On Proper Optical Input Power Present

Red On Optical Input Not Detected

Off Off Check Power Supply Input

OLI 2

A bi-color LED indicator monitors the power of the optical input signal that is being

received at the MRR-860 from the two remaining video channels of the MRT-860. AC

power and optical input status associated with this LED are summarized below.

Optical Level Indicator AC Power Status Optical Status

Green On Proper Optical Input Power Present

Red On Optical Input Not Detected

Off Off Check Power Supply Input

LIFETIME WARRANTY INFORMATION

American Fibertek, Inc warrants that at the time of delivery the products delivered will be

free of defects in materials and workmanship. Defective products will be repaired or

replaced at the exclusive option of American Fibertek. A Return Material Authorization

(RMA) number is required to send the products back in case of return. All returns must

be shipped prepaid. This warranty is void if the products have been tampered with. This

warranty shall be construed in accordance with New Jersey law and the courts of New

Jersey shall have exclusive jurisdiction over this contract. EXCEPT FOR THE

FOREGOING WARRANTY, THERE IS NO WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, EXPRESSED OR

IMPLIED, WHICH EXTENDS BEYOND THE WARRANTY SET FORTH IN THIS

AGREEMENT. In any event, American Fibertek will not be responsible or liable for

contingent, consequential, or incidental damages. No agreement or understanding,

expressed or implied, except as set forth in this warranty, will be binding upon American

Fibertek unless in writing, signed by a duly authorized officer of American Fibertek.

SERVICE INFORMATION

There are no user serviceable parts inside the unit.

In the event that service is required to this unit, please direct all inquiries to:

American Fibertek, Inc. Phone: (877) 234-7200

120 Belmont Drive Phone: (732) 302-0660

Somerset, NJ 08873 FAX (732) 302-0667

E-mail: techinfo@americanfibertek.com
