SL31 Parts Manual

Phase 8

ADC Part No. 450282-5

American Dryer Corporation

88CurrantRoad

FallRiver, MA02720-4781

Telephone:(508)678-9000 / Fax: (508) 678-9447

E-mail:techsupport@amdry.com

www.amdry.com

Retain This Manual

In A Safe Place For Future Reference

This product embodies advanced concepts in

engineering, design, and safety. If this product

is properly maintained, it will provide many years

of safe, efficient, and trouble free operation.

ONLYproperlylicensedtechniciansshouldservicethisequipment.

OBSERVEALLSAFETYPRECAUTIONSdisplayedontheequipment

orspecifiedinthe installationmanualincludedwiththedryer.

Thefollowing“FORYOURSAFETY”cautionmustbeposted

nearthedryer ina prominentlocation.

Wehavetriedtomakethismanualascompleteas possible and hope you will find

ituseful. Themanufacturerreservestherighttomakechangesfromtimetotime,

without notice or obligation, in prices, specifications, colors, and material, and to

changeordiscontinuemodels.

Important

For your convenience, log the following information:

DATE OF PURCHASE _____________________________________________________ MODEL NO. _____________

RESELLER’S NAME _________________________________________________________________________________

Serial Number(s)___________________________________________________________________________________

___________________________________________________________________________________________________

POURVOTRESÉCURITÉ

Ne pas entreposer ni utiliser d’essence

nid’autresvapeursouliquides

inflammablesàproximité de cet

appareiloudetout autre appareil.

FORYOURSAFETY

Do not store or use gasoline

orotherflammablevapors

andliquidsinthevicinityof

thisoranyotherappliance.

SL31

NOTES _______________________________________________________________________

______________________________________________________________________________

Replacement parts can be obtained from your reseller

or the ADC factory. When ordering replacement parts from

the factory, you can FAX your order to ADC at (508) 678-9447

or telephone your order directly to the ADC Parts Department

at (508) 678-9000. Please specify the dryer model number

and serial number in addition to the description and part number,

so that your order is processed accurately and promptly.

The illustrations on the following pages may not depict

your particular dryer exactly. The illustrations are a composite

of the various dryer models. Be sure to check the

descriptions of the parts thoroughly before ordering.

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier

on the instructions to be followed if the user smells gas.

These instructions must be posted in a prominent location

near the dryer.

4 American Dryer Corporation 450282-5

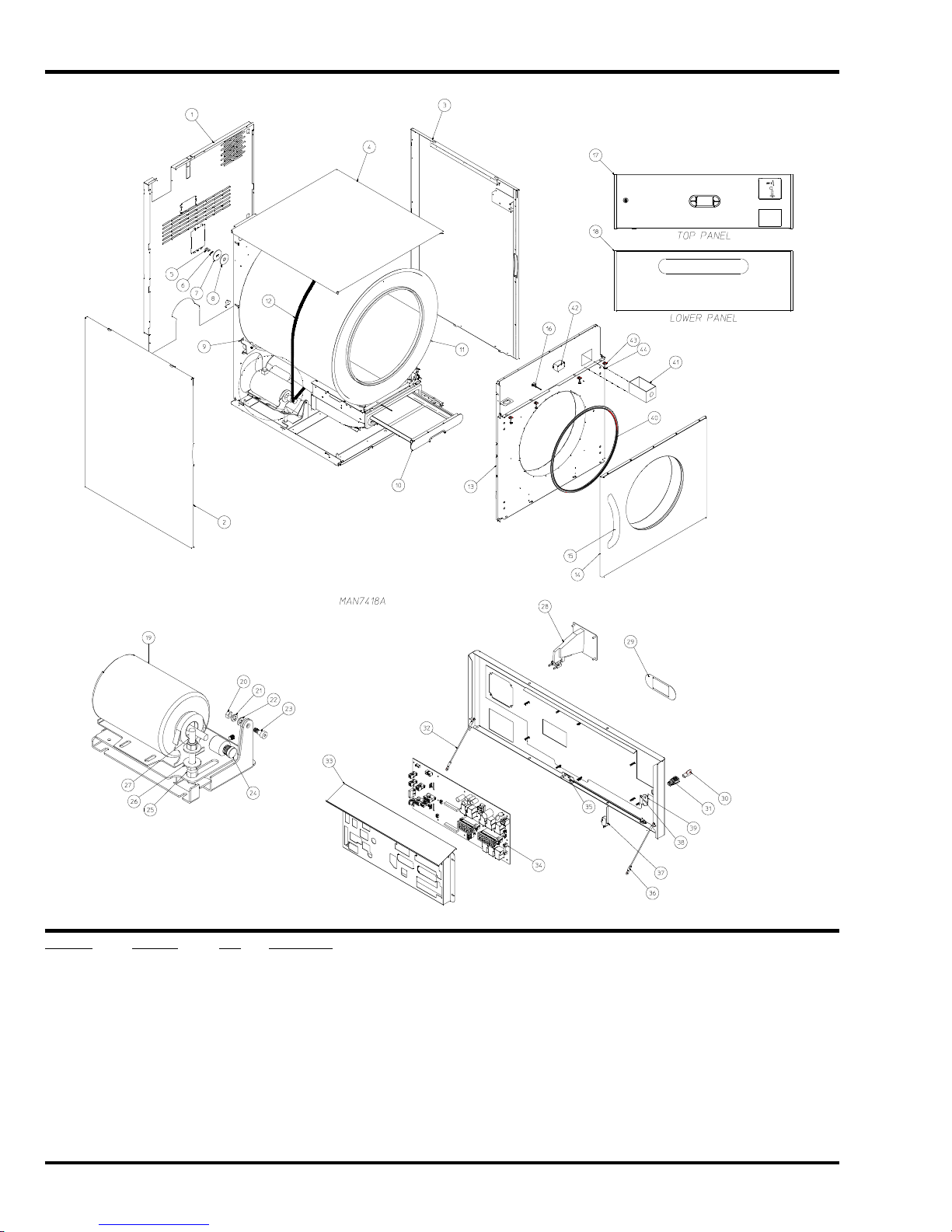

Parts Diagram

Illus.No. PartNo. Qty.Description

1 818925 1 BackGuardAssembly(GasandElectric)(For models mfd. as of December 7, 2005)

818683 1 BackGuardAssembly(GasandElectric)(Formodelsmfd.priortoDecember7,2005)

819622 1 BackGuardAssembly(Steam)

2 819619 1 Left Side PanelAssembly (For models mfd. as of December 7, 2005)

818679 1 Left Side PanelAssembly (For models mfd. prior to December 7, 2005)

3 819621 1 RightSidePanelAssembly(For models mfd. as of December 7,2005)

818678 1 RightSidePanelAssembly(For models mfd. prior toDecember7,2005)

4 818690 1 OuterTop PanelAssembly

5 150445 2 1/4-20 x 3/4” Bolt

6 153072 2 SpringWasher

7 318891 1 BackupWasher

8 153048 1 InnerFrictionPad(Gasand Electric)

102373 1 InnerFriction Pad(Steam)

450282-5 www.amdry.com 5

Parts List

Illus.No. PartNo. Qty.Description

9 818110 1 FrontRight/RearLeftWheel

818109 1 FrontLeft/RearRightWheel

10 819288 1 LintScreenAssembly(Painted)

819315 1 LintScreenAssembly(StainlessSteel)

11 819849 1 TumblerAssembly(Galvanized)(Formodelsmfd.asof March 12, 2008)

818815 1 TumblerAssembly(Galvanized)(Formodelsmfd.priortoMarch12,2008)

819850 1 TumblerAssembly(Stainless Steel)(For models mfd. as of July 18, 2008)

819398 1 TumblerAssembly(StainlessSteel) (For models mfd. prior to July 18, 2008)

12 102407 1 Belt

13 819627 1 FrontPanelAssemblyRightHinge(Coin)

819361 1 FrontPanelAssembly RightHinge(Non-Coin)60 Hz

818995 1 FrontPanelAssembly RightHinge(Non-Coin)50 Hz

102004 2 Magnet

102005 2 MagnetBlank

152224 4 MagnetScrew

400563 1 MagnetRemovalBit

14 819301 1 DoorAssemblyRight Hinge(White)

819388 1 DoorAssemblyRight Hinge(StainlessSteel)

819700 1 DoorAssemblyLeft Hinge (White)

819387 1 DoorAssemblyLeftHinge(Stainless Steel)

103067 2 DoorHinge

15 170233 1 Handle

16 819194 1 RotationSensorAssembly

17 819511 1 Phase8ControlDoorAssembly (25¢ Coin)

819633 1 Phase8Control DoorAssembly(Programmable– Euro)

819507 1 Phase8Control DoorAssembly(Non-Coin)

18 185097 1 Toe Panel(White)

185048 1 Toe Panel(StainlessSteel)

19 887215 1 1/4 hp Motor with Sheave – 60 Hz (For models mfd. with a 3 rib tumbler)

884288 1 1/4 hp Motor with Sheave – 60 Hz (For models mfd. with a 4 rib tumbler)

887030 1 1/4hp Motor with Sheave – 50Hz (For models mfd. as ofSeptember1, 2005)

818485 1 MotorAssembly(For models mfd. prior to September 1, 2005)

20 152004 2 5/16-18HexNut

21 153002 2 5/16”Split Lock Washer

22 153018 2 1/4”FlatWasher

23 154266 2 3/8” x 3/8” (5/16-18) Screw

24 319933 1 MotorSheave – 60 Hz (For modelsmfd.with3 rib tumblers)

318909 1 Motor Sheave – 60 Hz (For models with with 4 rib tumbler)

185067 1 MotorSheave–50Hz

25 152011 1 1/2-13HexNut

152028 1 1/2-13NylonInsertLocknut

26 153011 1 9/16”ID,1-3/8”OD Flat Washer

27 150609 1 1/2-13x 4-1/2”Tap Bolt

28 818213 1 CoinAcceptor(25¢ Coin)

819264 1 CoinAcceptor (Programmable–Euro)

29 112587 1 Keypad(Coin)

112586 1 Keypad(Non-Coin)

30 160140 1 Key

31 160071 1 Lock(For models mfd. as of February28, 2007)

160038 1 Lock(For models mfd. prior to February 28, 2007)

32 121530 1 ComputerSupport Cable

33 350250 1 Phase8Control Cover

34 887102 1 Phase8Computer(Formodelsmfd.withoutthe “S.A.F.E.System”)

887103 1 Phase8Computer(Formodelsmfd.withthe“S.A.F.E. System”)

136116 1 3-ampFuse

136054 1 15-ampFuse

35 819196 1 Door SwitchAssembly

36 121350 1 ComputerSupport Cable

37 122200 1 ProgramSwitch (For models mfd. prior to February 28, 2007)

38 154004 1 TwinSpeed Nut (For models mfd.priortoFebruary28,2007)

39 160066 1 1-1/8”LongCam(For models mfd. prior to February 28, 2007)

40 102396 1 DoorGasket

41 125916 1 Coin BoxAssembly with 2 Keys

42 131819 1 ReversingContactor

43 154061 8 U-NutRetainer

44 183129 8 T-20TrussHeadMachineScrew

6 American Dryer Corporation 450282-5

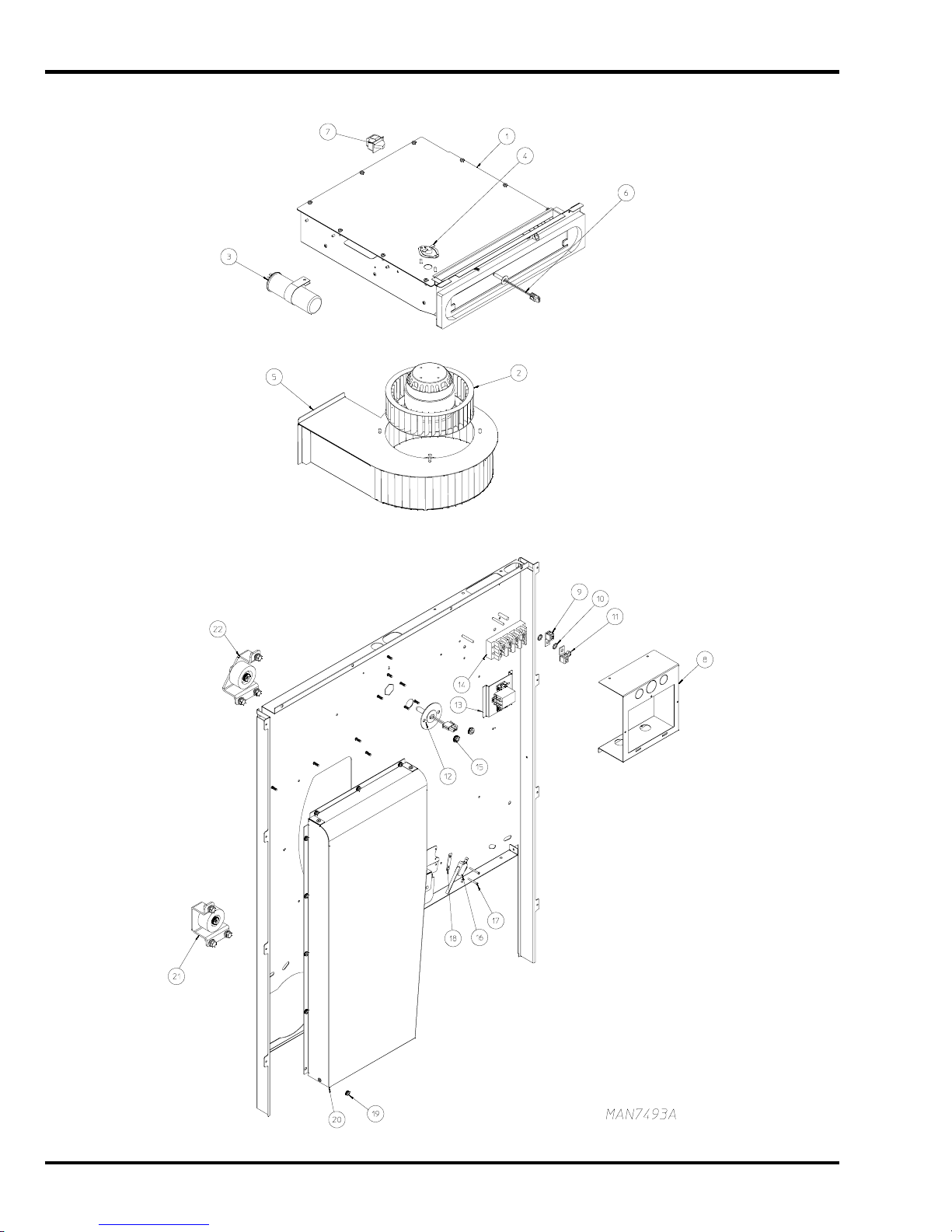

Parts Diagram

450282-5 www.amdry.com 7

Parts List

Illus.No. PartNo. Qty.Description

1 825569 1 LintBox / BlowerAssemblyComplete 120V 60 Hz (For models mfd. asofSeptember1, 2006)

819193 1 LintBox/ BlowerAssemblyComplete120V60Hz (For models mfd. prior to September 1, 2006)

822356 1 LintBox / BlowerAssembly Complete 200-240V 60Hz(For models mfd. as of June 14,2006)

819233 1 LintBox / BlowerAssemblyComplete200-240V 60 Hz (For models mfd. prior to June14,2006)

819233 1 LintBox/ BlowerAssemblyComplete200-240V50 Hz

(Formodels mfd. prior to June 14, 2006 andasofDecember 20, 2006)

819193 1 Lint Box / BlowerAssembly Complete 208-240V 50 Hz with Transformer

(Formodelsmfd.between October 25, 2006 and December 20, 2006)

822356 1 LintBox/ BlowerAssemblyComplete200-240V50 Hz

(Formodels mfd. between June 14, 2006 andOctober24,2006)

2 851242 1 BlowerMotorAssembly120V60 Hz (For models mfd. as ofSeptember1, 2006)

819185 1 BlowerMotorAssembly120V60Hz (For models mfd. prior to September 1,2006)

851243 1 Blower MotorAssembly 200-240V 60 Hz (For models mfd. as of July 14, 2006)

819232 1 BlowerMotorAssembly200-240V60 Hz (For models mfd. prior toJune14, 2006)

819232 1 BlowerMotorAssembly200-240V50Hz

(Formodels mfd. prior to June 14, 2006 andasofDecember 21, 2006)

819185 1 Blower MotorAssembly 200-240V 50 Hz with Transformer

(Formodelsmfd.between October 25, 2006 and December 20, 2006)

851243 1 BlowerMotorAssembly200-240V50Hz

(Formodels mfd. between June 14, 2006 andOctober24,2006)

3 100618 1 20 MFD Capacitor 120V (For models mfd. as of September 1, 2006)

100639 1 32 MFD Capacitor 120V (For models mfd. priortoSeptember1,2006)

100638 1 8 MFDCapacitor200-240V

(Formodels mfd. prior to June 14, 2006 andasofDecember 21, 2006)

100670 1 5 MFDCapacitor200-240V

(Formodels mfd. between June 14, 2006 andOctober24,2006)

100639 1 32 MFD Capacitor 200-240V with Transformer

(Formodelsmfd.between October 25, 2006 and December 20, 2006)

4 130119 1 L190AutomaticThermostat

5 185084 1 BlowerHousingFormedwithBackDraftDamper

818545 1 BlowerHousingMadeIn-House

6 830333 1 ExhaustTemperature SensorAssembly(For models mfd. as of February 19, 2008)

818986 1 ExhaustTemperature SensorAssembly(Formodelsmfd.priortoFebruary19, 2008)

7 122003 1 Lint Drawer Switch

8 318993 1 RearElectricalBox (Gas and Steam)

319327 1 RearElectricalBox(Electric)

318727 1 RearElectricalBoxCover

9 121010 1 TerminalLug

10 153021 1 1/4”Shakeproof Washer

11 152002 1 1/4-20HexNut

12 819188 1 AxialTemperatureSensorAssembly

13 819648 1 SplitPhase RelayAssembly

131818 1 25-amp240VRelay

136054 2 15-ampSlo-BloFuse

136008 2 FuseHolder

14 120728 1 Quick-ConnectTerminalBlock(ForGas andSteamModels)

120699 2 TerminalBlock (ForElectricModels)

120698 2 TerminalBlock Insulator(ForElectricModels)

15 153073 2 #8-32KEPSNut

16 122200 2 SailSwitch

17 150025 2 #4-40 x 1” Phillips Screw

18 154004 1 TwinSpeed Nut

19 153073 14 #8-32KEPSNut

20 819113 1 Heat Duct with Sail SwitchAssembly

21 818109 1 FrontLeft / Rear Right Wheel (Parts Breakdown onpage10)

22 818110 1 Front Right / Rear Left Wheel (Parts Breakdownonpage10)

8 American Dryer Corporation 450282-5

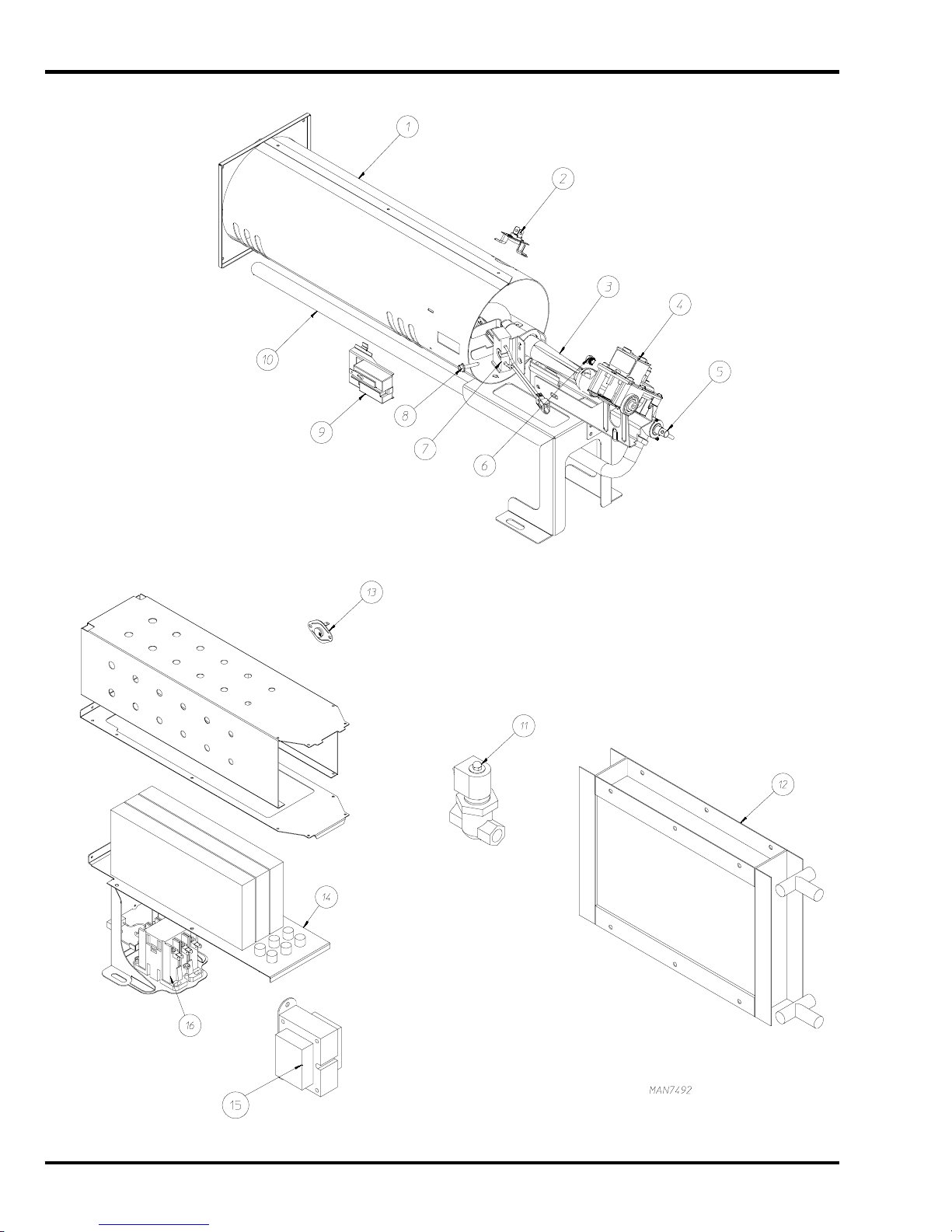

Parts Diagram

450282-5 www.amdry.com 9

Parts List

Illus.No. PartNo. Qty.Description

1 819314 1 BurnerAssembly

819313 1 BurnerChamber

2 183112 1 Thermostat,Gas High-Limit

3 183144 1 InshotBurnerTube,HotSurface Ignition

4 128944 1 Gas Valve 120 VAC 60 Hz

128907 1 Gas Valve 120 VAC 50 Hz

884254 1 LiquidPropaneConversion Kit

5 141318 1 3/8” 90º Union Shutoff

6 140880 1 NaturalGas#22Burner Orifice

140905 1 LiquidPropaneGas#44BurnerOrifice

7 128910 1 Globar®

8 183145 1 #8-32 x 7/8” Hex Screw with Washer

9 130500 1 RadiantControl

10 185096 1 3/8”N.P.T. Male 90ºGasPipe

142953 1 1/2”x3/8”N.P.T. Reducer … Not Illustrated

142954 1 3/8”B.S.P.T. Coupling …NotIllustrated

11 819579 1 SteamValveAssembly120V

819545 1 SteamValveAssembly208-240V

12 165066 1 CopperSteamCoil

13 183112 1 High-LimitThermostat

14 119995 1 ElectricElement

15 819712 1 120V to 24V Transformer

819251 1 208V to 24V Transformer

819267 1 240V to 24V Transformer

132029 1 208-240V to 120V Transformer

16 131352 1 40-amp24VContactor

131357 1 50-amp24VContactor

131321 1 30-amp120VContactor

131325 1 50-amp120VContactor

131324 1 40-amp208-240VContactor

131328 1 60-amp208-240VContactor

10 American Dryer Corporation 450282-5

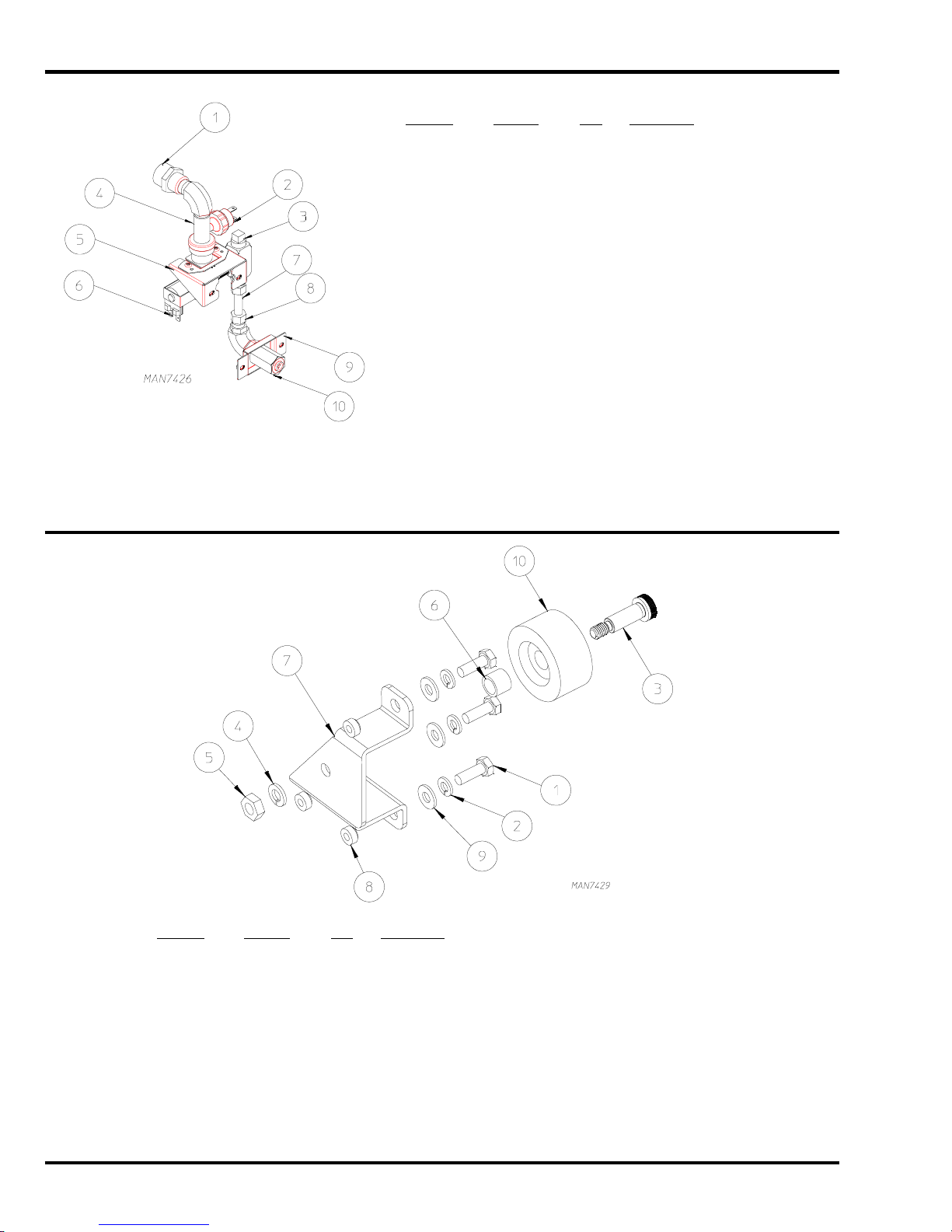

S.A.F.E. System Assembly Parts Diagram / List

Illus.No. PartNo. Qty.Description

1 143025 1 3/8”x 3/4” NHAdaptor

(ForU.S.and Canada)

143177 1 3/8”x 3/4” B.S.P.T.Adaptor

(ForEuro.Countries)

2 136987 1 Pressure Switch

3 143251 1 3/8”Plug

4 143182 1 BrassTee

5 319231 1 SupportBracket

6 165120 1 WaterValve

7 143099 1 3/8”ODCopper Tubing

8 143208 1 3/8” Brass Connector

9 318422 1 S.A.F.E. Bracket

10 143581 1 Spray Nozzle

Illus.No. PartNo. Qty.Description

1 150510 3 1/4-20x3/4”HexHeadMachineBolt

2 153007 3 1/4”Lock Washer

3 154267 1 M10x25mmShoulderScrew

4 153002 1 5/6”Lock Washer

5 154013 1 M8HexNut

6 154284 1 TumblerWheel Spacer

7 318233 1 RearRightRoller WheelBracket

318232 1 RearLeftRollerWheelBracket… Not Illustrated

318532 1 FrontRightRoller Wheel Bracket…NotIllustrated

318531 1 FrontLeftRollerWheelBracket… Not Illustrated

8 153564 3 1/4-20ClinchNut

9 153018 3 1/4”FlatWasher

10 180050 1 Wheel

Wheel Assembly Parts Diagram / List

Table des matières

Autres manuels American Dryer Corp. Séchoir

American Dryer Corp.

American Dryer Corp. AD-120ES II Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Microprocessor Control Gas v Manuel utilisateur

American Dryer Corp.

American Dryer Corp. AD-81 III Manuel utilisateur

American Dryer Corp.

American Dryer Corp. ES35 Guide de l'administrateur

American Dryer Corp.

American Dryer Corp. ML-122 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Direct Spark Ignition ADG-530DSi II Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Heat Reclaimer AD-170HR Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Dyer AD-26 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. AD-75 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Gas/HSI & Steam ID-120 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. SL31-31 Manuel

American Dryer Corp.

American Dryer Corp. ML-82 III Manuel utilisateur

American Dryer Corp.

American Dryer Corp. AD-100 Mode d’emploi

American Dryer Corp.

American Dryer Corp. SL50 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. AD-30 (Export) Guide de l'administrateur

American Dryer Corp.

American Dryer Corp. 20/31 Manuel

American Dryer Corp.

American Dryer Corp. AD-75THS Manuel utilisateur

American Dryer Corp.

American Dryer Corp. AD-236 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. ADG / MLG-170DR Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Phase 7 Gas/Steam AD-464 Manuel utilisateur

American Dryer Corp.

American Dryer Corp. Gas-HSI ADG-78 II Manuel utilisateur

American Dryer Corp.

American Dryer Corp. ML-78II Manuel utilisateur

American Dryer Corp.

American Dryer Corp. AD-30x2 Guide de l'administrateur

American Dryer Corp.

American Dryer Corp. ML-55II Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
