American DJ Progressor 2 Manuel utilisateur

American DJ

American DJ®American DJ

American DJ

4295 Charter Street

Los Angeles, CA. 90058

www.americandj.com

Revised 05/02

User Instructions

Unpacking:

Thank you for purchasing the Progressor II™ by American

. Every Progressor II™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping

carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your  xture for any

damage and be sure all accessories necessary to operate the unit

have arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please, do not return this unit to your dealer without

 rst contacting customer support.

Introduction:

The Progressor II™ is an intelligent, DMX compatible

version of the standard Progressor.™ This fixture can run in DMX

mode, as a stand alone sound active piece, or in a Master/Slave con-

figuration. The Progressor II™ comes with several build in programs

that will trigger when operating in master/slave mode. This unit is best

used in multiples of four. This piece is best used with a fog or haze

machine to enhance the beam output. An optional Progressor/C con-

troller may be purchased separately.

Warning!

The 1/4” phone plug on the unit is for the optional

Progressor/C. Do not attempt to connect an audio signal to this jack,

this will damage the PC board and void your manufactures warranty!

Customer Support:

American DJ

provides a toll free customer sup-

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:

00 p.m. Paci c Standard Time.

Voice:

(800) 322-6337

Fax:

(323) 582-2610

E-mail:

[email protected]

Warning!

To prevent or reduce the risk of electrical shock or  re, do

Warning! To prevent or reduce the risk of electrical shock or  re, do Warning!

not expose this unit to rain or moisture.

Caution!

There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures

warranty. In the unlikely event your unit may require service please

contact American DJ

customer support.

Progressor II™ Introduction

American DJ

www.americandj.com Progressor II™ Instruction Manual Page 2

•

This unit may blow a fuse if the maximum allotted load of 10 amps

(220v = 5 amps) is reached. If the fuse needs replacement, always

replace the fuse with same exact type that was remove. Use of a

different type fuse from that which is recommended may cause fire

or electric shock and will void the manufactures warranty

•

To reduce the risk of electrical shock or  re, do not expose this unit

rain or moisture

•

Do not spill water or other liquids into or on to your unit

•

Be sure that the local power outlet match that of the required volt-

age for your unit

•

Do not attempt to operate this unit if the power cord has been fray-

ed or broken. Do not attempt to remove or break off the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and  re in case of an internal short

•

Disconnect from main power before making any type of connection

•

Do not remove the cover under any conditions. There are no user

serviceable parts inside

•

Never plug this unit in to a dimmer pack

•

Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall

•

Do not attempt to operate this unit, if it becomes damaged

•

This unit is intended for indoor use only, use of this product out-

doors voids all warranties

•

During long periods of non-use, disconnect the unit’s main power

•

Always mount this unit in safe and stable matter

•

Power cords should be routed so they are not likely to be walked

on, pinched by items placed upon or against them.

• Cleaning -The  xture should be cleaned only as recommended by

the manufacturer. See page 7 for cleaning details

•

Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (in-

cluding ampli ers) that produce heat.

•

The  xture should be serviced by quali ed service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the unit.

C. The unit has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

American DJ

www.americandj.com Progressor II™ Instruction Manual Page 3

American DJ

www.americandj.com Progressor II™ Instruction Manual Page 4

•

Linkable.

•

Audio Sensitivity Knob.

•

Sound-Active.

•

DMX-512 Protocol Compatible.

•

Full Focusing.

•

Master/Slave Built-In Programs.

•

Optional Progressor/C Blackout Controller.

Introduction..........................................................................2

Features................................................................................3

Safety Precautions...................................................................4

Operation..............................................................................5

DMX Addressing..............................................................6

Set-Up................................................................................7

Controls & Functions..........................................................10

Lamp Replacement..............................................................11

Cleaning............................................................................12

Trouble Shooting............................................................12

DMX Traits.................................................................................14

Warranty............................................................................15

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

Progressor II™ General Instructions

Progressor II™ Warranty Registration

The Progressor II™ carries a one year (365 days) limited warranty.

We recommend you fill out the enclosed warranty card to validate

your purchase. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) number. If the unit is under warranty, you must provide a copy

of your proof of purchase invoice. Please contact American DJ

cus-

tomer support for a R.A. number.

Progressor II™ Features

Progressor II™ Contents Progressor II™ Safety Precautions

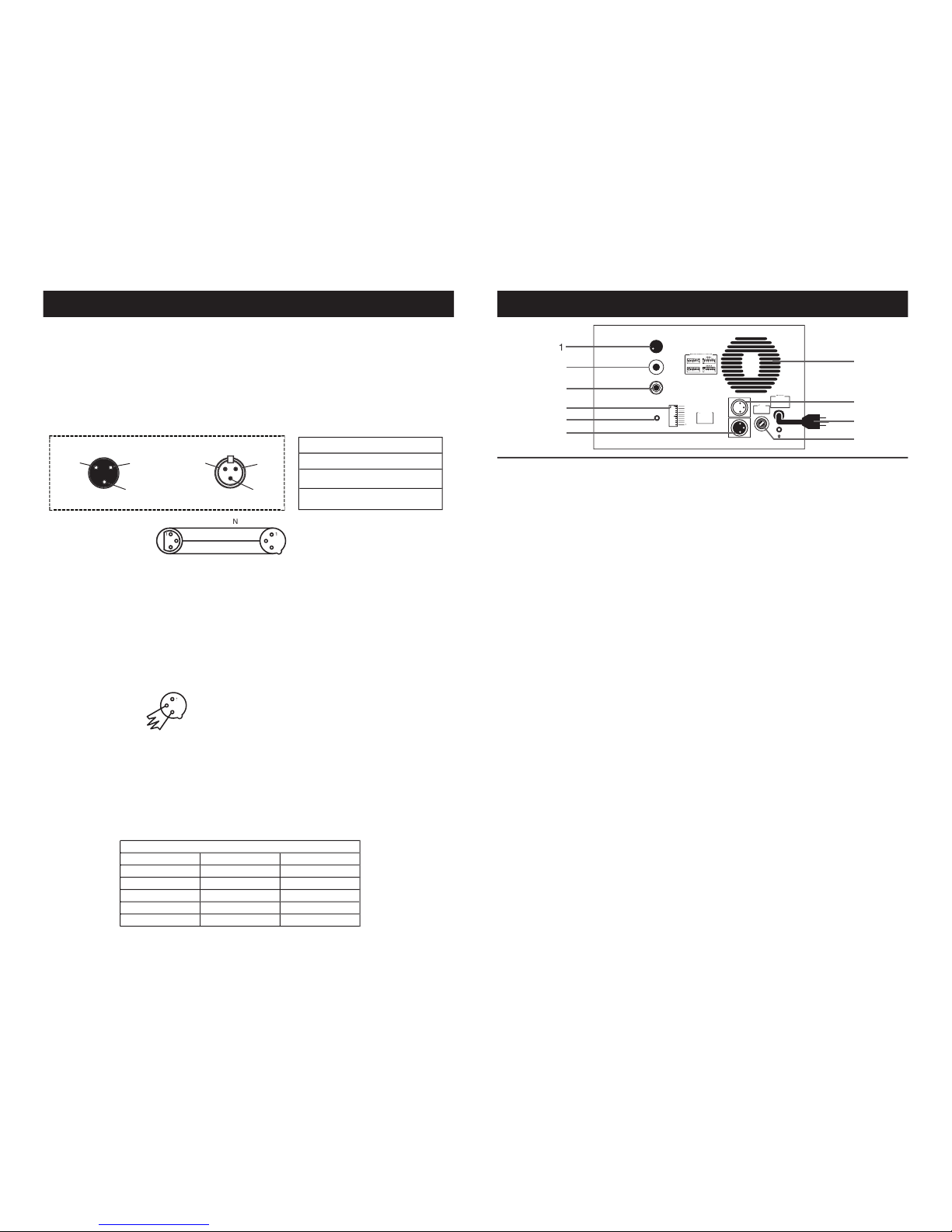

SENSITIVITY

240 V / 5 A

DMX Indicator

1 2 3 4 5 6 7 8 9

128

Dipswitch

1 = Ground

2 = Data -

3 = Data +

DMX Link

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

PROGRESSOR II /C ONLY

SENSITIVITY

MICROPHONE

120 V / 10 A

240 V / 5 A

Fuse

DMX Indicator

1 2 3 4 5 6 7 8 9

128

Dipswitch

1 = Ground

2 = Data -

3 = Data +

DMX Link

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

PROGRESSOR II /C ONLY

SENSITIVITY

MICROPHONE

120 V / 10 A

240 V / 5 A

Fuse

DMX Indicator

1 2 3 4 5 6 7 8 9

128

Dipswitch

1 = Ground

2 = Data -

3 = Data +

DMX Link

DMX In

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

Operating Modes:

You can operate the Progressor II

™

in three dif-

ferent modes:

•

Stand-Alone mode (Usually for single unit operation) -

The unit

will

react to sound, chasing through the several built in programs. You

can also use the optional Progressor/C remote control to blackout

the unit.

• Master/Slave mode -

Allows you to daisy chain up to 4 fixtures

together for a synchronized light show. The fixtures will react to

sound chasing through several built in programs. You can also use

the optional Progressor/C remote control to change programs and

blackout the units.

•

DMX control mode -

This function will allow you to control each

fixtures DMX traits with a standard DMX 512 controller such as the

American DJ

Show Designer™ or DMX Operator.

™

NOTE: Stand-Alone and Master/Slave operation require a sound

source to operate properly. The units will blackout to conserve lamp

life when inactive for more than 60 seconds. A single sound source

will reactivate the units.

Stand Alone Mode:

To operate a single unit or several units as individuals in stand

alone mode, turn dip switch number 10 to the on position (see

page 13) and plug the unit(s) in. If you are running more than one

unit in stand alone mode do not link the units together.

Adjust the sensitivity knob on the bottom of the unit so the unit

will react to sound and cycle through the internal chases. Turning

the sensitivity knob in a clockwise direction will make the fixture

more sensitive to sound, turning the sensitivity knob in counter-

clockwise direction will make the fixture less sensitive to sound.

Master-Slave Operation (Sound Active):

In Master-Slave opera-

tion one unit will act as the controlling unit, the others will react to the

controlling units programs. Any unit can act as a master or a slave.

Using standard XLR microphone cables, daisy chain your units

together via the XLR connectors on the rear of the unit. Remem-

ber the Male XLR connector is the input and the Female XLR is

the output. The  rst unit in (master) will use the female XLR con-

nector only. Refer to the set-up procedures beginning on page 8.

Follow the Master-Slave dip-switch chart on page 13 for proper

Progressor II™ Operation

dip-switch settings.

The optional Progressor/C Controller may be used in this

operation mode to control a blackout function.

After the unit settings have been set and are plugged in, adjust

the sensitivity knob on the rear of the master unit to make them

react to sound.

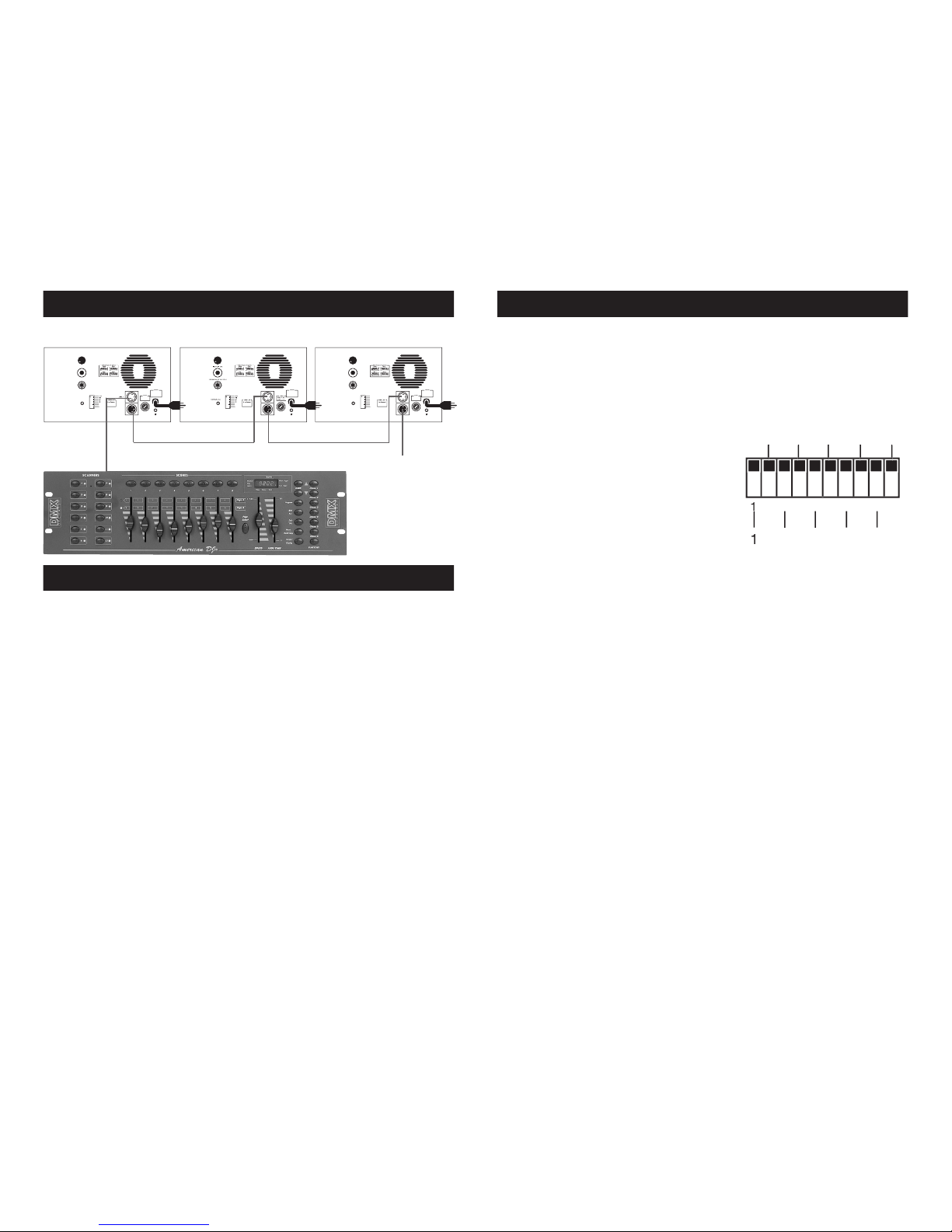

Universal DMX Control:

Operating through a DMX controller

allows the freedom to create unique programs tailored to one’s indi-

vidual needs.

The Progressor II™ uses one DMX channel. This channel con-

trols the rotation of the unit’s internal wheel. Please refer to page

14 for a detailed description of the DMX traits.

To control your fixture in DMX mode, follow the unit set-up proce-

dures beginning on page 8 as well as the set-up specifications

that are included with your DMX controller.

Use the controller’s faders to control the various DMX fixture traits.

This will allow you to create custom programs.

When using a DMX controller and setting up for DMX operation

follow the dip switch settings on page 13.

For help operating in DMX operation consult the manual included

with your DMX controller.

For longer cable runs (more than a 100 feet) use a terminator on

the last fixture in you DMX chain.

Progressor II™ Operation

American DJ

www.americandj.com Progressor II™ Instruction Manual Page 5

American DJ

www.americandj.com Progressor II™ Instruction Manual Page 6

For a more dramatic effect, link several Color units together.

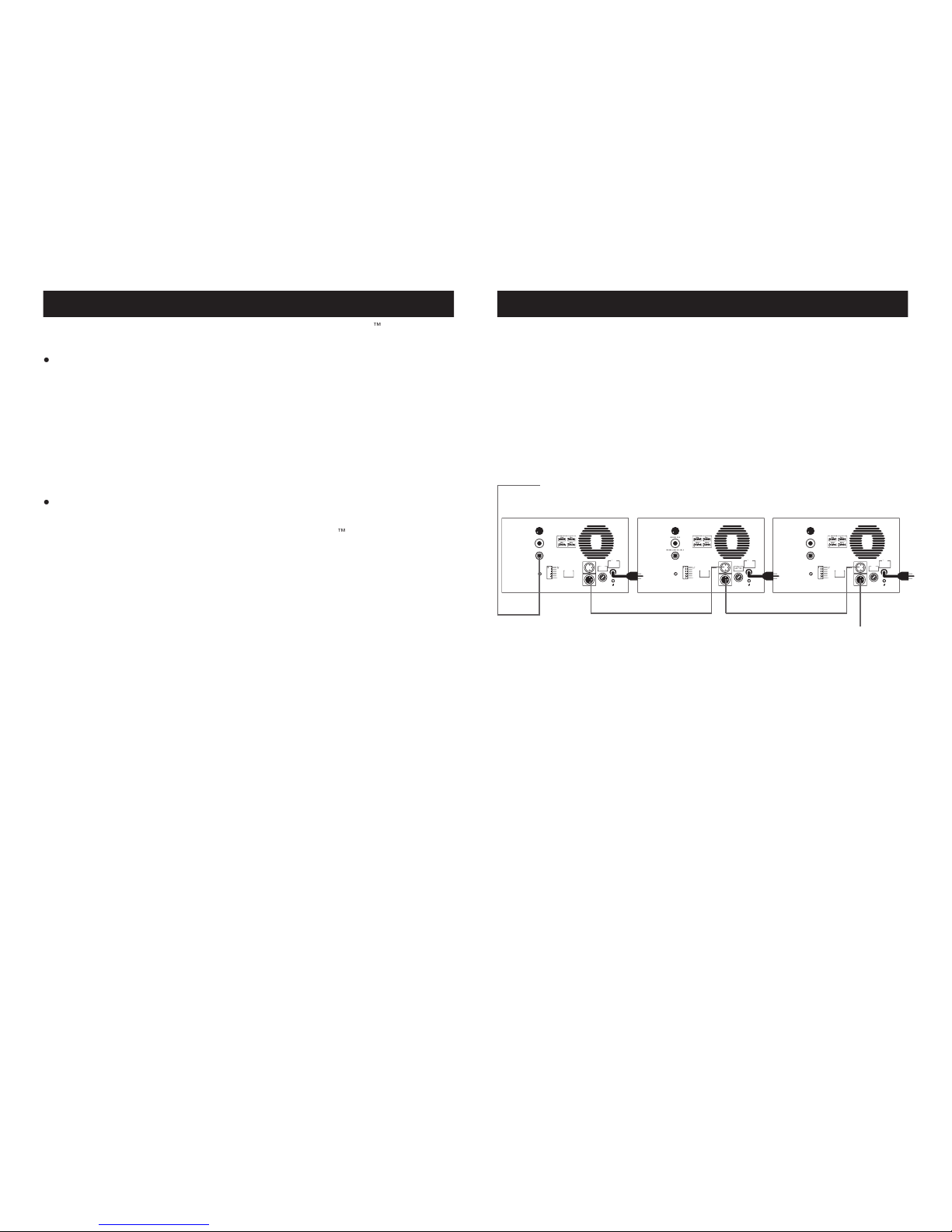

Master/Slave Linking:

To next Progressor II™ if applicable

Optional Progressor/C or MINI/C blackout controller

Progressor II™ Operation

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 7

To next DMX unit or terminate.

Typical DMX Linking:

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 8

Progressor II™ Set Up

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

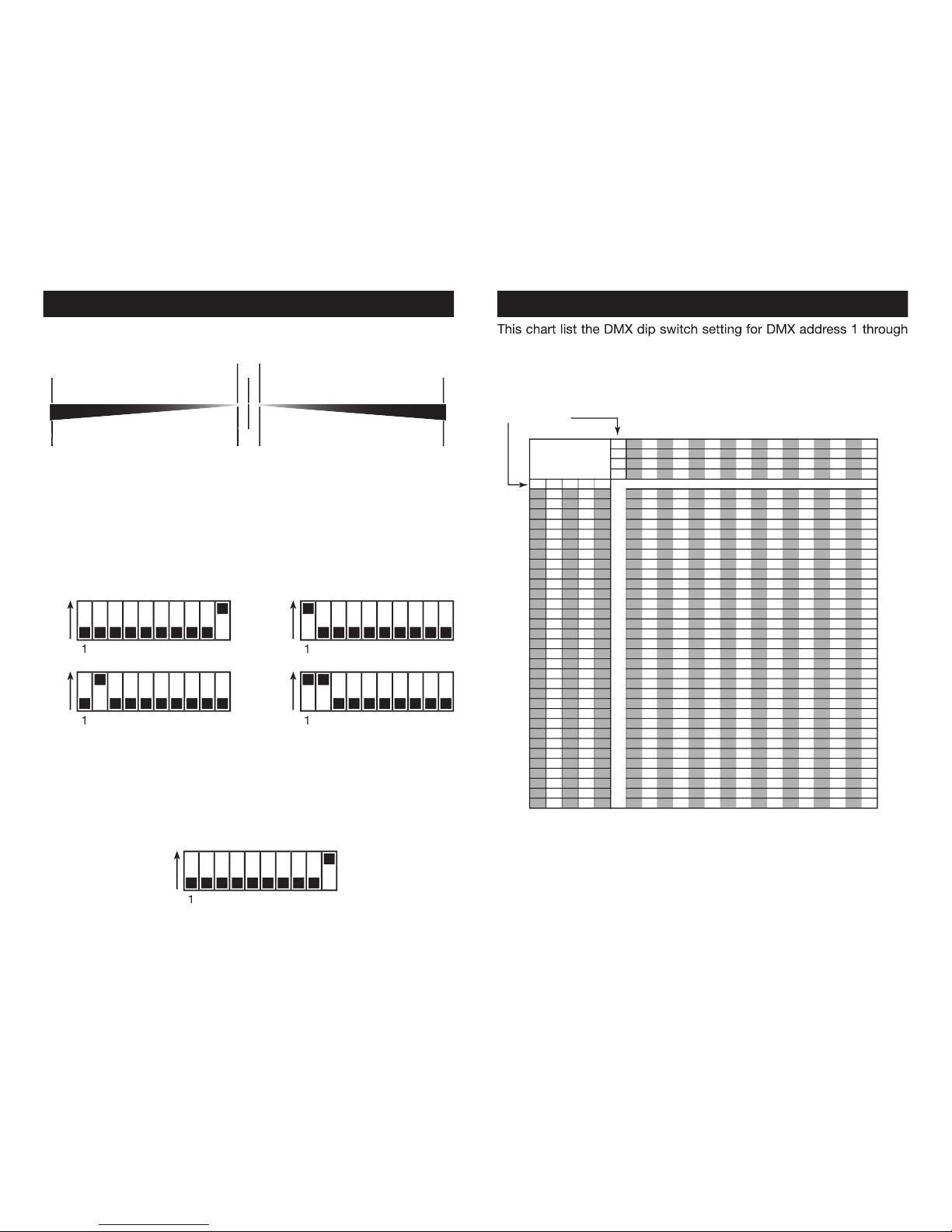

Dip-switches in DMX mode: This unit uses dip switches to assign a

DMX address. Each dip switch represents a binary value.

Dip Switch 1 address equals 1

Dip Switch 2 address equals 2

Dip Switch 3 address equals 4

Dip Switch 4 address equals 8

Dip Switch 5 address equals 16

Dip Switch 6 address equals 32

Dip Switch 7 address equals 64

Dip Switch 8 address equals 128

Dip Switch 9 address equals 256

Each dip switch has a preset value. A specific DMX address is set by

combining the dip switches that sum your desired value. For exam-

ple: To achieve a DMX address of 21, combine dip switches 1, 3, and

5. Sense dip switch 1 has a value of 1, dip switch 3 has a value of 4,

and dip switch 5 has a value of 16, the combination of the create a

DMX value of 21.

Set DMX address 21:

Set DMX address 201:

Dip-switches # 1 = 1

3 = 4

4 = 8

5 = 16

7 = 64

= 21

8 = 128

= 201

Data Cable Requirements (For DMX and Master/Slave Oper-

ation):

The Progressor II™ can be controlled via DMX-512 protocol.

The DMX address is set using the dip-switches on the rear panel of the

Progressor II™. Your unit excepts 3-pin XLR connector for data input

and data output (Figure 5). When using a DMX controller with 5-Pin

XLR output jacks or when linking from a DMX  xture with 5-Pin XLR

jack to the Progressor II™, be sure to follow the pin conversion chart

on page 12. If you are making your own cables, be sure to use stan-

dard two conductor shielded cable (This cable may be purchased at

almost all pro sound and lighting stores). Your cables should be made

with a male and female XLR connector on either end of the cable.

128

256

DMX CHANNEL

Progressor II™ Set Up

Power Supply:

Before plugging your unit in, be sure the source

voltage in your area matches the required voltage for your American

Progressor II.™ Because line voltage may vary from venue to

venue, you should be sure your unit voltage matches the wall outlet

voltage before attempting to operate you  xture.

DMX-512:

DMX is short for Digital Multiplex. This is a universal pro-

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the  xture. DMX data is sent as serial data that trav-

els from  xture to  xture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX  xtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking:

DMX is a language allowing all makes and models of

different manufactures to be linked together and operate from a sin-

gle controller, as long as all  xtures and the controller are DMX com-

pliant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

SENSITIVITY

1 2 3 4 5 6 7 8 9

Dipswitch

2 = Data -

3 = Data +

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

PROGRESSOR II /C ONLY

SENSITIVITY

MICROPHONE

120 V / 10 A

240 V / 5 A

Fuse

DMX Indicator

1 2 3 4 5 6 7 8 9

M / S

256

128

Dipswitch

2 = Data -

3 = Data +

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

PROGRESSOR II /C ONLY

SENSITIVITY

MICROPHONE

120 V / 10 A

240 V / 5 A

Fuse

DMX Indicator

1 2 3 4 5 6 7 8 9

Dipswitch

2 = Data -

3 = Data +

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

Also remember that DMX cable must be daisy chained and can not be

split.

Progressor II™ Set Up

Figure 6

1 Ground

XLR Male Socket

XLR Pin Con guration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Notice:

Be sure to follow  gures 6 and 7 when making your own

cables. Do not use the ground lug on the XLR connector. Do not con-

nect the cable’s shield conductor to the ground lug or allow the shield

conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMO

DMX512 OUT

3-PIN XLR

Figure 7

Special Note:

Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number ZDMX/T) will decrease the possibilities of erratic

behavior.

rmination

educes

signal

rrors

and

avoids

signal

transmission

problem

and

interference.

always

advisable

connect

DMX

terminal,

(Resistance

120

Ohm

1/4

between

(DMX-)

and

(DMX

the

last

fixture.

Figure 8

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 9

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR  xtures

may be implemented in a 3-pin XLR DMX line. When inserting stan-

dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be

used, these adaptors are readily available at most electric stores. The

chart below details a proper cable conversion.

Conductor

5-Pin XLR Male (In)

3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 10

Progressor II™ Controls and Functions

Mic Sensitivity -

This adjust audio sensitivity of the internal mic

(2). Turning the sensitivity knob in the clockwise direction will

increase sound sensitivity. Turning the knob in a counter clockwise

direction will decrease sound sensitivity.

Internal Mic -

This microphone receives external low frequencies

to trigger the unit in Sound-Active and Master/Slave mode.

Remote Control Input -

Do not attempt to connect an audio

signal to this jack, this will damage the unit!

This jack is for use

with the optional Progressor/C controller only.

Connecting an

audio signal this jack, this will damage the PC board and void

your manufactures warranty!

Dip Switches -

These switches serve two functions. In master

slave mode these switches are used to assign a speci c head

address. In DMX mode these switches are used to assign a DMX

address to the unit. In DMX mode each switch corresponds to a

speci c value based on binary code. See page 7 for a detailed

explanation of DMX binary code.

Power Indicator -

This LED will  ash when it receives either an

audio or DMX signal.

DMX Output Jack -

This jack is used to send the incoming DMX

or Master/Slave signal to another DMX  xture.

Fan Grill -

Keep this grill clean and clear of obstacles at all times.

DMX Input Jack -

This jack is used to accept an incoming DMX

or Master/Slave signal.

Power Cord -

Connect only to a matching power outlet. Never use

this  xture is the ground prong has been removed or broken off.

10.

Fuse Holder -

This housing stores the protective fuse. Always

replace with the exact same type fuse, unless otherwise instructed

to do so by an authorized American DJ

service technician.

PROGRESSOR II /C ONLY

SENSITIVITY

MICROPHONE

120 V / 10 A

240 V / 5 A

Fuse

DMX Indicator

Master

Slave 2

Master/Slave Chart

1 2 3 4 5 6 7 8 9

M / S

256

128

Dipswitch

1 = Ground

2 = Data -

3 = Data +

DMX Link

DMX In

DMX Out

Black = Hot

White = Neutral

Green = Earth

Power

Progressor II™ Fuse & Lamp Replacement

Caution:

Always replace with the exact same type lamp and fuse,

unless otherwise specified by an authorized American

technician.

Replacing with anything other than the specified part can damage the

unit and will void the manufactures warranty.

Warning:

If, after replacing the lamp or fuse either one continues

to blow, STOP using the unit. Contact customer support for further

instructions, you may have to return the unit for servicing. Continuing

to use the unit may cause serious damage.

Fuse Replacement:

Disconnect the unit’s main power supply. Insert a

standard flat head screw driver in to the fuse holder housing. Turn the

screwdriver in counter-clockwise direction to remove the fuse holder.

Remove the fuse holder to expose the fuse. Remove the old fuse and

discard it. Replace the fuse with the same type. Insert the fuse holder

back into it’s housing and turn it in clockwise direction to lock the

holder in place.

Lamp Replacement:

Caution! Never attempt to change the lamp

while the fixture is plugged in. Always disconnect the main power

and allow the unit ample time to cool before attempting to replace the

lamp. Lamp replacement has been made simple by incorporating the

use of a flip-up top cover that is retained by a single thumb screw.

Be sure to follow the proper handling procedures that deal

with halogen lamps.

Remove the single thumb screw located in the top of the unit.

Flip-down the front cover to access the lamp socket assembly.

The

cover is on hinges and will not fall off.

Carefully remove the old lamp and discard it in the trash.

Replace the lamp with an exact match and reassemble.

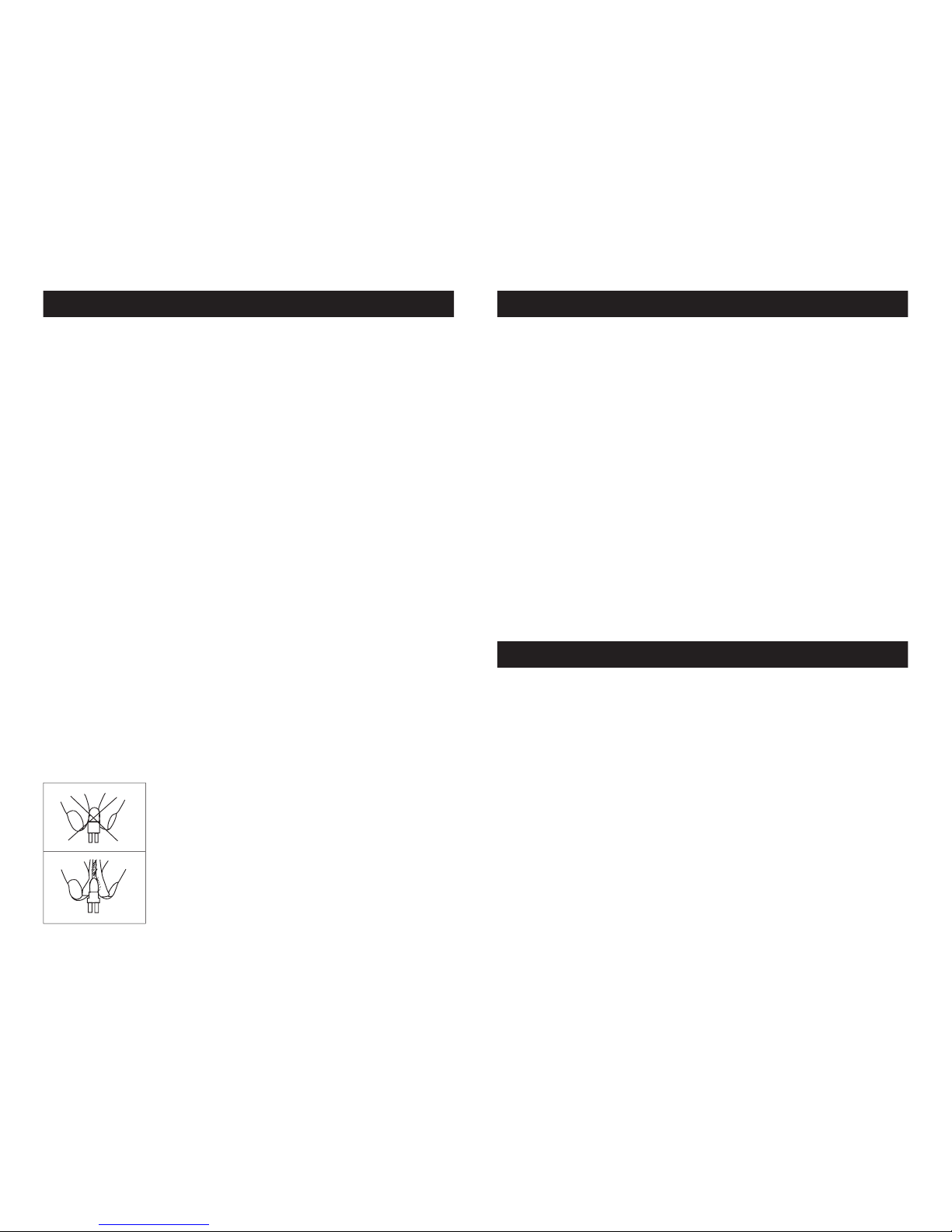

Halogen Lamp Warning:

This  xture is  tted with a halogen lamp which is

highly susceptible to damage if improperly han-

dled. Never touch the lamp with your bare  ngers

as the oil from your hands will shorten lamp life.

Also, never move the  xture until the lamp has

had ample time to cool. Remember, lamps are not

covered under warranty conditions.

Progressor II™ Trouble Shooting

Trouble Shooting:

Listed below are a few common problems that you may encounter,

with solutions.

No light output from the unit;

Be sure you have connected your unit into a standard 120V (or

220v depending on the models voltage requirements) wall outlet.

Be sure the external fuse has not blown. The fuse is located on

the rear panel of the unit.

Remove the lamp cover and be sure the lamp is seated in its

socket properly. Occasionally lamps become loose during ship-

ping be sure the lamp is push in to its socket all the way. Rem-

ember not to touch the lamp with your bare fingers.

Be sure the fuse holder is completely and properly seated.

Unit does not respond to sound;

Low frequencies (bass) should cause the unit to react to sound.

Tapping on the microphone, quiet or high pitched sounds may

not activate the unit.

Be sure the

SENSITIVITY KNOB (1)

is not set to the maximum

position.

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 11

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 12

Progressor II™ Cleaning

Fixture Cleaning:

Due to fog residue, smoke, and dust cleaning the internal and exter-

nal optical lenses and mirror should be carried out periodically to

optimize light output. Cleaning frequency depends on the environ-

ment in which the fixture operates (I.e. smoke, fog residue, dust,

dew). In heavy club use we recommend cleaning on a monthly basis.

Periodic cleaning will ensure longevity, and crisp output.

Use normal glass cleaner and a soft cloth to wipe down the out-

side casing.

Use a brush to wipe down the cooling vents and fan grill.

Clean the external lens with glass cleaner and a soft cloth every

20 days.

Clean the internal lens with glass cleaner and a soft cloth every

30-60 days.

Always be sure to dry all parts completely before plugging the unit

back in.

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 13

This chart list the DMX dip switch setting for single head operation.

When using this fixture as a stand alone unit or when using multiple

Progressor IIs as stand alone units, be sure all the fixtures match the

illustrated dip switch setting (10 to the on position - all others off).

The Progressor II™ is a single DMX channel fixture

128

129

127

255

Stop

CW Fast

CCW Fast

CW Slow

CCW Slow

This chart details the Master/Slave dip switch setting for Master/

Slave configuration for four units. Use these dip switch setting when

you will be using two or more fixtures in a Master/Slave configuration.

The “Master - Head 1” settings should only be used once.

Head 4

Head 3

Head 2

Master - Head 1

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 14

X = OFF

O = ON

#1 #2 #3 #4 #5

3 64 96 128 160 192 224 256 288 320 352 384 416 448 480

1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481

2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482

3 35 67 99 131 163 195 227 259 291 323 355 387 419 451 483

4 36 68 100 132 164 196 228 260 292 324 356 388 420 452 484

5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485

6 38 70 102 134 166 198 230 262 294 326 358 390 422 454 486

7 39 71 103 135 167 199 231 263 295 327 359 391 423 455 487

8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488

9 41 73 105 137 169 201 233 265 297 329 361 393 425 457 489

10 42 74 106 138 170 202 234 266 298 330 362 394 426 458 490

11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491

12 44 76 108 140 172 204 236 268 300 332 364 396 428 460 492

13 45 77 109 141 173 205 237 269 301 333 365 397 429 461 493

14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494

15 47 79 111 143 175 207 239 271 303 335 367 399 431 463 495

16 48 80 112 144 176 208 240 272 304 336 368 400 432 464 496

17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497

18 50 82 114 146 178 210 242 274 306 338 370 402 434 466 498

19 51 83 115 147 179 211 243 275 307 339 371 403 435 467 499

20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500

21 53 85 117 149 181 213 245 277 309 341 373 405 437 469 501

22 54 86 118 150 182 214 246 278 310 342 374 406 438 470 502

23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503

24 56 88 120 152 184 216 248 280 312 344 376 408 440 472 504

25 57 89 121 153 185 217 249 281 313 345 377 409 441 473 505

26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506

27 59 91 123 155 187 219 251 283 315 347 379 411 443 475 507

28 60 92 124 156 188 220 252 284 316 348 380 412 444 476 508

29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509

30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510

31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511

DMX DIP Switch Settings

DIP SWITCHES

OOO OOX OO OXX X X X X X

OOO OOOO OX X XXX X X X

OXO XOO XX OOX X X XOO

XOX XOO OX OXX O X O X O

O X X X X

X O X O X

O X X O X

X X X O X

O O O X X

X O O X X

X X O X X

O O X X X

X O X X X

O X O X X

X O O O X

O O X X O

X O X X O

O X X X O

X X X X O

O O O O X

O X O O X

X X O O X

O O X O X

X X X O O

O O O O O

X O O O O

O X O O O

X X O O O

O O X O O

X O X O O

O X X O O

O O O X O

X O O X O

O X O X O

X X O X O

X X X X X

DMX Address

DMX Address Quick Reference Chart

Dip Switch Position

The center numbers of this chart (1-511) represent a DMX address. The "X"'s

and "O"'s along the top and side of the chart represent dip switch poistion ("X"

for off and "O" for on). Find your desired DMX address from the center chart.

Identify the position for dip switches 1-5 from the chart on the left and dip

switches 6-9 from the chart on the top. Adjust the dip switches on your fixture to

match the position settings of the chart. For fixtures with 10 dip switches; dip

switch 10 is reserved for special functions.

This chart list the DMX dip switch setting for DMX address 1 through

511. Follow the instructions below to configure fixture dip switches

with your desired DMX address.

Progressor II™ DMX Dip Switch Chart

Master - Head 1

Progressor II™ DMX Traits

American DJ

- www.americandj.com - Progressor II™ Instruction Manual Page 15

©American DJ

American DJ® World Headquarters:

4295 Charter Street Los Angeles, CA 90058 USA

Tel: 323-582-2650 Fax: 323-582-2610

Web: www.americandj.com E-mail: [email protected]

MODEL:

PROGRESSOR II™

SPECIFICATIONS:

VOLTAGE*:

120V~60Hz / 220V~50Hz

LAMP:

LL-64514 120v/300w or

ZB-64516 220v/300w

DIMENSIONS:

16"H x 11"W x 14.5"L

WEIGHT:

24 LBS

FUSE:

120V = 10 AMP GMA

220V = 5 AMP GMA

WORKING POSITION:

ANY SAFE POSITION

COOLING:

FAN COOLED

DUTY CYCLE:

30 MIN. ON, 10 MIN. OFF

GOBOS:

NONE

COLORS:

MULTIPLE

DMX CHANNELS:

SOUND ACTIVE:

YES

WARRANTY:

1 YEAR (365 DAYS)

* Voltage is preset at the factory

Please Note:

Speci cations and improvements in the design of

this unit and this manual are subject to change without any prior

written notice.

1-YEAR LIMITED WARRANTY

A. American DJ

hereby warrants, to the original purchaser, American DJ

products to be

free of manufacturing defects in material and workmanship for a period of 1 Year (365 days)

from the date of purchase. This warranty shall be valid only if the product is purchased

within the United States of America, including possessions and territories. It is the owner’s

responsibility to establish the date and place of purchase by acceptable evidence, at the

time service is sought.

B. For warranty service, send the product only to the American DJ

factory. All shipping

charges must be pre-paid. If the requested repairs or service (including parts replacement)

are within the terms of this warranty, American DJ

will pay return shipping charges only

to a designated point within the United States. If the entire instrument is sent, it must be

shipped in its original package. No accessories should be shipped with the product. If any

accessories are shipped with the product, American DJ

shall have no liability whatsoever

for loss of or damage to any such accessories, nor for the safe return thereof.

C. This warranty is void if the serial number has been altered or removed; if the product is

modi ed in any manner which American DJ

concludes, after inspection, affects the reli-

ability of the product; if the product has been repaired or serviced by anyone other than

the American DJ

factory unless prior written authorization was issued to purchaser by

American DJ

; if the product is damaged because not properly maintained as set forth in

the instruction manual.

D. This is not a service contract, and this warranty does not include maintenance, cleaning

or periodic check-up. During the period speci ed above, American DJ

will replace defec-

tive parts at its expense, and will absorb all expenses for warranty service and repair labor

by reason of defects in material or workmanship. The sole responsibility of American DJ

under this warranty shall be limited to the repair of the product, or replacement thereof,

including parts, at the sole discretion of American DJ

. All products covered by this war-

ranty were manufactured after January 1, 1990, and bear identifying marks to that effect.

E. American DJ

reserves the right to make changes in design and/or improvements upon

its products without any obligation to include these changes in any products theretofore

manufactured.

F. No warranty, whether expressed or implied, is given or made with respect to any acces-

sory supplied with products described above. Except to the extent prohibited by applicable

law, all implied warranties made by American DJ

in connection with this product, includ-

ing warranties of merchantability or  tness, are limited in duration to the warranty period

set forth above. And no warranties, whether expressed or implied, including warranties of

merchantability or  tness, shall apply to this product after said period has expired. The

consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly

provided above; and under no circumstances shall American DJ

be liable for any loss or

damage, direct or consequential, arising out of the use of, or inability to use, this product.

G. This warranty is the only written warranty applicable to American DJ

Products and

supersedes all prior warranties and written descriptions of warranty terms and conditions

heretofore published.

H. All lamps and fuses are not covered under this warranty.

Progressor II™ Warranty

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels American DJ Matériel de DJ

American DJ

American DJ X-Color LED Plus Manuel utilisateur

American DJ

American DJ Snap Shit DMX/D Manuel utilisateur

American DJ

American DJ Color-Sphere Manuel utilisateur

American DJ

American DJ TRI PHASE Manuel utilisateur

American DJ

American DJ Fan-1000 Manuel utilisateur

American DJ

American DJ Flash Duo Manuel utilisateur

American DJ

American DJ WiFly Par QA5 WH Manuel utilisateur

American DJ

American DJ Fusion Scan 250EX Manuel utilisateur

American DJ

American DJ Fusion Scan 250 Manuel utilisateur

American DJ

American DJ Inno Color Beam 12 Manuel utilisateur

American DJ

American DJ User Instructions Manuel utilisateur

American DJ

American DJ Verti-Pro II Manuel utilisateur

American DJ

American DJ Verti-Pro Manuel utilisateur

American DJ

American DJ Pixel Pulse Bar Manuel utilisateur

American DJ

American DJ Fun Factor LED Manuel utilisateur

American DJ

American DJ Duo Scan RG Manuel utilisateur

American DJ

American DJ Jewel LED Manuel utilisateur

American DJ

American DJ H2O Manuel utilisateur

American DJ

American DJ Flash Tube Buffer Manuel utilisateur

American DJ

American DJ WLED CURTAIN Manuel utilisateur

American DJ

American DJ Saturn Tri LED Manuel utilisateur

American DJ

American DJ Fusion FX Bar 4 Manuel utilisateur

American DJ

American DJ Color Burst LED Manuel utilisateur

American DJ

American DJ BU-200 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
