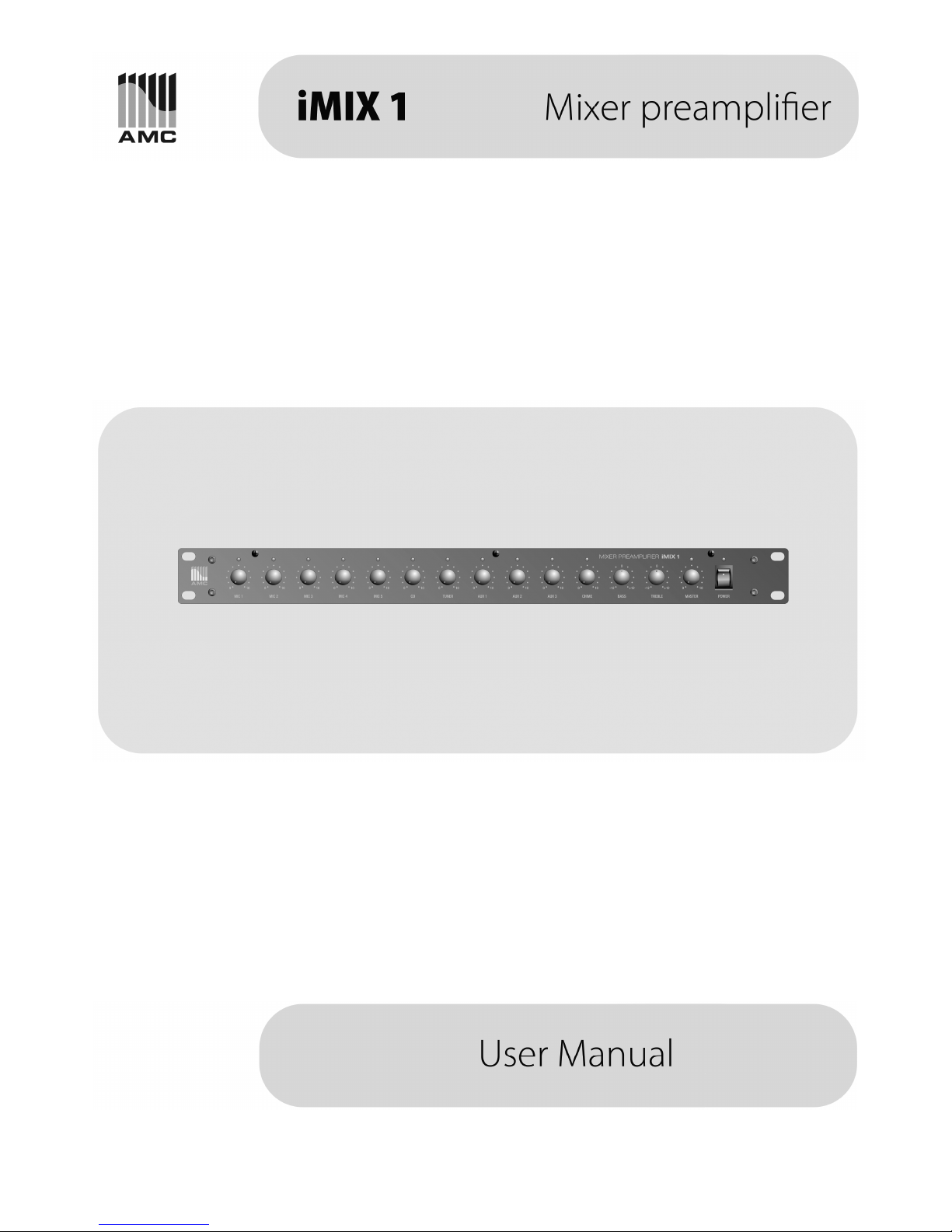

AMC IMIX1 Manuel utilisateur

Important

Do not install this equipment in a

confined space such as a book case or

similar unit.

The apparatus should not be dripped or

splashed and no objects filled with

liquids, such as vases, should not be

placed on the apparatus.

This unit should not be used near water

(e.g. near bathtub, washbowl, kitchen

sink, laundry tub, in a wet basement, or

near a swimming pool, etc.) are should

be taken so than objects do not fall and

liquids are not spilled into enclosure

through openings.

Features

11 input channels: MI x 5, AUX x 3, D, Tuner, and hime.

Up to 3 mute priorities: hime, MI 1, MI 2.

2 power sources: A 230/115V 50/60Hz and D 24V.

2-color LED indicator for each input signal. Green is normal input, red is clipping.

Master volume, Bass, and Treble control for the output.

Record output

1U height

19” rack.

Description

iMIX 1 is a versatile and convenient Pre-mixer Amplifier. It accepts 11 input sources covering 5

MI , 3 AUX, D, Tuner, and hime input.

Signal from MI 1, MI 2, and hime will activate mute function, which will mute the signal

from other channels. The mute priority is hime, MI 1, and MI 2.

It employs high performance circuit, that makes its S/N ratio is better than 65dB and less than

0.1% of THD.

Besides A power source, iMIX 1 has D 24V input power screw connector as backup power

source.

On the front panel, above each volume control, LED lights green to indicate input signal

source; and when the signal is over, it will light red.

iMIX 1 is the ideal and convenient pre-mixer amplifier for multi-input source application.

Front Panel

1. MI 1 Volume ontrol

2. MI 2 Volume ontrol

3. MI 3 Volume ontrol

4. MI 4 Volume ontrol

5. MI 5 Volume ontrol

6. D Volume ontrol

7. TUNER Volume ontrol

8. AUX 1 Volume ontrol

9. AUX 2 Volume ontrol

10. AUX 3 Volume ontrol

11. HIME Volume ontrol

12. BASS ontrol

13. TREBLE ontrol

14. MASTER Volume ontrol

15. Power On / Off switch

16. MI 1 LED Indicator

17. MI 2 LED Indicator

18. MI 3 LED Indicator

19. MI 4 LED Indicator

20. MI 5 LED Indicator

21. D LED Indicator

22. Tuner LED Indicator

23. AUX 1 LED Indicator

24. AUX 2 LED Indicator

25. AUX 3 LED Indicator

26. hime LED Indicator

27. Volume LED Indicator

28. Power On LED Indicator

Rear Panel

1. Mains Power Input Socket

2. Power Fuse (for A )

3. Earth onnection Screw

4. A Voltage selection screw

5. D Power Supply Terminals

6. Line Out (XLR)

7. Line Out

8. RE output

9. HIME input

10. AUX 3 input

11. AUX 2 input

12. AUX 1 input

13. TUNER input

14. D input

15. MI 5 Phantom Power Switch

16. MI 5 input

17. MI 4 Phantom Power Switch

18. MI 4 input

19. MI 3 Phantom Power Switch

20. MI 3 input

21. MI 2 Phantom Power Switch

22. MI 2 input

23. MI 1 Phantom Power Switch

24. MI 1 input

Power Source

The supply transformer has been designed for use A 115V/230V(±10%) 60/50 Hz. Use Voltage

selection screw switch to select appropriate voltage.

DC power cource (24Vdc)

When using external batteries, ground the amplifier via the screw terminal (Electrical stability of the

system will be improved by providing a good earth ground.) When connecting batteries, ensure if

polarity is correct.

Microphone Connection

Mic1~5 inputs are XLR jack.

CD, ux, Tuner, and Chime Connection (Input)

iMIX1 has ability to connect 3 auxiliary inputs, which may be used for connecting signal sources

such as a Radio Tuner, D or assette player. The Aux input sockets are standard stereo R A

connectors. The line level ontrols on the front panel operate on each input source.

RC plug connections

Sleeve - Screen

Pin - Signal

SLEEVE

Line out & record out connections

Outputs can be connected via XLR and R A jacks. hoose right type connector to match your

equipment connector. Record out provides output for additional recording. onnect it to the input

of the recorder.

Power Source A 115V/230V 50/60 Hz, D 24V

Frequency Response 20Hz ~ 20KHz

Total Harmonic Distortion ≦1% @ 1KHZ

Input Sensitivity MI 1 ~5: 1mV @600Ω, Balanced

(with Phantom power switch)

AUX 1 ~3: 150mV @1KΩ,Unbalanced

D: 150mV @1KΩ, Unbalanced

Tuner: 150mV @1KΩ,Unbalanced

hime: 1 V @10KΩ,Unbalanced

Output Sensitivity Line Out: 1V @100Ω, Balanced

Record Out: 1V @100Ω, Unbalanced

Mute Priority hime, MI 1, MI 2.

Tone Control Bass 100HZ +/- 10 db

Treble 10KHZ +/- 10 dB

Power Consumption A 5W @ Rated Power

D 3 W @ Rated Power

Dimension 44(H) x 483(W) x 185(D) mm

Weight 4 kg

Mounting 19” rack

AMC is a registered trademark of AMC Baltic www.amcpro.lt
