Panel Heater (HPB-4E)

Please read this manual carefully before use

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should always be

observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

WARNING: To reduce the risk of fire, electrical shock, or injury to

person:

1. The product is for household use only.

2. Connect the appliance to single-phase AC supply of the voltage specified on

the rating plate.

3. In order to avoid overheating do not cover the heater.

4. Never leave the heater unattended while it is in use. Always turn the product

to the OFF position and unplug it from the electrical outlet when not in use.

5. Extreme caution is necessary when any heater is used by or near children,

and whenever the heater is left operating and unattended.

6. The heater must not be located immediately below an electrical

Socket-outlet.

7. Do not run the power flex under carpeting and do not cover. Arrange cord

away from traffic area and where it will not be tripped over.

8. Do not operate the heater with a damaged flex or plug, or after the heater

malfunctions, has been dropped, or damaged in any manner.

9. If the supply flex is damaged, it must be replaced by the manufacturer, its

service agent or a similarly qualified person in order to avoid a hazard.

10. Avoid the use of an extension cord as this may overheat and cause a risk

of fire.

11. Use the heater in a well-ventilated area. Do not insert or allow objects to

enter any ventilation or exhaust opening. To prevent a possible fire, do not

block air intakes or exhaust openings in any manner. Do not use on soft

surfaces, like a bed, where openings may become blocked. Use the heater on

flat, dry surfaces only.

12. Do not place this heater near flammable materials, surfaces or substances,

as there may be a risk of fire. Keep the above flammable materials, surfaces or

substances at least 1m from the front of the product and keep them away from

the sides and rear.

13. Do not use the heater in any areas where petrol, paint or other flammable

liquids are stored e.g. Garages or workshops as hot, arcing and sparking parts

are inside the heater.

14. Don’t use this heater in the immediate surroundings of a bath, a shower or

any other form of water.

15. Never touch the heater with wet hand. The heater should be installed so

that can not be touched by a person using a bath or shower.

16. This heater is hot when in use. To avoid burns and personal injury, do not

let bare skin touch hot surfaces.

17. Before moving the heater, please unplug it and let it cool down for 15

minutes. If provided, use handles when moving the product.

18. Be sure that no other appliances are in use on the same electrical socket

as your product as an overload can occur.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

SPECIFICATIONS

MODEL NO

NET SIZE

RATED VOLTAGE

RATED

POWER

HPB-4E

870X400X70MM

~230V/50Hz

1800W

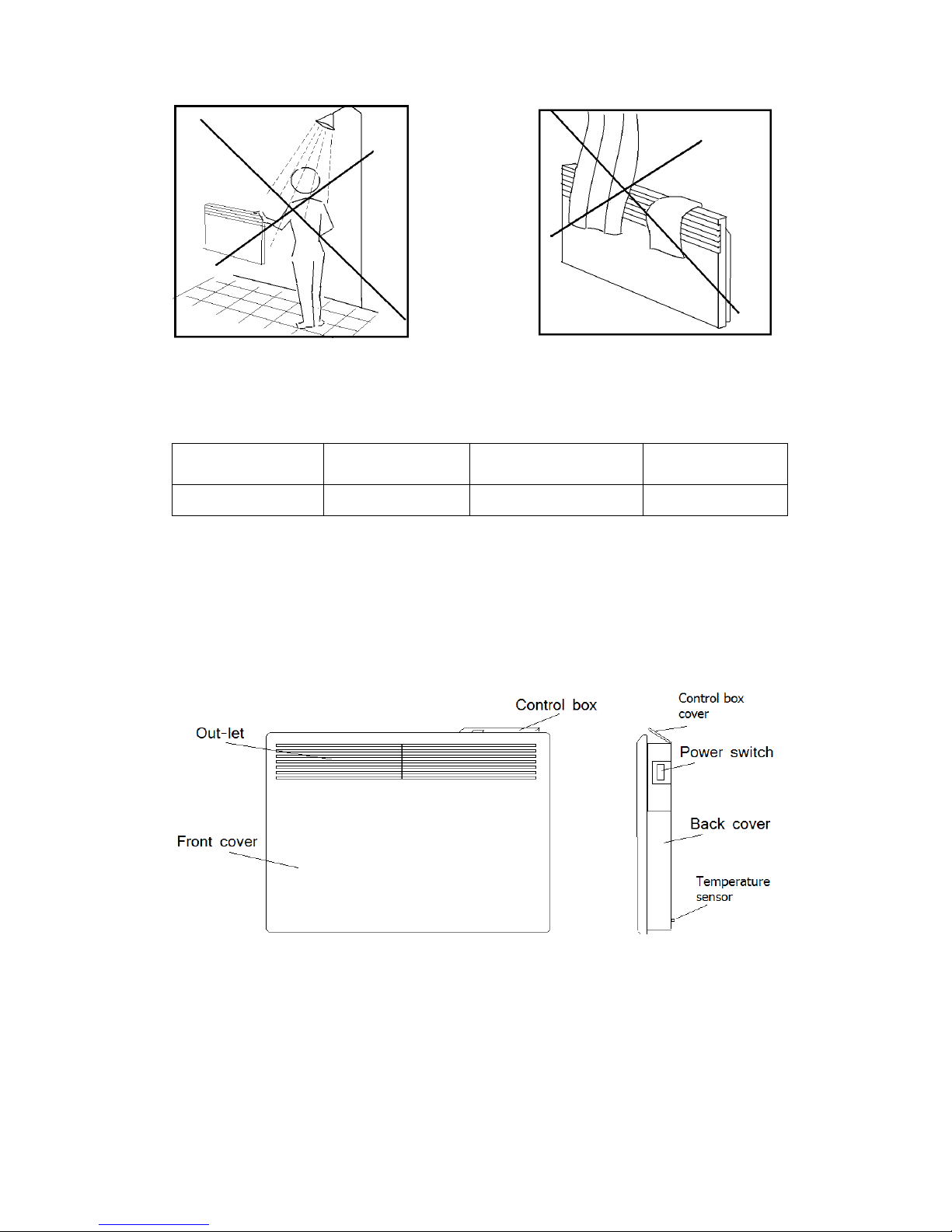

STRUCTURE AND PARTS

CHARACTERISTIC

1. Over heating protection

2. Water proof IPX4

3. For wall-mount use or stand alone option

4. With digital LCD

5. Room temperature setting

6. Room temperature sensor

7. Digital clock, digital week calendar

8. Multi-running mode: daily program mode, weekly program mode, free use

mode

9. anti-frost function

INSTALLATION

NOTE：USED AS WALL-MOUNTED ONLY

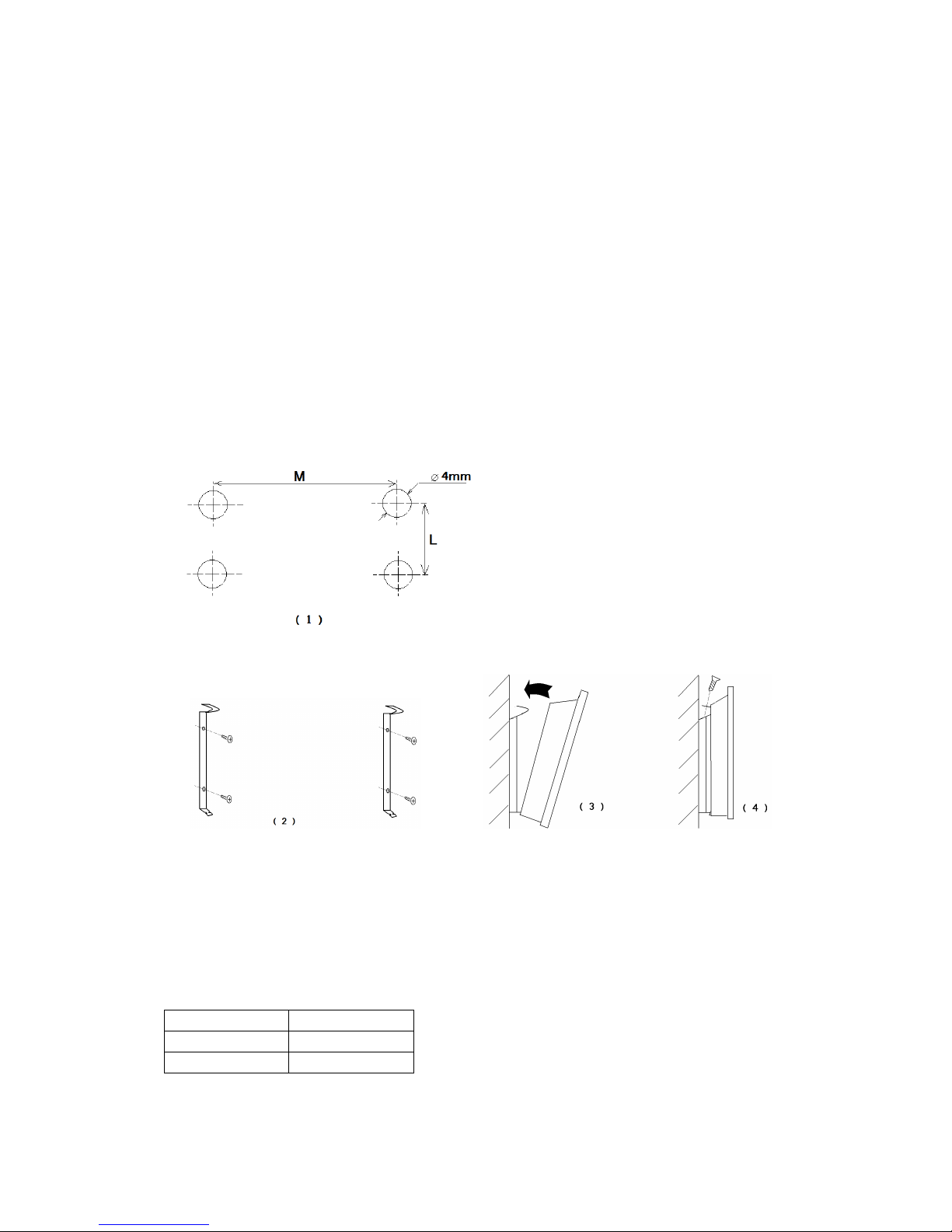

a. Drill holes on the wall according to the picture (1).

Warning: Please insure that the heater is mounted 30mm above the

floor

b. Fasten the hanging rack on the wall as picture (2).

c. Hook the bottom first and then push the up hook in as picture (3).

d. Lock the up hook with screw as picture (4).

The distance of hanging hole is as follows:

Item

HPB-4E

M(mm)

620

L(mm)

207

INSTRUCTIONS FOR USE

Warning before using the heater make sure that it is mounted tightly on

the wall. Damage may occur if it is mounted on an incline or decline.

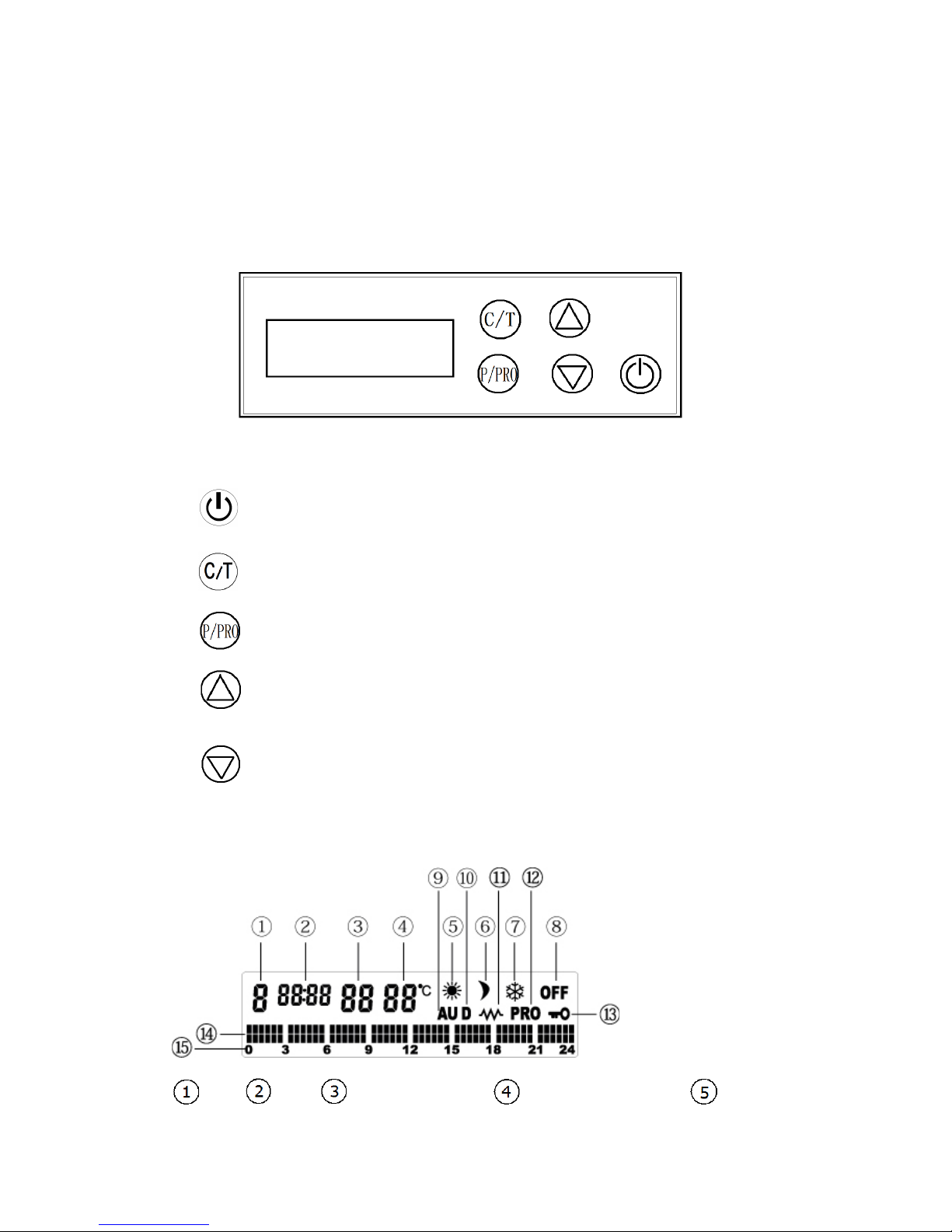

1. Control panel and LCD screen

Control panel:

There are total 5 buttons on the control box as follows:

------Power stand by button

------Date and time settings;

Room temperature setting

------Select running mode;

Set program

------Increasing of time, temperature;

Selecting working mode

------Decreasing of time, temperature;

Selecting working mode

Screen:

Date Time Program name Target temperature Comfort

Economic Anti-frost OFF weekly program running mode

daily program running mode heating program setting lock

program contents solid time mark

2.Rationale:

(1)There are 3 working modes: comfort ,economic and anti-frost （5°C）.

(2) There are in total 11 programs:

a. 9 daily programs(P1-P9)

b. weekly program(AU)

c. free program(Fr)

(3) there are 3 running modes for you to select:

a. daily program running mode(D)

b. weekly program running mode(AU)

c. free program running mode(Fr)

(4) every day(24hours) is divided into 48 segments evenly. Every segment will

be filled in with one working mode to combine a daily program or free program.

(All the settings for daily program will be kept in memory by the unit. All the

settings for free program will not be kept in memory and will finally return back

to anti-frost mode after running). Select one daily program (from daily

programs P1-P9) for every day in a week to combine a weekly program.

3. Turn on at the plug and switch on the unit. Press to start the

display.

4. Set time

Press , the date will start to flash. Press or to select date (1-Monday,

2-Tuesday, 3-Wednesday, 4-Thursday, 5-Friday, 6-Saturday, 7-Sunday).

Press again the hour starts to flash. Press to select hours.

Press again, the minutes start to flash. Press to select minute.

Finally confirm it by .

5. Set target temperature

Press & hold (for approximately 3 seconds) the original comfort target

temperature and comfort mark will start to flash (which means you are

setting the comfort target temperature). Press to select a new comfort

target temperature. Press again the original economic target temperature

and economic mark will start to flash (which means you are setting the

economic target temperature). Press to select the new economic target

temperature. Confirm it by pressing .

Note: range of comfort target temperature is 10°C - 50°C. Economic target

temperature minimum: 5°C maximum: 3°C less than the comfort target

temperature. Anti-frost temperature is 5°C which is not adjustable.

6. Select running mode

Press , then press or to select running mode as follows (showing on

screen):

a. P1-P9 plus D:daily program running mode

(Every day will repeat this program as running mode.)

b. Fr : free running mode

(You may set a program for today use. Then it will return to anti-frost

mode automatically after using.)

c. AU: weekly program running mode

(Every day will run the relevant daily program as selected, while setting

and repeating weekly).

Then confirm it with .

7. Set daily program and weekly program

Confirm the current running mode is daily or weekly program. (if not, please

adjust it by the method of running mode selection).

Press & Hold (for approximately 3 seconds)，“Pro” will flash which

means you are ready to set the program. (during this period, unit will stop

heating)

(1) Set daily program

Press to select daily program(P1-P9). At this moment, time will return

to 00:00 and first segment of program contents start to flash (this means you

will adjust this daily program from beginning of a day. Every segment means

half hour). Press to select working mode（and mean comfort；and

mean economic；and mean anti-frost）， then press to copy the

working mode one segment by one segment. Then press to confirm it

and it will get into next daily program setting automatically.

(2)set weekly program：

Press to get into the weekly program setting. “AU”is shown and

program name start to flash. Press to select daily program(P1-P9)

for this date. Press to confirm it and meanwhile get into next date

automatically.

Press & hold (for approximately 3 seconds) to finish the program

setting and unit return to normal running.

8. Set free program

Confirm the current running mode is free program. ( if not, please adjust it

by the method of running mode selection).

Press & Hold (for approximately 3 seconds)，“Pro” will flash which

means you are ready to set the program (during this period, unit will stop

heating)

Press to select working mode（and mean comfort；and mean

economic；and meananti-frost），then press to copy the working mode

one segment by one segment. Press & Hold (for approximately 3

seconds) to finish the program setting and unit will return to normal running.

Note: the contents of free program will not be kept in the memory and will

return to anti-frost working mode after running.

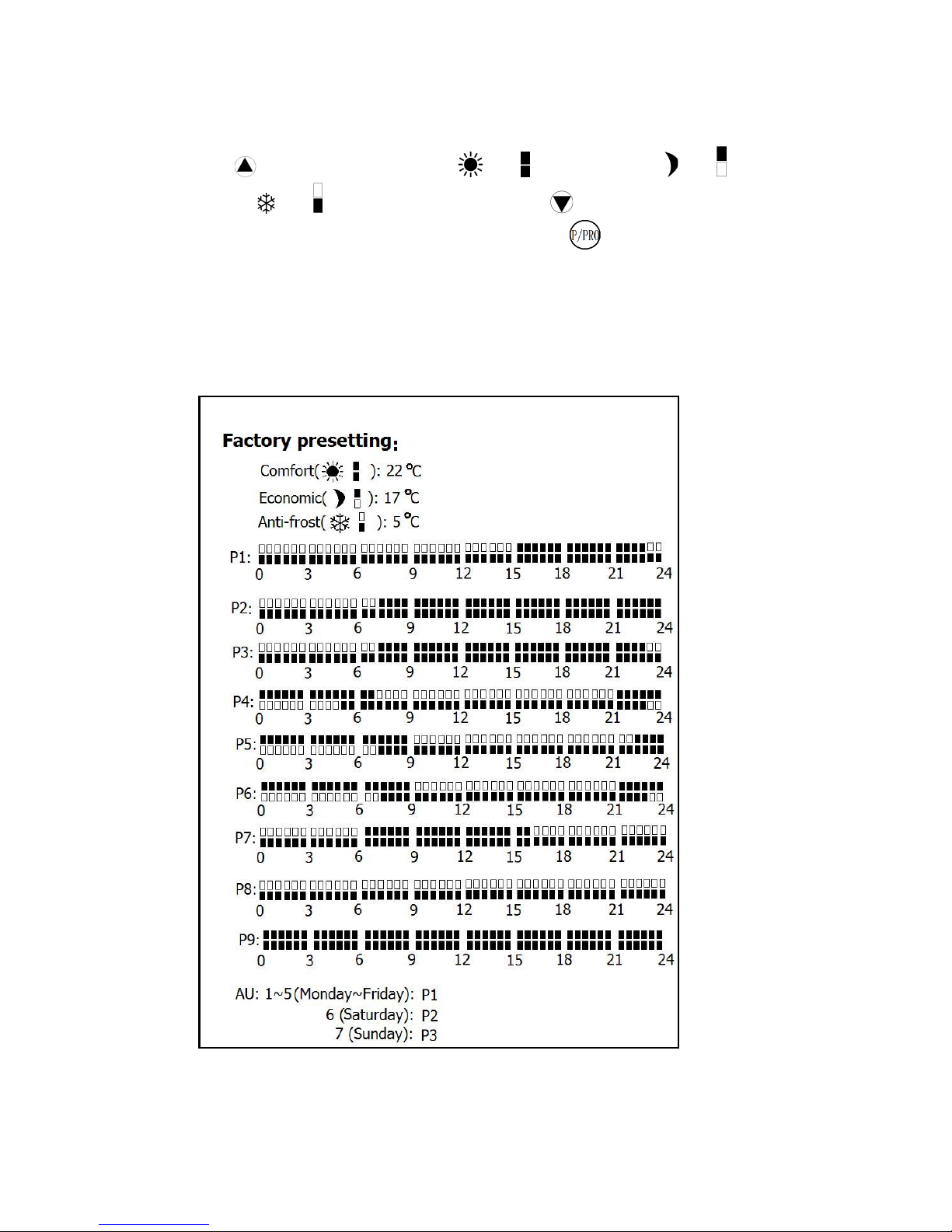

9. Factory pre-setting: (See below)

The unit is with a factory pre-setting as follows:

Please see the explanation below these are the times the heater operates in

comfort mode:

•P1 3.00pm –11.00pm

•P2 7.00am – 12.00(Midnight)

•P3 7.00am –11.00pm

•P4 5.00am – 7.00am then 9.00pm – 11.00pm

•P5 7.00am – 9.00am then 10.00pm – Midnight

•P6 7.00am – 9.00am then 9.00pm – 11.00pm

•P7 6.00am –4.00pm

•P8 Frost Mode Only

•P9 Constant 24 hours

N.B When choosing a program For Example P4. The unit will heat on

comfort temperature 5.00am – 7.00am and then again at 9.00pm –

11.00pm. From 11.00pm – 5.00am it will be on economic setting.

From 7.00am – 9.00pm it will be on Anti Frost setting.

All these pre-settings can be altered with the method

mentioned in chapter 7 and will be kept in memory as

new settings.

If you want to return to a factory pre-setting, please operate as follows:

a. switch off the unit with power switch

b. Press the button continuously for about 7 seconds, the unit will

call back the factory pre-setting. Then you can release the

button .

10. Other notes：

(1) The screen will become dull after 1 minute when no buttons are pressed.

It will extinguish after 1 minute if you didn’t press any button. It will light

up if you press any button.

(2) Unit has a button lock function. The buttons will be locked ( ) after 1

minute if none of the buttons are pressed.

To unlock: press and at same time for 3 seconds.

(3) Time will reset to 00:00 if you unplugged unit or cut off the power.

(4) This heater includes an overheat protection system that shuts off the

heater when parts of the heater are getting excessively hot.

MAINTENANCE

1. Always remove the plug from the socket-outlet and allow the heater to cool

down before clean it.

2. Wipe the exterior surface of the heater occasionally with a soft damp cloth

(not dripping wet) and dry the exterior surface before operating the heater.

WARNING:

Do not immerse the heater in water.

Do not use any cleaning chemicals such as detergents and abrasives.

Do not allow the interior to get wet as this could create a hazard.

3. Light dirt accumulation may be removed from the heater with a soft dry cloth.

4. To store the heater, put the heater back into its original package and store it

in a clean dry place.

5. In case of malfunction or doubt, do not try to repair the heater yourself, it

may result in a fire hazard or electric shock.

CONFORMITY WITH DIRECTIVES

This product is CE marked to denote conformity with Directives 73/23/EEC

(Low Voltage) and 89/336/EEC (Electromagnetic Compatibility), as amended.

Waste electrical products should not be disposed of with household

waste. Please recycle where facilities exist. Check with your Local

Authority or retailer for recycling advice.

Table des matières

Autres manuels Ambient Air Chauffage

Ambient Air

Ambient Air NDK15-12K Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
