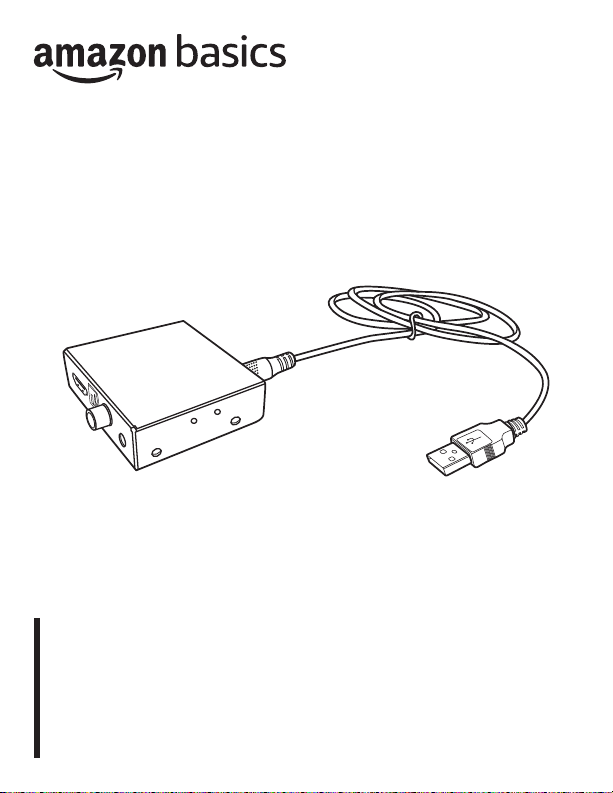

HDMI To HDMI + Audio (SPDIF + RCA Stereo) Audio Extractor Converter
Convertisseur/Extracteur Audio HDMI vers HDMI + Audio (SPDIF + Stéréo RCA)
HDMI zu HDMI + Audio (SPDIF + RCA-Stereo) Audio-Extraktor-Konverter
Convertitore da HDMI a HDMI + Audio (SPDIF + RCA Stereo) Estrattore Audio
Convertidor Extractor de Audio HDMI a HDMI + Audio (SPDIF + RCA Estéreo)
HDMI naar HDMI + Audio (SPDIF + RCA Stereo) Audio Extractor Converter
HDMI から HDMI + オーディオ (SPDIF + RCA ステレオ）オーディオエクストラクターコンバーター
English ............................................. 3
Français ......................................... 12
Deutsch.......................................... 20
Italiano........................................... 29
Español.......................................... 37
Nederlands..................................... 45
日本語 ............................................ 53
3
Welcome Guide •English
Contents:
Before getting started, ensure the package contains the
following components:

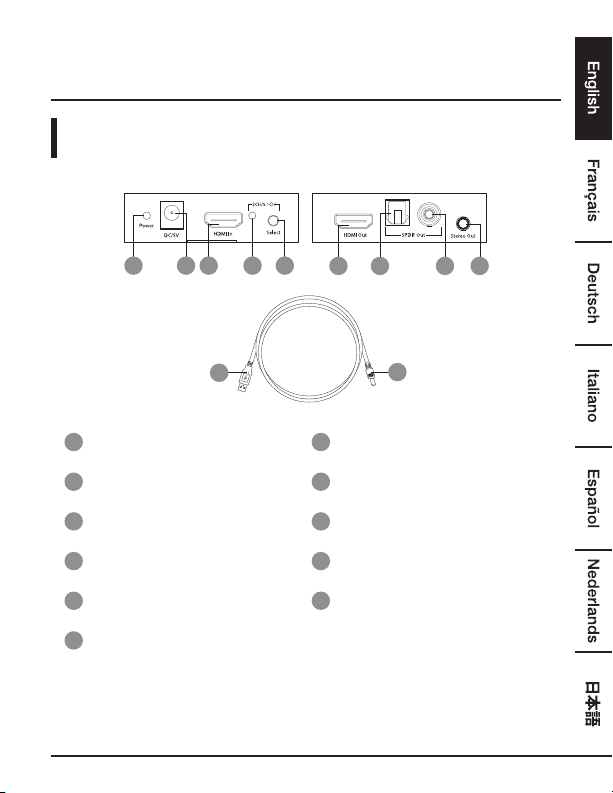

A B C D E F IG H
K
J
APower indicator GToslink socket
BDC/5V socket HCoaxial socket
CHDMI In socket IStereo Out socket
DChannel indicator JUSB plug
ESelect button KDC plug
FHDMI Out socket
4
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for
future use. If this product is passed to a third party,
then these instructions must be included.
When using electrical appliances, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/
or injury to persons including the following:
• Do not touch the connectors with wet hands.
• Make sure that the cable is neither kinked nor pinched.
Symbol Explanation
This symbol stands for “Conformité Européenne”,
which declares “Conformity with EU directives,
regulations and applicable standards”. With the
CE-marking, the manufacturer confirms that
this product complies with applicable European
directives and regulations.
This symbol stands for “United Kingdom Conformity
Assessed”. With the UKCA-marking, the
manufacturer confirms that this product complies
with applicable regulations and standards within
Great Britain.
Intended Use
• This product is intended for extracting the audio signal from
an HDMI signal.
• This product is intended to be used in dry indoor areas only.
• No liability will be accepted for damages resulting from
improper use or non-compliance with these instructions.
5
Before First Use
• Check for transport damages.
DANGER Risk of suffocation! Keep any packaging
materials away from children – these materials
are a potential source of danger, e.g.
suffocation.
Connection
NOTICE Switch off all devices before connecting the
cables.
DC/5V socket
Connect the DC plug to this socket.
Connect the USB plug to a PC or a power
adapter with USB output.
HDMI In Connect this socket to the HDMI source
device, e.g. Blu-ray player.
HDMI Out Connect this socket to an HDMI monitor or
projector.
SPDIF
Out
Toslink Connect these sockets to the input of an
amplifier or stereo system.
Coaxial
Stereo Out Connect this socket to the input of an
amplifier or stereo system.
NOTICE The Power indicator lights up red, when the
product is supplied with power.
The Power indicator lights up purple, when the
product is receiving/transmitting signals.
All 3 audio output ports can work
simultaneously.
6
Channel setting
Press the Select button (E) to toggle between following settings:
• 2.0 CH - the channel indicator (D) is off
• 5.1 CH - the channel indicator (D) lights up red
NOTICE The default setting is 2.0 CH.
5.1 CH audio output is only supported by
the Toslink (G) and coaxial (H) sockets. The
audio source needs to support 5.1 CH output,
otherwise the actual output is still 2.0 CH.
If you select 5.1 CH, there will be no audio
output on the Stereo Out socket (I).
Cleaning and Maintenance
WARNING Risk of electric shock! To prevent electric
shock, unplug before cleaning.
WARNING Risk of electric shock! During cleaning do not
immerse the electrical parts of the product in
water or other liquids. Never hold the product
under running water.
• To clean, wipe with a soft, dry cloth.
• Never use corrosive detergents, wire brushes, abrasive
scourers, metal or sharp utensils to clean the product.
7
FCC – Supplier’s Declaration of
Conformity
Unique Identifier B07KRWYN4R
HDMI Audio Extractor
Responsible Party Amazon.com Services, Inc
U.S. Contact
Information
410 Terry Ave N.
Seattle, WA
98109, United States
Telephone Number (206) 266-1000
FCC Compliance Statement
1. This device complies with Part 15 of the FCC rules. Operation
is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
8
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canada IC Notice
• This Class B digital apparatus complies with Canadian CAN
ICES-3(B) / NMB-3(B) standard.
Simplified EU Declaration of Conformity
• Hereby, Amazon EU Sarl declares that the radio equipment
type B07KRWYN4R is in compliance with Directive 2014/53/
EU.
• The full text of the EU declaration of conformity is available at
the following internet address: https://www.amazon.co.uk/
amazon_private_brand_EU_compliance
9
Disposal (for Europe only)
The Waste Electrical and Electronic Equipment (WEEE)
laws aim to minimise the impact of electrical and
electronic goods on the environment and human health,
by increasing re-use and recycling and by reducing the
amount of WEEE going to landfill. The symbol on this
product or its packaging signifies that this product must
be disposed separately from ordinary household wastes
at its end of life. Be aware that this is your responsibility
to dispose of electronic equipment at recycling centres
in order to conserve natural resources. Each country
should have its collection centres for electrical and
electronic equipment recycling. For information about
your recycling drop off area, please contact your related
electrical and electronic equipment waste management
authority, your local city office, or your household waste
disposal service.
Specifications
Voltage/current: 5V, 320 mA
Video input/output: 2 x HDMI socket
Audio outputs:
1 x Toslink
1 x Coaxial
1 x 3.5 mm stereo
Supported bandwidth: 300 MHz/3 Gbps per channel
10
Supported video resolution:
8-bit 4K (30 Hz)
12-bit 1080p (60 Hz)
12-bit 720p/1080i (60 Hz)
Supported audio:
2.0 Channel
5.1 Channel Dolby Digital
DTS Digital
Operating conditions: 0 to +45 °C, 10 – 85 % RH
Storage conditions: -10 to +70 °C, 5 – 90 % RH
Dimensions (W x H x D): approx. 2.4 x 0.79 x 2.79in
(6.1 x 2 x 7.1cm)
Net weight: approx. 0.35 lbs (159 g)
