Amano AGP-2000 Series Manuel utilisateur

AGP-2000 Series

Ticket Dispenser

INSTALLATION / OPERATIONS MANUAL

Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements

which may not be reflected in this document. Portions of this document may have been

updated to include the latest hardware or firmware version, if applicable.

We recommend that this document be read in its entirety before any attempt is made to oper-

ate the equipment.

PROPRIETARY NOTICE

This document contains proprietary information and such information may not be reproduced

in whole or in part without written permission from Amano Cincinnati, Inc., 140 Harrison

Avenue, Roseland, New Jersey, 07068

AGP-2000 Installation and Operations / TABLE OF CONTENTS i

TABLE OF CONTENTS

Chapter 1: INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Chapter 2: SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Cabinet Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Upper Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Lower Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Chapter 3: INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Prepare the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Unpack the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Remove the Skid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Mounting the AGP-2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Main Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Connection Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Communications Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Termination Resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Field Connections (24 VDC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

I / O Rack #1 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

I / O Rack #2 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Typical Input / Output Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

AGP-2000 Connections to an AGP-1700 Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

AGP-2000 Connections to an AGP-1700 Gate and MAG-120 Reader . . . . . . . . . . . . . . . . 3-11

AGP-2010 Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Loading the Ticket Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Intercom Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Complete the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Chapter 4: SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Door Open Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Ribbon Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Ticket Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Ticket Restocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Issuing Lost Tickets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Emptying the Ticket Vault Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Servicing the PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

System Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Program Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Clearing the Ram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9

ii AGP-2000 Installation and Operations / TABLE OF CONTENTS

Chapter 1: INTRODUCTION

The AGP-2000 Ticket Dispenser is designed for multiple uses at unattended

entrances of a parking facility. In its traditional application, the AGP-2000 is installed

at an entrance to automatically dispense a parking ticket with the date, time, ticket

number, machine number and rate code printed and magnetically encoded on the

ticket. The issuance of a ticket can be done either automatically, via an arming loop;

semi-automatically through the use of an arming loop and the push button; or

manually through the push button. Once the ticket is retrieved from the ticket

dispenser by the parking patron, the AGP-2000 opens the gate, allowing the patron to

enter the facility.

The AGP-2000 can also be configured to accept magnetically encoded contract or

monthly passcards to enter the lot. The patron inserts the passcard into the ticket

throat to be read. The AGP-2000 reads the passcard and returns it to the patron.

The AGP-2000 features standard communications ability that can be operated in an

on-line mode of operation or a non-communicating stand alone operation. The

machine features a backlit LCD display and user recordable voice prompts to provide

patron instructions and programming information.

AGP-2000 Installation and Operations / INTRODUCTION 1 - 1

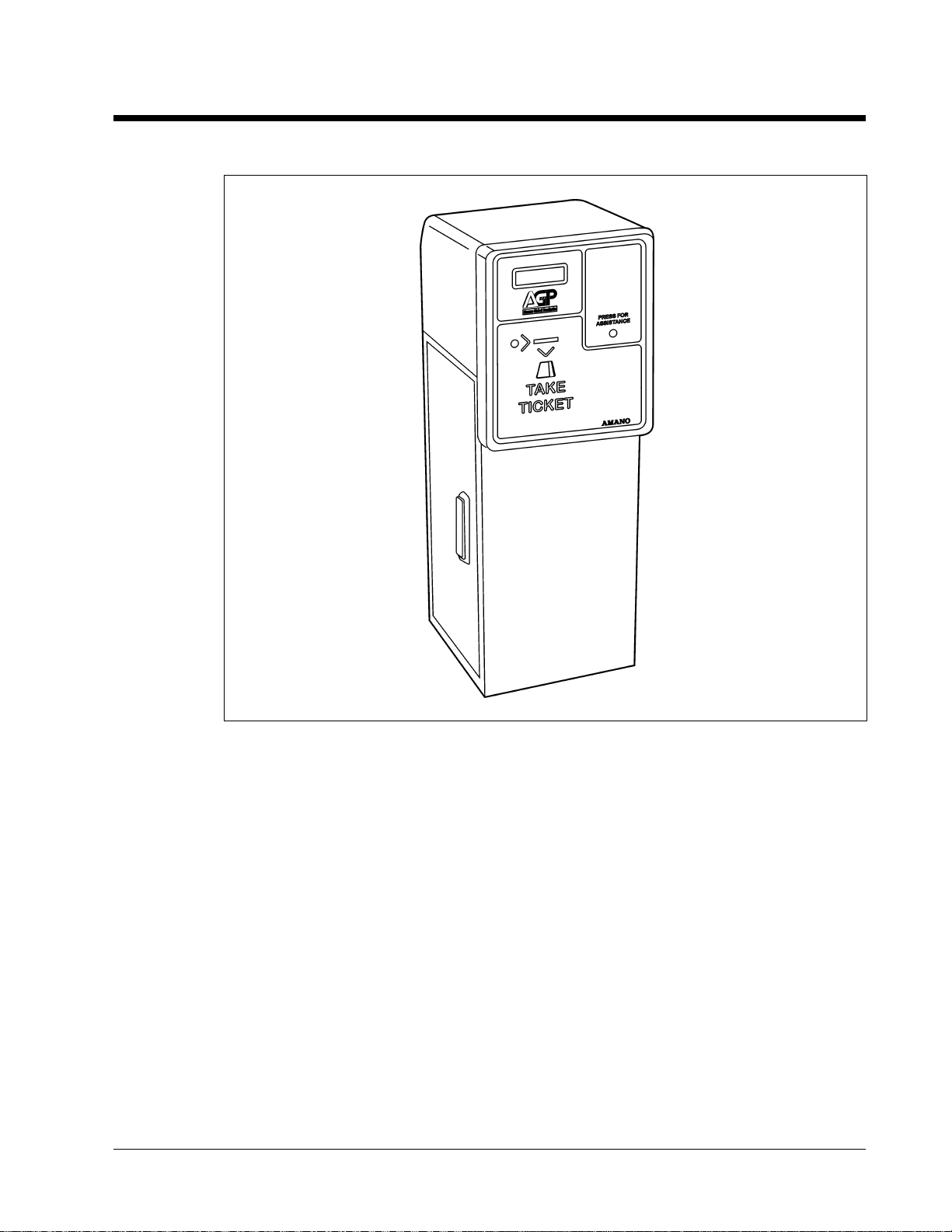

Figure 1-1, The AGP-2000 Ticket Dispenser

1 - 2 AGP-2000 Installation and Operations / INTRODUCTION

Chapter 2: SPECIFICATIONS

Pedestal

Size: 49 1/2” (126 cm) high x 17 3/4” (45 cm) wide x 21” (53 cm) deep

Throat: 38 3/4” (98cm) high

Weight: 135 lbs. (61 kg)

Service: Polyethylene cover over top mechanism. Door panel on left side of

pedestal. Weather gaskets at all access points.

Housing: Heavy duty 12 gauge steel

Finish: Yellow (RAL#1028) or White Pedestal Base standard. Custom colors

available. Grey top cover.

Electrical

Power Source: Input Voltage Service Amperage Model Number

120VAC, 60 Hz 10 AMP AGP-2010

220VAC, 50/60Hz 5 AMP AGP-2020

Fuses: Main Power: 120VAC, 60 Hz AGC - 5 Amp

220VAC, 50/60Hz AGC - 2.5 Amp

RWPV Top: GMCV - 5Amp 125 Volt Slo Blow

RWPV Bottom: GDC - 1 Amp 250 Volt

Warning: To reduce the risk of fire, replace with same type and rating of fuse:

Environment:

-20°F ~ 120°F (-29°C ~ 49°C)

10% ~ 95% relative humidity (non-condensing)

Automatic thermostat-controlled heater included.

AGP-2000 Installation and Operations / SPECIFICATIONS 2 - 1

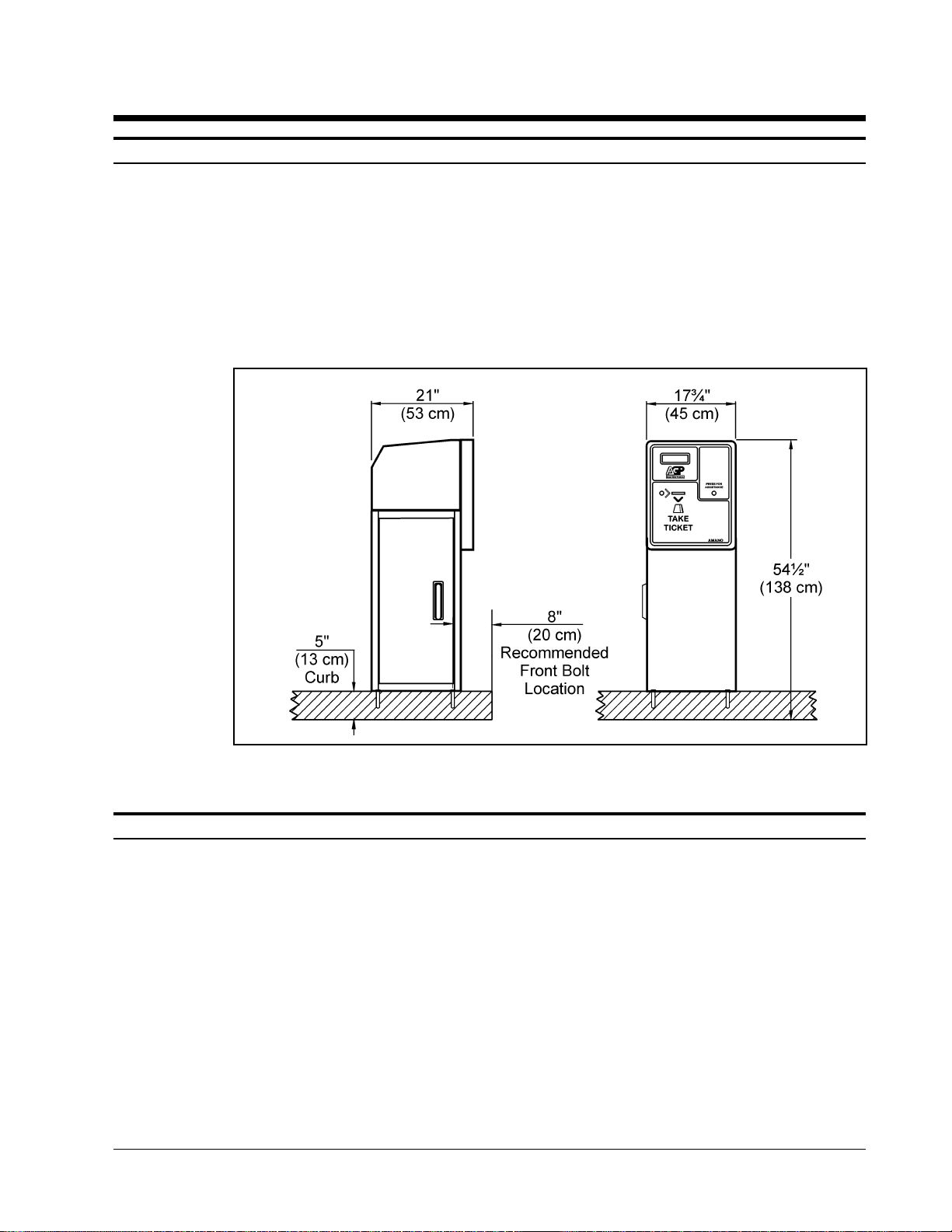

Figure 2-1, Front and Side Dimensions

Standard Features

Tickets: 2 1/8” (54 mm) wide x 3 3/8” (85 mm) long x .007” (.188 mm) thick.

5000 tickets per carton

Refer to Amano’s Standard 3” Ticket Specifications (ATD-106900)

Printer: Dual Automatic ticket feed

9 x 7 dot matrix printer

Cartridge ribbon

Amano’s exclusive RWPV™

(read/write/print/vault) mechanism

Self sharpening cutter blade

Time: Real time clock synchronization

Quartz clock accurate to ± 3 seconds per week @ 68°~86°F (20°~30°C)

Built-in perpetual calender

Automatic Daylight Saving Time adjustment

Programming: On-line RS485 via local facility computer

Local via hand held wireless remote

Ticket Issue: Manual: push button

Semi-automatic: vehicle presence and push button

Fully automatic: vehicle presence alone

Entry ticket and test ticket issuance

Automatic backout ticket voiding

Display: Graphic LCD with backlight

Optional alternate language and graphics

Buttons: Ticket Issue

Intercom

2 - 2 AGP-2000 Installation and Operations / SPECIFICATIONS

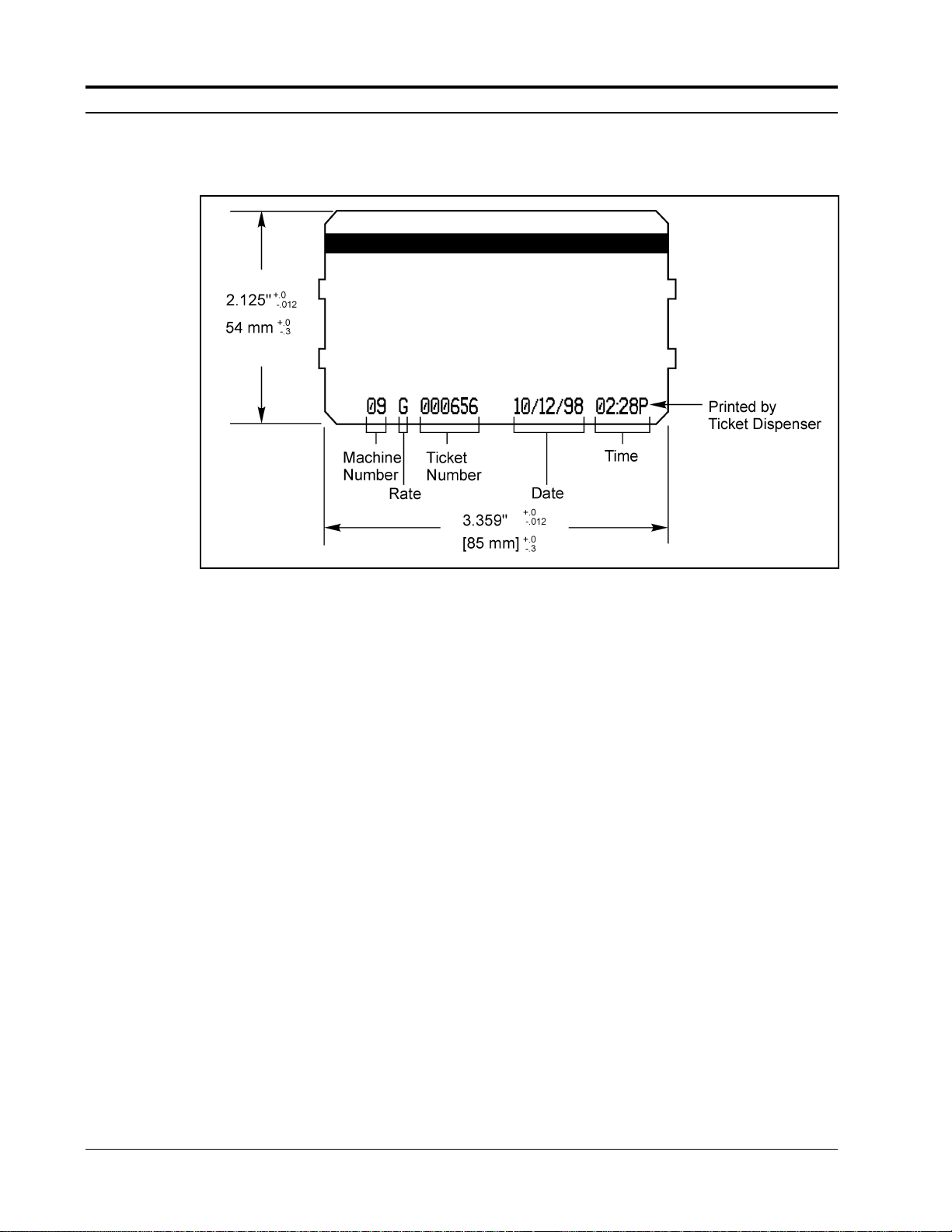

Figure 2-2, Example of a Standard Printed Ticket
