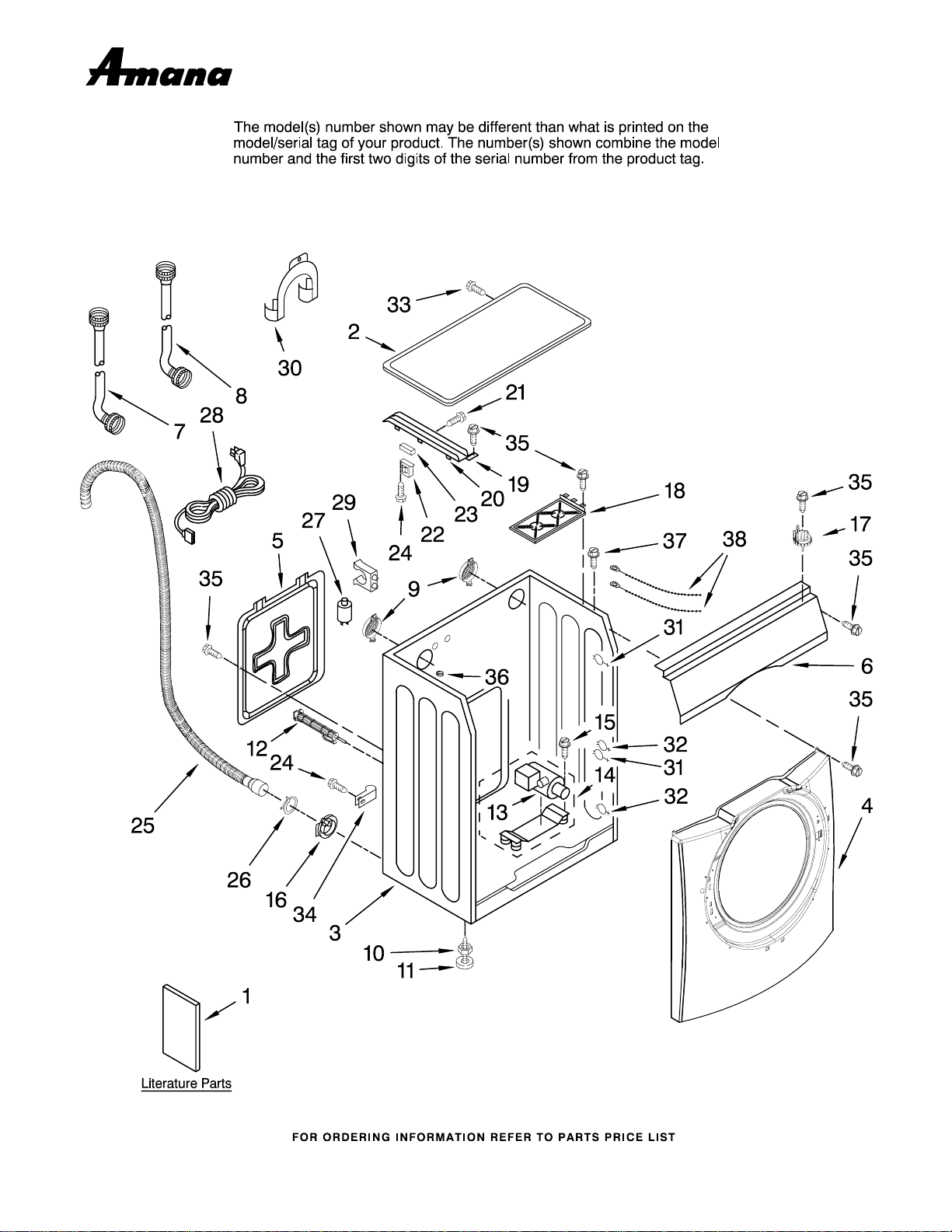

TOP AND CABINET PARTS
For Model: NFW7200TW10
(White)
4−11 Printed in U.S.A. (drd)(bay) Part No. W10173400 Rev. A
AUTOMATIC
WASHER
1
TOP AND CABINET PARTS
For Model: NFW7200TW10
(White)
4−11 Printed in U.S.A. (drd)(bay) Part No. W10173400 Rev. A
AUTOMATIC
WASHER
1
TOP AND CABINET PARTS
2W10173400
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Model: NFW7200TW10
(White)
1 Literature Parts
W10161022
Use & Care Guide
W10162408
Tech Sheet
W10161756
Installation
Instructions
W10174717
Energy Guide
2 34001332 Top
3 34001442 Cabinet
4 34001427 Panel, Front
5 34001338 Rear Panel
6 34001441 Frame, Upper Front
7 34001089 Hose, Water Inlet
(Hot)
8 34001094 Hose, Water Inlet
(Cold)
9 34001400 Cap, Ventilation
Assembly
10 34001389 Nut, Lock (4)
11 34001341 Foot, Leveling (4)
12 34001337 Bolt, Shipping (4)
13 34001340 Pump, Drain
14
W10175948
Pump, Drain−
Complete Assembly
15 34001388 Bolt
16 34001200 Guide, Drain Hose
17 34001324 Switch,
Pressure Sensor
18 34001443 Absorber Assembly
19 34001326 Channel, Harness
20 34001325 Bracket, Harness
Channel
21 34001232 Screw
22 34001333 Trans−Reactor
23 34001334 Bracket, Heater
24 34001231 Screw
25 34001095 Hose, Drain
26 34001161 Clamp, Hose
27 34001330 Filter, EMI
28 34001204 Cord, Power
29 34001331 Clip, Outer
Hose Holder
30 34001336 U−Bend,
Drain Hose
31 35001004 Clip, Harness
32 34001329 Clip, Harness
33 34001328 Screw (2)
34 34001299 Clamp, Drain Hose
Retainer
35 34001252 Screw
36 34001097 Guide, Spring−
Washer Only
37 34001317 Screw, Special
38 34001229 Tie, Wire

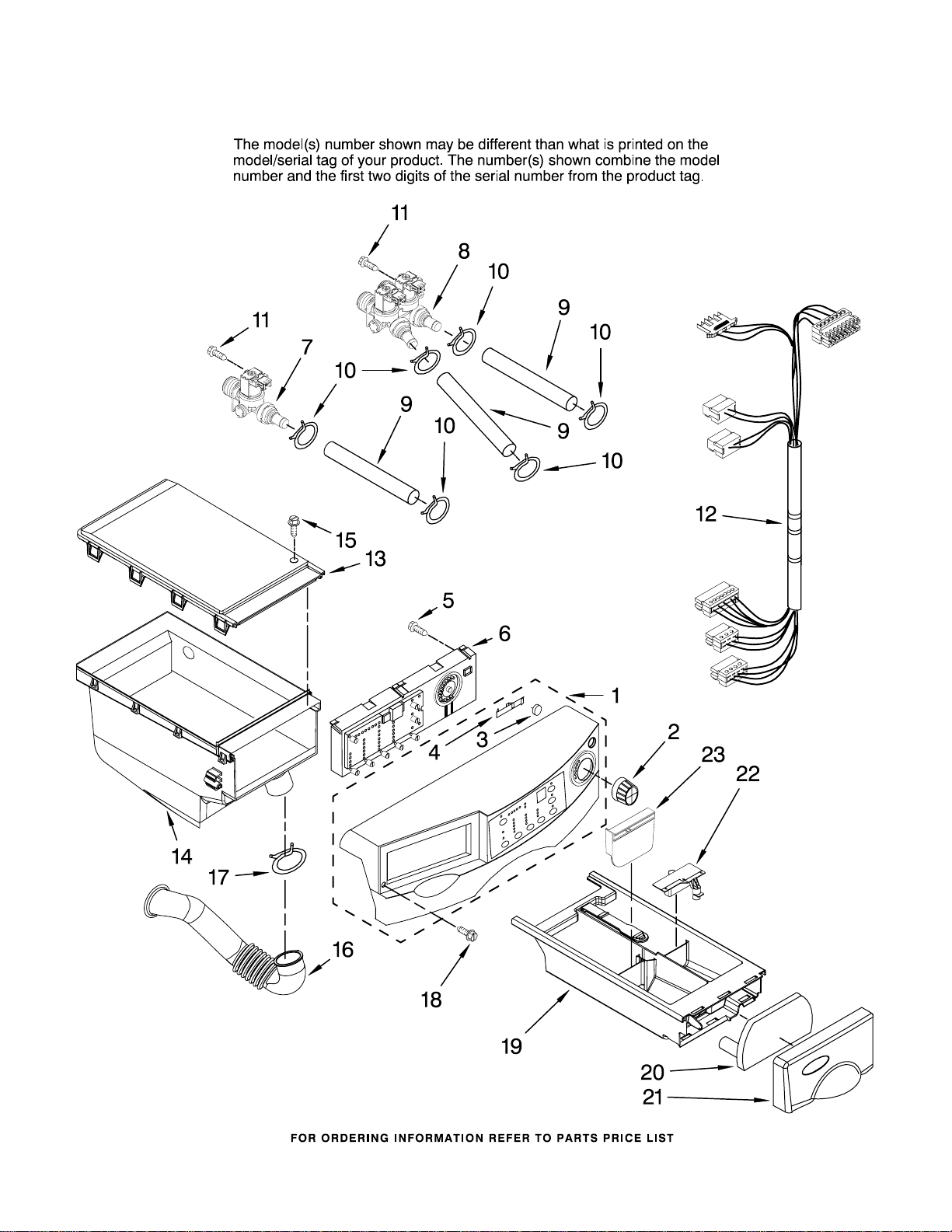

CONSOLE AND DISPENSER PARTS
3
W10173400
For Model: NFW7200TW10
(White)
4W10173400
Illus. Part
No. No. DESCRIPTION
CONSOLE AND DISPENSER PARTS
For Model: NFW7200TW10
(White)
1
W10175951
Panel, Console
2
W10175949
Knob, Control
3
W10175952
Button, Power
4 34001419 Lever, Power
5 34001231 Screw (5)
6 34001499 User Interface
7 34001131 Valve, Inlet
(Hot Water)
8 34001151 Valve, Inlet
(Cold Water)
9 34001109 Hose, Valve
To Dispenser
10 34001208 Clamp, Hose
11 34001250 Screw (4)
12 34001444 Harness, Wiring
13 34001423 Plate,
Distribution
14 34001245 Dispenser Body
15 34001232 Screw
16 34001434 Hose, Dispenser
To Tub
17 34001305 Clamp, Hose
18
6002−001006
Screw
19 34001282 Drawer, Detergent
20 34001422 Bracket, Handle
21
W10175953
Handle, Drawer
22 34001401 Cap, Rinse
23 34001239 Separator
Following Parts Not Illustrated
34001484
Sensor, PCB (MEMS)
34001485
Harness, MEMS To
User Interface

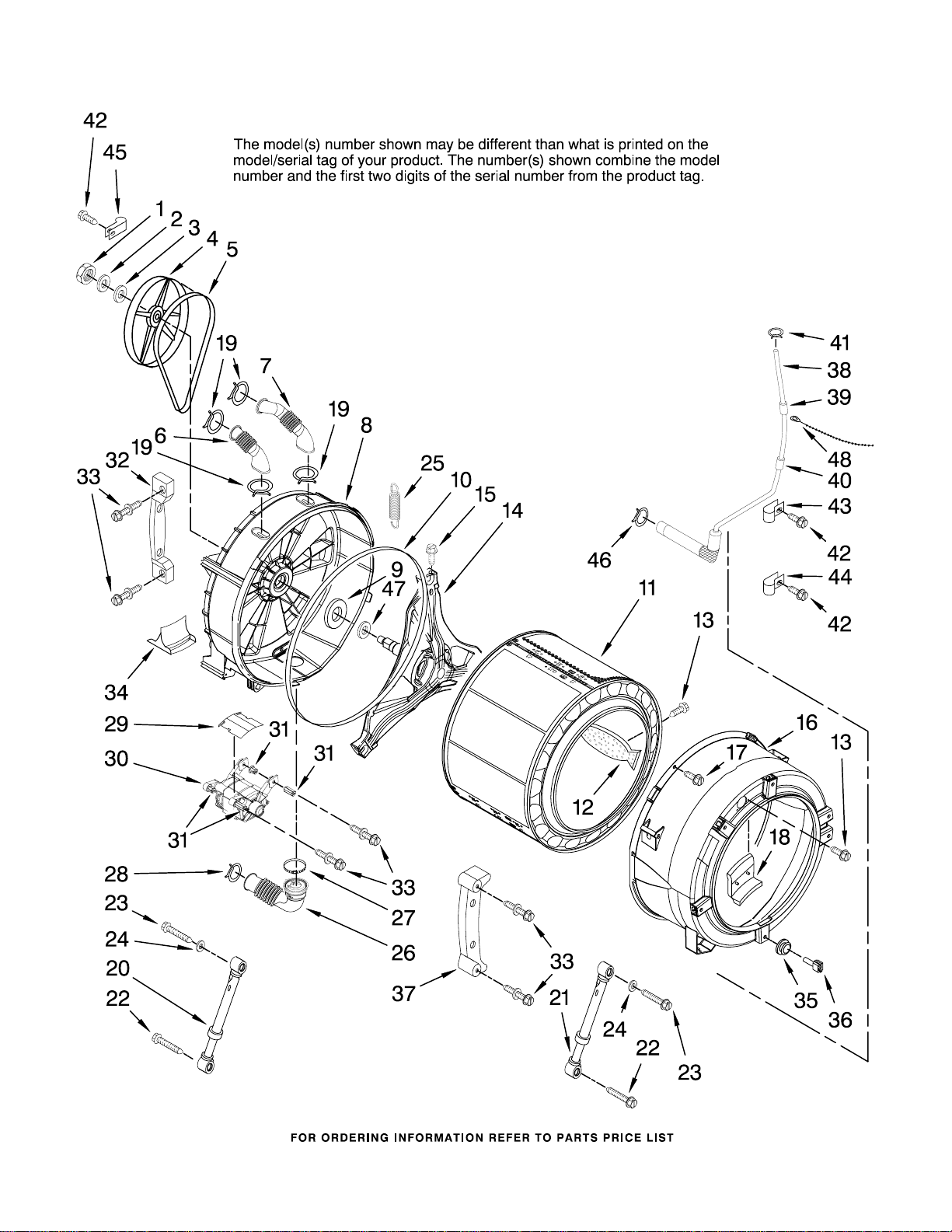

TUB AND BASKET PARTS
5
W10173400
For Model: NFW7200TW10
(White)
TUB AND BASKET PARTS
6W10173400
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Model: NFW7200TW10
(White)
1 34001271 Nut, Pulley
2 34001273 Washer, Spring
3 34001406 Washer, Flat
4 34001412 Pulley
5 34001411 Belt
6 34001295 Hose Exhaust
7 34001293 Hose, Exhaust
8 34001439 Tub, Rear
(Includes Items
9 & 10)
9 34001408 Seal, Oil
10 34001296 Gasket, Tub
11 34001430 Basket
12 34001431 Baffle, Tub (3)
13 34001251 Screw, Tapping
14 34001407 Crosspiece
15 34001277 Screw
16 34001435 Tub, Front
17 34001267 Screw (10)
18 34001300 Guide, Water
19 34001297 Clamp, Hose
20 34001292 Shock Absorber
(Rear) (2)
21 34001303 Shock Absorber
(Front) (2)
22 34001147 Bolt (4)
23 34001148 Bolt (4)
24 34001272 Washer, Flat (4)
25 34001274 Spring,
Suspension (2)
26 34001294 Hose,
Tub To Pump
27 34001289 Clamp, Hose
28 34001161 Clamp, Hose
29 34001415 Cover, Motor
30 34001437 Motor, Drive
31 34001157 Bushing, Motor
32 34001413 Counterweight,
Rear
33 34001158 Bolt Assembly
34 34001463 Bracket, Rear
35 34001162 Seal, Rubber
36 34001202 Thermistor
37 34001276 Counterweight,
Front (2)
38 34001436 Hose,
Pressure Switch
39 34001301 Sleeve, Pressure
Switch Hose
40 34001307 Sleeve, Harness
41 34001169 Clamp, Hose
42 34001232 Screw, Tapping
43 34001299 Clamp, Pressure
Hose Retainer
44 34001433 Clamp, Harness
Retainer
45 34001438 Clamp, Harness
Retainer
46 34001315 Clamp, Hose
47 34001409 Washer
48 34001229 Tie, Wire

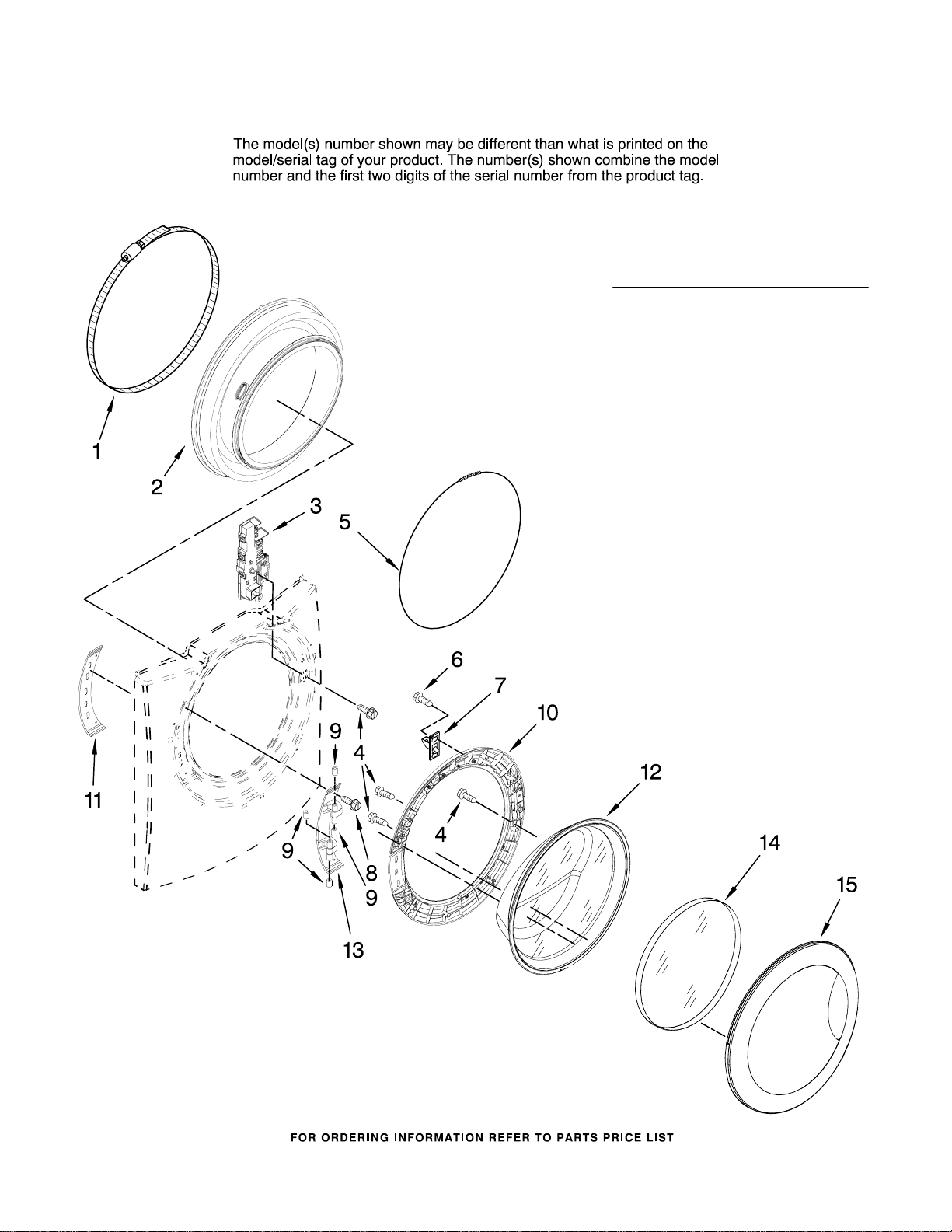

DOOR AND LATCH PARTS
7
W10173400
Illus. Part
No. No. DESCRIPTION
For Model: NFW7200TW10
(White)
1 34001306 Clamp, Bellow
To Tub
2 34001432 Bellow
3 34001265 Lock, Door
4 34001251 Screw
5 34001266 Clamp, Bellow
To Front Panel
6 34001259 Screw
7 34001260 Hook, Door
8 34001286 Screw (2)
9 34001192 Bushing,
Hinge Guide (4)
10 34001426 Frame, Door
Back Support
11 34001428 Bracket, Hinge
12 34001254 Glass, Door
13
W10175955
Hinge, Door
14 34001425 Screen, Door
15 34001424 Frame, Door
Front
OPTIONAL PARTS (NOT INCLUDED)
8W10173400
Illus. Part
No. No. DESCRIPTION
For Model: NFW7200TW10
(White)
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
Stack Kit, 27"
MALE027AXX Electric Dryer
MALG027AXX Gas Dryer
34001395 Cap, Fixer
34001223 Wrench, Spanner
