Amana ABB2222FEB11 Manuel utilisateur

CABINET PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

2−08 Litho In U.S.A. (CJJ) Part No. W10192969 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137539

Use & Care Guide

W10123458

Energy Guide

W10165418

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

4 B5759649 Gasket

5 67006118 Roller Assembly

6 67003868 Foot, Brake

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Hinge

67001014 White

67001013 Bisque

67001012 Black

11 67005822 Screw

12 67006380 Screw

13 67005064 Label, Fl Tb

Plug

14 67006303 Screw

15 Hinge, Center

67006960 White

67007043 Black

12566604ED

Hinge, Top

17 Cover, Corner

67003484 White

67003486 Bisque

67003485 Black

18 67001067 Clip, Drain

19 67007174 Foot, Cabinet

20 67006564 Screw

21 67006101 Cover, Unit

22 Grille Assembly

(Includes Clips)

67007004 White

67006791 Bisque

67006954 Black

23 67001098 Cover, Fl Tb

W10164397

Tube, Drain

25 67006425 Screw (9)

26 67003796 Fiber, Acoustic

27 67001097 Cover, Water Valve

28 A3076901 Plug Button

29 12479901 Plate, Cover

30 67006662 Screw

31 12627302 Clip, Grille

Following Parts Not Illustrated

8170942 Clamp, Tube

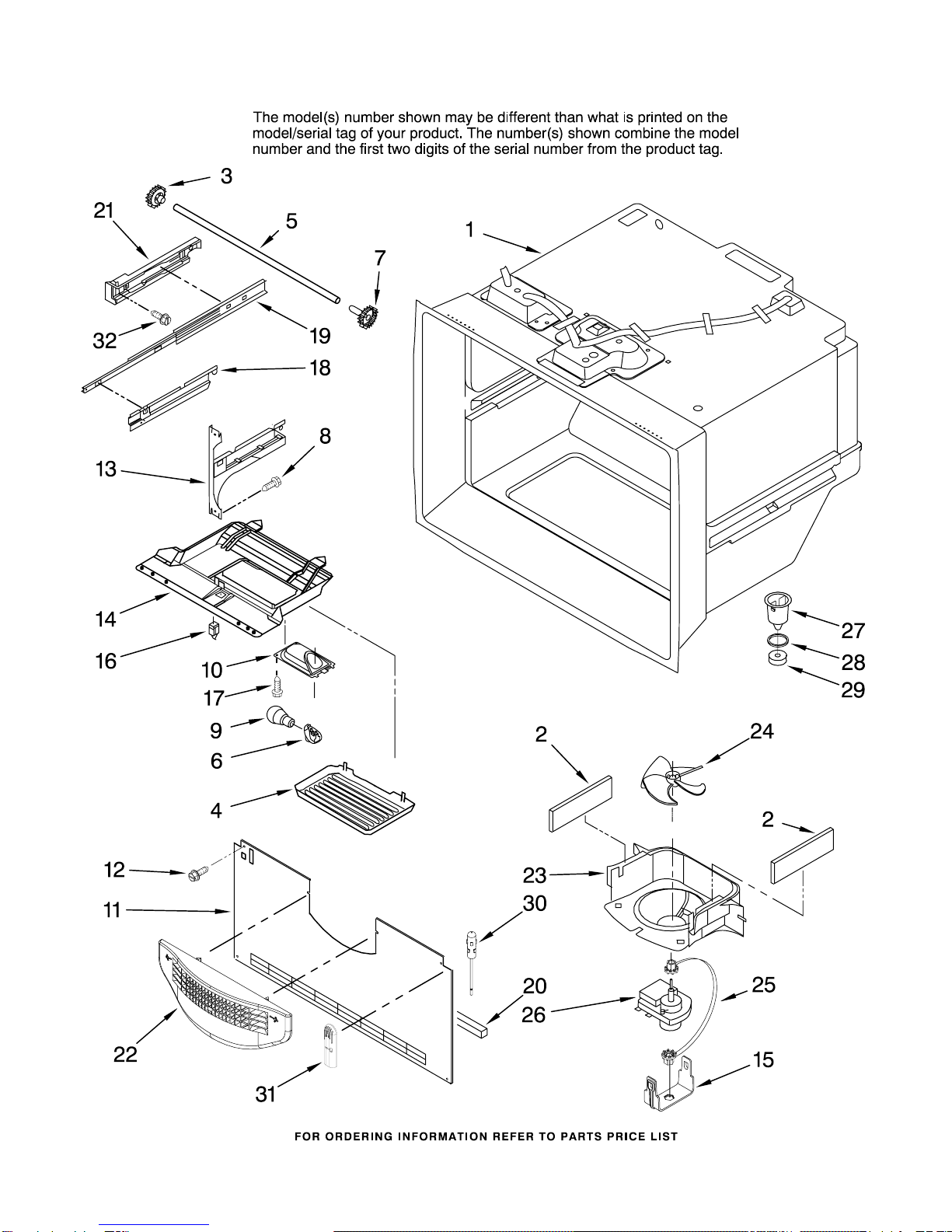

FREEZER LINER PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

FREEZER LINER PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear

4 67003905 Cover, Light

5 67004261 Shaft

Y12570701

Socket, Light

7 12002497 Gear

8 67006475 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Fz Light

11 67005872 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67002906 Housing, Light

W10167028

Clip, Evaporator

16 67005653 Switch, Light

17 67006530 Screw

18 Bracket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer (2)

20 67003731 Gasket, Bottom

21 Bracket, Slide

W10128119

Right

W10128118

Left

W10175909

Grille, Fz

W10167023

Shroud

24 2169142 Blade, Fan

W10121308

Grommet

26 67003636 Motor, Evap

27 D7753903 Funnel, Drier

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

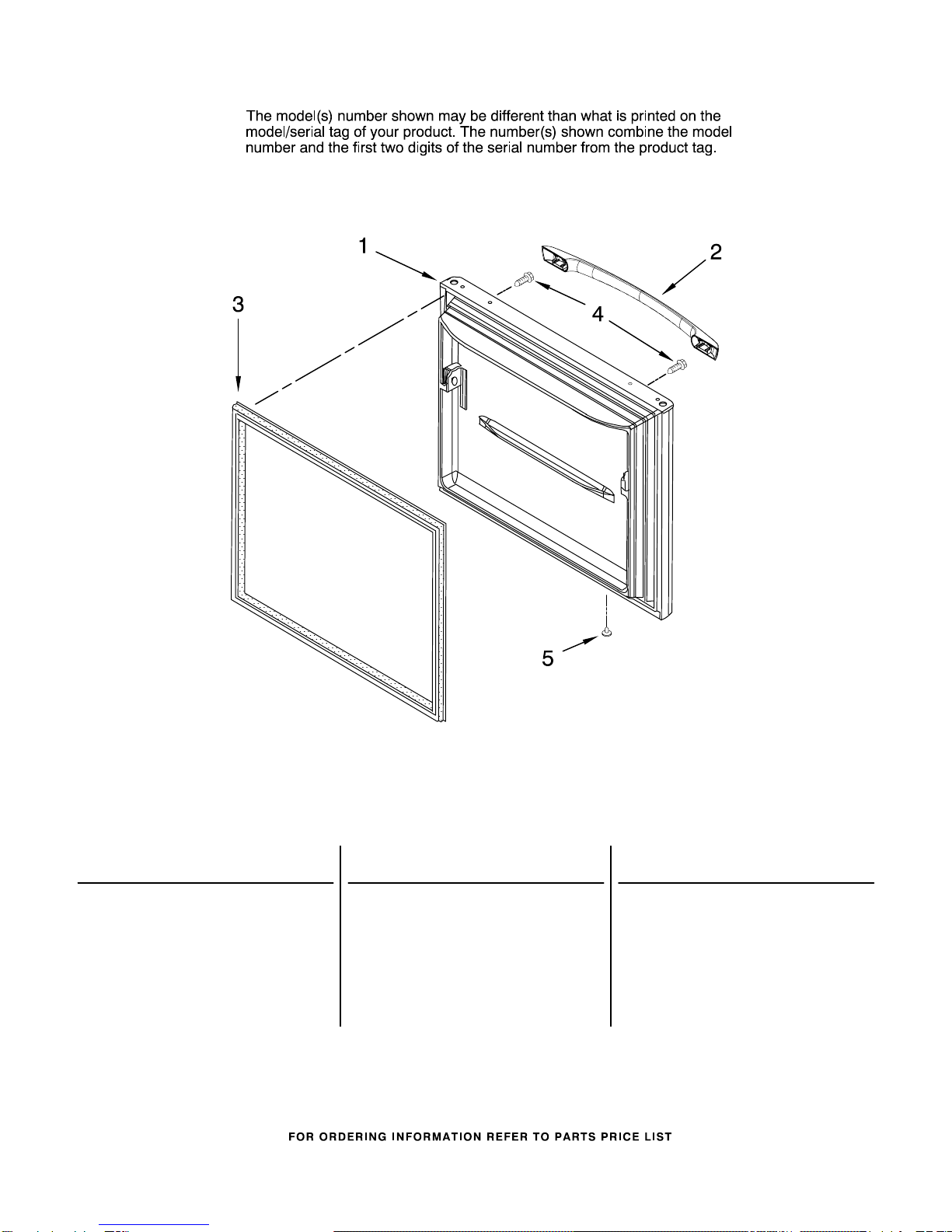

FREEZER DOOR PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10170997

White

W10170998

Black

W10170999

Bisque

2 Handle

67006458 White

W10119667

Bisque

67006463 Black

3 Door Gasket,

Magnetic

W10130894

White

W10130587

Black

4 Screw, Handle Hole

12992902 White

5 Plug, Button (2)

10712401 White

67004838 Black

REFRIGERATOR LINER PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Module, Light

3 67004279 Overlay

W10185244

Housing

W10165748

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert, Damper

Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 M0310343 Plug, Button

Following Parts Not Illustrated

67004033 Harness, Controls

(Refrigerator)

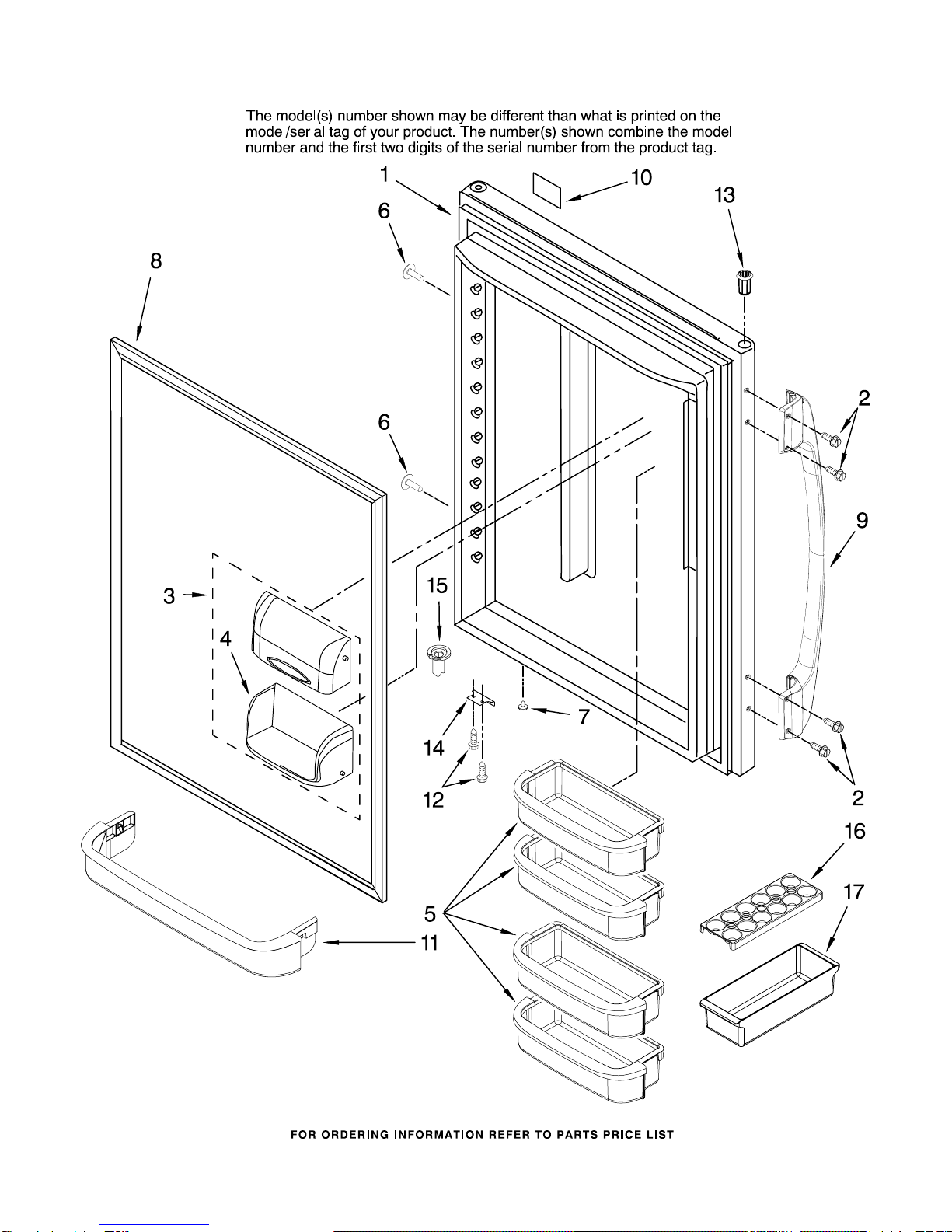

REFRIGERATOR DOOR PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

REFRIGERATOR DOOR PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/Liner)

67004363 White

67004329 Black

67004361 Bisque

2 67006668 Screw

3 67003819 Door, Dairy

4 67001279 Tray, Dairy

5 67001021 Bucket, Medium (4)

6 Screw, Handle Hole

12991103 White

12991104 Bisque

67007166 Black

7 Plug, Button

10712401 White

67004838 Black

8 Door Gasket,

Magnetic

W10130893

White

W10131327

Black

9 Door Handle

67006721 White

67006804 Bisque

67006805 Black

10 12528501 Nameplate

11 67001280 Retainer, Ref Door

12 67006287 Screw

13 Bushing

67004977 White

67004978 Black

14 Stop, Door

67003779 White

67003781 Bisque

67003780 Black

15 Closure, Door

67003638 White

67003639 Black

16 10436506 Tray, Egg

17 10423131 Bin, Utility

UNIT PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

UNIT PARTS

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11

(White) (Black) (Bisque)

W10192969

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005744 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10167036

Tube, Discharge

W10119856

Harness, Evap.

Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Evaporator Heater

W10136415

Clip, Capacitor

W10136414

Overload

(Includes Relay)

13 61003210 Gasket

W10165425

Thermostat

W10137529

Grommet

16 67006573 Screw

W10169124

Grommet (4)

18 67006132 Condenser

19 67006432 Screw

20 67001080 Tray, Drip

21 67006737 Screw

22 12001919 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060301 Harness, MC

(Includes

Power Cord)

27 2317845 Drier (Service)

W10130129

Compressor

29 2264017 Capacitor

30 67006434 Axle, Roller

W10158508

Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller

36 10623002 Clip, Evap

37 67005680 Grommet

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
