CABINET PARTS
1
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
12−09 Litho In U.S.A. (mjb)(bay) Part No. W10259042 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10142142
Service &
Wiring Sheet
W10251538
Energy Label
Use & Care Guide
W10208848
Bilingual
W10208847
Trilingual
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 2189356 Clip, Grille
6 2221797 Rivet
7 3400504 Screw
8 489385 Tube Clamp
9 489427 Screw
10 549193 Clamp, Cord
11 489497 Screw
12 2254618 Hinge, Center
13 2183852 Shim, Hinge
Center
14 8281265 Screw
15 2254473 Hinge Butt
16 Fitting, Water Tube
(NOT SERVICED)
17 Hole Plug (6)
2201012 White
2183998 Black
18 Corner Filler (2)
2201014 White
2201017 Black
19 Grille
(Includes
Illus. 4 & 22)
2254386 White
2254388 Black
20 489341 Washer, Plain
21 487576 Washer, Nylon
22 2254385 Clip, Grille
23 Cover, Hinge
2213360 White
2213363 Black
24 Rail, Center
(NOT SERVICED)
25 2254578 Cover, Unit
26 Cabinet (Not a
Serviceable Part)

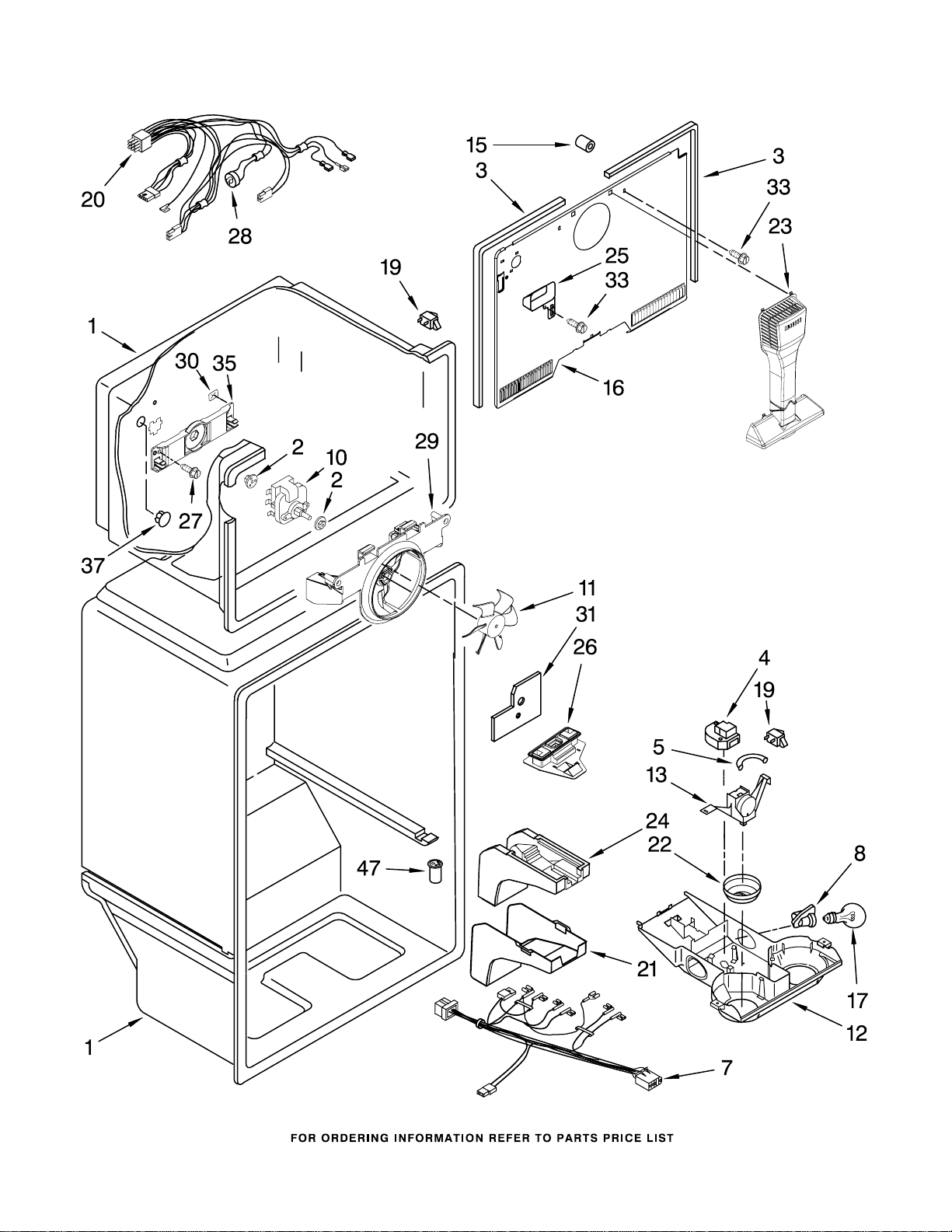

LINER PARTS
3
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
LINER PARTS
4
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254359 Gasket, Evaporator
Cover (2)
4 2314156 Timer, Defrost
5 2204640 Thermostat Tube
Barrier
7 2310078 Wire Assembly,
Control Box
8 2162085 Socket, Light
10
W10189703
Fan Motor
11 2163777 Fan Blade
12 2218381 Control Box
13 2225460 Thermostat Assembly
(Includes
Illus. 5 & 18)
15 487996 Cap
16 2320192 Cover, Evaporator
17 2160708 Light Bulb (2)
19 1118894 Rocker Arm
Switch
20
W10129799
Wire Assembly,
Frzr. Compartment
(Includes
Illus. 28)
21 2176281 Cover, Air
Diffuser
22 2202885 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
25 2205003 Cover, Hole
26 2210390 Air Separator,
Assembly
27 488208 Screw
28 2321800 Defrost, BI−Metal
29 2254453 Bracket,
30 2320183 Retainer−Screw
Fan Motor
31 2204639 Shield, Heat
33 489478 Screw
35 2254454 Bracket
Evap. Fan, Rear
37 941839 Hole Plug
(Icemaker)
47 2210509 Valve
SHELF PARTS
5
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
SHELF PARTS
6
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mounting
4 2188684 Trim−Shelf, Front
5 489478 Screw
6 2169917 Glass, Shelf
7 2201103E Shelf−Cantilever
Meat Pan
8 2201105 Shelf Assy
9
W10221199
Crisper Cover
10 2188686 Trim−Shelf, Rear
11 2221693 Glass, Crisper
Cover
12 2177824 Glass, Half Shelf
13 2314477 Support, Crisper
14 2189453 Shelf, Freezer
15 2218130 Pan, Crisper
(13−Inch)
(Includes 17,20)
16 2218127K Pan, Meat
17 2176222 Slide, Humidity
Control
18 2201101E Shelf−Cantilever
19 2218129 Pan, Crisper
(10−Inch)
(Includes 17, 20)
20 2212446 Body, Humidity
Control
21 2201137 Shelf Assembly
22 2188690 Trim,Shelf Front
23 2188688 Trim,Shelf Rear
REFRIGERATOR DOOR PARTS
7
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
REFRIGERATOR DOOR PARTS
8
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 6 & 8)
2205395 White
2205398 Black
W10141742
Stainless Steel
4 2189202 Bracket, Door
Stop
5 489276 Screw, 8 x 1/2
6 2183003 Thimble
8 Door Gasket,
Magnetic
2202874 Mist Beige
2202881 Black
9 2210566 Housing Compartment
10 2159302 Tray, Door
11 Handle, Endcap
2300579W White
2300579B Black
12 2204811 Bin, Door (3)
13 2195949 Trim, Door Shelf
14 2218109 Door Compartment
15 2159312 Trim, Door Shelf
16 Hole Plug,
EndCap
2204837 White
2204840 Black
17 2177340 Endcap, Door Trim
18 2156006 Plug, Trim
UNIT PARTS
9
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
UNIT PARTS
10
For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01
(White) (Black) (Stainless Steel)
W10259042
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2320188 Plate, Unit
Mounting
2 2264017 Capacitor
3
W10159808
Condenser
4 2315531 Heater, Defrost
5 2254250 Evaporator Assy.
6 8533961 Screw
7 2254294 Drain Pan
8 2176301 Bracket, Heater
9 2319835 Grommet−Cond(4)
10 2300638 Extension, Air
Baffle
12 Cover
4387731 (Service Only)
2162358 Production
13 Overload
4390624 (Service Only)
2302290 Production
14 Grommet (4)
1100826 Production
4387558 Service
15 2225930 Relay−Combo Device
Combination
(Start Relay and
Overload For
Production
Compressor Only)
16 2201184 Support Block
17 2150304 Roller (2)
18 2179826 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 3400518 Screw
28
W10237272
Compressor
(Includes Items
12,13,14,29)
29 Drier
W10177049
Service
30 2155774 Clamp
33 2315541 Air Baffle
34 2188874 Motor, Condenser
35 2187382 Wire Assembly
Unit
36 2225834 Fan Blade
38 2205293 Tube, Suction
39 2212848 Tube, Process
40 488500 Screw
41 2254574 Evaporator Tray
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.0 Ozs.
(R134A)
