Altronix T2428300E Manuel utilisateur

Overview:

T2428300E CCTV and Accessory Power Supply is designed for powering CCTV Cameras, environmental housings, and

other video accessories. It provides 24VAC or 28VAC output.

Specifications:

Input:

• 115VAC 50/60Hz, 2.7A.

Output:

• 24VAC @ 14A or 28VAC @ 12.5A supply current.

Additional Features:

• Unit maintains camera synchronization.

• Ease of installation saves time and eliminates costly labor.

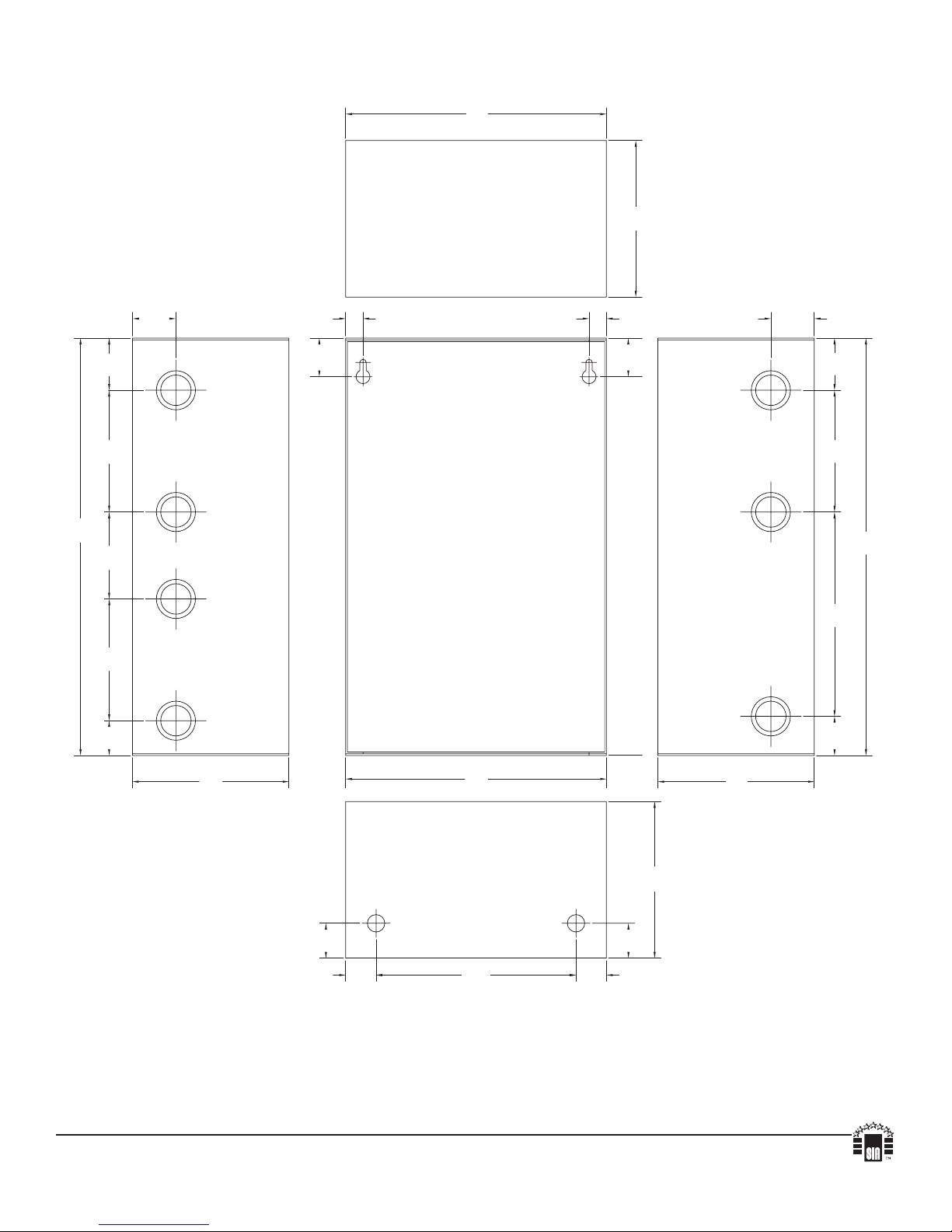

Enclosure Dimensions:

12.25” x 7.25” x 4.5” (311.15mm x 184.15mm x 114.3mm)

Optional: Available with 220VAC input.

Order model # T2428300220E.

Installation Instructions:

1. Mount the AC power supply in desired location.

2. Connect the AC (115VAC 50/60 Hz) to the black and

white flying leads of the transformer (Fig. 1).

3. Measure output voltage before connecting devices.

This helps avoiding potential damage.

4. Connect devices to the secondary flying leads:

- Yellow and Brown for 24VAC

(open circuit voltage @ 115VAC approx. 26.1VAC).

- Black and Brown for 28VAC

(open circuit voltage @ 115VAC approx. 30.4VAC).

5. Upon completion of the wiring secure enclosure door with screws (supplied).

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This

installation should be made by qualified service personnel and should conform to the National Electrical

Code and all local codes.

T2428300E

High Current CCTV Camera and Accessory Power Supply

Input

115 VAC

50/60Hz,

2.7A

28VAC (Black)

24VAC (Yellow)

Common (Brown)

XFMR

Fig. 1

Enclosure Dimensions:

12.25” x 7.25” x 4.5” (311.15mm x 184.15mm x 114.3mm)

Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty | Made in U.S.A.

IIT2428300E - Rev. 040705 F20Q MEMBER

1.25”

(31.75mm)

0.5”

(12.7mm)

0.5”

(12.7mm)

1.5”

(12.7mm)

1.25”

(31.75mm)

1.5”

(12.7mm)

3.5”

(88.9mm)

3.5”

(88.9mm)

3.5”

(88.9mm)

1”

(25.4mm)

1”

(25.4mm)

5.75”

(146.05mm)

1”

(25.4mm)

1.13”

(28.7mm)

5.88”

(149.35mm)

0.88”

(22.35mm)

0.88”

(22.35mm)

1.11”

(28.19mm)

1.11”

(28.19mm)

4.5”

(114.3mm)

4.5”

(114.3mm)

4.5”

(114.3mm)

4.5”

(114.3mm)

7.5”

(190.5mm)

7.5”

(190.5mm)

2.5”

(63.5mm)

12”

(304.8mm) 12”

(304.8mm)
