Altronix TROVE T2ZK7F8D Manuel utilisateur

T2ZK7F8

8 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove2 enclosure with TDR2 Altronix/ZKTeco backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) ACM8 - Fused Access Power Controller

- One (1) VR6 - Voltage Regulator

- One (1) PDS8 - Dual Input Fused Power Distribution Module

T2ZK7F16

16 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove2 enclosure with TDR2 Altronix/ZKTeco backplane

- One (1) eFlow104NB - Power Supply/Charger

- Two (2) ACM8 - Fused Access Power Controllers

- One (1) VR6 - Voltage Regulator

- One (1) PDS8 - Dual Input Fused Power Distribution Module

T2ZK7F8D

8 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove2 enclosure with TDR2 Altronix/ZKTeco backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) ACM8CB - PTC Access Power Controller

- One (1) VR6 - Voltage Regulator

- One (1) PDS8CB - Dual Input PTC Power Distribution Module

T2ZK7F16D

16 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove2 enclosure with TDR2 Altronix/ZKTeco backplane

- One (1) eFlow104NB - Power Supply/Charger

- Two (2) ACM8CB - PTC Access Power Controllers

- One (1) VR6 - Voltage Regulator

- One (1) PDS8CB - Dual Input PTC Power Distribution Module

Altronix/ZKTeco Kits

Models Include:

Access & Power Integration

Rev. TZK_062123

Installing Company: _________________________ Service Rep. Name: __________________________________________

Address: _________________________________________________________ Phone #: _________________________

All registered trademarks are property of their respective owners. More than just power.™

Installation Guide

All components of these Trove kits are UL Listed sub-assemblies.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

- 2 - Trove ZKTeco Kits Installation Guide

Overview:

Altronix Trove ZKTeco kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers

and sub-assemblies.

T2ZK7F8(D) accommodates up to two (2) ZKTeco modules for up to eight (8) doors in a single enclosure.

T2ZK7F16(D) accommodates up to four (4) ZKTeco modules for up to sixteen (16) doors in a single enclosure.

Configuration Chart:

Altronix

Model Number

120VAC 60Hz

Input Current (A)

Power Supply Board

Input Fuse Rating

Power Supply Board

Battery Fuse Rating

Maximum Supply

Current for Main and

Aux. Outputs on

Power Supply board

and ACM8 Access

Power Controllers’

outputs

Nominal DC

Output Voltage

Fail-Safe/Fail-Secure

Outputs

Additional Fused Outputs

ACM8(CB) Board

Input Fuse Rating

ACM8(CB) Board

Output Fuse (PTC) Rating

PDS8(CB) Board

Input Fuse (PTC) Rating

PDS8(CB) Board

Output Fuse (PTC) Rating

[DC] [Aux]

Output

Range

(VDC)

Output

Range

(VDC)

T2ZK7F8

4.5 6.3A/

250V

15A/

32V

24VDC @ 9.7A

20.17-

26.4

20.28-

26.4

10A/

250V

2.5A/

250V

10A/

32V

3A/

32V

T2ZK7F8D 10A/

250V 2.5A 9A 2.5A

T2ZK7F16

24VDC @ 9.4A 16

10A/

250V

2.5A/

250V

10A/

32V

3A/

32V

T2ZK7F16D 10A/

250V 2.5A 9A 2.5A

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners and

screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the two/three upper screws;

level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three

fasteners. Place the enclosure’s upper keyholes over the two/three upper screws. Install the three lower screws and make sure to

tighten all screws.

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired

location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure

approximately 2” from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the

Access Control Panel input or the appropriate UL Listed reporting device.

To activate alarm signal open the door of the enclosure.

4. Mount ZKTeco modules to backplane, refer to pages 3 - 6.

5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NB and

corresponding Sub-Assembly Installation Guides for ACM8(CB), PDS8(CB) and VR6 for

further installation instructions.

Hardware:

Fig. 1

Tamper Switch

(included)

To Access Control Panel or

UL Listed Reporting Device

Edge of

Enclosure

Nylon Spacer | 5/16” Pan Head Screw | Lock Nut

Trove ZKTeco Kits Installation Guide - 3 -

T2ZK7F8(D): Configuration of ZKTeco Modules:

1. Fasten DIN Rail (provided by ZKTeco) to pem spacers, utilizing 5/16” pan head screws (included) (Fig. 2, pg. 3).

2. Mount ZKTeco modules to DIN Rail (refer to below chart for model number, Fig. 2, pg. 3).

3. Fasten TDR2 backplane to Trove2 enclosure utilizing lock nuts (provided by Altronix).

ZKTeco Models:

ZKTeco InBio-Pro Series A

ZKTeco Atlas Series B

ZKTeco C3 Pro Series C

Fig. 2

– DC +– BAT +

L G N

Altronix eFlow104NB

Altronix VR6 is mounted under PDS8(CB)

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

1 2 3 4 5 6 7 8

INPUT

TRIGGER

10A 250V

+INP- T + RET-

NO C NC

FACP INTERFACE

Power Control

- + - +

MAIN

TRG

FACP

1 2 3 4

Altronix ACM8(CB)

+ INP1 --

PWR1 +OFF

IN1

IN2

PWR1 +

PWR2 +

COM (--- )

+ INP2 --

IN1 Fuse

Common Power Outputs (NEG)

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

1 2 3 4 5 6 7 8

Altronix PDS8(CB)

- 4 - Trove ZKTeco Kits Installation Guide

– DC +– BAT +

L G N

Altronix eFlow104NB

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

1 2 3 4 5 6 7 8

INPUT

TRIGGER

10A 250V

+INP- T + RET-

NO C NC

FACP INTERFACE

Power Control

- + - +

MAIN

TRG

FACP

1 2 3 4

Altronix ACM8(CB)

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

1 2 3 4 5 6 7 8

INPUT

TRIGGER

10A 250V

+INP- T + RET-

NO C NC

FACP INTERFACE

Power Control

- + - +

MAIN

TRG

FACP

1 2 3 4

Altronix ACM8(CB)

Altronix VR6 is mounted

under PDS8(CB)

+ INP1 --

PWR1 +OFF

IN1

IN2

PWR1 +

PWR2 +

COM (--- )

+ INP2 --

IN1 Fuse

Common Power Outputs (NEG)

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

1 2 3 4 5 6 7 8

Altronix PDS8(CB)

T2ZK7F16(D): Configuration of ZKTeco Modules:

1. Fasten DIN Rail (provided by ZKTeco) to pem spacers, utilizing 5/16” pan head screws (included) (Fig. 2, pg. 3).

2. Mount ZKTeco modules to DIN Rail (refer to below chart for model number, Fig. 2, pg. 3).

3. Fasten TDR2 backplane to Trove2 enclosure utilizing lock nuts (provided by Altronix).

ZKTeco Models:

ZKTeco InBio-Pro Series A

ZKTeco Atlas Series B

ZKTeco C3 Pro Series C

Fig. 3

Trove ZKTeco Kits Installation Guide - 5 -

Notes:

- 6 - Trove ZKTeco Kits Installation Guide

Notes:

Trove ZKTeco Kits Installation Guide - 7 -

eFlow Power Supply/Chargers can be Controlled and Monitored while

Reporting Power/Diagnostics from Anywhere over the Network...

LINQ2 Mounts Inside any Trove Enclosure

LINQ2 - Network Communication Module

LINQ2 provides remote IP access to real-time data from eFlow power supply/chargers to help

keep systems up and running at optimal levels. It facilitates fast and easy installation and set-up,

minimizes system downtime, and eliminates unnecessary service calls, which helps reduce Total

Cost of Ownership (TCO) - as well as creating a new source of Recurring Monthly Revenue (RMR).

LINQ2

Features:

- UL Listed in the U.S. and Canada.

- Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN.

- Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change,

output state change and unit temperature.

- Accesscontrolandusermanagment:Restrictread/write,Restrictuserstospecicresources

- Two (2) integral network controlled Form “C” Relays.

- Three (3) programmable input triggers: Control relays and power supplies via external hardware sources.

- EmailandWindowsDashboardnotications

- Event log tracks history.

- Secure Socket Layer (SSL).

- Programmable via USB or web browser - includes operating software and 6 ft. USB cable.

LINQ2 Module

Altronix eFlow

Power Supply

Network Connection:

Installation, Programming

and Monitoring

- 8 - Trove ZKTeco Kits Installation Guide

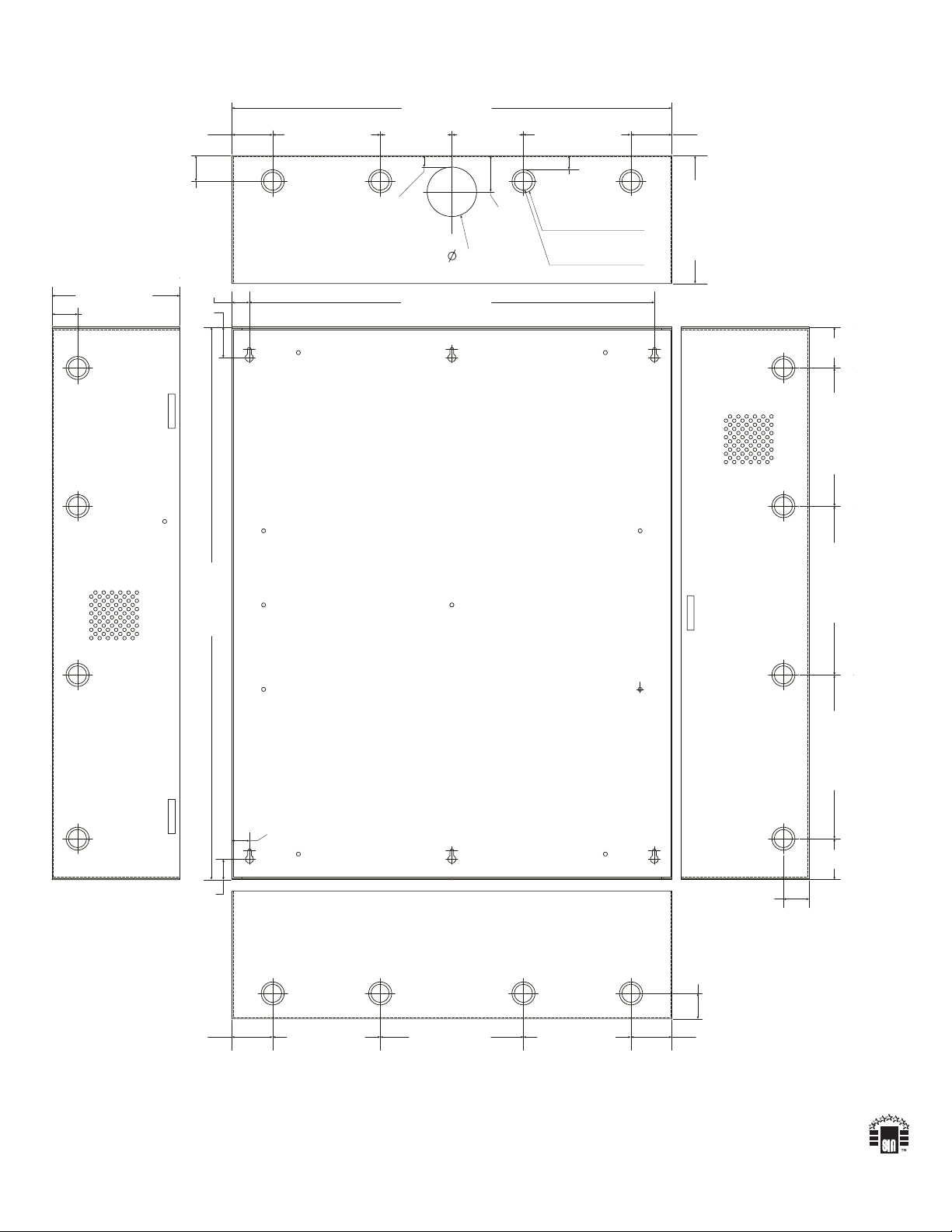

6.75” (171.5mm)8.25” (209.5mm)

8.00” (203.2mm)

2.00” (50.8mm)

1.25” (31.8mm)

5.25” (133.4mm) 5.25” (133.4mm)7.00” (177.8mm)

1.25” (31.8mm)

6.25” (158.8mm) 19.80” (502.9mm)

1.00” (25.4mm)

27” (685.8mm)

1.5”

(38.1mm)

2.00” (50.8mm) 2.00” (50.8mm)

3.5”(88.9mm) 3.5”(88.9mm)

21.50” (546.1mm)

5.25” (133.35mm) 5.25” (133.35mm)

6.25” (158.8mm)

1.25”

(31.8mm)

0.85” (21.6mm)

0.5625” (14.3mm)

2.415” (61.3mm)

0.685” (17.4mm)

1.77”

(45mm)

0.885” (22.5mm)

1.125” (28.3mm)

Knockouts

2.00” (50.8mm) 2.00” (50.8mm)

Enclosure Dimensions (H x W x D):

27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm)

Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
