Service

Manual

Form No. 78439A 12/98 CLARKE TECHNOLOGY Printed in the U.S.A.

READ THIS BOOK

This book has important information for the use and safe operation of this machine. Failure to read

this book prior to operating or attempting any service or maintenance procedure to your ALTO

machine could result in injury to you or to other personnel; damage to the machine or to other property

could occur as well. You must have training in the operation of this machine before using it. If you

cannot read English, have this manual explained fully before attempting to operate this machine.

All directions given in this book are as seen from the operator’s position at the rear of the machine.

For new books write to: ALTO U. S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.

STV-20

Order Parts Here:

www.ivie-ent.com/parts

Ph:(918)254-5161

Page -5-

CLARKE TECHNOLOGY Operator's Manual STV-20/20D

230 Volt Machine

Instructions For Connection

To The Power Supply

And The Electrical Ground

This machine must be connected to the electrical

ground to protect the operator from electric shock.

The machine has an approved power cord with two

main conductors and one earthing conductor. Con-

nect the plug to a receptacle as shown in Figure 2.

The green (or green and yellow) conductor in the cord

is the ground wire. Never connect this wire to any

terminal other then the ground terminal.

Make sure you have the correct frequency and

voltage before connecting the power cord to an

outlet. The machine has a plug as shown in

Figure 2. If a receptacle connected to the electrical

ground as shown in Figure 2 is not available, have

one installed by an electrical contractor. Do not use

an adapter.

WARNING: This machine will operate

only on AC frequency and

electrical voltage shown on

the nameplate. Make sure

you have the correct fre-

quency and voltage before

connecting the power cord

to an outlet. If you are not

sure, consult your electrical

contractor.

WARNING: Have worn, cut or damaged

cords and plugs replaced by

an authorized service

person.

After using this machine, follow these instructions:

- Store the cord on the hook.

- Store the machine indoors away from sources

of heat.

This machine is provided with an automatically reset

thermal overload to avoid damage to the motor. If

the thermal overload stops the motor unplug the

machine and follow the procedures below:

- Empty the vacuum tank.

- Shake the filter bag to remove dust.

- In a few minutes the thermal overload will

allow restarting of the motor.

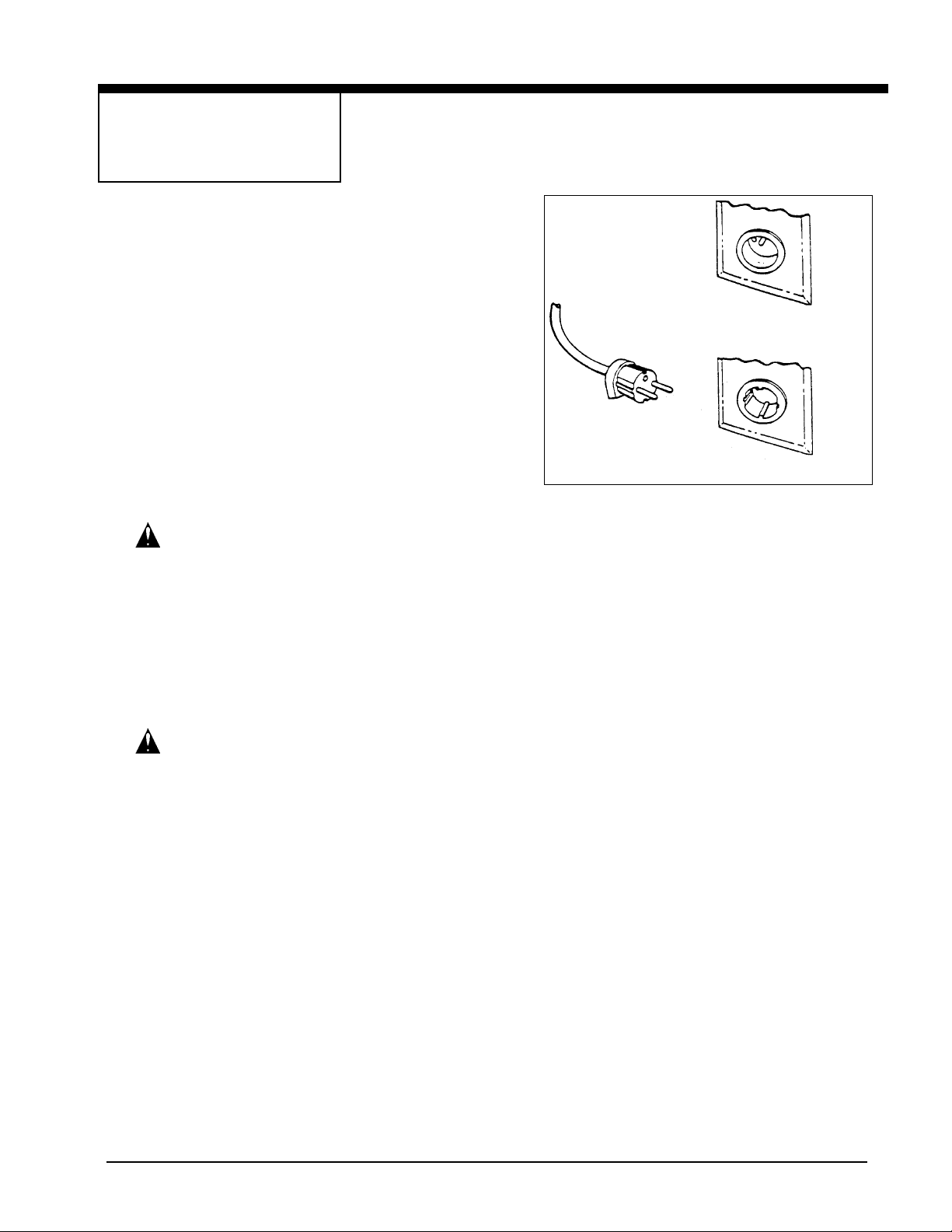

Figure 2

Pin Earthing Contacts

Side Earthing Contacts

European Plug

Page -6- CLARKE TECHNOLOGY Operator's Manual STV-20/20D

CLARKETECHNOLOGY STV-20

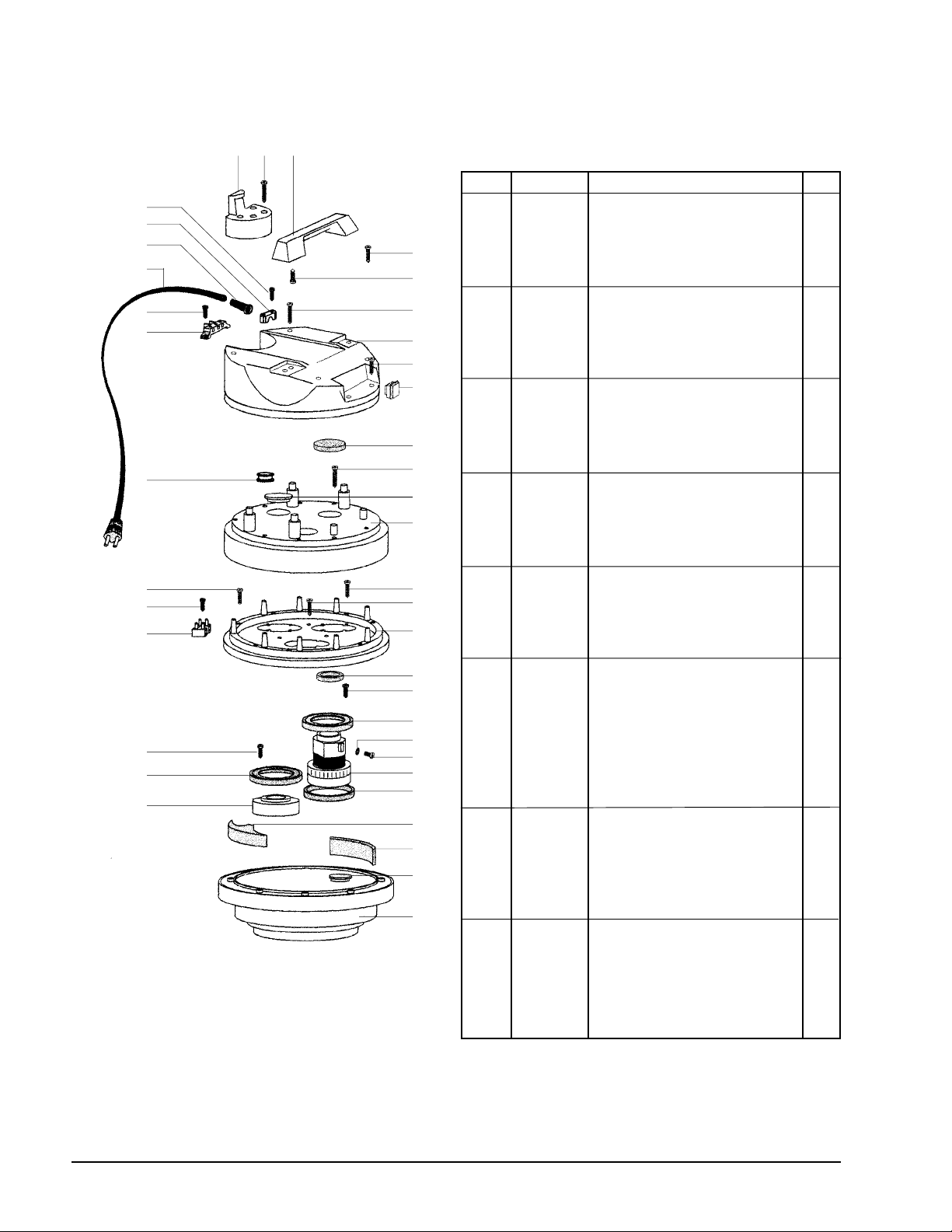

Single Motor Assembly Drawing & Parts List 1/98

Ref. Part No. Description Qty

1 51841A Cord, Power 1

2 56448A Strain Relief 1

3 54503A Cord, Grip 1

4 56441A Screw, 5mm x 20mm 2

5 51869A Cord, Hook 1

6 88304A Screw 5mm x 50mm 4

7 54922A Handle, Lift 1

8 56482A Screw 5mm x 35mm 2

9 56441A Screw, 5mm x 20mm 4

10 88001A Screw, 5mm x 14mm 2

11 40409A Block, Terminal 1

12 88304A Screw, 5mm x 50mm 2

13 52765A Cover, Dome 1

14 56441A Screw, 5mm x 20mm 2

15 47316B Switch, Rocker 1

16 54064A Filter, Upper 1

17 88304A Screw, 5mm x 50mm 9

18 51872A Clip, Spring 1

19 57162A Plug, Upper 2

20 52799A Cover, Motor 1

21 56483A Screw, 5mm x 40mm 9

22 56483A Screw, 5mm x 40mm 3

23 58410A Support, Motor 1

24 58414A Screw, 5mm x 30mm 1

25 56442A Screw, 4.3mm x 19mm 1

26 50507A Block, Terminal 1

27 57877A Ring, Vac Motor 1

28 56441A Screw, 5mm x 20mm 4

30 54377A Gasket, Vac Motor 1

31 56039B Motor, Vac 115V 1

56046B Motor, Vac 230V 1

40834A Brush, Carbon 115V 1

40835A Brush, Carbon 230V 1

32 54377A Gasket, Vac Motor 1

33 56441A Screw 5mm x 20mm 8

34 54377A Gasket, Vac Motor 2

35 57163A Plug, Motor 2

36 54058A Foam, Triangle 3

37 54059A Filter 3

38 57164A Plug, Lower 2

39 50760A Base, Motor 1

40 59859A Washer, Star 1

41 56485A Screw, 4mm x 8mm 1

NI 59887A Wire, Connect 4

NI 52944A Clip 2

56 7

NI= Not Illustrated

Page -8- CLARKE TECHNOLOGY Operator's Manual STV-20/20D

CLARKETECHNOLOGY STV-20

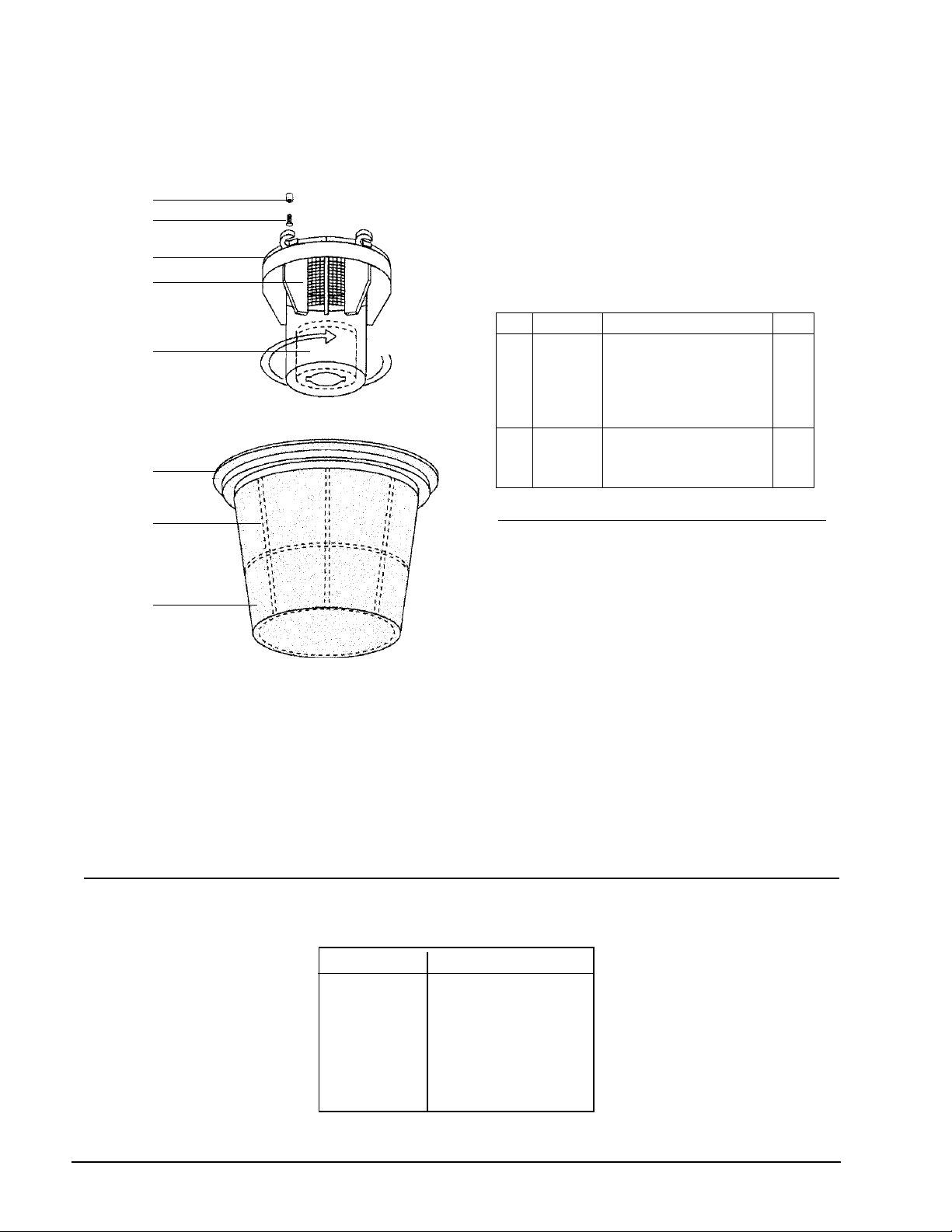

Filter Bag & Float Assembly Drawing & Parts List 1/98

Part No. Description

59213B Tool, Squeegee

59214B Tool, Floor Brush

59215A Tool, Crevice 38mm

57503A Reducer, Wand

59860A Wand, Extenion 2 Pc.

59861A Wand, Chrome 2 Pc

54887A Hose, 38mm, 2.5m

Wet Vac Tools

Ref Part No. Description Qty

1 58541A Spacer, Plastic 4

2 58413A Screw, 5mm x 20mm 4

3 57856A Cage, Float 1

4 54027A Filter 1

5 53981A Float 1

6 50339A Adapter, Bag 1

7 50720A Bag, Filter 1

8 56492A Support, Filter Bag 1

To add optional filters for STV-20 or STV-20D order:

54015A Filter, HEPA 1 and 57372A Retainer 1

53982A Filter, Cartridge 1 and 57372A Retainer 1

Page -9-

CLARKE TECHNOLOGY Operator's Manual STV-20/20D

CLARKETECHNOLOGY STV-20STV-20D

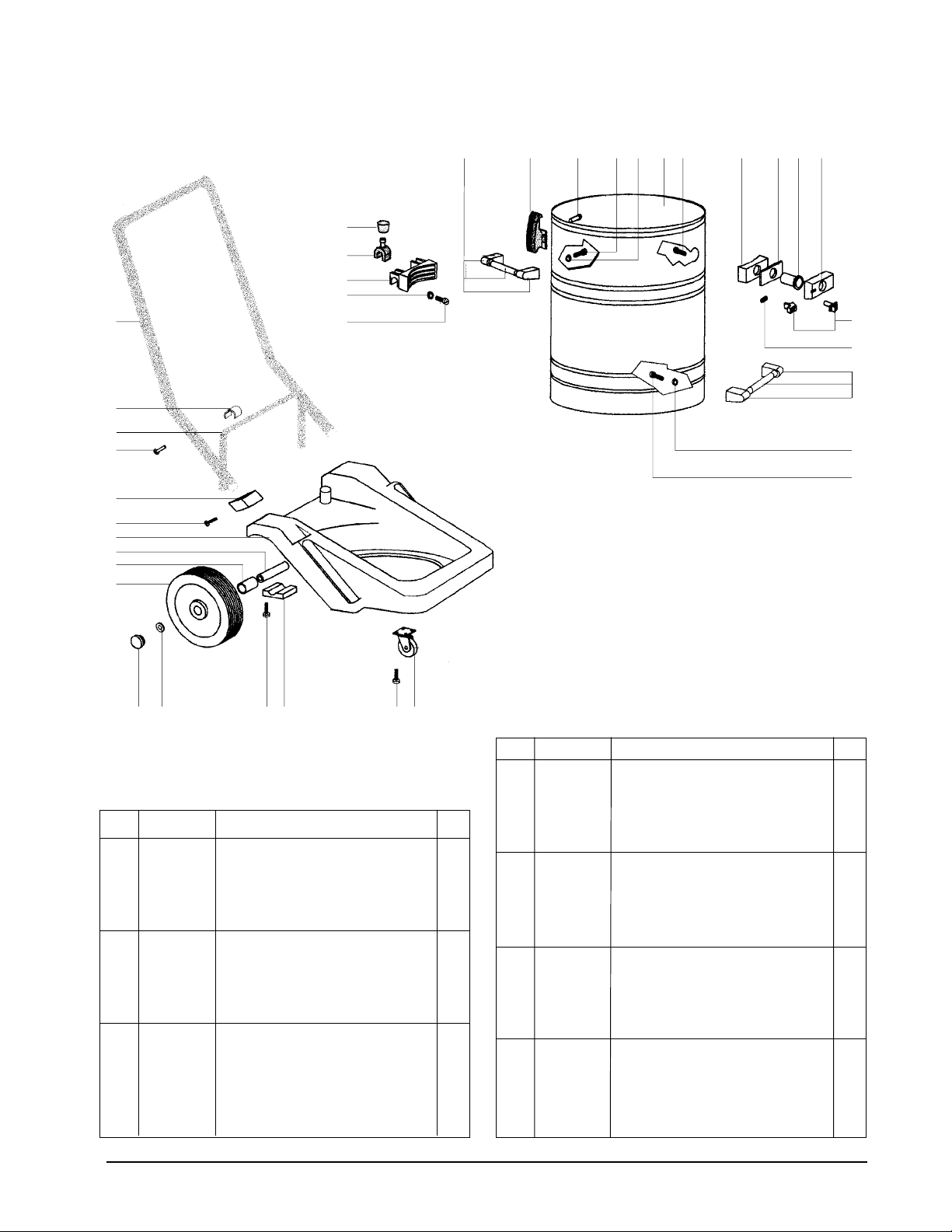

Tank Assembly & Tilt and Pour Carriage Drawing & Parts List 1/98

Ref. Part No. Description Qty

1 54921A Handle, Transport 1

2 58529A Spacer, Hinge 2

3 50460A Pivot, Tank Support 1

4 57380A Rivet 4

5 56490A Support, Handle 1

6 56441A Screw, 5mm x 20mm 4

7 51868A Carriage, 20 gal. 1

8 50459A Pivot, Wheel 2

9 51184A Bearing, Spacer 2

10 59948A Wheel, 20 gal. 2

11 54897A Hub Cap 2

12 57853A Ring, Snap 2

13 56441A Screw, 5mm x 20mm 8

14 50555A Block, Stirrup 2

15 56481A Screw, 5mm x 30mm 8

16 52120A Caster, Swivel 2

Tilt and Pour Carriage

11 12 13 14 15 16

1 2 3 4 5 6 7 8 9 10 11

Ref. Part No. Description Qty

1 54920A Handle, Assembly 2

2 51823A Clamp, Tank 2

3 57374A Rivet 4

4 56481A Screw, 5mm x 30mm 8

5 87055A Washer 8

6 58925A Tank, SS 20 gal. 1

7 56481A Screw, 5mm x 30mm 4

8 57375A Retainer, Poly Tank 1

9 54376A Gasket, Tank Adaptor 1

10 53166A Deflector, Tank 1

11 50336A Adaptor, Hose 1

12 50524A Button, Push 1

13 58692A Spring, Push Button 1

14 87055A Washer 4

15 56481A Screw, 5mm x 30mm 4

16 56481A Screw, 5mm x 30mm 4

17 87055A Washer 4

18 50554A Body, Hinge 1

19 55008A Hinge, Locking 2

20 55534A Knob, Hinge 2

Tank Assembly

Page -10- CLARKE TECHNOLOGY Operator's Manual STV-20/20D

Ref. Part No. Qty Description

1 50753A 1 Body, Tool

2 57873A 1 Ring, Floor Tool

3 50357A 1 Adaptor, Floor Tool

4 53096A 2 Support, Floor Tool

5 88001A 4 Screw, 5mm x 15mm

6 59970A 2 Wheel & Axle

7 51716A 1 Brush Guide

8 51717A 1 Brush Strip, Serrated

Ref. Part No. Qty Description

1 50753A 1 Body, Tool

2 57873A 1 Ring, Floor Tool

3 50357A 1 Adapter, Floor Tool

4 53096A 2 Support, Floor Tool

5 88001A 4 Screw, 5mm x 15mm

6 59970A 2 Wheel & Axle

7 53097A 2 Squeegee Blade

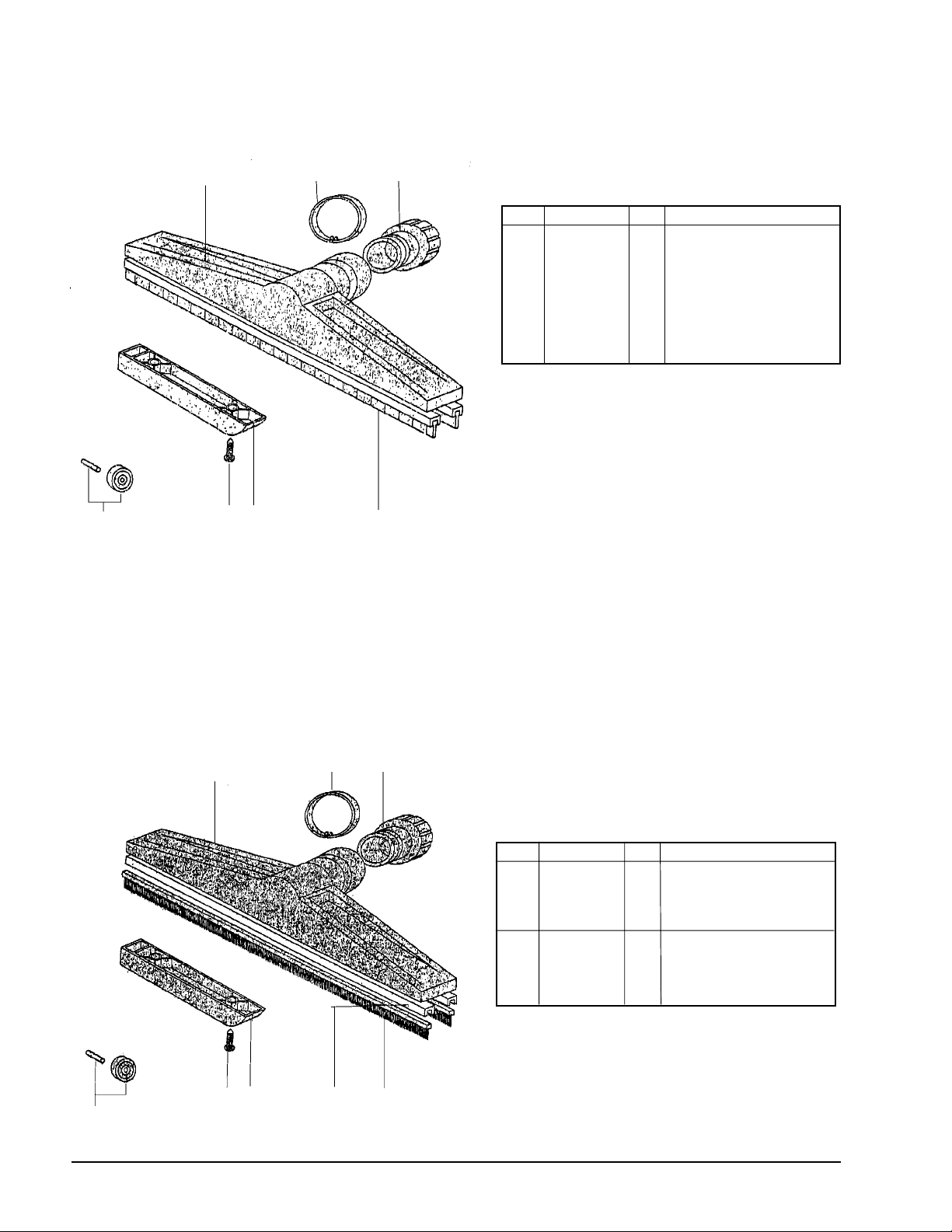

Floor Brush Tool - 59214B

Squeegee Tool - 59213B

CLARKETECHNOLOGY STV-20andSTV-20D

Floor Brush Tool Drawing & Parts List 1/98

CLARKETECHNOLOGY STV-20andSTV-20D

Squeegee Tool Drawing & Parts List 1/98

123

654 7

123

654 78
