Alto TX15 Manuel utilisateur

User Guide (English)

Introduction

Box Contents

TX15 User Guide

Power Cable Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information,

etc.) and product registration, visit altoprofessional.com/tx15.

For additional product support, visit altoprofessional.com/support.

Important Safety Precautions

Please note: Alto Professional and inMusic are not responsible for the use of its products or

the misuse of this information for any purpose. Alto Professional and inMusic are not

responsible for the misuse of its products caused by avoiding compliance with inspection and

maintenance procedures. Please also refer to the included safety and warranty manual for

more information.

Important: Do not suspend a TX Series loudspeaker. It is not designed for suspended

applications. We recommend our Truesonic Series or Black Series loudspeakers for

suspended applications instead.

Stand-Mounting

• Always install loudspeakers in accordance with applicable electrical and building codes.

• Install the loudspeaker according to its maximum weight. Check the specifications of your

stand or pole to ensure it can support the loudspeaker's weight. Also, observe all safety

precautions specified by the manufacturer.

• Do not mount multiple loudspeakers on the same stand or pole.

• Always verify that the stand or pole is on a flat, level, and stable surface. Also, fully extend

the legs of tripod-style stands, and ensure its legs do not present a trip hazard.

• Inspect the stand (or pole and associated hardware) before each use and do not use

equipment with worn, damaged, or missing parts.

• Always be cautious in windy, outdoor conditions. You may need to place additional weight

(e.g., sandbags) on stand's base to improve stability. Do not attach banners or similar

items to any part of a loudspeaker system. Such attachments could act as a sail and

topple the system.

• Unless you are confident that you can handle the loudspeaker's weight, ask another

person to help you lift it onto the stand or pole.

• Make sure your cables are out of the way of performers, production crew, and audience so

they will not trip over them, pulling the loudspeaker off the stand or pole.

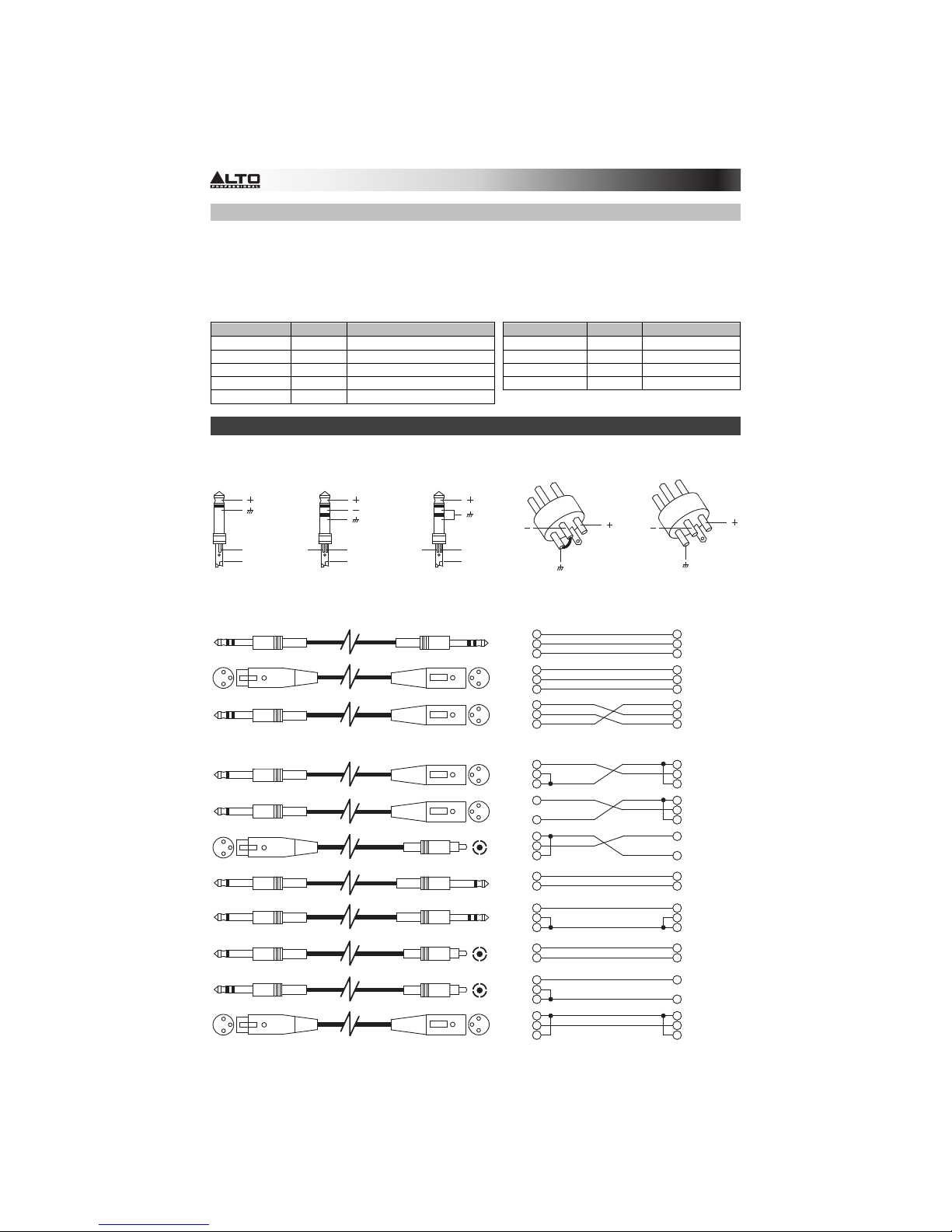

Sound Level

Permanent hearing loss may be caused by exposure to extremely high noise levels. The U.S.

Occupational Safety and Health Administration (OSHA) has specified permissible exposures to

certain noise levels. According to OSHA, exposure to high sound pressure levels (SPL) in

excess of these limits may result in hearing loss. When using equipment capable of generating

high SPL, use hearing protection while such equipment is under operation.

Hours per da

SPL (dB) Example Hours per da

SPL (dB) Example

8 90 Small gig 1.5 102 Riveting machine

6 92 Train 1 105 Machine factory

4 95 Subway train .50 110 Airport

3 97 High level desktop monitors .25 or less 115 Rock concert

2 100 Classical music concert

Wire Connections

You can wire your XLR or 1/4" TRS cables as balanced or unbalanced. Here are some

examples:

Determine the wiring configuration you need for your application and audio connections:

Tip

Sleeve

(Pin2)

(Pin3)

(Pin1, linked to Pin3)

Balanced

Unbalanced

Tip

Ring

Sleeve

Tip

Sleeve

Ring Tip

Sleeve

Ring

(Pin1)

Tip

Ring

Sleeve

Tip

Ring

Sleeve

Tip

Ring

Sleeve

Tip

Sleeve

Center

Screen

Tip

Sleeve

Tip

Sleeve

Tip

Ring

Sleeve

Tip

Ring

Sleeve

Tip

Sleeve

Center

Screen

Tip

Ring

Sleeve

Center

Screen

(Pin3)

(Pin2)

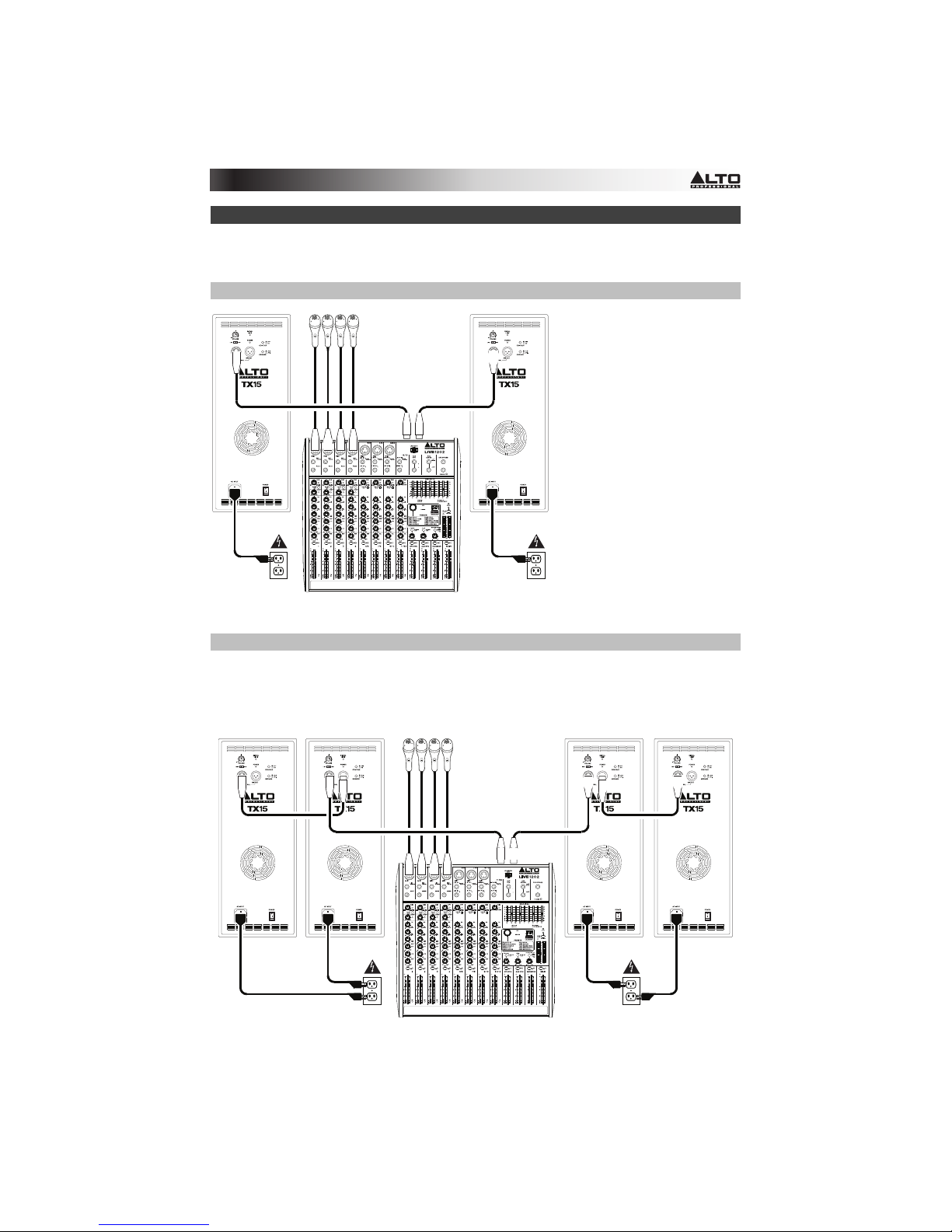

Quick Start / Connection Diagrams

Note: Items not listed in the Box Contents are sold separately.

Example A: 2 loudspeakers

Connect each of your mixer's

main outputs to the Input on a

TX loudspeaker. Make sure the

loudspeakers' Input Selectors

are set to Line.

Example B: 2 loudspeakers, 2 extensions

Connect each of your mixer's main outputs to the Input on a TX loudspeaker. Make sure the

loudspeakers' Input Selectors are set to Line. Connect each of your TX loudspeakers' Mix

Outs to the inputs of your extension loudspeakers.

Mixer

Power Power

Microphones

(mixer's

main outputs)

Mixer

Power Power

Microphones

(mixer's

main outputs)

Features

Rear Panel

1. AC Input: Use the included power cable

to connect this input to a power outlet.

Make sure the Power Switch is set to off

when connecting or disconnecting the

cable.

2. Power Switch: Use this switch to power

the loudspeaker on or off. Make sure the

Volume knob is set to its minimum

(counterclockwise) position before

turning it on.

3. Power LED: This LED lights up when the

loudspeaker is on.

4. Cooling Vent: Keep the area in front of

this vent clear from obstructions. The fan

behind the vent cools the amplifier,

preventing overheating.

5. Volume: Turn this knob to adjust the

loudspeaker's volume.

6. Input: Use a standard XLR cable (not

included) to connect your audio source to

this input. Make sure to set the Input

Selector to the correct position.

7. Input Selector: Set this switch to the

Line position when using a line-level

audio source connected to the Input. Set

this switch to the Mic position when

using a microphone connected to the

Input.

8. Mix Out: Use a standard XLR cable (not

included) to connect this output to the

input of another loudspeaker (i.e.,

another TX loudspeaker).

9. Signal Limit LED: This LED lights up

when the audio signal being sent to the

loudspeaker is "clipping" or distorting. If

this LED illuminates frequently or steadily,

reduce the volume of your audio source.

10. Contour: Engage (depress) this button to

emphasize low and high frequencies by

+3 dB. Disengage (raise) the switch for a

flatter response for live performance or

for maximum output.

11. Ground Switch: Engage (depress) this

switch to reduce hum or noise.
