Alto ELVIS 12S Manuel utilisateur

www.altoproaudio.com

Version 1.0

MODEL: ELVIS 12S/12M/15S

CONTENT

1. Introduction…………………………......…………………………………….…….1

2. Specification……………………......………………………………………….…...2

3. Block Diagram……………………………......…………………………….……....3

4. Schematic Diagram…………………………………......…………………….…...5

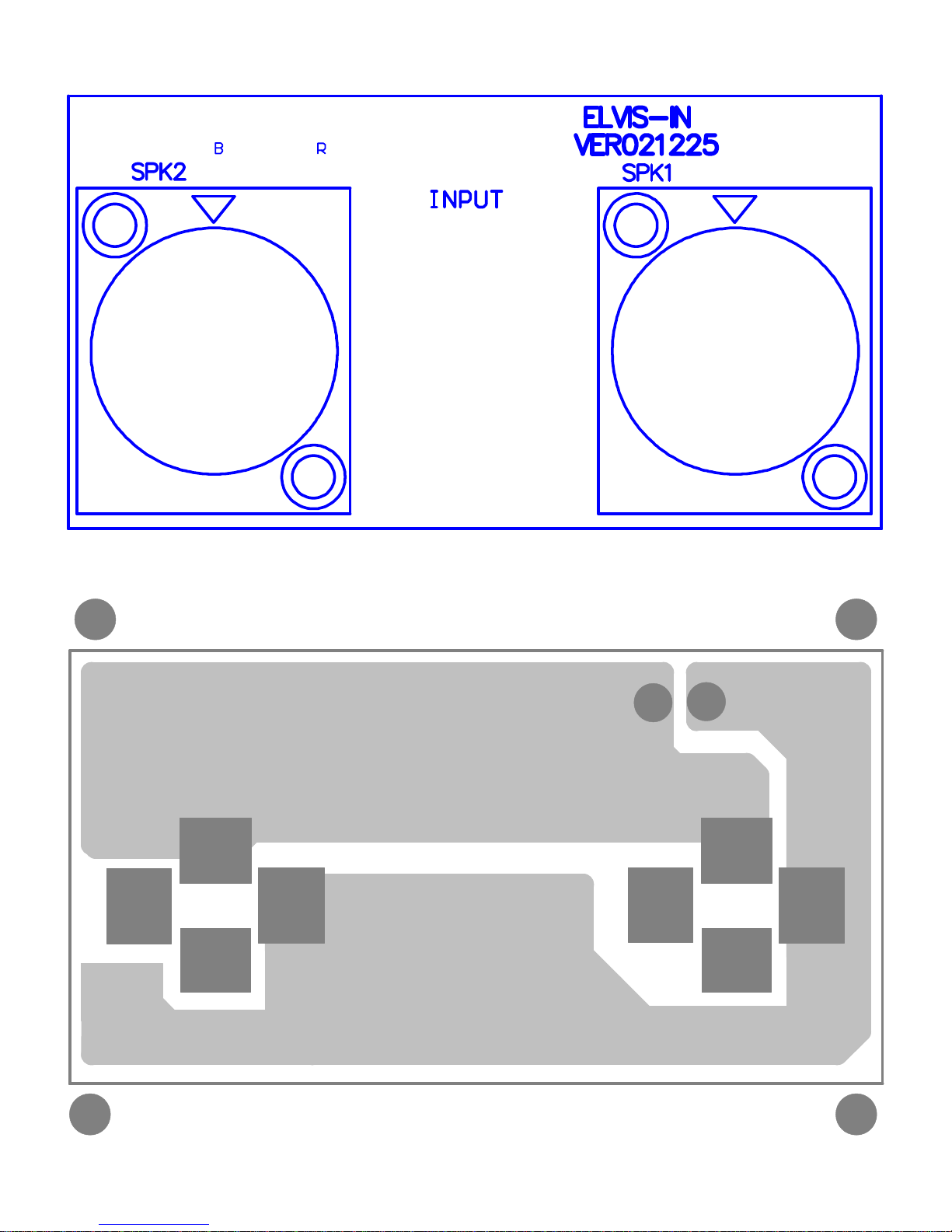

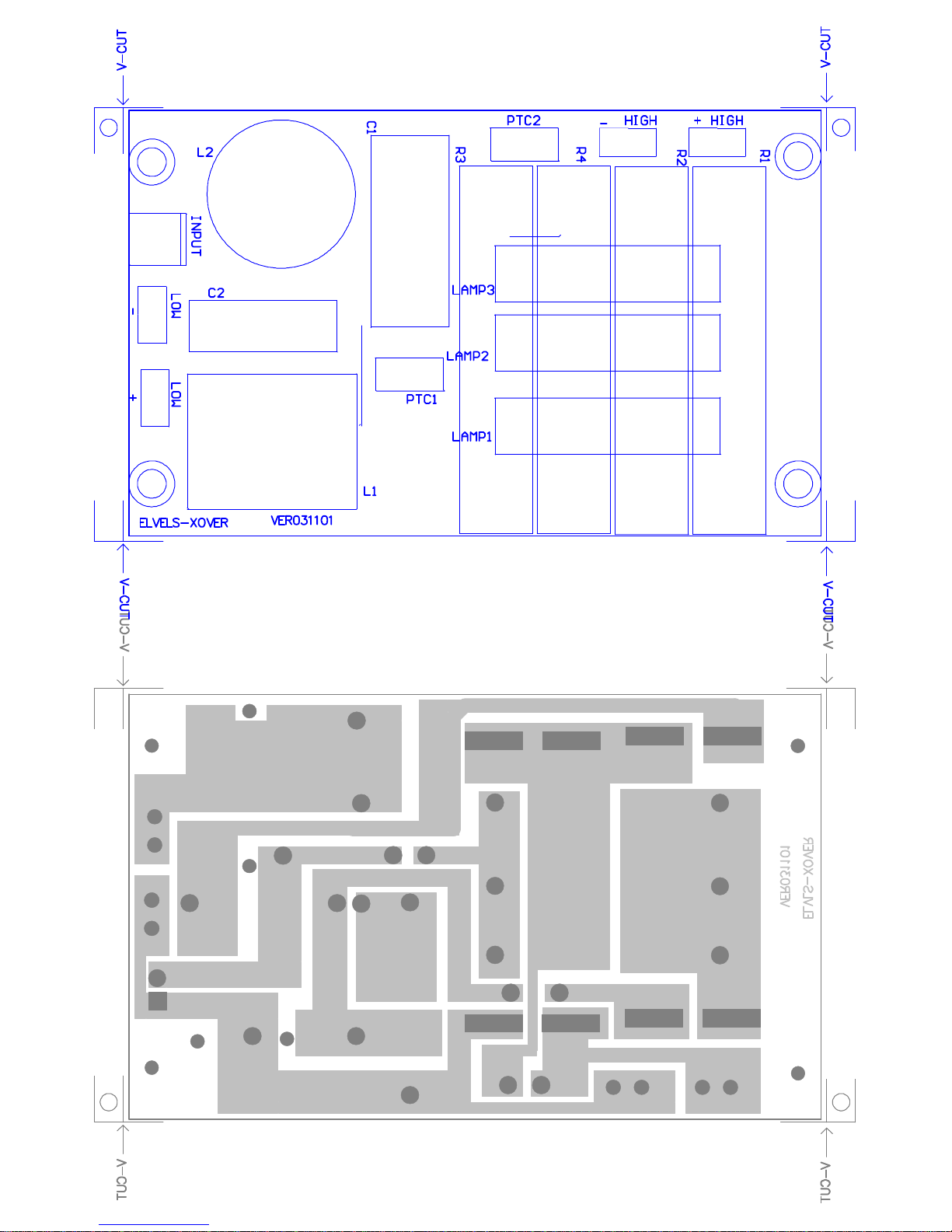

5. PCB Layout..........................................................................................................7

6. Exploded View & Mechanical Parts List………….......……………….…..10

7. BOM…..................................................................………………............……….16

1. Introduction

These cabinetsis designed for professional stage performance .Using density

Particle Board and high quality carpet for the body of the cabinet made it more

durable .The special handle shows unique Italy style. With the accurate

crossover point made the timbre very clean.

ES12M adopt special horn in polypropylene reinforced. With wide directional

angle 80°±10°(1KHZ-16KHZ)and 180W AES/360W Peak power. Matching the

ELVIS 12S/15S(SUB WOOFER) with ELVIS 12/15 made the acoustics of the

cabinet clean and the bass strong.All thesecharacters made it very suitable

for any place.

Technical specification ELVIS 12S

Power Handling 200W AES (rated power) /400W Peak (peak power)

Sensitivity (SPL 1W,1m) 97dB / 119dB

Frequency Response 50Hz ~ 20kHz ± 6dB

Impedance 4ΩNominal

Crossover Frequency 125Hz

High-Frequency Crossover Type

Low-Frequency Crossover Type 6dB/octave

LOW-Frequency High-Frequency 12"/318mm Woofer

Horn Coverage H -V

Input Connectors input/output Pin1+ ;Pin1-

Dimensions H: 495 mm (19.5") W: 400mm(15.7") D: 455 mm (17.9")

Net Weight 51.15 lbs / 23.2kg

Shipping Weight 57.98 lbs / 26.3kg

Volume 6.15CFT

Technical specification ELVIS 12 M ( 2-way)

Power Handling 180W AES(rated power) / 360W Peak(peak power)

Sensitivity (SPL 1W,1m) 97dB / 119 Max

Frequency Response 60Hz ~ 20kHz ± 6dB

Impedance 8 ΩNominal

Crossover Frequency 2500Hz

High-Frequency Crossover Type 12dB/octave

Low-Frequency Crossover Type 12dB/octave

LOW-Frequency High-Frequency 12"/318mm Woofer 1" Compression Driver

Horn Coverage H -V 80° ± 10° ( 1kHz - 16kHz)

Input Connectors input/link Pin1+ ;Pin1-

Dimensions H:615 mm (24.2") W: 400 mm(15.7") D: 345 mm (13.5")

Net Weight 38.93 lbs /17.66 kg

Shipping Weight 46.29lbs /21 kg

Volume 6.10CFT

Technical specification ELVIS 15S

Power Handling 300W AES(rated power) /600W Peak((peak power)

Sensitivity (SPL 1W,1m) 98dB / 122Max

Frequency Response 45Hz ~ 20kHz +/- 6dB

Impedance 4 ΩNominal

Crossover Frequency 125Hz

High-Frequency Crossover Type

Low-Frequency Crossover Type 6dB/octave

LOW-Frequency High-Frequency 15" /385mm Woofer

Horn Coverage H -V

Dimensions H: 565 mm(22.2") W: 455mm(17.9") D: 525 mm(20.6")

Net Weight 65.48 lbs / 29.7 kg

Shipping Weight 74.52 lbs / 33.8 kg

Volume 8.67CFT

1 2 34

321

SPK2

SPK1

INPUT

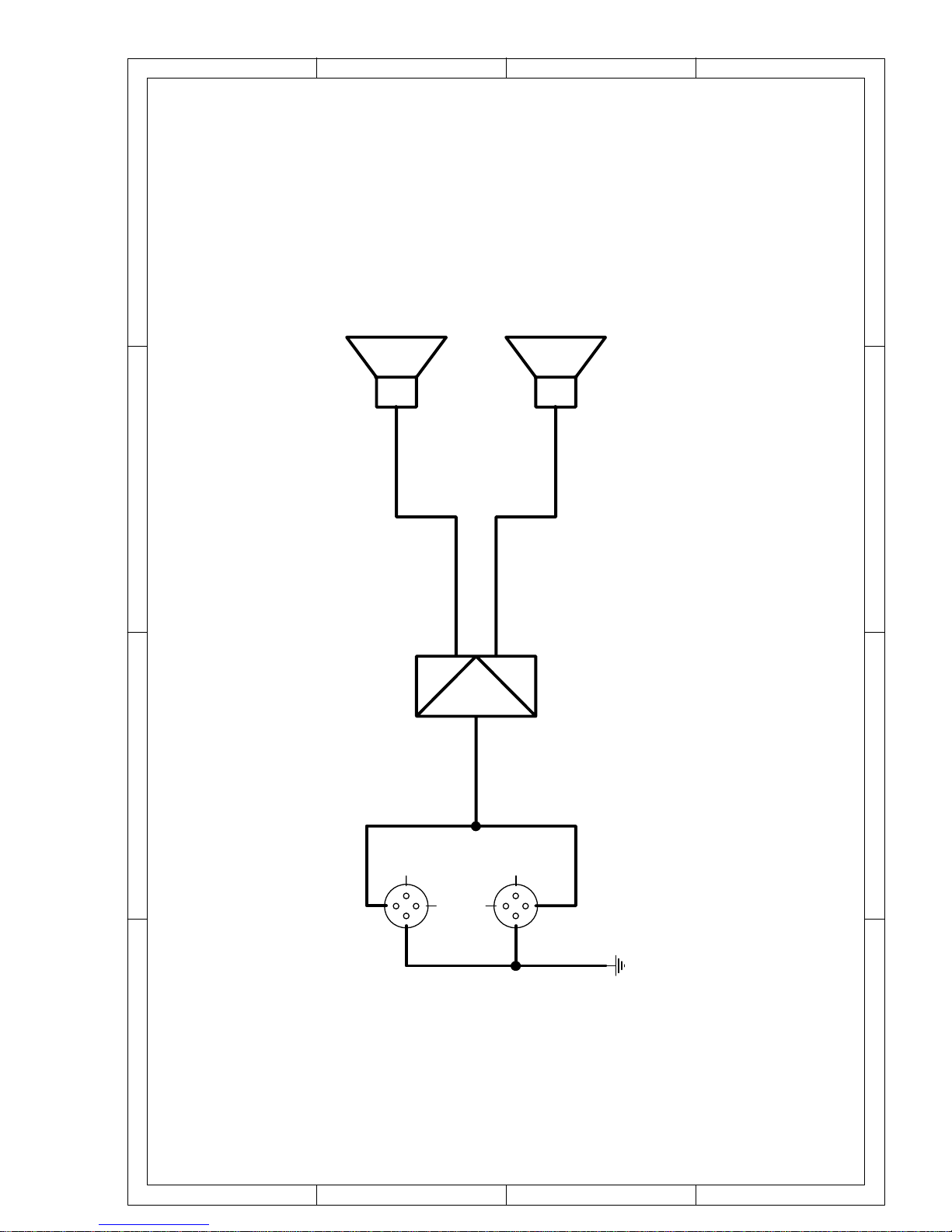

BLOCK DIAGRAM

CROSSOVER CIRCUIT

DRIVER SPEAKER

WOOFER SPEAKER

1 2 34

321

S2B

SPK2

S1B

SPK1

INPUT

OUTPUT

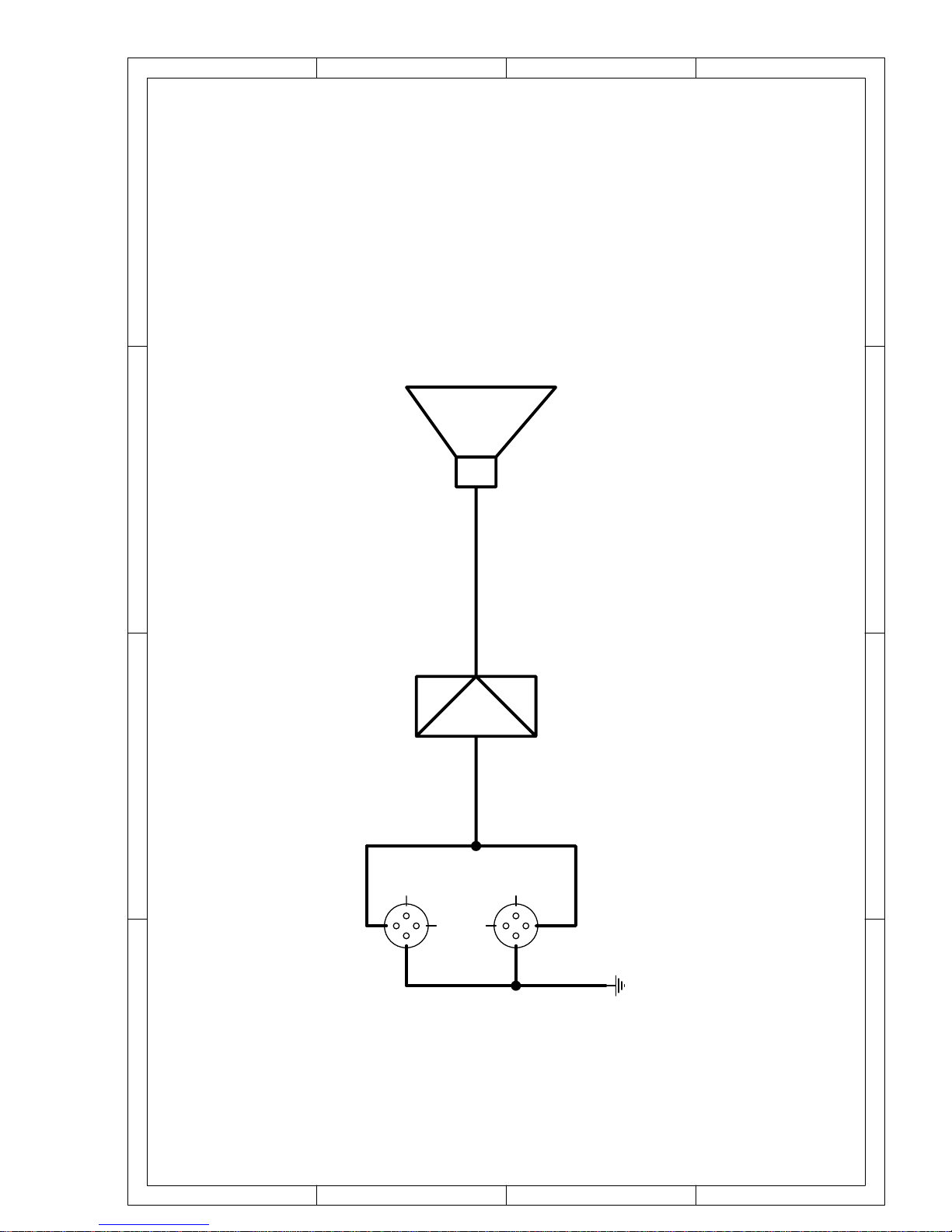

BLOCK DIAGRAM

CROSSOVER CIRCUIT SUB WOOFER SPEAKER

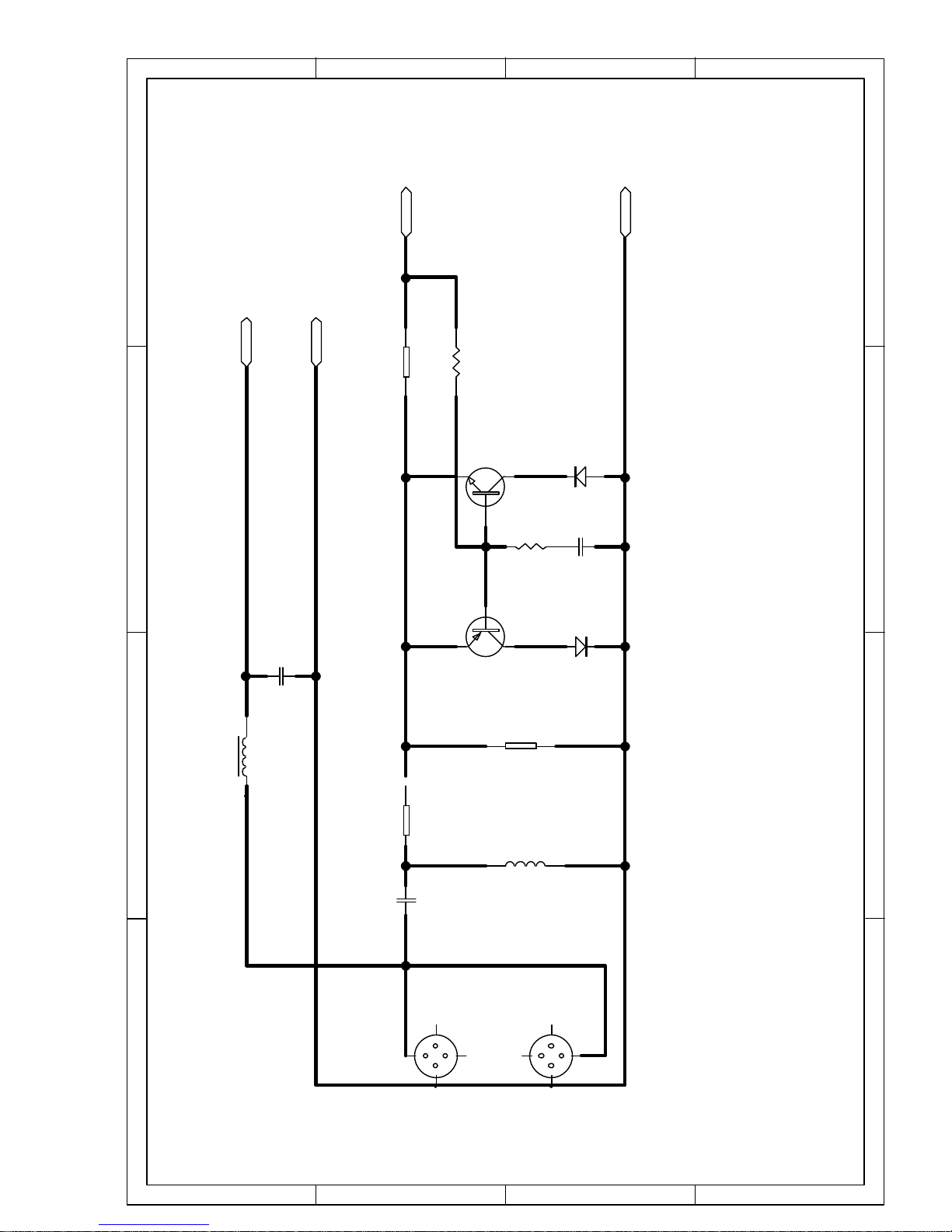

1234

4321

SPK1

SPK2

INPUT R2

39 Ohm/20W

1.5 Ohm 20W

1.5 Ohm/20W

680 Ohm 1/4W

100 Ohm 1/4W

C3 6.8nF/400V

10uF/250V

0.36mH

1.5mH

TR2

TIP122

FE6D D2

FR6D

TR1

TIP127

LOW WOOFER

HIGH DRIVER

3.3uF/250V

1234

4321

S2B

SPK2

S1B

SPK1

3.3UF/250V

47UF/100V

47UF/100V C2

47UF/100V

4.2mH

INPUT

LOW+

LOW-

OUTPUT
