Alto DPA 2500 Manuel utilisateur

www.altoproaudio.com

Version2.0

MODEL: PS 4LA

MODEL:DPA 2500/4000

CONTENTS

1. Introduction…………………………………………………………….2

2. Specification…………………………………………………………....3

3. Schematic Diagram……………………………………………………4

4. Wiring Diagram………………………………………………………..17

5. PCB Layout…………………………………………………………….19

6. Test Procedure & Test Result………………………………………25

7. Exploded Views & Mechanical Part List………………………….30

8. BOM…………………..…………………………………………………33

1. Introduction

ALTO MISTRAL amplifiers are series of innovative design power amplifiers. This series work

under high stability with great power supply in just 2-rack spaces. Air flow is from back to front

panel to keep in a nice air circulation inside the Rack. The automatic fan, which affects machines’

temperature includes various kinds of speed, therefore, this low-noise fan makes a good result in

cooling the heat from machines.

MISTRAL amplifiers include 2 independent channels with separate protection system and

power supply. The independent protection system avoids opening circuit, short, wrong loading or

over-heating. The special-designed protective system applies automatically restarting functions

upon the default status and then goes back to normal.

All electronic inputs equip standard power connectors. And all inputs are electronic balanced,

with hi-quality transformer, MISTRAL amplifiers provide an outstanding performance in any

conditions.

zInnovative design and high stability power amplifiers.

zFan-cooled AB class high power amplifier in 19”rack, 2Usize

zRugged amplifiers in a strong, compact chassis.

z2 independent channels with separate protection system and power supply

zsmart-designed protection system for auto re-operation after fault.

zAuto-adjusting speed fan.

z4LEDs for operation/protection, limit, power on and clip

zHIGH-CURRENT TOROIDAL TRANSFORMER DESIGNED FOR HIGH POWER AT 2

Ohms with low noise.

zIndependent DC and thermal overload protection on each channel.

zIEC standard power connectors.

zBinding post and NEUTRIK® SPEAKON outputs power connectors.

zBalanced XLR inputs/ parallel outputs.

2. Specification

Output power DPA2500 DPA 4000

20Hz-20KHz @0.1% THD, SCD MODE

8Ohms per channel(EIAJ) 450W 625W

4Ohms per channel (EIAJ) 700W 1000W

Bridge MONO mode

8Ohms ,1KHz, 0.1% THD 1400W 2000W

Distortion (SMPTE-IM) <0.05%

Frequency response 20Hz-20KHz=/-0.1dB, -3dB points:10Hz-60Hz

Damping factor ,1 kHz and below >300 at 8 Ohms

Signal to noise ,20Hz`20KHz 102dB

Voltage Gain 40 Χ(32dB)

Input sensitivity @4Ohms 1Vrms

Input clipping 10Vrms(+22dB)

Input impedance 10kOhms unbalanced, 20k Ohms balanced 56(36dB)

Controls Front :AC switch ,CH1&CH2 Gain knobs

Rear :Limiter bridge selector

Indicators (1per channel)

Power-on : Blue LED

Operation/Protection: Dual Color(green/red LED)

Limit: Red LED

Clip: Red LED

Connectors, each channel

Input: Active balanced XLR

Parallel output: XLR

Output: NEUTRIK speaker and binding posts

Cooling Continuously variable-speed fan, rear-to front air flow

Load protection On/off muting, DC-fault load grounding relay, internal

fault fuses.

Power requirements 200-240(100-120)VAC 50-60Hz

Dimensions 19”(48.3cm) rack mounting, 3.5”(8.9cm) tall (2rackspaces)

15.9”(40cm)deep (rack mounting to rear support ears)

weight 18.1kg (Net) 20.5kg (Net)

1 2 3 4 5 6 78

7654321

C1_15

C1_16

1000uF/100V

C1_17

C1_18

C1_19

C1_20

C1_21

C1_22

C1_23

C1_24

C1_25

C1_26

12x1000uF/100V

R1_25

22R 1W

R1_28

0.22 5W

R1_29

0.22 5W

Q1_5 Q1_6

D1_9

1N4148

+83V_A

D1_15

1N5402

GND1

4xTR-93P(ALTO)

Q1_1

MJE15032

R1_23

1K 5W

R1_24

1K 5W

C1_40

22nF/100V poly

C1_13

3.3nF/50 cer

C1_14

3.3nF/50 cer

R1_62

5R6 1W

R1_22

5R6 1W

GND1

D1_13

1N4148

Q1_2

MJE15033

D1_14

1N4148

Q1_9 Q1_10 Q1_11 Q1_12

R1_32

22R 1W

R1_33

0.22 5W

R1_34

0.22 5W

R1_35

0.22 5W

R1_36

0.22 5W

GND1

-83V_A

D1_16

1N5402

D1_11

D1_12

D1_5

1N4936

D1_6

1N4936

C1_11

560pF/50 cer

C1_12

N/C

D1_7

ZD5V6 1/2W

R1_14

820R

R1_15

3K3 10W

R1_18

820R

R1_19

3K3 10W

D1_8

ZD5V6 1/2W

D1_10

1N4148

V1+

D1_1

ZD15V1.3W C1_8

220uF/25V

GND1

D1_2

W2 - 0 4

R1_9

100R

GND1

V1-

C1_7

56pF/50 cer

R1_8

10K

C1_10

27pF/50 cer

R1_11

15K SPEAKERS BUS

R1_10

330R

C1_9

GND1

R1_6

4K7

R1_7 4K7

GND1

CH1 GAIN

C1_6

47uF/35V D1_4

ZD15V1.3W

C1_45

220uF/25V

GND1

RB1_1A

4x10K RB1_1B

4x10K

C1_3

100pF/50 cer

C1_5

47uF/35V

RB1_1C

4x10K

RB1_1D

4x10K

C1_4

100pF/50 cer

C1_2

22uF/50V

GND1

C1_1

22uF/50V

T1_1

FCT TAUD600

GND1

R1_17

NTC 50R

R1_16

TRIMMER 100R

R1_20

TRIMMER 1K

R1_21

TRIMMER 1K

U1_1A

NJM4560L

U1_1B

NJM4560L

U1_1C

NJM4580L

V1+

V1-

TP1_3

TP1_6

R1_5

3P-2.5

J1_4

3P2.5

J1_5

3P2.5

MIS25-CH1.Sch

Titel

Size

File:

Date:

Drawn By:

Sheet

RevisionModel No:

9-Apr-2004

KEVIN LIN.

ALTO MISTRAL2500-CH1 DRIVE

21of

MISTRAL2500 VER031212

PCB# MIS4000.PCB

U1_2A

NJM4560L

U1_2B

NJM4560L

GND1

R1_53

8K2

R1_54

10K

C1_35

56pF/50 cer

U1_2C

NJM4580L

V1+

V1-

CH1 PI LOTLI M

R1_52

47R

D1_24

W2 - 0 4

3S1_1A

SW2C_2P

(CH1 LIMITER MODE)

GND1 R1_55

330R

C1_37

220uF/16V

2 3

U1_5

VTL5C2

GND1

R1_51

100K

GND1

C1_36

56pF/50 cer

GND1

(FTR VT90N1 VACTEC+)

1 2

3 4

5 6

7 8

910

JP1_16

HEADER 5X2

R1_57

100R

R1_56

82K 1/2W

R1_58

68K 1/2W

+83V_A

-83V_A

GND1

1 2

3 4

5 6

7 8

910

JP1_3

HEADER 5X2

GND1 GND1

CH1 INSERT CONNECTOR

2 1

D1_25

1N4004

V1+ 2 1

D1_26

1N4004

V1-

CH1 INSERT IN

CH1 INSERT OUT

J1_2

XLR MALE90

J1_1

XLR FEMALE90

CH1 INPUT

GND1

1 2

3 4

5 6

7 8

910

JP1_15

HEADER 5X2

GND1 GND1

6S1_1B

SWITCH 2C_2P

NORMAL

BRIDGED

TO USE ONLY CH2 PUT JUMPER ON PIN 6&8

CH1 CLIP+

OUTPUT STAGE_A 1 2

L1_1

2uH 10A

1 2

R1_39

5R6 2W

R1_40

12R 5W

R1_41

12R 5W

C1_31

68nF/250V poly

GND1

K1_1

RELAY VBS SERIES

D1_23

1N4004

GND1

CH1 OUTPUT

JP1_1

CN-PCB6. 3

JP1_2

CN-PCB6. 3

GND1

SPEAKON PCB

CH1 OUTP UT

D1_19

W2 - 0 4

R1_44

6K8 1W

R1_43

100K

Q1_16

MPSA92

R1_42

330K

Q1_15

MPSA92

D1_17

5mm RED LED

R1_46

100K R1_47 47K

D1_18

ZD7V5 1/2W

Q1_17

MPSA42

R1_48

330K

D1_20

1N4004

TURN ON DELAY

C1_32

10uF/63

C1_33

47uF/63V

R1_45

1K5 C1_ 34

220uF/16V NP

D1_21

ZD36V 1W

R1_63

1K 3W

D1_22

1N4004

R1_50

PTC 65R

R1_49

10K 5W

+83V_A

100R/10K

GND1

CH1 BILED2

RELAY POWER1

CH1 BILED2

CH1 CLIP-

CH1 CLIP+

CH1 CLIP-

CH1 IN-

CH1 IN+

(PARALLEL OUTPUT)

-V_FAN_CH1

VAC FAN1-CH1

FAN OUT CH1

VAC FAN2-CH1

JP1_5

CN-PCB6. 3

JP1_6

CN-PCB6. 3

JP1_9

JEF-505

JP1_10

JEF-505

RECTIFIER BRIDGE1+

+83V_A

COM1

JP1_7

CN-PCB6. 3

JP1_8

CN-PCB6. 3

JP1_11

JEF-505

JP1_12

JEF-505

RECTIFIER BRIDGE1-

-83V_A

AC INPUT

JP1_13

HEADER 3

D1_27

W2 - 0 4

C1_42

470uF/35V

U1_4

LM317T

12 R1_1

1K8

R1_2

150R

C1_44

100nF/50 cer

C1_43

10uF/63

D1_28

1N4004

JP1_14

2P2.5

+12V

FAN

OUTPUT STAGE_A

RELAY POWER1

6.3x32 FUSE HOLDER

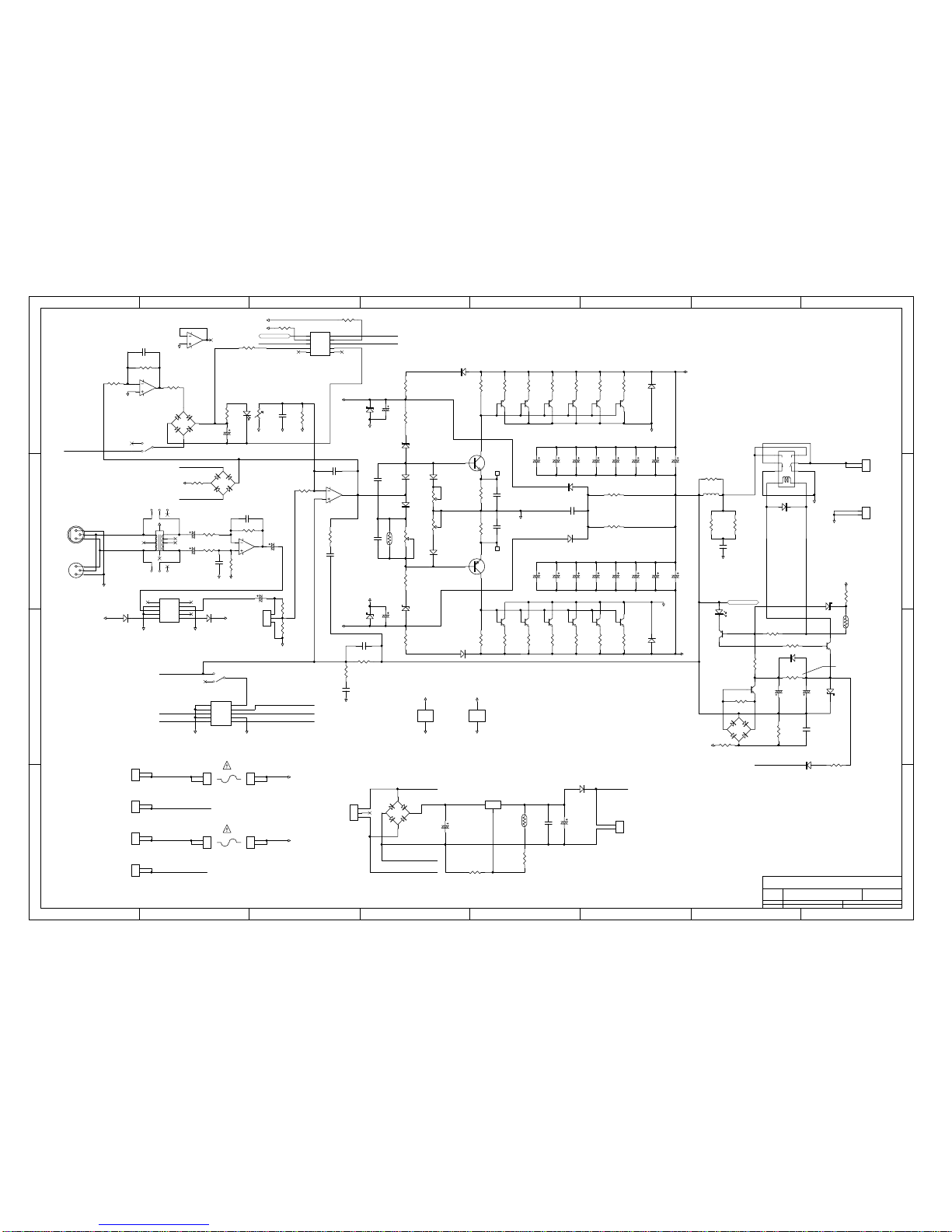

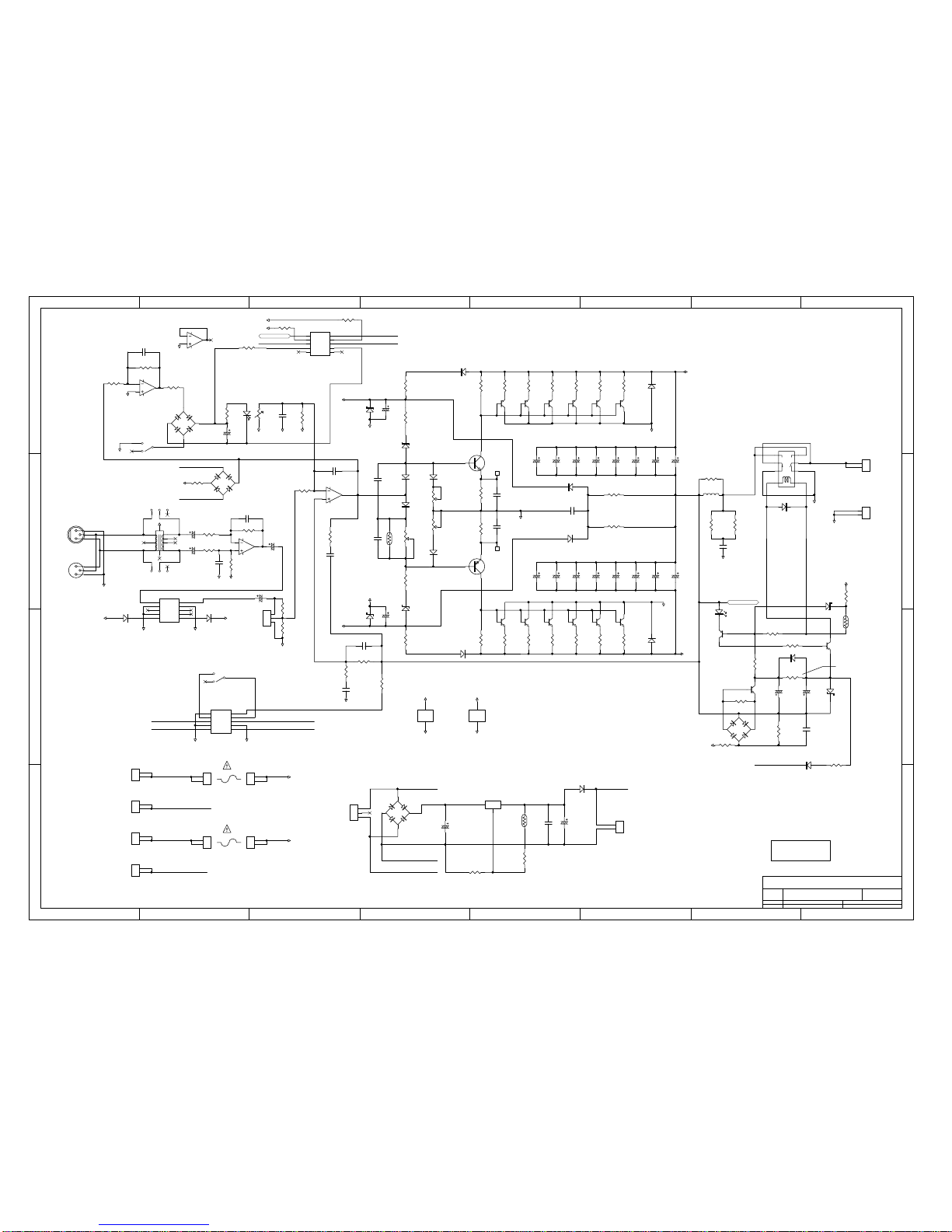

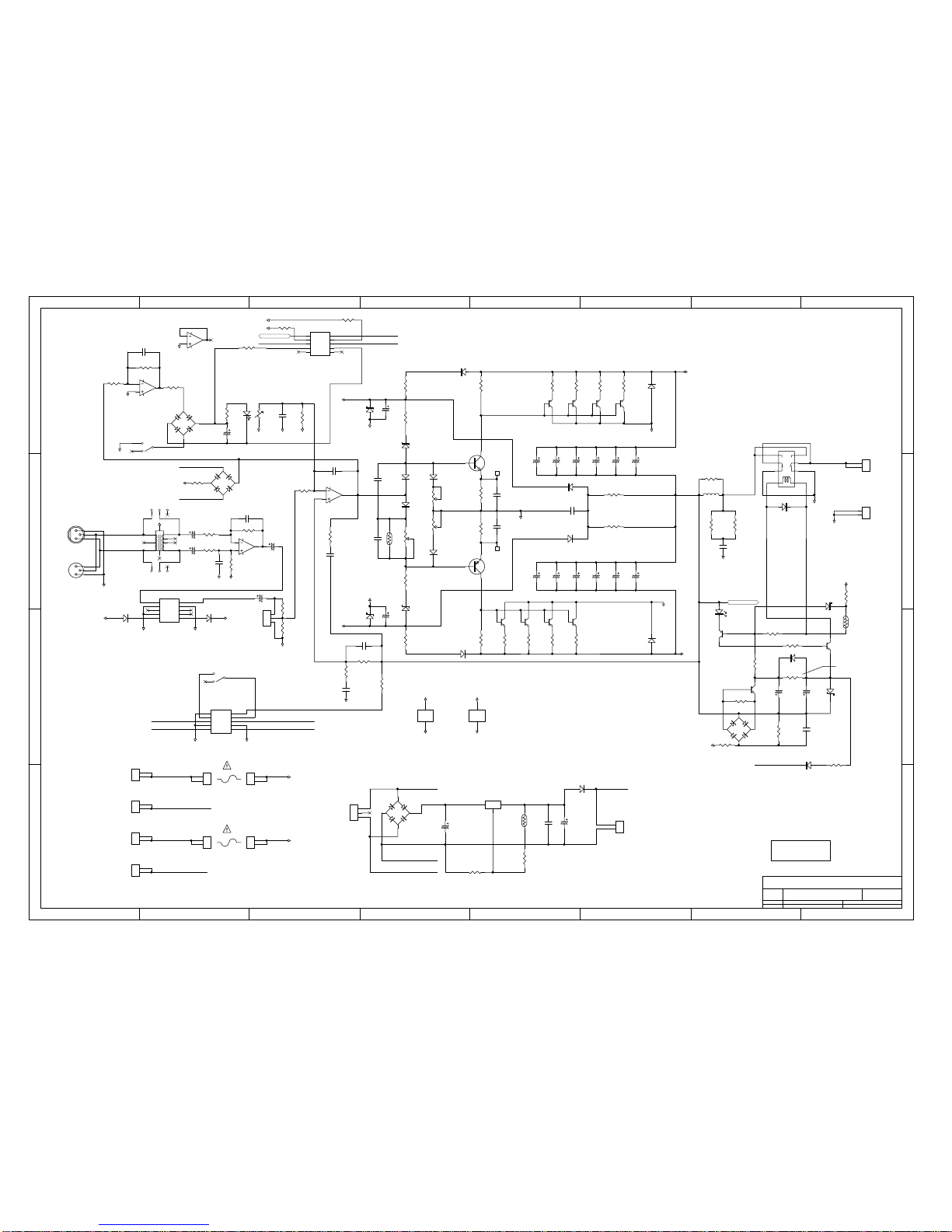

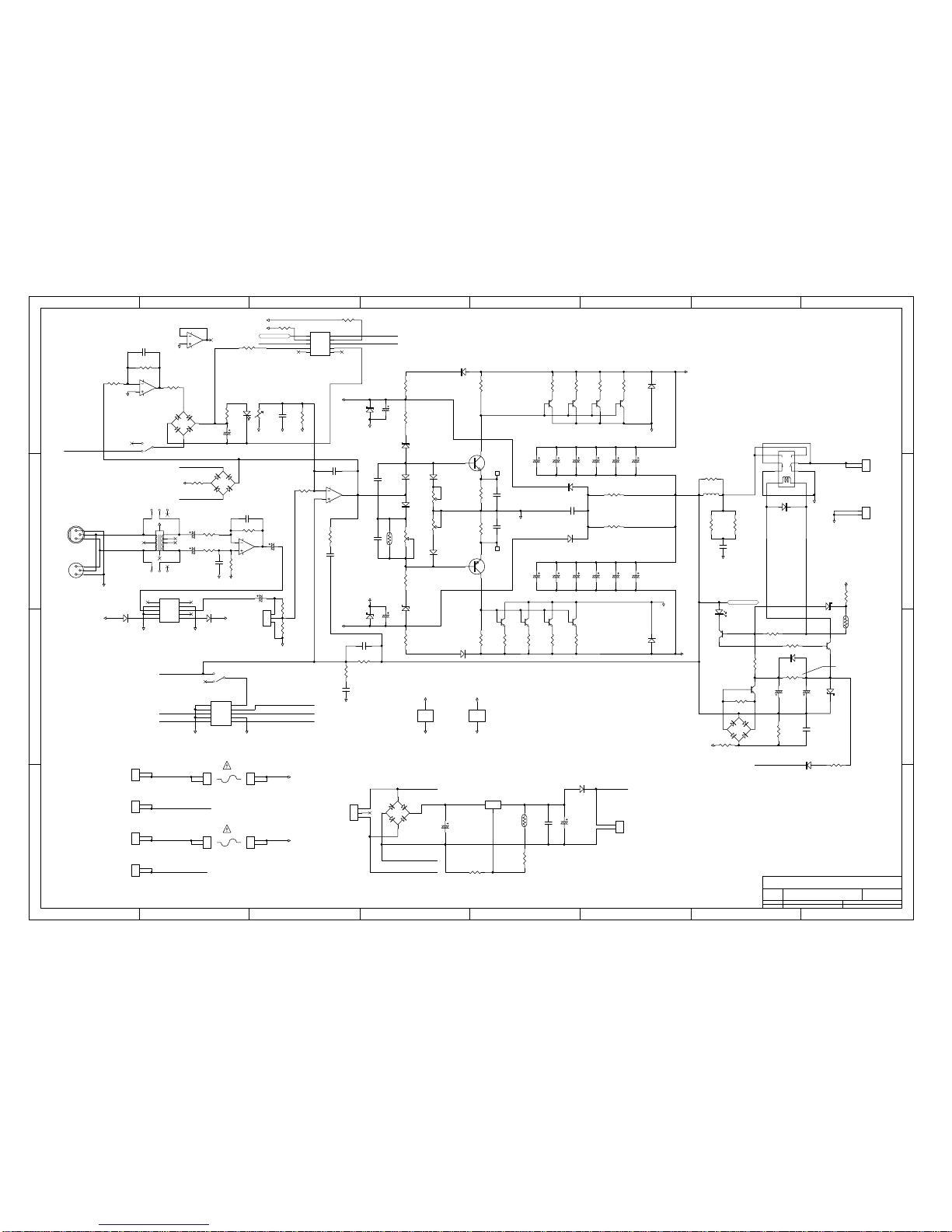

MISTRAL2500 Schematic Diagram 1 of 2

FUSE1-1

16AT

FUSE1-2

16AT

R1_3

NTC 100R

FAN OUT CH1

-V_FAN_CH1

VAC FAN1-CH1

VAC FAN2-CH1

ON/PROTECTION

(OPTION)

CH1 PHOTO COUPLER

-15V

+15V

CH1 BILED1

GND1

R1_64

15K

CH1 BRIDGE SWITCH

CH2 AMPLIFIER

MIS25-CH2. SCH

(1.5A 200V)

4xTR-94N(ALTO)

R1_30

0.22 5W

R1_31

0.22 5W

Q1_7 Q1_8

R1_13

68R

C1_38

1.5nF/250 cer

1 2 3 4 5 6 78

7654321

C2_15

C2_16

1000uF/100V

C2_17

C2_18

C2_19

C2_20

C2_21

C2_22

C2_23

C2_24

C2_25

C2_26

12x1000uF/100V

R2_25

22R 1W

R2_28

0.22 5W

R2_29

0.22 5W

R2_30

0.22 5W

Q2_5

R2_31

0.22 5W

Q2_6

D2_9

1N4148

Q2_7

+83V_B

Q2_8

D2_15

1N5402

GND2

4xTR-93P(ALTO)

Q2_1

MJE15032

R2_23

1K 5W

R2_24

1K 5W

C2_40

22nF/100V poly

C2_13

3.3nF/50 cer

C2_14

3.3nF/50 cer

R2_62

5R6 1W

R2_22

5R6 1W

GND2

D2_13

1N4148

Q2_2

MJE15033

D2_14

1N4148

Q2_9 Q2_10 Q2_11 Q2_12

R2_32

22R 1W

R2_33

0.22 5W

R2_34

0.22 5W

R2_35

0.22 5W

R2_36

0.22 5W

GND2

-83V_B

D2_16

1N5402

D2_11

D2_12

D2_5

1N4936

D2_6

1N4936

C2_11

560pF/50 cer

C2_12

N/C

D2_7

ZD5V6 1/2W

R2_14

820R

R2_15

3K3 10W

R2_18

820R

R2_19

3K3 10W

D2_8

ZD5V6 1/2W

D2_10

1N4148

V2+

D2_1

ZD15V1.3W C2_8

220uF/25V

GND2

D2_2

W2 - 0 4

R2_9

100R

GND2

V2-

C2_7

56pF/50 cer

R2_8

10K

C2_10

27pF/50 cer

R2_11

15K SPEAKERS BUS

R2_10

330R

C2_9

GND2

R2_6

4K7

R2_7 4K7

GND2

CH2 GAIN

C2_6

47uF/35V D2_4

ZD15V1.3W

C2_45

220uF/25V

GND2

RB2_1A

4x10K RB2_1B

4x10K

C2_3

100pF/50 cer

C2_5

47uF/35V

RB2_1C

4x10K

RB2_1D

4x10K

C2_4

100pF/50 cer

C2_2

22uF/50V

GND2

C2_1

22uF/50V

T2_1

FCT TAUD600

GND2

R2_17

NTC 50R

R2_16

TRIMMER 100R

R2_20

TRIMMER 1K

R2_21

TRIMMER 1K

U2_1A

NJM4560L

U2_1B

NJM4560L

U2_1C

NJM4580L

V2+

V2-

TP2_3

TP2_6

R2_5

3P-2.5

J2_4

3P2.5

J2_5

3P2.5

MIS25-CH2.Sch

Titel

Size

File:

Date:

Drawn By:

Sheet

RevisionModel No:

9-Apr-2004

KEVIN LIN.

ALTO MISTRAL2500-CH2 DRIVE

21of

MISTRAL2500 VER031212

PCB# MIS4000.PCB

U2_2A

NJM4560L

U2_2B

NJM4560L

GND2

R2_53

8K2

R2_54

10K

C2_35

56pF/50 cer

U2_2C

NJM4580L

V2+

V2-

CH2 PI LOTLI M

R2_52

47R

D2_24

W2 - 0 4

3S2_1A

SW2C_2P

(CH1 LIMITER MODE)

GND2 R2_55

330R

C2_37

220uF/16V

2 3

U2_5

VTL5C2

GND2

R2_51

100K

GND2

C2_36

56pF/50 cer

GND2

(FTR VT90N1 VACTEC+)

1 2

3 4

5 6

7 8

910

JP2_16

HEADER 5X2

R2_57

100R

R2_56

82K 1/2W

R2_58

68K 1/2W

+83V_B

-83V_B

GND2

1 2

3 4

5 6

7 8

910

JP2_3

HEADER 5X2

GND2 GND2

CH2 INSERT CONNECTOR

2 1

D2_25

1N4004

V2+ 2 1

D2_26

1N4004

V2-

CH2 INSERT IN

CH2 INSERT OUT

J2_2

XLR MALE90

J2_1

XLR FEMALE90

CH2 INPUT

GND2

1 2

3 4

5 6

7 8

910

JP2_15

HEADER 5X2

GND2 GND2

6S2_1B

SWITCH 2C_2P

NORMAL

BRIDGED

TO USE ONLY CH2 PUT JUMPER ON PIN 6&8

CH2 CLIP+

OUTPUT STAGE_B 1 2

L2_1

2uH 10A

1 2

R2_39

5R6 2W

R2_40

12R 5W

R2_41

12R 5W

C2_31

68nF/250V poly

GND2

K2_1

RELAY VBS SERIES

D2_23

1N4004

GND2

CH2 OUTPUT

JP2_1

CN-PCB6. 3

JP2_2

CN-PCB6. 3

GND2

SPEAKON PCB

CH2 OUTP UT

D2_19

W2 - 0 4

R2_44

6K8 1W

R2_43

100K

Q2_16

MPSA92

R2_42

330K

Q2_15

MPSA92

D2_17

5mm RED LED

R2_46

100K R2_47 47K

D2_18

ZD7V5 1/2W

Q2_17

MPSA42

R2_48

330K

D2_20

1N4004

TURN ON DELAY

C2_32

10uF/63

C2_33

47uF/63V

R2_45

1K5 C2_ 34

220uF/16V NP

D2_21

ZD36V 1W

R2_63

1K 3W

D2_22

1N4004

R2_50

PTC 65R

R2_49

10K 5W

+83V_B

100R/10K

GND2

CH2 BILED2

RELAY POWER2

CH2 BILED2

CH2 CLIP-

CH2 CLIP+

CH2 CLIP-

CH2 LIMITER MODE

CH2 IN-

CH2 IN+

(PARALLEL OUTPUT)

CH2 BRI DGE

-V_FAN_CH2

VAC FAN1

CH2 LIMITER MODE

FAN OUT CH2

VAC FAN2

JP2_5

CN-PCB6. 3

JP2_6

CN-PCB6. 3

JP2_9

JEF-505

JP2_10

JEF-505

RECTIFIER BRIDGE2+

+83V_B

COM2

JP2_7

CN-PCB6. 3

JP2_8

CN-PCB6. 3

JP2_11

JEF-505

JP2_12

JEF-505

RECTIFIER BRIDGE2-

-83V_B

AC INPUT

JP2_13

HEADER 3

D2_27

W2 - 0 4

C2_42

470uF/35V

U2_4

LM317T

12 R2_1

1K8

R2_2

150R

C2_44

100nF/50 cer

C2_43

10uF/63

D2_28

1N4004

JP2_14

2P2.5

+12V

FAN

OUTPUT STAGE_B

RELAY POWER2

6.3x32 FUSE HOLDER

MISTRAL2500 Schematic Diagram 2 of 2

FUSE2-1

16AT

FUSE2-2

16AT

R2_3

NTC 100R

FAN OUT CH2

-V_FAN_CH2

VAC FAN1

VAC FAN2

ON/PROTECTION

(OPTION)

CH2 PHOTO COUPLER

-15V

+15V

CH2 BILED1

(1.5A 200V)

4xTR-94N(ALTO)

R2_13

68R

C2_38

1.5nF/250 cer

1 2 3 4 5 6 78

7654321

C1_15

C1_16

470uF/160V

C1_17

C1_18

C1_19

C1_20

C1_21

C1_22

C1_23

C1_24

C1_25

C1_26

16x470uF/160V

R1_25

22R 1W

R1_28

0.22 5W

R1_29

0.22 5W

R1_30

0.22 5W

R1_31

0.22 5W

Q1_5 Q1_6 Q1_7 Q1_8

D1_9

1N4148

+83V_A

D1_15

1N5402

GND1

5xTR-93P(ALTO)

Q1_1

MJE15032

R1_23

1K5 5W

R1_24

1K5 5W

C1_40

22nF/100V poly

C1_13

3.3nF/50 cer

C1_14

3.3nF/50 cer

R1_62

5R6 1W

R1_22

5R6 1W

GND1

D1_13

1N4148

Q1_2

MJE15033

D1_14

1N4148

Q1_9 Q1_10 Q1_11 Q1_12

R1_32

22R 1W

R1_33

0.22 5W

R1_34

0.22 5W

R1_35

0.22 5W

R1_36

0.22 5W

GND1

-83V_A

D1_16

1N5402

D1_11

D1_12

D1_5

1N4936

D1_6

1N4936

C1_11

560pF/50 cer

C1_12

N/C

D1_7

ZD5V6 1/2W

R1_14

820R

R1_15

4K8 10W

R1_18

820R

R1_19

4K8 10W

D1_8

ZD5V6 1/2W

D1_10

1N4148

V1+

D1_1

ZD15V1.3W C1_8

220uF/25V

GND1

D1_2

W2 - 0 4

R1_9

100R

GND1

V1-

C1_7

56pF/50 cer

R1_8

10K

C1_10

27pF/50 cer

R1_11

15K SPEAKERS BUS

R1_10

330R

C1_9

GND1

R1_6

4K7

R1_7 4K7

GND1

CH1 GAIN

C1_6

47uF/35V D1_4

ZD15V1.3W

C1_45

220uF/25V

GND1

RB1_1A

4x10K RB1_1B

4x10K

C1_3

100pF/50 cer

C1_5

47uF/35V

RB1_1C

4x10K

RB1_1D

4x10K

C1_4

100pF/50 cer

C1_2

22uF/50V

GND1

C1_1

22uF/50V

T1_1

FCT TAUD600

GND1

R1_17

NTC 50R

R1_16

TRIMMER 100R

R1_20

TRIMMER 2K2

R1_21

TRIMMER 2K2

U1_1A

NJM4560L

U1_1B

NJM4560L

U1_1C

NJM4580L

V1+

V1-

TP1_3

TP1_6

R1_5

3P-2.5

J1_4

3P2.5

J1_5

3P2.5

MIS40-CH1.Sch

Titel

Size

File:

Date:

Drawn By:

Sheet

RevisionModel No:

9-Apr-2004

KEVIN LIN.

ALTO MISTRAL4000-CH1 DRIVE

21of

MISTRAL4000 VER031212

PCB# MIS4000.PCB

U1_2A

NJM4560L

U1_2B

NJM4560L

GND1

R1_53

8K2

R1_54

10K

C1_35

56pF/50 cer

U1_2C

NJM4580L

V1+

V1-

CH1 PI LOTLI M

R1_52

47R

D1_24

W2 - 0 4

3S1_1A

SW2C_2P

(CH1 LIMITER MODE)

GND1 R1_55

330R

C1_37

220uF/16V

2 3

U1_5

VTL5C2

GND1

R1_51

100K

GND1

C1_36

56pF/50 cer

GND1

(FTR VT90N1 VACTEC+)

1 2

3 4

5 6

7 8

910

JP1_16

HEADER 5X2

R1_57

100R

R1_56

82K 1/2W

R1_58

68K 1/2W

+83V_A

-83V_A

GND1

1 2

3 4

5 6

7 8

910

JP1_3

HEADER 5X2

GND1 GND1

CH1 INSERT CONNECTOR

2 1

D1_25

1N4004

V1+ 2 1

D1_26

1N4004

V1-

CH1 INSERT IN

CH1 INSERT OUT

J1_2

XLR MALE90

J1_1

XLR FEMALE90

CH1 INPUT

GND1

1 2

3 4

5 6

7 8

910

JP1_15

HEADER 5X2

GND1 GND1

6S1_1B

SWITCH 2C_2P

NORMAL

BRIDGED

TO USE ONLY CH2 PUT JUMPER ON PIN 6&8

CH1 CLIP+

OUTPUT STAGE_A 1 2

L1_1

2uH 10A

1 2

R1_39

5R6 2W

R1_40

12R 5W

R1_41

12R 5W

C1_31

68nF/250V poly

GND1

K1_1

RELAY VBS SERIES

D1_23

1N4004

GND1

CH1 OUTPUT

JP1_1

CN-PCB6. 3

JP1_2

CN-PCB6. 3

GND1

SPEAKON PCB

CH1 OUTP UT

D1_19

W2 - 0 4

R1_44

6K8 1W

R1_43

100K

Q1_16

MPSA92

R1_42

330K

Q1_15

MPSA92

D1_17

5mm RED LED

R1_46

100K R1_47 47K

D1_18

ZD7V5 1/2W

Q1_17

MPSA42

R1_48

330K

D1_20

1N4004

TURN ON DELAY

C1_32

10uF/63

C1_33

47uF/63V

R1_45

1K5 C1_ 34

220uF/16V NP

D1_21

ZD36V 1W

R1_63

1K 3W

D1_22

1N4004

R1_50

PTC 65R

R1_49

10K 5W

+83V_A

100R/10K

GND1

CH1 BILED2

RELAY POWER1

CH1 BILED2

CH1 CLIP-

CH1 CLIP+

CH1 CLIP-

CH1 IN-

CH1 IN+

(PARALLEL OUTPUT)

-V_FAN_CH1

VAC FAN1-CH1

FAN OUT CH1

VAC FAN2-CH1

JP1_5

CN-PCB6. 3

JP1_6

CN-PCB6. 3

JP1_9

JEF-505

JP1_10

JEF-505

RECTIFIER BRIDGE1+

+83V_A

COM1

JP1_7

CN-PCB6. 3

JP1_8

CN-PCB6. 3

JP1_11

JEF-505

JP1_12

JEF-505

RECTIFIER BRIDGE1-

-83V_A

AC INPUT

JP1_13

HEADER 3

D1_27

W2 - 0 4

C1_42

470uF/35V

U1_4

LM317T

12 R1_1

1K8

R1_2

150R

C1_44

100nF/50 cer

C1_43

10uF/63

D1_28

1N4004

JP1_14

2P2.5

+12V

FAN

OUTPUT STAGE_A

RELAY POWER1

6.3x32 FUSE HOLDER

MISTRAL4000 Schematic Diagram 1 of 2

FUSE1-1

10AT

FUSE1-2

10AT

R1_3

NTC 100R

FAN OUT CH1

-V_FAN_CH1

VAC FAN1-CH1

VAC FAN2-CH1

ON/PROTECTION

(OPTION)

CH1 PHOTO COUPLER

-15V

+15V

CH1 BILED1

GND1

R1_64

15K

CH1 BRIDGE SWITCH

CH2 AMPLIFIER

MIS40-CH2. SCH

(1.5A 200V)

5xTR-94N(ALTO)

R1_27

0.22 5W

Q2_4

Q1_13

R2_37

0.22 5W

C1_28 C1_30

C1_27 C1_29

R1_13

68R

C1_38

1.5nF/250 cer

R1_26

0.22 5W

Q2_3

Q1_14

R2_38

0.22 5W

1 2 3 4 5 6 78

7654321

C2_15

C2_16

470uF/160V

C2_17

C2_18

C2_19

C2_20

C2_21

C2_22

C2_23

C2_24

C2_25

C2_26

12x470uF/160V

R2_25

22R 1W

R2_28

0.22 5W

R2_29

0.22 5W

R2_30

0.22 5W

R2_31

0.22 5W

Q2_5 Q2_6 Q2_7 Q2_8

D2_9

1N4148

+83V_B

D2_15

1N5402

GND2

5xTR-93P(ALTO)

Q2_1

MJE15032

R2_23

1K5 5W

R2_24

1K5 5W

C2_40

22nF/100V poly

C2_13

3.3nF/50 cer

C2_14

3.3nF/50 cer

R2_62

5R6 1W

R2_22

5R6 1W

GND2

D2_13

1N4148

Q2_2

MJE15033

D2_14

1N4148

Q2_9 Q2_10 Q2_11 Q2_12

R2_32

22R 1W

R2_33

0.22 5W

R2_34

0.22 5W

R2_35

0.22 5W

R2_36

0.22 5W

GND2

-83V_B

D2_16

1N5402

D2_11

D2_12

D2_5

1N4936

D2_6

1N4936

C2_11

560pF/50 cer

C2_12

N/C

D2_7

ZD5V6 1/2W

R2_14

820R

R2_15

4K8 10W

R2_18

820R

R2_19

4K8 10W

D2_8

ZD5V6 1/2W

D2_10

1N4148

V2+

D2_1

ZD15V1.3W C2_8

220uF/25V

GND2

D2_2

W2 - 0 4

R2_9

100R

GND2

V2-

C2_7

56pF/50 cer

R2_8

10K

C2_10

27pF/50 cer

R2_11

15K SPEAKERS BUS

R2_10

330R

C2_9

GND2

R2_6

4K7

R2_7 4K7

GND2

CH2 GAIN

C2_6

47uF/35V D2_4

ZD15V1.3W

C2_45

220uF/25V

GND2

RB2_1A

4x10K RB2_1B

4x10K

C2_3

100pF/50 cer

C2_5

47uF/35V

RB2_1C

4x10K

RB2_1D

4x10K

C2_4

100pF/50 cer

C2_2

22uF/50V

GND2

C2_1

22uF/50V

T2_1

FCT TAUD600

GND2

R2_17

NTC 50R

R2_16

TRIMMER 100R

R2_20

TRIMMER 2K2

R2_21

TRIMMER 2K2

U2_1A

NJM4560L

U2_1B

NJM4560L

U2_1C

NJM4580L

V2+

V2-

TP2_3

TP2_6

R2_5

3P-2.5

J2_4

3P2.5

J2_5

3P2.5

MIS40-CH2.Sch

Titel

Size

File:

Date:

Drawn By:

Sheet

RevisionModel No:

9-Apr-2004

KEVIN LIN.

ALTO MISTRAL4000-CH2 DRIVE

21of

MISTRAL4000 VER031212

PCB# MIS4000.PCB

U2_2A

NJM4560L

U2_2B

NJM4560L

GND2

R2_53

8K2

R2_54

10K

C2_35

56pF/50 cer

U2_2C

NJM4580L

V2+

V2-

CH2 PI LOTLI M

R2_52

47R

D2_24

W2 - 0 4

3S2_1A

SW2C_2P

(CH1 LIMITER MODE)

GND2 R2_55

330R

C2_37

220uF/16V

2 3

U2_5

VTL5C2

GND2

R2_51

100K

GND2

C2_36

56pF/50 cer

GND2

(FTR VT90N1 VACTEC+)

1 2

3 4

5 6

7 8

910

JP2_16

HEADER 5X2

R2_57

100R

R2_56

82K 1/2W

R2_58

68K 1/2W

+83V_B

-83V_B

GND2

1 2

3 4

5 6

7 8

910

JP2_3

HEADER 5X2

GND2 GND2

CH2 INSERT CONNECTOR

2 1

D2_25

1N4004

V2+ 2 1

D2_26

1N4004

V2-

CH2 INSERT IN

CH2 INSERT OUT

J2_2

XLR MALE90

J2_1

XLR FEMALE90

CH2 INPUT

GND2

1 2

3 4

5 6

7 8

910

JP2_15

HEADER 5X2

GND2 GND2

6S2_1B

SWITCH 2C_2P

NORMAL

BRIDGED

TO USE ONLY CH2 PUT JUMPER ON PIN 6&8

CH2 CLIP+

OUTPUT STAGE_B 1 2

L2_1

2uH 10A

1 2

R2_39

5R6 2W

R2_40

12R 5W

R2_41

12R 5W

C2_31

68nF/250V poly

GND2

K2_1

RELAY VBS SERIES

D2_23

1N4004

GND2

CH2 OUTPUT

JP2_1

CN-PCB6. 3

JP2_2

CN-PCB6. 3

GND2

SPEAKON PCB

CH2 OUTP UT

D2_19

W2 - 0 4

R2_44

6K8 1W

R2_43

100K

Q2_16

MPSA92

R2_42

330K

Q2_15

MPSA92

D2_17

5mm RED LED

R2_46

100K R2_47 47K

D2_18

ZD7V5 1/2W

Q2_17

MPSA42

R2_48

330K

D2_20

1N4004

TURN ON DELAY

C2_32

10uF/63

C2_33

47uF/63V

R2_45

1K5 C2_ 34

220uF/16V NP

D2_21

ZD36V 1W

R2_63

1K 3W

D2_22

1N4004

R2_50

PTC 65R

R2_49

10K 5W

+83V_B

100R/10K

GND2

CH2 BILED2

RELAY POWER2

CH2 BILED2

CH2 CLIP-

CH2 CLIP+

CH2 CLIP-

CH2 LIMITER MODE

CH2 IN-

CH2 IN+

(PARALLEL OUTPUT)

CH2 BRI DGE

-V_FAN_CH2

VAC FAN1

CH2 LIMITER MODE

FAN OUT CH2

VAC FAN2

JP2_5

CN-PCB6. 3

JP2_6

CN-PCB6. 3

JP2_9

JEF-505

JP2_10

JEF-505

RECTIFIER BRIDGE2+

+83V_B

COM2

JP2_7

CN-PCB6. 3

JP2_8

CN-PCB6. 3

JP2_11

JEF-505

JP2_12

JEF-505

RECTIFIER BRIDGE2-

-83V_B

AC INPUT

JP2_13

HEADER 3

D2_27

W2 - 0 4

C2_42

470uF/35V

U2_4

LM317T

12 R2_1

1K8

R2_2

150R

C2_44

100nF/50 cer

C2_43

10uF/63

D2_28

1N4004

JP2_14

2P2.5

+12V

FAN

OUTPUT STAGE_B

RELAY POWER2

6.3x32 FUSE HOLDER

MISTRAL4000 Schematic Diagram 2 of 2

FUSE2-1

10AT

FUSE2-2

10AT

R2_3

NTC 100R

FAN OUT CH2

-V_FAN_CH2

VAC FAN1

VAC FAN2

ON/PROTECTION

(OPTION)

CH2 PHOTO COUPLER

-15V

+15V

CH2 BILED1

(1.5A 200V)

5xTR-94N(ALTO)

R2_27

0.22 5W

Q2_4

Q2_13

R2_37

0.22 5W

C2_28 C2_30

C2_27 C2_29

R2_13

68R

C2_38

1.5nF/250 cer

Q2_14

R2_38

0.22 5W

R2_26

0.22 5W

Q2_3

1 2 34

321

1 2

D2_30

3mm YELLOW LED

1 2

D2_3

3mm RED LED

1 2

D2_29

3mm BLUE LED

1 2

3 4

5 6

7 8

910

JP2_22

HEADER 5X2

LIMITER

CLIP

ON/PROTECTION

RED

GREEN

122

D2_1

3mm R/G BLCOL LED

POWER ON

1 2

D1_30

3mm YELLOW LED

1 2

D1_3

3mm RED LED

1 2

D1_29

3mm BLUE LED

1 2

3 4

5 6

7 8

910

JP1_22

HEADER 5X2

LIMITER

CLIP

ON/PROTECTION

RED

GREEN

122

D1_1

3mm R/G BLCOL LED

POWER ON

VR1_1

B50K

VR2_1

B50K

CN1_1

3P2.5

CN2_1

3P2.5

MIS40FP.Sch

Titel

Size

File:

Date:

Drawn By:

Sheet

RevisionModel No:

9-Apr-2004

C.C.LIN

ALTO : MISTRAL4000 FP

11of

MISTRAL4000 VER030710

1 2 34

321

PJ1

PHONEJACK2

CN1

CON3

CN3

CON3 1

CN4

CON5

CN2

CON3

MIS40IN.Sch

Titel

Size

File:

Date:

Drawn By:

Sheet

RevisionModel No:

9-Apr-2004

C.C.LIN

ALTO : MISTRAL4000 INPUT

11of

MISTRAL4000 VER031206

Autres manuels pour DPA 2500

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Alto Amplificateur

Alto

Alto ? MICtube Manuel utilisateur

Alto

Alto MISTRAL 900 Manuel utilisateur

Alto

Alto MISTRAL2500 Manuel utilisateur

Alto

Alto Mistral 400 Manuel utilisateur

Alto

Alto Mistral 400 Manuel utilisateur

Alto

Alto DRAGONFLY A1000.4 Manuel utilisateur

Alto

Alto MACRO 830 Manuel utilisateur

Alto

Alto MAC 2.3 Manuel utilisateur

Alto

Alto MP8 Manuel utilisateur

Alto

Alto MISTRAL400 Manuel utilisateur

Alto

Alto MISTRAL 1500 Manuel utilisateur

Alto

Alto MACRO 1400 Manuel utilisateur

Alto

Alto A500.2 DRAGONFLY Manuel utilisateur

Alto

Alto VOICE plus Manuel utilisateur

Alto

Alto VOICE plus Manuel utilisateur

Alto

Alto MC700.4 Manuel utilisateur

Alto

Alto MISTRAL2500 Manuel utilisateur

Alto

Alto MAC 2.2, MAC 2.3, MAC 2.4 Manuel utilisateur

Alto

Alto MP8 Manuel utilisateur

Alto

Alto MC500.4 Manuel utilisateur

Alto

Alto APX1000 Manuel utilisateur

Alto

Alto A200.2 DRAGONFLY Manuel utilisateur

Alto

Alto MACRO830 Manuel utilisateur

Alto

Alto MISTRAL 2500 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
