AR-6G

GAS ROTISSERIE

D U E T O O N G O I N G P R O D U C T D E V E O P M E N T,SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.P R I N T E D I N U .S.A. #53 - 10/07

ITEM NO. _______________________

arge capacity single compartment gas rotisserie with black porcelain enamel exterior. The rotisserie has

interior illumination for maximum merchandising effect. The unit is supplied with six (6) removable, stainless

steel skewers, each with 35" (889mm) of usable length, along with one (1) stainless steel drip tray with drain.

The tempered glass doors include a magnetic latch closure.

The unit is furnished with a motor activator switch for skewer rotation, an ambient lamp switch, a 2-hour cook

timer and an emergency shut-off button. The rotisserie is equipped with three (3) cooking zones: top, middle,

and lower. Each zone includes gas regulators controlling three (3) direct flame burners which are separated by

cast iron heat deflectors. The burners offer a full range of heating from low to high flame.

The rotisserie base includes six (6) adjustable casters 2-7/8" - 3-1/8" (73mm - 79mm).

■■MODEL AR-6G: Gas Rotisserie

● Smart styling, advanced design

● Illuminated cooking chamber maximizes merchandising appeal

● High yield gas flame burners

— Separated by deflectors

— Easily disassembled

● Rotating, independent stainless steel skewers are powered by

an electric geared motor

● Emergency shut-off safety feature

● Hinged tempered glass doors

— Stay closed during operation

— Clear visibility

● Quick and easy cleaning

— Easy part assembly

— Detachable grease drip tray with drain

■■Alternate Burner Orifice

Required for installation sites at

elevations of 3,000 feet (914m)

above sea level

●When ordering, please specify local

gas type and electrical connection

■■Natural Gas

■■Propane

● Panel Color Choices

➥Specify color choice:

■■Black Enamel, standard

■■Stainless Steel, optional

FACTORY INSTALLED OPTIONS

W164 N9221 Water Street • PO Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.

PH ONE : 262.251.3800 • 800.558.8744 U.S.A./ C ANA DA FAX : 262.251.7067 • 800.329.8744 U.S.A. ONLY

WEBSITE: www.alto-shaam.com

®

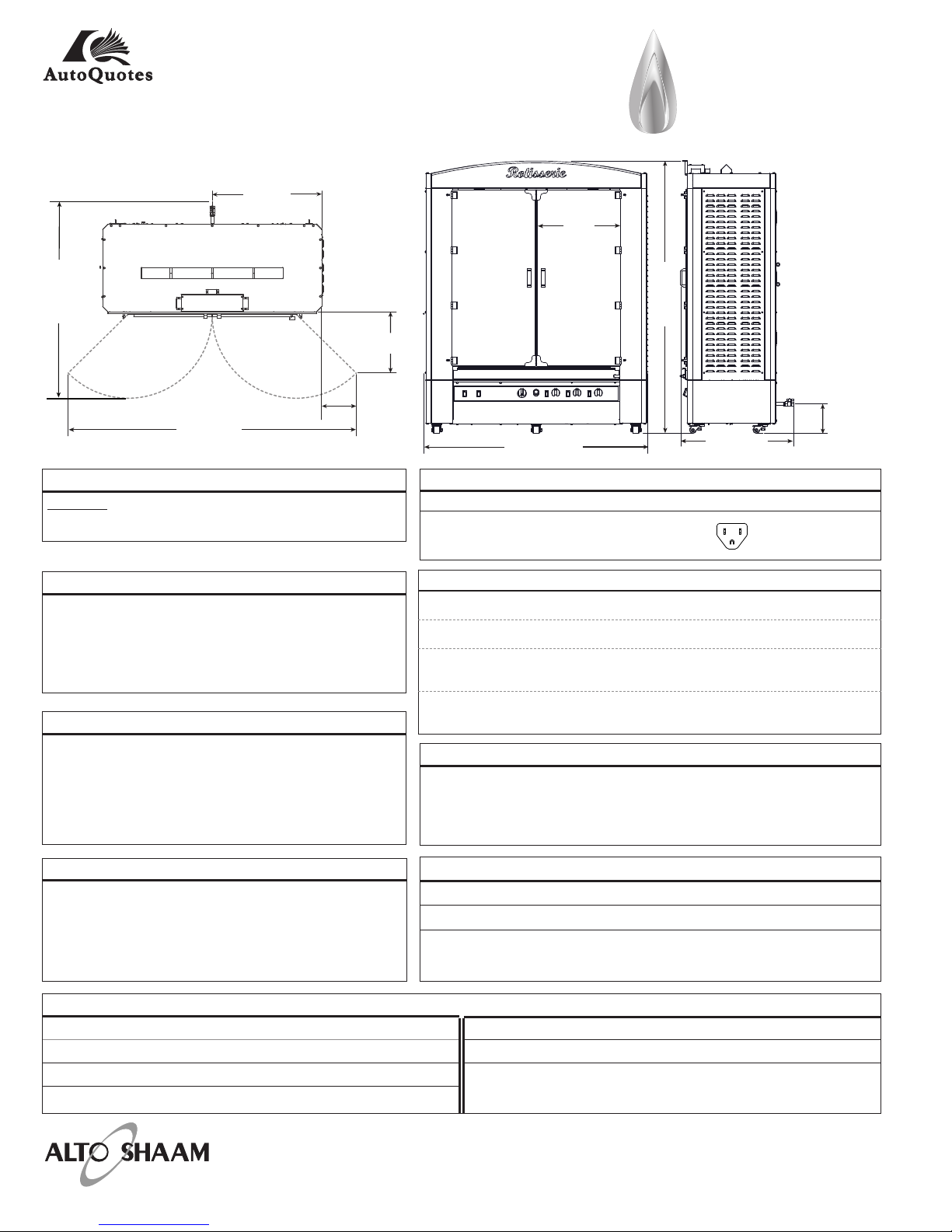

81-5/16" (2066mm)

9-3/4"

(248mm)

31" (788mm)

17-1/4"

(439mm)

62-15/16" (1599mm) 31-9/16" (802mm)

8-1/4"

(210mm)

76-1/2" (1942mm)

31-9/16"

(802mm)

Gas Connection

54-3/16" (1375mm)

D U E T O O N G O I N G P R O D U C T D E V E O P M E N T, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.

DIMENSIONS: H x W x D

EXTERIOR: 76-1/2" x 62-15/16" x 31-9/16"

(1942mm x 1599mm x 802mm)

P R O D U C T \ PA N C A PA C I T Y

36 to 42* whole chickens

6 stainless steel skewers

*Capacities shown are based on the use of

2-1/4 to 2-1/2 pound chickens (1,02 to 1,13 kg)

CLEARANCE REQUIREMENTS

BOT H SI DE S:6" (152mm) PLUS SERVICE ACCESS:

18" (457mm) RECOMMENDED

20" (508mm) FROM OTHER HEAT

PRODUCING E UIPMENT

BAC K:12" (304mm)

TOP :20" (508mm) FOR AIR MOVEMENT

I N S TA L L AT I O N R E Q U I R E M E N T S

— Exhaust ventilation hood with grease filter

— Installation on a non-combustible surface only

— Surrounding wall construction must be non-combustible

W E I G H T

NET:CONTACT FACTORY

SHIPPING:CONTACT FACTORY

CRATE DIMENSIONS: (HXWXD)

CONTACT FACTORY

O P T I O N S & A C C E S S O R I E S

■■Drip Tray, Stainless Steel 1006805

■■Heavy Duty “V” Skewer 5005514

■■Multi-Purpose Basket SI-27510

■■Roasting Tray 1008581

■■Shank Skewer, Stainless Steel SI-27506

■■Skewer, Stainless Steel 1006818

■■Whole Product Skewer SI-27508

E L E C T R I C A L

VOLTAGE PHASE CYCLE/HZ AMPS kW

120 1 60 5.83 0.7 NEMA 5-15P

15A, 125V P UG

#53 - 10/07

AR-6G

GAS ROTISSERIE

I N T E R I O R

Skewer Usable ength - 35" (889mm)

Space Between Skewers - 8-1/2" (216mm)

1 Stainless Steel Drip Tray

81-5/16" (2066mm)

9-3/4"

(248mm)

31" (788mm)

17-1/4"

(439mm)

62-15/16" (1599mm) 31-9/16" (802mm)

8-1/4"

(210mm)

76-1/2" (1942mm)

31-9/16"

(802mm)

Gas Connection

54-3/16" (1375mm)

W164 N9221 Water Street • PO Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.

PH ONE : 262.251.3800 • 800.558.8744 U.S.A./ C ANA DA FAX : 262.251.7067 • 800.329.8744 U.S.A. ONLY

WEBSITE: www.alto-shaam.com

®

N AT U R A L G A S O R P R O PA N E

Hook-Up: 0.75" NPT

Connected Energy oad: 195,000 Btu/hr

Minimum Connected Pressure: 7 In. W.C. (Natural Gas)

11 In. W.C. (Propane)

Maximum Connected Pressure: 14 In. W.C. (Natural Gas)

14 In. W.C. (Propane)
