Altinex MT302-201 4RU 20 Slot Digital Multitasker Enclosure w/ RS-232, Ethernet

MultiTasker

Design Guide

MultiTasker

Design Guide

www.altinex.com

Multi Tasker

ETHERNET

100-240V -6A

Doc. #: 626-0021-001

Enclosures and Cards are

manufactured and available

for assembly.

All firmware revisions and

engineering changes are

verified.

MultiTasker is assembled

according to customers

configuration.

MultiTaskers and

individual cards are tested.

MultiTasker configuration is

verified against purchase

order.

Operation of all cards is

verified and applied settings.

MultiTasker enclosure is

tested to assure proper

power loading.

Communication ports tested

and communication to all

cards is verified.

AC cycling test is performed

to harden power supply.

Unit is packaged and ready

for shipment to a customer.

Customer places an orderProduct projections

MultiTasker manufacturing process

PC USER INTERFACEFRONT PANEL VIEW

All enclosures are shipped fully tested.

* Ready to use out of the box

* 100% tested on a system level

* Front Panel On/Off switcher

* Front Panel IR Learner

* Front Panel Network Connect

* Front Panel IR Blaster

Graphical User Interface (GUI) is can be designed for all MultiTasker

configurations. GUI interface is designed to operate on a PC through

TCP/IP ports. User defines functions we do the rest. The completed source

code is provided to customer and compiled software is available as a stand

alone application. User interface is designed using AVSnap software.

* Part #: AVSNAP

* Up to 5 pages for one low price

* Custom screens, layout and buttons

* Source code provided for easy modifications

* Simple field update and modifications

* Customer logos and artwork

* Operates as a stand alone program (WIN 7, WIN 8, WIN 8.1, WIN 10)

SERVICEIR OUTSTATUSIR LEARN

POWER

ALTINEX

IP: 192.168.1.82

SERVICEIR OUTSTATUSIR LEARN

POWER

ALTINEX

IP: 192.168.1.82

20 Slot Enclosure

12 Slot Enclosure

Distribution

Switching

Matrix

Mixers

Audio

Distribution

Switching

Matrix

Scaling

Scan conversion

Video

Distribution

Switching

Matrix

HDTV

Relay

RS-232

Contact closures

I/O Ports

Control

HDMI® to AnyWire

Audio to CAT5

HDMI to Fiber Optic

Convertors

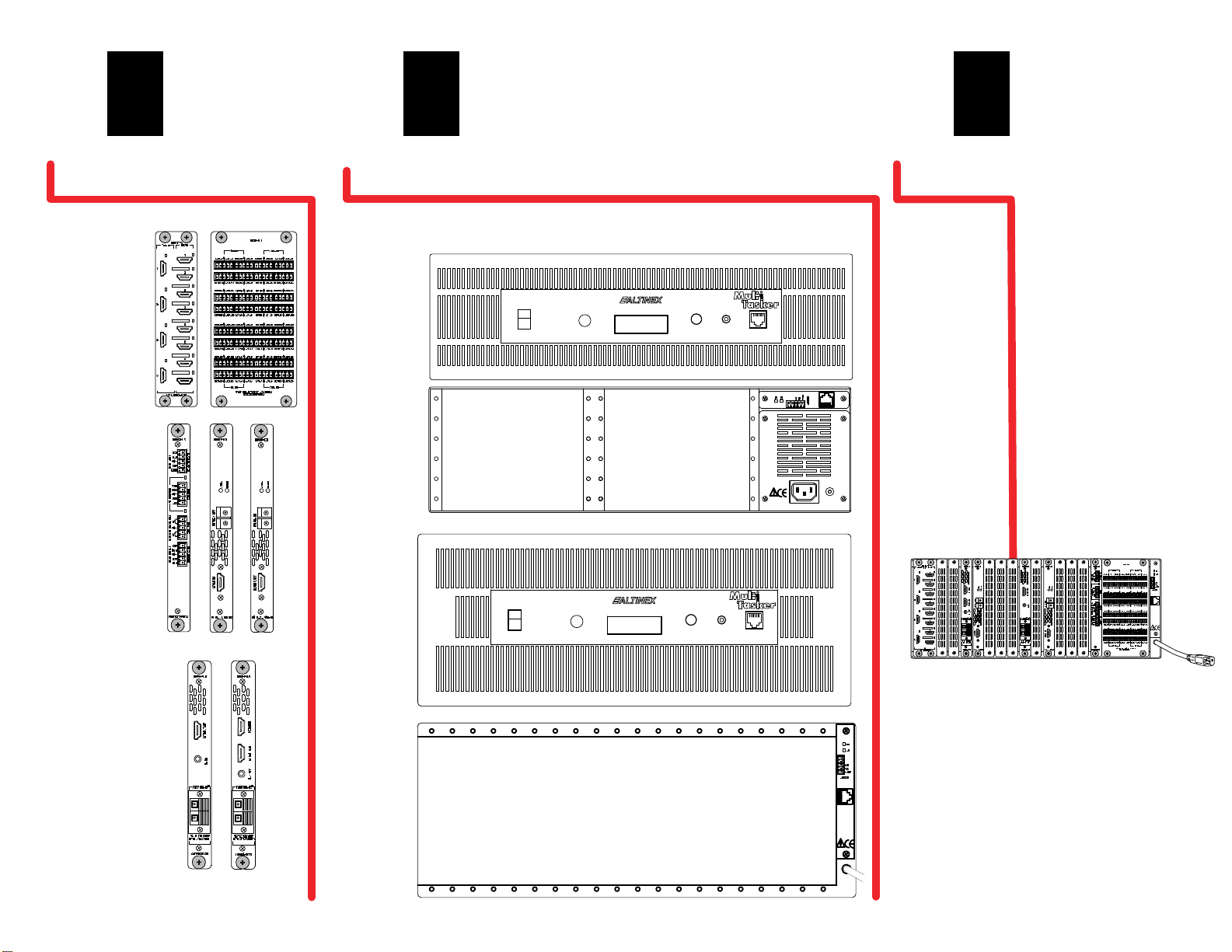

2 3

12 Slots

20 Slots

Enclosures

Select cards to fit

your AV system.

Select enclosure to fit number of selected cards. Place order for selected

components.

MultiTasker is fully assembled

and shipped in 10 working

days.

Step Step Step

SERVICEIR OUTSTATUSIR LEARN

POWER

100-240V -6A

MultiTasker

ETHERNET

MultiTasker

ETHERNET

100-240V -6A

SERVICEIR OUTSTATUSIR LEARN

POWER

Transmit

Distribution

AnyWire

Transmit

Distribution

Fiber Optics

MultiTasker

ETHERNE

100-240V-6A

PRODUCTS LISTING

MT302-201

MT302-121

MT302-201

MT302-121

MT303-103

MT303-106

MT303-103

MT303-106

MT304-103

MT304-106

MT304-103

MT304-106

MT305-804

MT305-402

MT305-404

MT305-804

MT305-402

MT305-404

MT306-301

MT306-101

MT306-501

MT316-102

MT306-101

MT306-501

MT316-102

MT310-104

MT312-104

ENCLOSURES SMALL MATRIX SWITCHERS

VIDEO PROCESSORS

HDMI DAs

CONTROL

HDMI SWITCHERS

AUDIO MATRIX SWITCHERS

AUDIO DAs

MT315-101

MT315-102

MT317-101

MT317-102

MT316-101

MT318-101

MT318-102

MT315-101

MT315-102

MT317-101

MT317-102

MT316-101

MT318-101

MT318-102

HDMI EXTENDERS

MT322-105

MT322-107

MT322-105

MT322-107

POWER DISTRIBUTION

MT306-201

CONVERTER

* Products coming soon

- 20 Slot Multitasker

- 12 Slot Multitasker

- 1-In, 3-Out HDMI DA 2K/4K*

- 1-In, 6-Out HDMI DA 2K/4K*

- 3-In 1-Out HDMI Switcher 2K/4K*

- 6-In 1-Out HDMI Switcher 2K/4K*

- 8 X 4 HDMI Matrix Switcher

- 4-In 2-Out HDMI Matrix Switcher*

- 4-In 4-Out HDMI Matrix Switcher*

- HDMI /AUDIO Breakout

Card*

- Dual Media Player Processor*

- Video Scaler Processing card*

- IP Camera To HDMI Output*

- 16 X 16 Stereo Audio Matrix Switcher, 4 Slot

(TB IN/OUT); BAL. IN/OUT; Volume Control

- CONTROL CARD

- HDMI over ANYWIRE, TX Card

- HDMI over ANYWIRE, RX Card

- HDMI over Fiber Optic, TX Card

- HDMI over Fiber Optic, RX Card

- HDMI TO IP Stream*

- Dual HDMI to HDBaseT

Transmitter*

- Dual HDBaseT to HDMI Receiver *

- 1-In, 3-Out Power Distribution with

Current Sensor, 1 IEC IN, 3 NEMA AC OUT*

- 1-In, 3-Out Power Distribution with

Current Sensor, 1 IEC IN, 3 AC OUT,

International Version (250VAC)*

- HDMI to VGA/VGA to HDMI

Converter*

ACCESORIES

12 slot enclosure rack mount

ears kit (3U)

6ft, 9 pin M to 5 terminal block

RS-232 cable

(20 slot)

20 slot enclosure rack

mount ears kit (4U)

Empty card slot cover

(5pc)

Judge override button for

system shutdown

50ft cable

5 pin terminal block

audio / control (1pc)

Included with enclosure

10FT Active HDMI

Cable

3.3 FT, HDMI

HIGH SPEED WITH

INTERNET,

M/M, CABLE

6.5 FT, HDMI

HIGH SPEED WITH

INTERNET,

M/M, CABLE

MT399-102 MT399-101 MT399-105

RC5205CV AC101-302 RC5211MT

CB300-102 CB470-003 CB470-006

ENCLOSURES

MT302

100-240V -6A

MultiTasker

ETHERNET

Features:

MT302-121

12 SLOT, MultiTasker Enclosure

MT302-201

20 SLOT, MultiTasker Enclosure

SERVICEIR OUTSTATUSIR LEARN

POWER

ALTINEX

IP: 192.168.1.82

Features:

Basic foundation of Digital

MultiTasker solutions

4U high, full rack wide

TCP/IP control

LCD display

ON/OFF button

IR receiver/IR blaster

Ethernet control (2 ports)

Basic foundation of Digital

MultiTasker solutions

3U high, full rack wide

TCP/IP control

LCD display

ON/OFF button

IR receiver/IR blaster

Ethernet control

MultiTasker

ETHERNE T

100-240V -6A

SERVICEIR OUTSTATUSIR LEARN

POWER

ALTINEX

IP: 192.168.1.82

MT305-804

8 X 4 HDMI Matrix Switcher

MT310-104

16 X 16 Stereo Audio Matrix Switcher (TB IN/OUT) 4

Slot; BAL. IN/OUT; Volume Control

MT312-104

MT315-101 MT315-102 MT317-101

CARDS

Control Card

HDMI Over Any Wire, TX Card HDMI Over Any Wire, RX Card HDMI Over Fiber Optic, TX Card

Features: Features: Features:

Features: Features:

MT317-102

HDMI Over Fiber Optic, RX Card

Features:

Matrix Switcher Audio Matrix Switcher Control

HDMI Extender HDMI Extender HDMI Extender

HDMI Extender

HDMI input/outputs

HDCP compliant

Signal Status LEDs

Full matrix

400mA Output Current

2 Bi-directional RS-232 ports

2 IR ports

2 relay ports

2 sensor ports

Balanced In/Out

Power LED

Volume Control

20Hz-20KHz bandwidth

Line Level inout/output

HDMI over 2-conductor cable

Automatic input/receiver detection

Transmission up to 300 m

IR pass-through control

Local monitor output

Signal/Power LEDs

HDMI resolutions 720p, 1080i,

and 1080p

Features:

HDMI over 2-conductor cable

Automatic input/receiver detection

Transmission up to 300 m

IR pass-through control

Local monitor output

Signal/Power LEDs

HDMI resolutions 720p, 1080i,

and 1080p

HDMI over fiber optic cable

Transmission up to 300 m

HDMI resolutions up to 4K

HDMI over fiber optic cable

Transmission up to 300 m

HDMI resolutions up to 4K

MT322-105*

1 IN/ 3 OUT Power Distribution With Current

Sensor, 1 IEC IN, 3 NEMA AC OUT

Features:

Programmable power

sequence

Independent control for

each socket

Status LED for each output

10 Amp loading

Over-current/

pre-programmed shutdown

Read current on each

connector

North American version

MT322-107*

1 IN/ 3 OUT Power Distribution With Current

Sensor, 1 IEC IN, 3 AC OUT (250VAC)

Features:

Programmable power

sequence

Independent control for

each socket

Status LED for each output

9 Amp loading

Over-current/

pre-programmed shutdown

Read current on each

connector

International version

POWER DISTRIBUTION POWER DISTRIBUTION

*products coming soon

MT322-105

125VAC 50/60Hz 10A

AC OUT1

AC OUT2

AC OUT3

3OUT POWER CONTROLER

USE ONLYW ITH250V FUSE

MT322-107

240VAC 50/60Hz 10A

AC OUT1

AC OUT2

AC OUT3

3OUT POWER CONTROLER

USE ONLYW ITH250V FUSE

CARDS

MT303-103*

1-In 3-Out HDMI DA 2K/4K

Features:

HDMI input/outputs

HDCP compliant

Power/signal Status LEDs

Output ON/OFF control

Auto input equalization

400mA Output Current

MT303-106*

1-In 6-Out HDMI DA 2K/4K

Features:

HDMI input/outputs

HDCP compliant

Power/signal Status LEDs

Output ON/OFF control

Auto input equalization

400mA Output Current

MT306-301*

HDMI/AUDIO Breakout Card

Features:

HDMI IN/OUT

Analog unbalanced/balanced

Audio input/outout

Fiber Optic Input/Output(Toslink)

HDCP compliant

400mA HDMI Output Current

MT316-101*

HDMI TO IP Stream

Features:

HDMi input

Ethernet output

MT318-101*

Dual HDMI to HDBaseT Transmitter

Features:

HDMI inputs

CAT6 outputs

HDCP compliant

IR Outout (AC301-114-IR Emitter)

Power/signal Status LEDs

MT318-102*

Dual HDBaseT to HDMI Receiver

Features:

CAT6 inputs

HDMI outputs

HDCP compliantPower/signal

Status LEDs

IR inputs (AC301-115-IR Receiver)

400mA Output Current

MT304-103*

3-In 1-Out HDMI Switcher 2K/4K

Features:

HDMI input/outputs

HDCP compliant

Power/signal Status LEDs

Auto /Priority/Manual Switch

400mA Output Current

MT304-106*

6-In 1-Out HDMI Switcher 2K/4K

Features:

HDMI input/outputs

HDCP compliant

Power/signal Status LEDs

Auto /Priority/Manual Switch

400mA Output Current

MT306-201*

HDMI to VGA/VGA to HDMI Converter

Features:

HDMI/VGA inputs

VGA/HDMI outputs

Resolution up to 2K/4K

Power/signal Status LEDs

400mA HDMI Output Current

HDCP compliant

HDMI DAs HDMI DAs AUDIO DAs

HDMI EXTENDERS HDMI EXTENDERS HDMI EXTENDERS

HDMI SWITCHERS

HDMI SWITCHERS CONVERTER

*products coming soon

MT303-103

1x3 HDMI DA

OUT

MT303-106

1x6 HDMI DA

OUT

MT306-301

AUDIO BREAK

OUT

FIBER/

ANALOG

L-

L+

R+

R-

GND

BALANCED FIBER/

ANALOG

L-

L+

R+

R-

BALANCED HDMIHDMI

MT316-101

HDMI

ETHERNET

OUT

HDIMI TO IP

MT318-101

HDMI

HDBASE_T

OUT

HDBASE_T

OUT

HDMI

MT318-102

HDBASE_T

OUT

HDBASE_T

OUT

HDMI

MT304-103

3x1 HDMI SW

OUT

MT304-106

6x1 HDMI SW

OUT

MT306-201

CONVERTER

VGAHDMI VGA HDMI

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Altinex Commutateur matriciel

Altinex

Altinex MULTI-TASKER MT110-103 Manuel utilisateur

Altinex

Altinex MAX Series Manuel utilisateur

Altinex

Altinex MT107-103 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT105-106 Manuel utilisateur

Altinex

Altinex MT310-104 Manuel utilisateur

Altinex

Altinex UT250-101 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT110-101 Manuel utilisateur

Altinex

Altinex 400-0226-003 Manuel utilisateur

Altinex

Altinex Multi Tasker MT107-301 Manuel utilisateur

Altinex

Altinex MT105-120/121 Manuel utilisateur

Altinex

Altinex MULTITASKER MT107-303 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT105-130 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT105-108 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT105-108 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT105-100 Manuel utilisateur

Altinex

Altinex 400-0026-004 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT107-304 Manuel utilisateur

Altinex

Altinex MT305-804 Manuel utilisateur

Altinex

Altinex MT110-100/102 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT107-202 Manuel utilisateur

Altinex

Altinex MT110-104 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT110-101 Manuel utilisateur

Altinex

Altinex Multi Tasker MT107-204 Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

Kramer

Kramer XL 3216VS Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

Kramer

Kramer VP-2x2 Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5xl Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Kramer

Kramer LASSEN XL 3232S Manuel utilisateur

Roland

Roland XS-1HD Manuel utilisateur

Kramer

Kramer VS-66HDCPxl Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes
