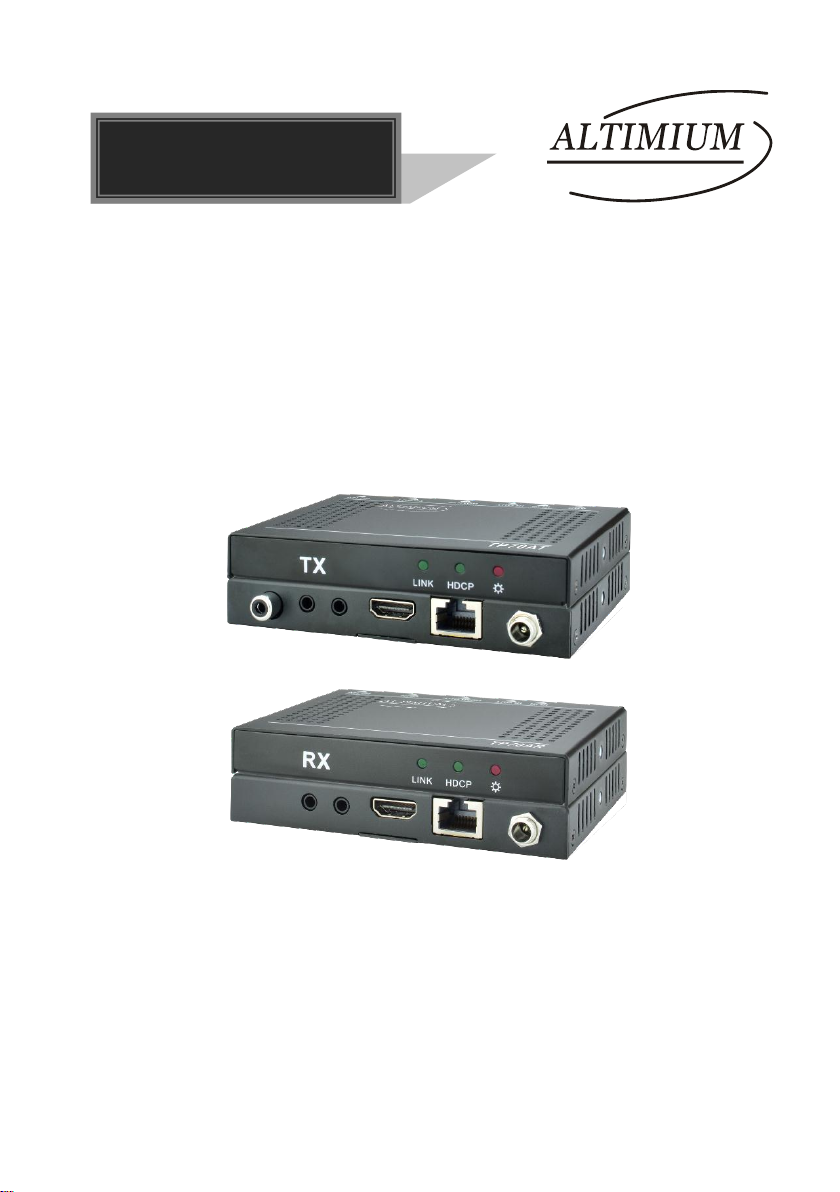

Altimium TP70A Manuel utilisateur

TP70A

HDBaseT Extender

Version: TP70A_2016V1.0

User Manual

HDBaseT Extender

Altimium www.altimium.com

Preface

Read this user manual carefully before using this product. Pictures shown in this manual

is for reference only, different model and specifications are subject to real product.

This manual is only for operation instruction only, not for any maintenance usage. The

functions described in this version are updated till December 2016. Any changes of

functions and parameters since then will be informed separately. Please refer to the

dealers for the latest details.

All product function is valid till 2016-12-2.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this manual

are acknowledged as the properties of the trademark owner. No part of this publication

may be copied or reproduced without prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits for a

Class Adigital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

HDBaseT Extender

Altimium www.altimium.com

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

Unpack the equipment carefully and save the original box and packing material for

possible future shipment

Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

Using supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction.

Refer all servicing to qualified service personnel.

To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

Do not put any heavy items on the extension cable in case of extrusion.

Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

Install the device in a place with fine ventilation to avoid damage caused by

overheat.

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If

an object or liquid falls or spills on to the housing, unplug the module immediately.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

Unplug the power cord when left unused for a long period of time.

Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

HDBaseT Extender

Altimium www.altimium.com

Contents

1. Introduction.................................................................................................................1

1.1 Introduction to TP70A........................................................................................1

1.2 Features ............................................................................................................1

1.3 Package List......................................................................................................1

2. Panel Description........................................................................................................2

2.1 TP70AT (TX)......................................................................................................2

2.2 TP70AR (RX).....................................................................................................3

3. System Connection.....................................................................................................4

3.1 Usage Precautions............................................................................................4

3.2 System Diagram................................................................................................4

3.3 Connection Procedures.....................................................................................4

3.4 PoC Solution......................................................................................................5

3.5 ARC Solution.....................................................................................................5

3.6 Application.........................................................................................................7

4. Specification ...............................................................................................................8

4.1 Supported Resolution........................................................................................9

5. Panel Drawing ..........................................................................................................10

6. Troubleshooting & Maintenance ...............................................................................11

7. After-sales Service....................................................................................................12

HDBaseT Extender

Altimium 1 www.altimium.com

1. Introduction

1.1 Introduction to TP70A

TP70A is a mini-size extender set consists of a transmitter and a receiver. DMI signals

are input into the transmitter and HDBaseT technology is used to transmit

high-resolution 1080p/ 4k signal to the receiver up to 70/40 m via a Cat5e/Cat6A cable.

The receiver then outputs the HDMI signal. Bi-directional IR and PoC power is also

transmitted across the Cat5e/Cat6A cable.

The set also supports ARC, which enables audio upstreaming from display to speakers.

1.2 Features

HDMI1.4 compliant, support full HD, delivers high-resolution signal (max at

4Kx2K)

Maximum transmission distance is 70m for 1080p and 40m for 4Kx2K over single

CAT5e/CAT6A cable

High Bandwidth: 10.2Gps.

Compliant with HDCP1.4

Uses HDBaseT technology for extended capability and reliability

Support bi-directional PoC

Support ARC

Bi-directional IR control

1.3 Package List

1 x TP70A (including TX and RX)

4 x Mounting Brackets

4 x Screws

8 x Rubber Feet

1 x PowerAdapters (DC 12V 1A)

2 x IR Emitters (5V, optional)

2 x IR Receivers (5V, with carrier, optional)

1 x User Manual

Please confirm if the product and the accessories are all included, if not, please

contact with the dealers.

HDBaseT Extender

Altimium 2 www.altimium.com

2. Panel Description

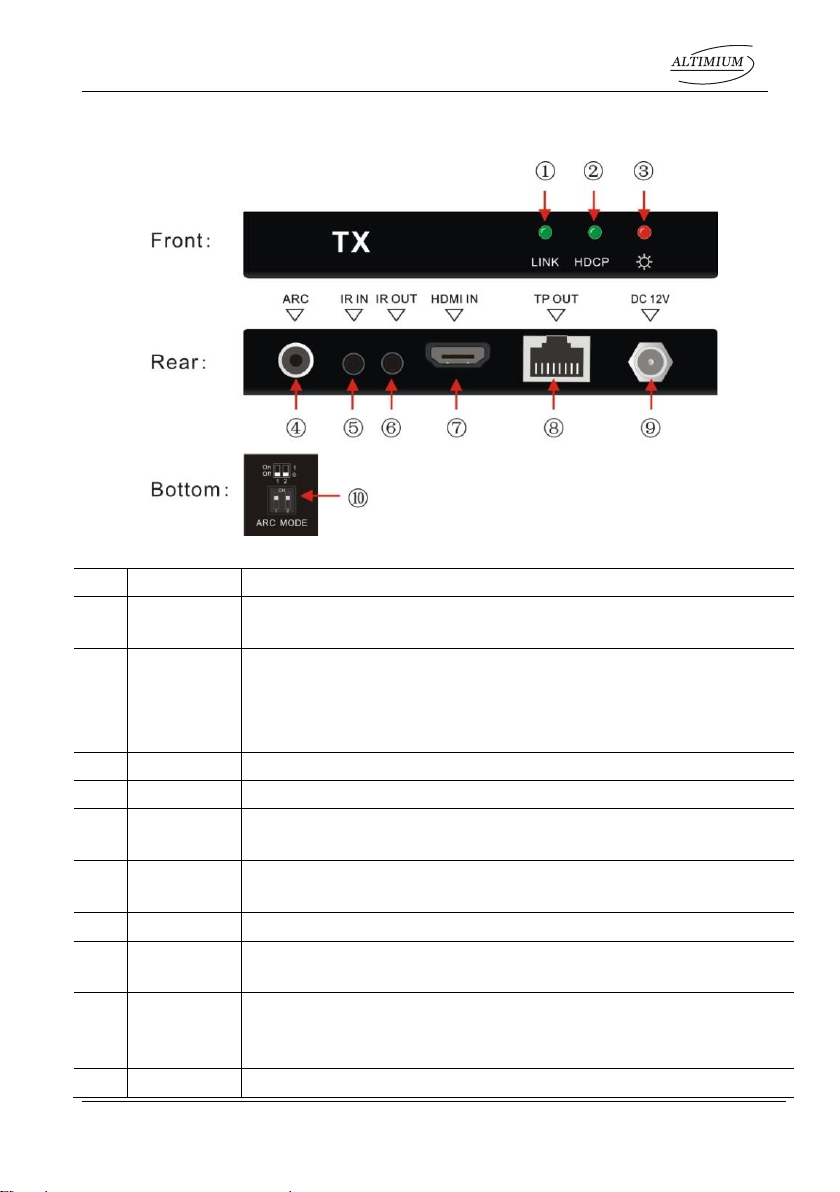

2.1 TP70AT (TX)

Figure 2- 1 Panel Description of TP70AT

No.

Name

Description

①

LINK

HDBT Link status indicator, lights when the transmitter& receiver

are linked and communicating

②

HDCP

HDCP compliant indicator

Lights when input signal is with HDCP

Blinks when the input signal is not with HDCP

Turns off when there is no input

③

Power

Illuminates red when powered on

④

ARC

Output port for ARC audio

⑤

IR IN

Connect with 5V IR receiver (with carrier) to collect infrared signal,

work with far-end IR OUT port

⑥

IR OUT

Connect with 5V IR Emitter to send infrared signal, work with

far-end IR IN port

⑦

HDMI IN

Connect with HDMI source

⑧

TP OUT

Connect to the TP IN socket on the HDBaseT Receiver via CAT5e/

CAT6A cable, support bi-directional PoC

⑨

DC 12V

Insert a DC 12V power adapter here, equiped with faulty power

protection, protect the unit from burnt when insertted power

adapter with wrong specification

⑩

ARC

Dial switch for ARC mode

HDBaseT Extender

Altimium 3 www.altimium.com

Switcher

2.2 TP70AR (RX)

Figure 2- 2 Panel Description of RX

No.

Name

Description

①

LINK

HDBT Link status indicator, lights when the transmitter& receiver

are linked and communicating

②

HDCP

HDCP compliant indicator

Lights when output signal is with HDCP

Blinks when the output signal is not with HDCP

Turns off when there is no output

③

Power

Illuminates red when powered on

④

IR IN

Connect with 5V IR receiver (with carrier) to collect infrared signal,

work with far-end IR OUT port

⑤

IR OUT

Connect with 5V IR Emitter to send infrared signal, work with

far-end IR IN port

⑥

HDMI OUT

Connect with HDMI display

⑦

TP IN

Connect to the TP OUT socket on the TP70AT via CAT5e/ CAT6A

cable, support bi-directional PoC.

⑧

DC 12V

Insert a DC 12V power adapter here, equiped with faulty power

protection, protect the unit from burnt when insertted power

adapter with wrong specification

(not necessary when TX is connected with power adapter)

Pictures shown in this manual are only for reference.

HDBaseT Extender

Altimium 4 www.altimium.com

3. System Connection

3.1 Usage Precautions

1) System should be installed in a clean environment and has a prop temperature and

humidity.

2) All of the power switches, plugs, sockets and power cords should be insulated and

safety.

3) All devices should be connected before power on.

4) Use shielded straight-thru Cat5e/Cat6A cable with TIA/EIAT568B terminations for

good transmission effect.

3.2 System Diagram

Figure 3- 1 System Connection

3.3 Connection Procedures

Step1.Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of the transmitter

with an HDMI cable.

Step2.Connect TP OUT port of the transmitter to TP IN port of the receiver through a

CAT5e/CAT6A cable.

Step3.Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver with

HDMI cable.

Step4.When using the bi-directional IR control, do the following.

a) Connect an IR receiver to the IR IN port at either the transmitter or the

receiver.

HDBaseT Extender

Altimium 5 www.altimium.com

b) Connect an IR Emitter to the IR OUT port at the other end.

Step5.Connect a DC 12V power adaptor to the power port of the transmitter; the

receiver will be energized synchronously.

3.4 PoC Solution

TP70A boasts HDBT port which support PoC. Connect the DC adapter to either the

transmitter or the receiver, the other end is able to be energized synchronously (see in

the following figure):

Figure 3- 2 PoC Connection

3.5 ARC Solution

Coax audio ports and HDMI ports boast ARC (Audio Return Channel) function which

enables a display via a single audio/ HDMI cable to send (upstream) audio to amplifiers/

speakers, increasing user flexibility.

The transmitter provides an ARC switcher on the bottom panel to enable ARC mode

selection. There are 2 modes in total, Connections should vary in different ARC modes

to ensure normal ARC output. See the chart below:

ARC Mode

Description

Connection

Deem TX as ARC device TX is

merely a transmission medium for

ARC signal

Connect a source

device (e.g. Blu-Ray

DVD) to the HDMI

display.

Deem AVR device as ARC device.

Connect an ARC

device (e.g. Amplifier)

to the TX.

HDBaseT Extender

Altimium 6 www.altimium.com

When the ARC switcher switched as “10”, connect the devices abiding by the following

figure:

Figure 3- 3 System Connection (ARC “10”)

When the ARC switcher switched as “00”, connect the devices abiding by the following

figure:

Figure 3- 4 System Connection (ARC “00”)



Table des matières

Autres manuels Altimium Extenseur

Altimium

Altimium TP412P-4K Manuel utilisateur

Altimium

Altimium TP451P-4K Manuel utilisateur

Altimium

Altimium TP422P-4K Manuel utilisateur

Altimium

Altimium FO1HD-4K Manuel utilisateur

Altimium

Altimium TPA33P Manuel utilisateur

Altimium

Altimium EXT.HDMI70IRSET Manuel utilisateur

Altimium

Altimium WFH130 Manuel utilisateur

Altimium

Altimium TP411-4K Manuel utilisateur

Altimium

Altimium BOO.HDMI2-4K Manuel utilisateur

Altimium

Altimium TP630P-4K Manuel utilisateur

Altimium

Altimium TP610P-4K Manuel utilisateur

Altimium

Altimium FO1DV-4KT Manuel utilisateur

Altimium

Altimium TP50P Manuel utilisateur

Altimium

Altimium TP503P-4K Manuel utilisateur

Altimium

Altimium FO1DV-4K Manuel utilisateur

Altimium

Altimium TP70L Manuel utilisateur

Altimium

Altimium TP421P-4K Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
