Alpine TZL130 Mode d’emploi

TZL130

Rough 8-Tier Rocky

Waterfall Fountain with

LED Lights

Limited Warranty Information

Thank you for choosing an Alpine product! We aim to please with our wide range of products including

Fountains, Birdbaths, Statuary, Pond Supplies & More. All of our products are constructed from the

highest quality materials. In the event that we have not achieved our usual standard of excellence, we

will repair or replace, at our discretion, within the warranty period. A valid proof of purchase, with the

purchase date clearly indicated, must be provided. Photos of defective merchandise will also be

required to help distinguish the actual cause of the defect. Please read below for a detailed

description of warranty coverage.

•Water Damage

Alpine products are not manufactured to withstand extreme temperatures. Improper storage

that allows water to freeze within a product may cause damage and is considered negligence

and will, therefore not be covered under this warranty. The use of “hard water” and/or caustic

cleaners can affect the paint or other finishes. Failure to keep the unit clean, and use of such

additives/cleaners, will also void the warranty. Please note: for fountains, it is normal for some

splashing to occur and protecting the immediate surfaces is not the responsibility of Alpine

Corporation

•Paint & Color (Retention and/or Loss)

The use of water will cause natural erosion to the color. This area can be touched up

using standard paint. The paint is designed to protect the entire finish against breakdown

of color. As with any product, all finishes with time will gradually fade and discolor. The

warranty will only cover against severe or complete fading within the first year from date of

purchase with the above exclusion.

•Procedure/Service

Should a warranty/claim be needed, you should contact the retailerfrom whom you purchased

the product. If that is not an option, you can contact Alpine Corporation at www.alpine4u.com.

When contacting Alpine Corporation, you must be prepared to show proof of purchase,

provide photographs and any other information needed to validate your claim. This may be

necessary to distinguish between a partial or complete replacement of a defective product.

The warranty does not cover any items with multiple parts; the warranty will ONLY cover the

individual component of the unit/item that may be defective. Replacement parts can be made

available to a consumer through the original selling party, or an approved parts retailer. If this

is not an option, contact our customer service department. Item is covered under one year

limited warranty from the date of purchase. When requesting replacement parts due to a

warranty claim after 30 days of purchase, credit card information willbe requested for shipping

charges.

•Not Covered Under Warranty

The limited warranty will NOT cover cases of damages due to

1. Damages caused in Transit

2. Inadequate care and/or neglect

3. Environmental and/or natural elements

4. Immersion in water, unless specified

5. Improper Installation/Storage and/or Maintenance

This warranty is void if the product has been damaged by accident, misuse, negligence, improper

installation and/or modifications have occurred. This includes any and/or all defects arising out of

freezing water damage, hard water damage, failure to keep the unit clean and free of harmful additives

such as bleach, chlorine, etc…. which affects the paint and/or parts. This warranty also does not cover

any additional charges or installation, removal, disposal and/or shipping costs or consequential damage

associated with any warranty claim.

V2.0

Assembling & Using Your Product

Unpack all components carefully. Please check to ensure all parts have been

removed from the packaging. Some splashing may occur.

Components:

A. Fountain

B. LED Light

C. Submersible Pump

D. Transformer

E. Back Cover

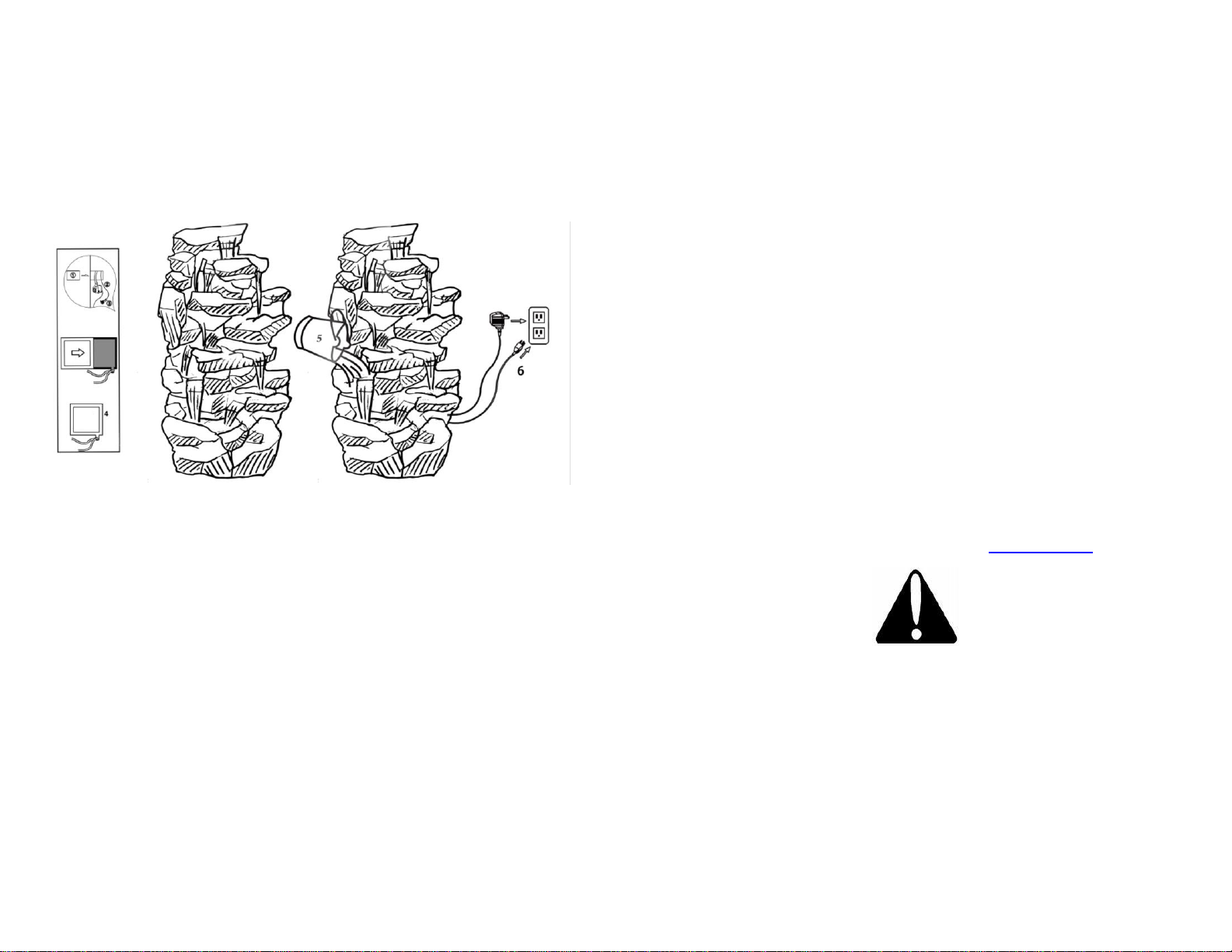

Diagram 1 Diagram 2

Assembling Instructions:

1. Place the fountain (A) base on a smooth and leveled surface.

2. Remove the pump (C) from its packaging and adjust the flow control to the

lowest setting to avoid splashing until the fountain (A) is completely assembled.

3. Then, connect the vinyl tubing from the opening in the back of the fountain (A) to

the pump (C) (see diagram 1 step 2 above). Then, place the pump (C) into the

bottom of the reservoir through the opening in the back of the fountain (A).

4. Connect the LED light cord with male prong coming from the opening to the

transformer (D) (see diagram 1, step 3)

5. Attach the back cover (D) over the opening behind of fountain (see diagram 1

step 4 above) by sliding it in from the side.

6. Gently pour water into the fountain, being careful not to overflow and cause

splashing. Make sure the water completely submerges the pump so the water

runs clear during operation (see diagram 2 step 5 above).

7. Plug the pump’s adaptor and the lighting transformer into your local power

supply. Make sure that there is no water around the plugs and always keep the

power source in a dry place (see diagram 2 step 6 above).

oNOTE: We recommend that you use distilled water to prevent scale

build-up. The first time you operate the pump it can take up to 5

minutes for the air to be completely expelled and water begins to flow

properly.

Trouble Shooting & Caution

If you have any questions and/or problems, please contact the retail store you

purchased this fountain.

•If your pump fails to run

•Check the circuit breaker or try a different outlet to make sure the pump is

receiving electrical power.

•Check the pump discharge and tubing for any kinks and/or obstructions

•Any buildup obstructing the water flow can be flushed with a garden hose

•Check the rotor by removing the front cover & plate to access the impellor area.

Turn the rotor and make sure that the rotor is not jammed or broken

•If your pump “spews”

•Check the water level to make sure the pump is completely submerged and

there if enough water in the basin to operate your fountain. Not having enough

water will cause your pump to spew

•If your pump is making abnormal loud noises

•Disconnect the pump from the electrical power supply and remove the front

cover & plate

•Carefully grip the impeller and gently pull the impeller/rotor assembly out of the

pump housing

•Rinse the impeller/rotor assembly and clean the cavity with clean water. If

breakage or damage is found, contact your local retailer for part

•Fountain Care

•We recommend to use Alpine’s all natural cleansing formula to eliminate foam,

lime scale and calcium buildup, fight mineral deposits, leave water crystal clear,

help prevent staining, remove organic contaminants and treat discolored water.

This formula will help prevent pump damage due to hard water build up.

i. For small sized fountains holding water up to 7liters of water, we

recommend Alpine Item # PPL100

ii. For larger sized fountains holding water over 7liters of water, we

recommend Alpine Item # PPL102

iii. For more information please visit www.alpine4u.com

•Caution

oAlways unplug the pump from the electrical outlet before

cleaning & handling

oUse with clean water only, do not place the fountain and/or

parts in any other liquid.

oPeriodically change water & clean the pump to keep free

from micro-organisms

oDisconnect and store the unit in a dry place if not in use for

an extended period of time

oDo not operate with water above 90°F or 30°C

oDo not lift, carry, or pull the pump by the power cord

oDo not exceed the maximum voltage & wattage on

transformer

oNEVER LET THE PUMP RUN DRY
