Chevrolet/GMC
FULL SIZE TRUCK 1/13
CHEVROLET/GMC
X009-GM2 9”
Installation Manual
Model: Full Size Truck
Model Year: 2007-2013
Trim Level: Upper Dash Radio
(Not compatible with Classic and LTZ models)
Introduction
Design and specications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by the store that you purchased it from.
Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Warning Ignoring the content marked by this indication and using the product incorrectly is
expected to lead to death or serious injury.
Caution Ignoring the content marked by this indication and using the product incorrectly is only
expected to lead to injury or property damage.
CHEVROLET
Model Year
SILVERADO 2007 - 2013
SILVERADO 2500HD 2007 - 2013
SILVERADO 3500HD 2007 - 2013
GMC
SIERRA 2007 - 2013
SIERRA 2500HD 2007 - 2013
SIERRA 3500HD 2007 - 2013
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
Chevrolet/GMC
FULL SIZE TRUCK 2/13
Types of Precautions
Forbidden
Indicates actions that are forbidden
(must not be performed)
Mandatory
Indicates actions that are
mandatory (must be performed)
Forbidden
Indicates that disassembly is
forbidden.
Marks content that should receive
your full attention.
Warning
Do not disassemble or modify the product. Doing so could lead to an accident, re,
or electric shock.
Forbidden
Store screws and other small objects where small children cannot reach them. If one of these
small objects is swallowed, consult with a doctor immediately.
When replacing fuses, be sure to use fuses with the specied current rating. Failing to do so could
lead to an accident or re.
Forbidden Mandatory
Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to
an accident or re.
Mandatory
Before you begin wiring, remove the ground wire from the negative terminal of the battery.
Failing to do so could lead to electric shock or injury.
Do not cut the insulation on a cord and take power from another device. Doing so could
lead to re or electric shock.
Forbidden
Do not install the product in a location where it will obstruct the driver’s forward view;
interfere with the operation of the steering wheel, gearshift, or the like; or pose a
threat to passengers. Doing so could lead to an accident or injury. Forbidden
When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank,
electrical wiring, and the like. This kind of damage could lead to an accident or re.
Chevrolet/GMC
FULL SIZE TRUCK 3/13
When installing and grounding the product, do not use any of the bolts or nuts of the
steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working
or lead to re. Forbidden
Do not install the product near the passenger-side airbag. Doing so could interfere with the
operation of the airbag and lead to an accident or injury.
Forbidden
Bundle cords so that they don’t interfere with driving. Wrapping cords around the steering
wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.
Caution
Connect the product properly according to the instructions. Failing to do so could lead
to re or an accident.
Forbidden
Do not sandwich cords between the seat railing or allow them to touch protrusions.
Resulting breaks or shorts could lead to electric shock or re.
Do not block vents or heat sinks. Doing so could lead to re or damage equipment.
Use the accessories according to the instructions, and attach them securely.
Failing to do so could lead to an accident or damage equipment.
Forbidden
Do not install the product where it may be exposed to water or in a place with high levels
of humidity or dust. Doing so could lead to re or damage equipment.
Forbidden
The installation and wiring of this product requires specialized skills and experience.
Have the product installed and wired by the store that you purchased it from.
Chevrolet/GMC
FULL SIZE TRUCK 4/13

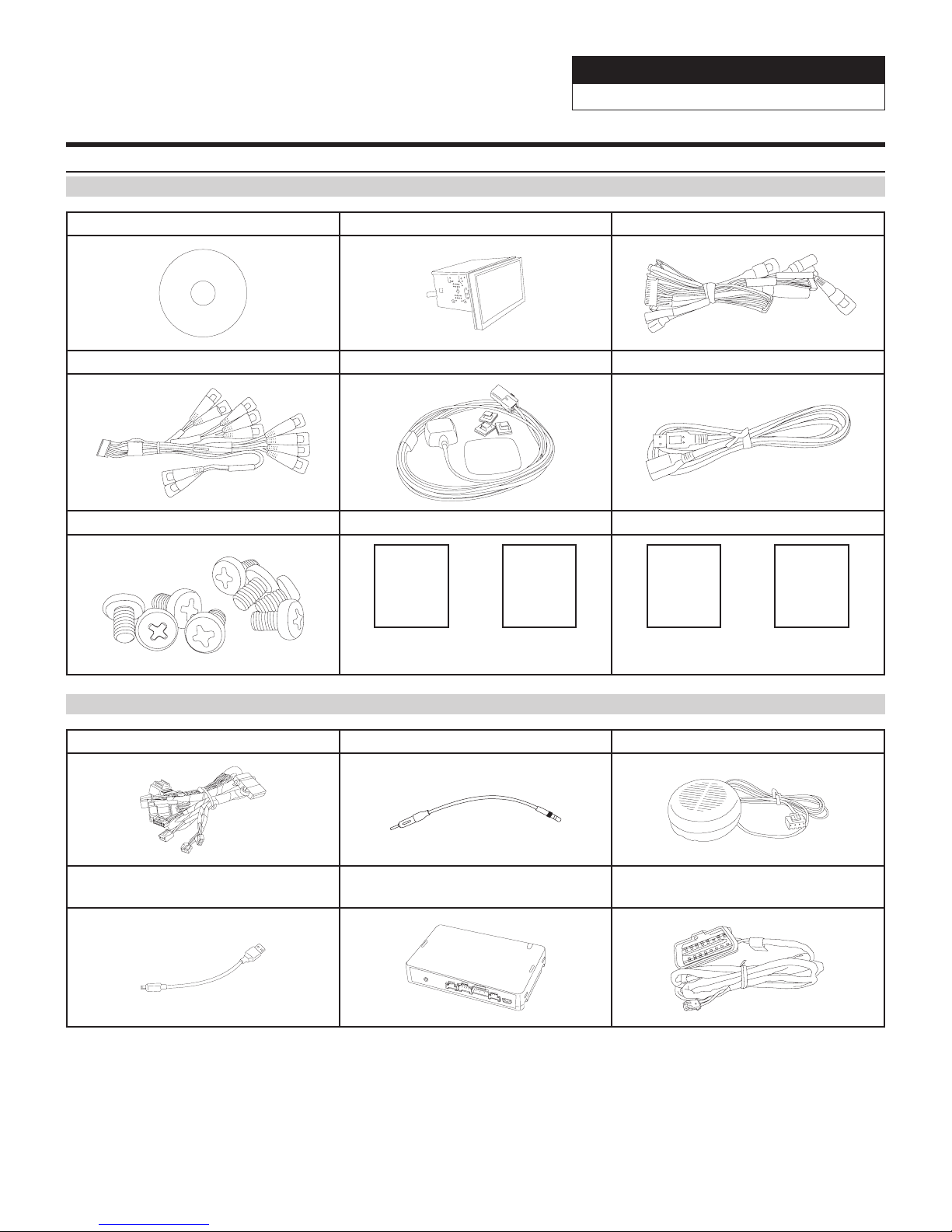

Accessory List
Head Unit Box Parts (X009)
Owner’s Manual Disc X009 Head Unit X009 Camera Harness
AUX/Pre Out Harness GPS Antenna USB Extension Cable
8mm x 8 Screws Quick Reference Guides Registration Cards
QRG
Audio
QRG
Navigation
Alpine
Registration Card
NAVTEQ
Registration Card
iDatalink Maestro Box Parts (ALP-MRR V2.0/ALP-HRM-GM2 V2.1)
Main Harness Antenna Adapter Chime Speaker
Maestro Module USB Flashing
Cable
iDatalink Maestro Module OBD II Adapter Cable
Chevrolet/GMC
FULL SIZE TRUCK 5/13

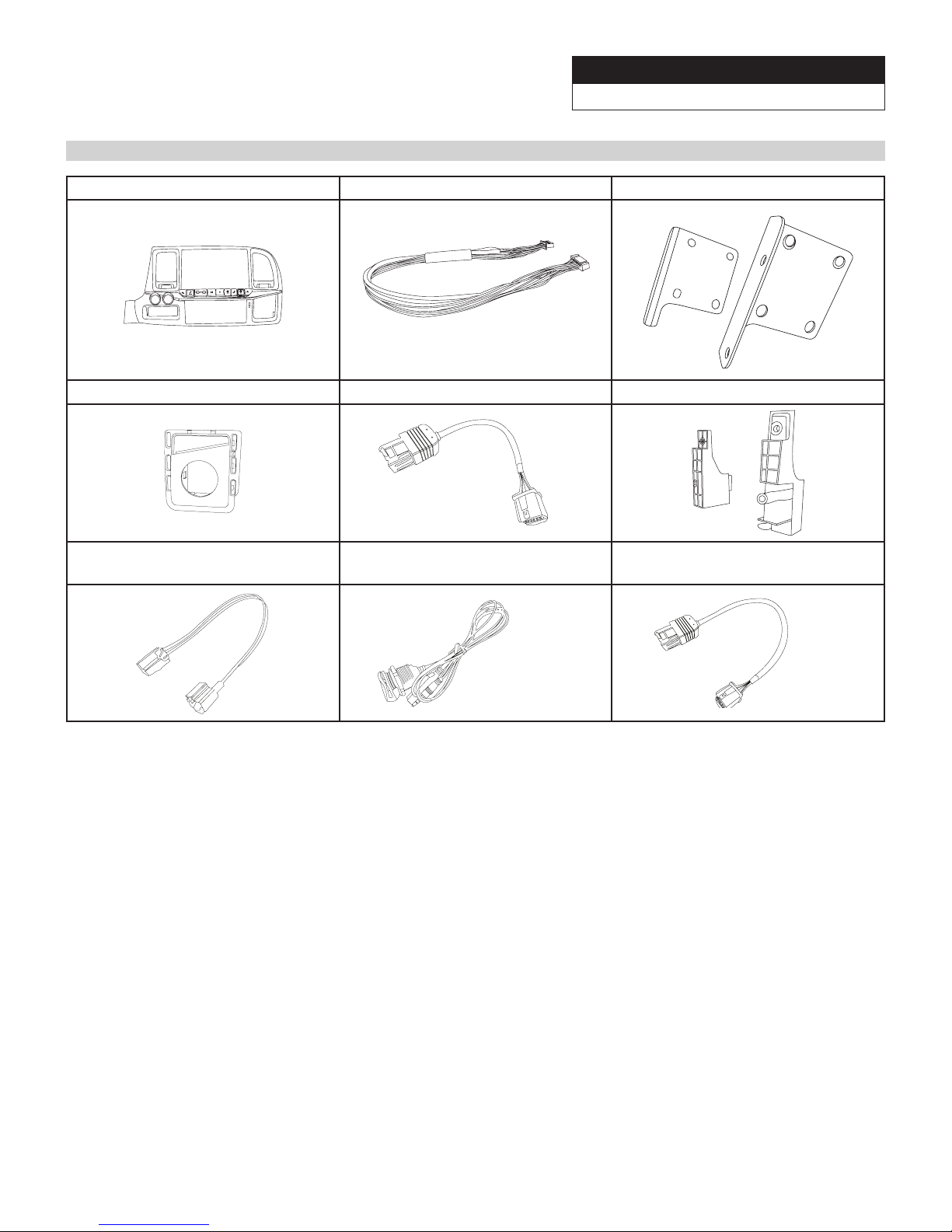

Installation Kit Parts (G-KTX-009-GM2)
X009-GM2 Radio Bezel Key Harness Side Mounting Brackets
4WD Rotary Switch Panel Optional Button Extension Cable HVAC Spacers
Cigarette Lighter Extension
Cable
USB/AUX Extension Cable 4WD Rotary Switch Extension
Cable
Chevrolet/GMC
FULL SIZE TRUCK 6/13

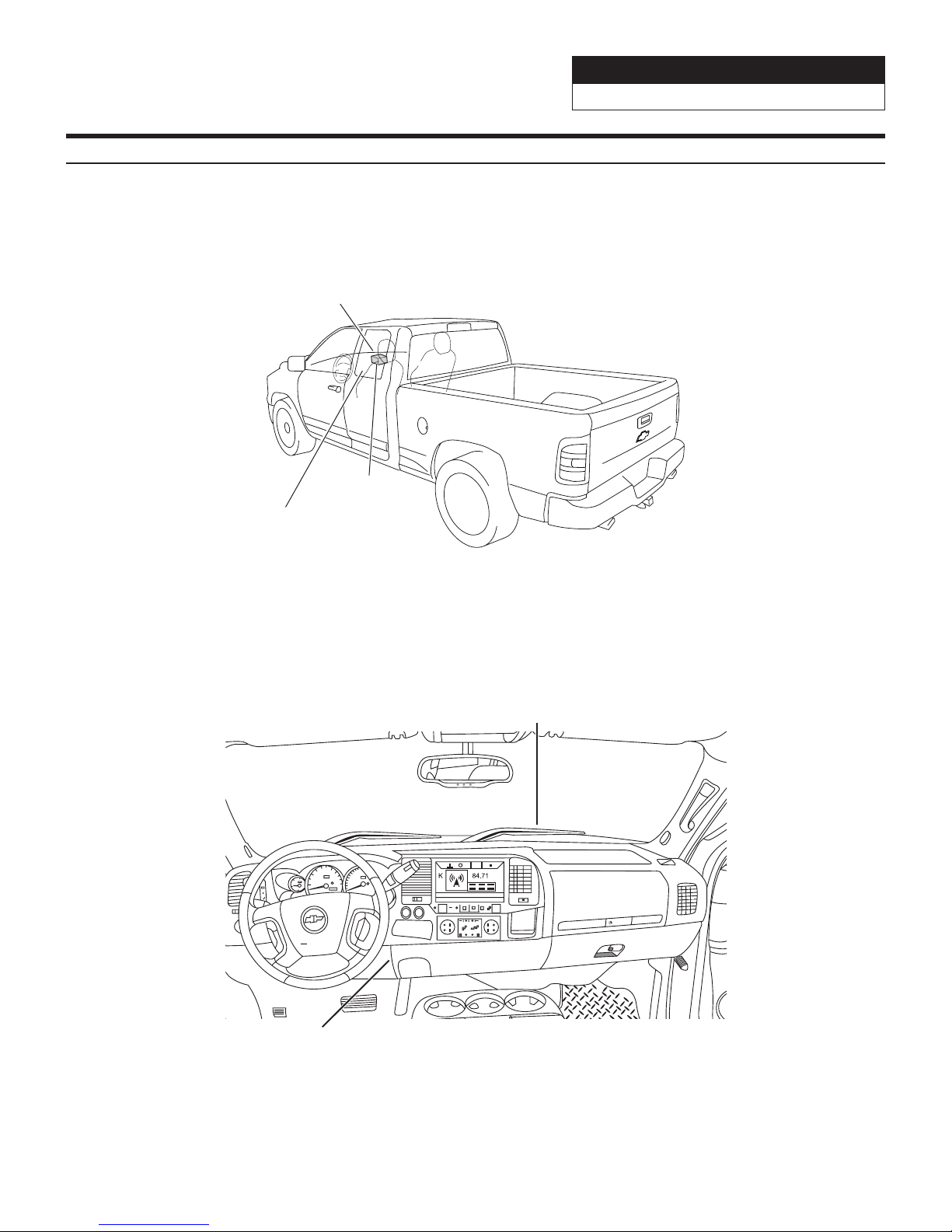

Component Locations
GPS Antenna Location
Head Unit
Maestro Chime
Speaker Location
GPS Antenna
Maestro Chime Speaker Location
Maestro Chime
Speaker Location
Chevrolet/GMC
FULL SIZE TRUCK 7/13
1 Remove the fuse panel cover.
2 Extract 2x Phillips screws, 1x 10mm bolt from the
drivers side knee cover and unsnap it
3 Extract 2x 9/32” - 7mm screws from the middle
panel and unsnap it.
4 Extract 2x Phillips screws from instrument panel
cover and remove it. Remove the radio bezel by
unsnapping it.
5 Extract 6x 7/32” - 7mm screws from the factory
radio/HVAC assembly and remove it.
6 Use a cutting tool to trim out the highlighted area as
shown below.

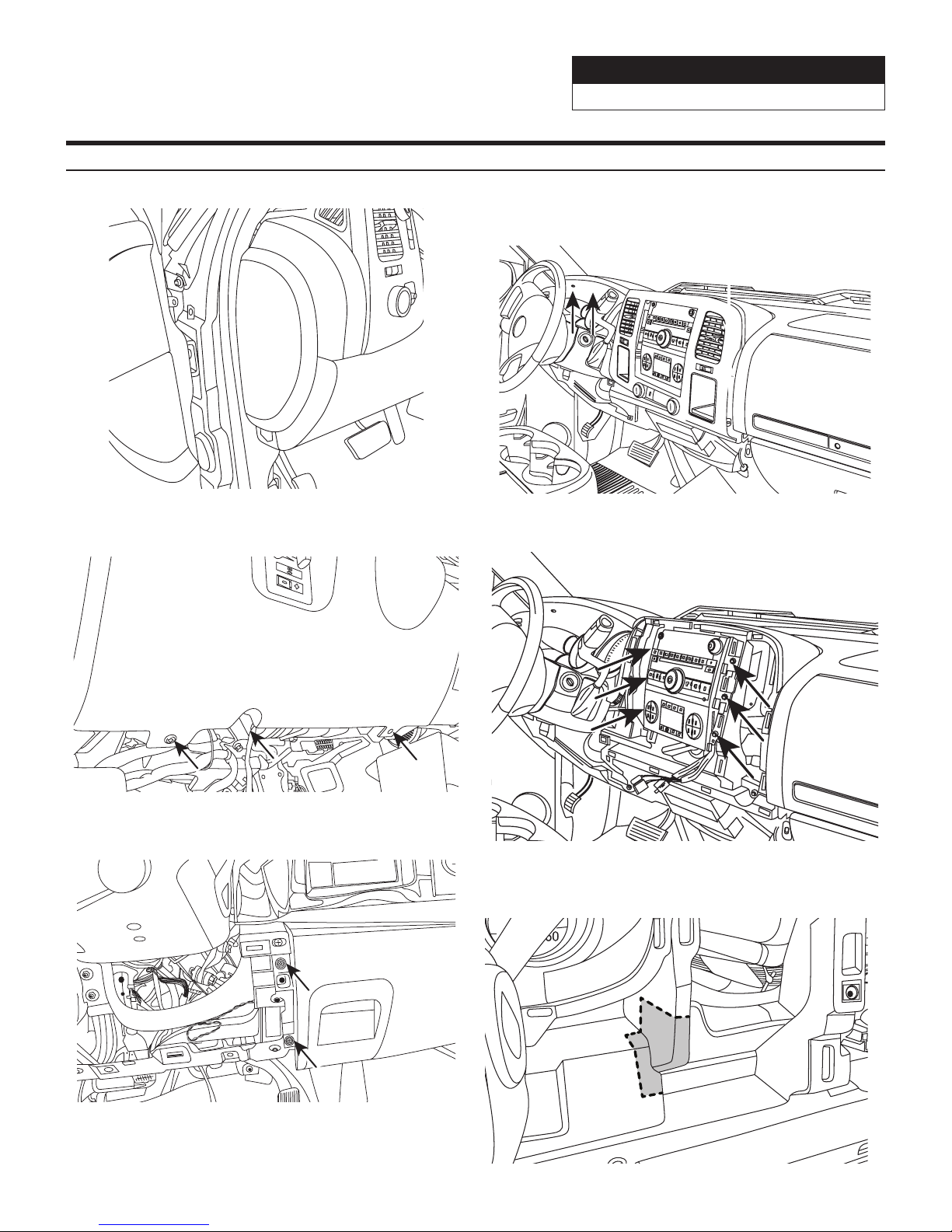

Factory Radio Removal Process
Chevrolet/GMC
FULL SIZE TRUCK 8/13

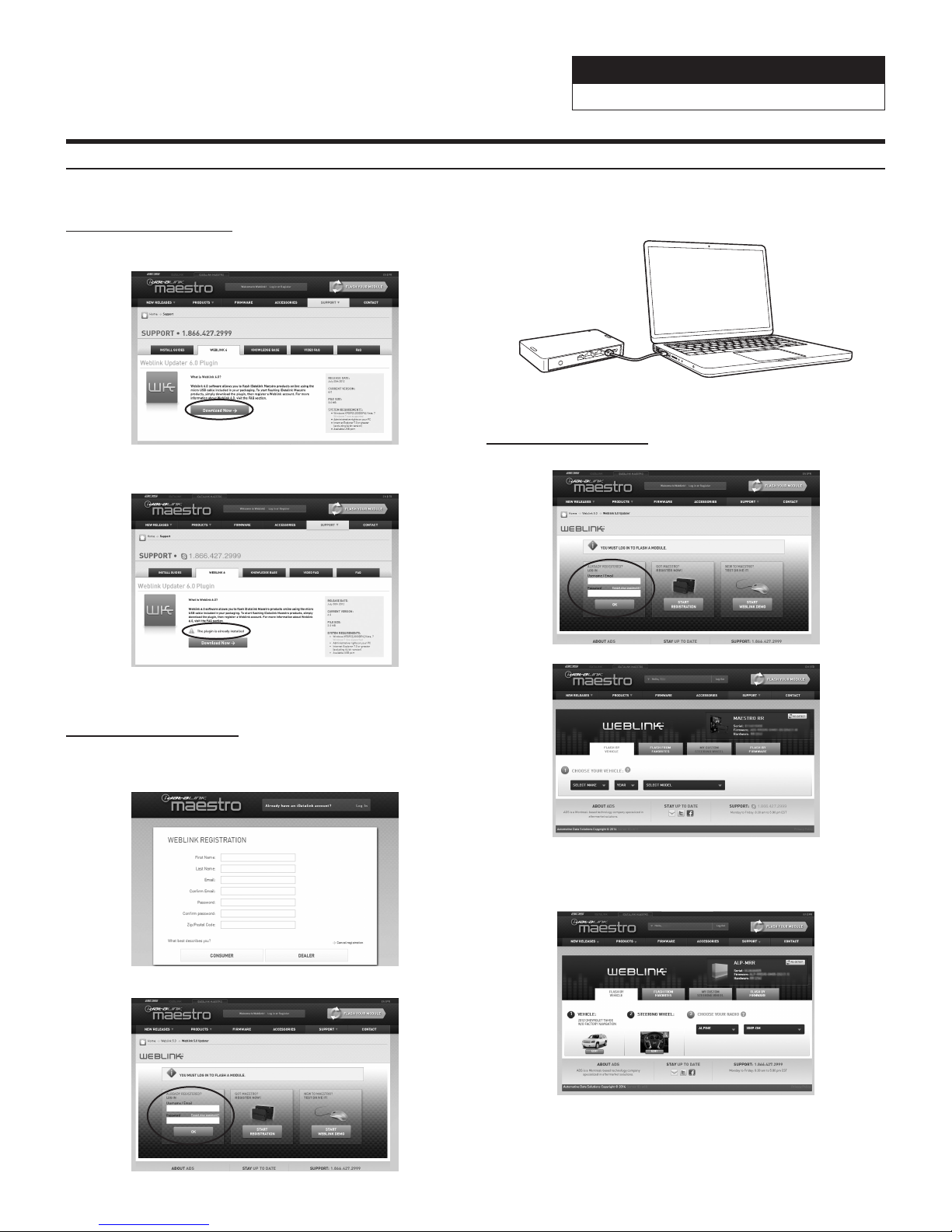

Flashing the iDatalink Maestro Module
1 INSTALL THE WEBLINK PLUG-IN
Go to:
idatalinkmaestro.com/plugin and follow the installation steps.
Review the System Requirements before installing.
If the plugin is already installed, the caution, “The plugin is already
installed” appears. Please skip to step 2.
2 REGISTER A WEBLINK ACCOUNT
Go to:
idatalinkmaestro.com/register and complete the registration process.
A conrmation email will be sent to you requiring validation.
For existing customers, click log in.
For existing customers, click log in.
3 CONNECT YOUR MAESTRO MODULE
Use the included USB cable to connect your Maestro module to your
PC.
4 LOG INTO WEBLINK
Go to:
idatalinkmaestro.com/login.
Enter your username and password, then click OK.
5 PROGRAM YOUR MODULE
Follow the programming steps for your vehicle.
6 Once ashing is completed “FLASHING
COMPLETED” will be displayed.
Proceed to the next page to complete installation.
Chevrolet/GMC
FULL SIZE TRUCK 9/13

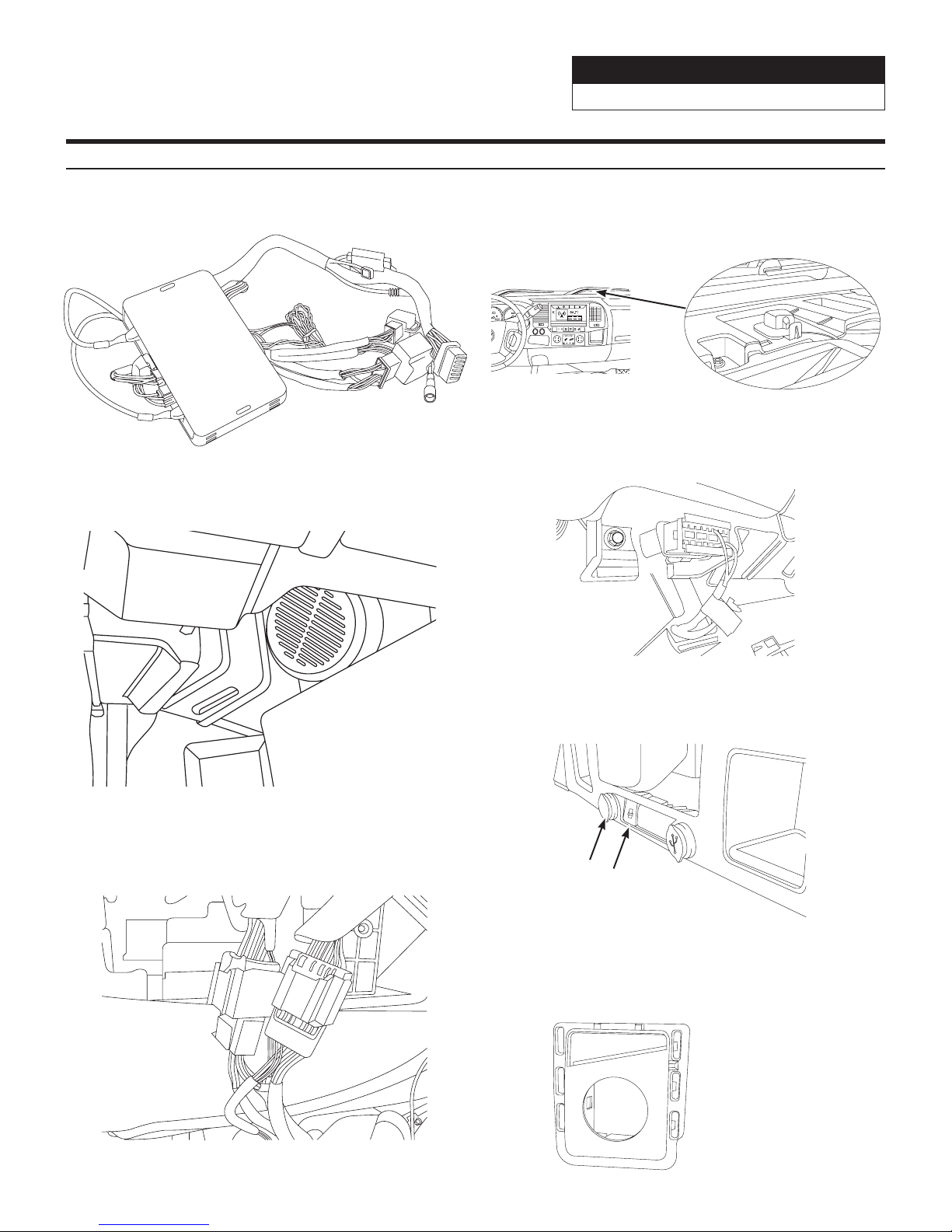

Installation Instructions
1 Connect the Maestro module to the X009 main
harness.
2 Attach the chime speaker on the metal dash
support to the right of the gas pedal.
3 Connect the X009-GM2 wire harness, antenna
adapter and USB adapter to the factory radio
harness and secure it.
4 Place the GPS antenna on the OEM GPS antenna
location as illustrated and feed the cable to the
radio cavity. Use the supplied metal base for the
best signal strength.
5 Plug the OBDII connector to the port located
under the driver side dashboard and run the wire
extension to back of the headunit.
6 Remove and transfer the factory cigarette lighter
socket, switch box, side pocket and vents to the
X009-GM2 radio bezel.
7 If the vehicle is equipped with 4WD, use the 4WD
rotary switch panel to mount the selector switch
on the right pocket location of the X009-GM2
radio bezel.
Chevrolet/GMC
FULL SIZE TRUCK 10/13

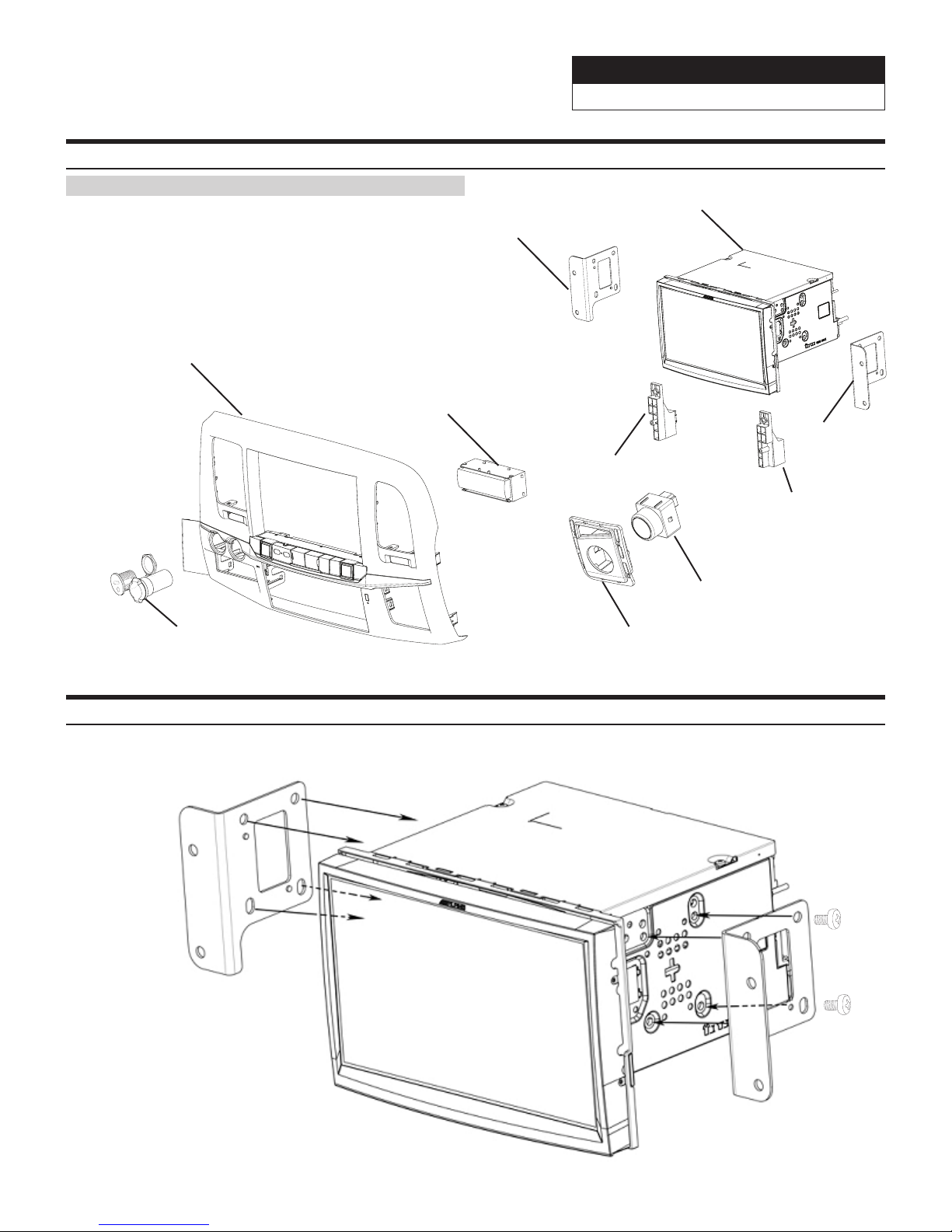

Exploded-View Diagram
Parts assembly diagram for the X009-GM2 kit.
OEM Switch Panel
Assembly
X009 Source Unit
Left HVAC Spacer
OEM Rotary
4WD Switch
Left Mounting Bracket
X009-GM2 Radio Bezel
Right
Mounting
Bracket
Right HVAC Spacer
4WD Rotary
Switch Panel
Side Mounting Bracket Assembly Procedure
Attach the left and right mounting brackets to the X009 source unit using 4 supplied M5x8 bolts on each
side.
(If 4WD Equipped)
OEM Cigarette
