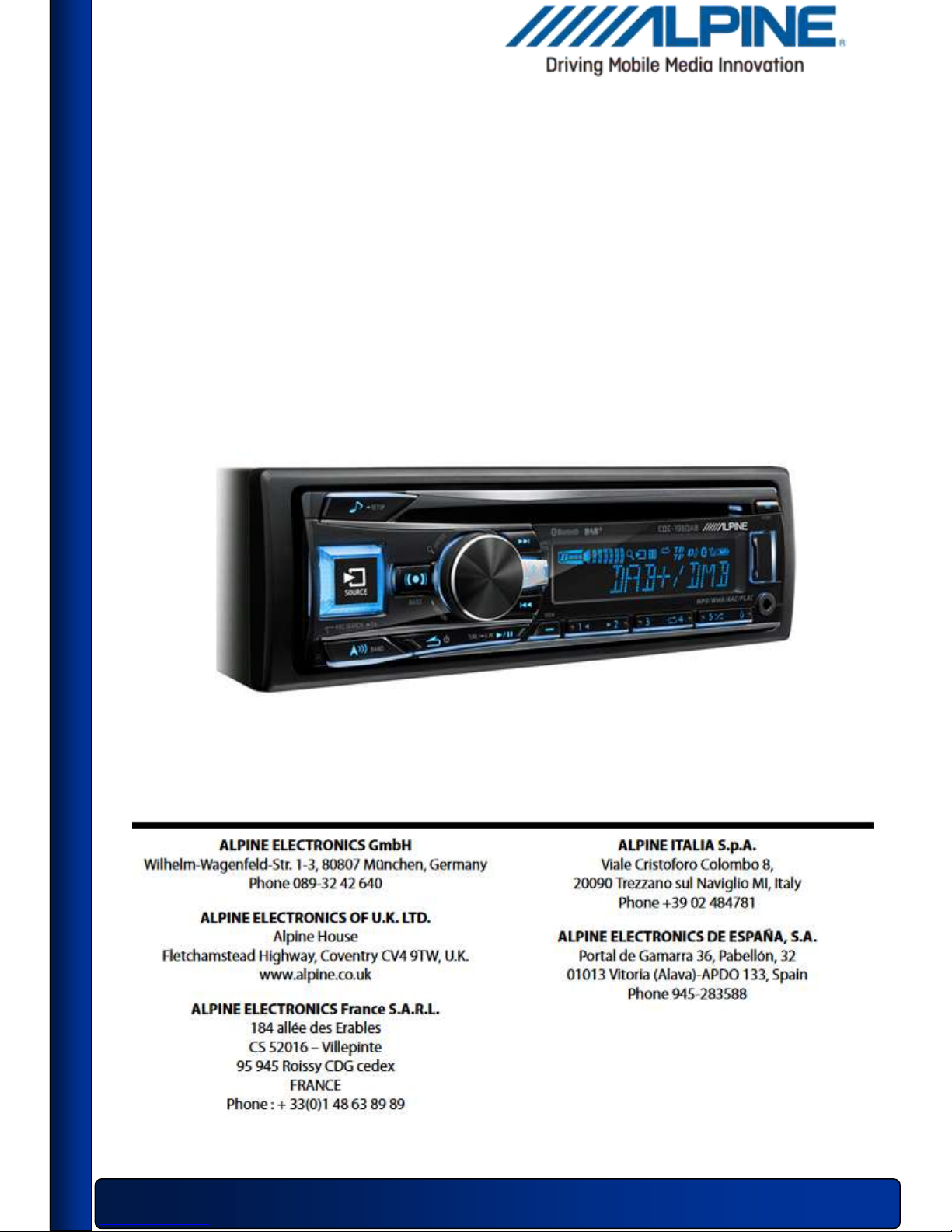

Alpine CDE-193BT Manuel technique

Software Update Manual

CDE-193BT / CDE-195T / CDE-196DAB

UTE-92BT / UTE-93DAB

CDE-W296BT

Caution

•Do NOT update the firmware while driving.

• Do NOT turn off the vehicle or remove power from the Head Unit while the unit

is updating. The update will not be performed correctly and the Head Unit may

be damaged.

Introduction

This manual describes the steps required for updating the Head Unit’s firmware. Read all

warnings and steps carefully before performing the update.

Notice

• Updating will result in all user information being deleted, including user settings,

paired devices and phonebook contacts.

• Please contact Alpine Technical Support of your country in case you have any

questions concerning this update process.

Requirements

•Computer with USB port

•USB memory stick

Improvements

The update improves the following points:

•Voice Dial function is improved with latest mobile phones

•Performance update

Firmware Update Instructions

Downloading the Firmware Update

Visit the Alpine homepage of your region to download the firmware update file to the

computer that will be used to perform this update. The update file can be found at your local

Alpine website.

WARNING –Do not update the firmware while driving

Head Unit Setup Buttons Illustration

The illustration shows the buttons that will be used during the

update procedure. This illustration is based on the

CDE-193BT model. The button locations will be different on

some models. Please refer to the owner’s manual for your

specific model.

1. Format the USB stick

1. Plug in the USB stick. 2. Right click the USB drive

and select “Format…”

WARNING - The selected drive will be

erased completely

4. Before clicking OK, make sure that

you have selected the correct drive

3. Set the options as shown below:

- File system: ‘FAT32’(Default)

- Make sure to uncheck “Quick

Format”

5. The system formats the USB stick.

This can take up to 10 minutes.

6. After formatting has finished

Push OK

2. Copy the file to the USB stick

1. Copy the update file downloaded from the Alpine support website

“16MY_CD_R_31F9.bin" into the root directory of the USB memory stick.

The update file for each head unit has an other name!

3. A message is displayed once it is safe to

remove the USB stick

Please, be sure that the update file is the only file on the USB memory stick.

2. Make sure to “remove the USB

stick safely“ before unplugging it

3. Updating the head unit

1. Turn on ACC

2. Turn to the USB source

4. Push the BAND button and Preset 3

5. Push PLAY/Pause button until you see the „Update No“ on the display

Do NOT update the firmware while driving.

6. Turn the rotary encoder to select “Update YES“ and press the rotary encoder

to start the update

3. Insert the USB memory stick to the USB connector

8. “UPD XX%“ will appear on the screen for approximately 10 minutes.

Please do not power off the unit and do not push any button, while the

unit displays

“UPDXX“%

9. “Updated“ will appear on the display.

11. Turn off ACC, remove the USB memory stick and turn ACC on

10. The checksum “M_31F90C11” will show in the display

7. At first, unit shut down and restart.

The display show „UPD START“ and later „UPD XX%“.
