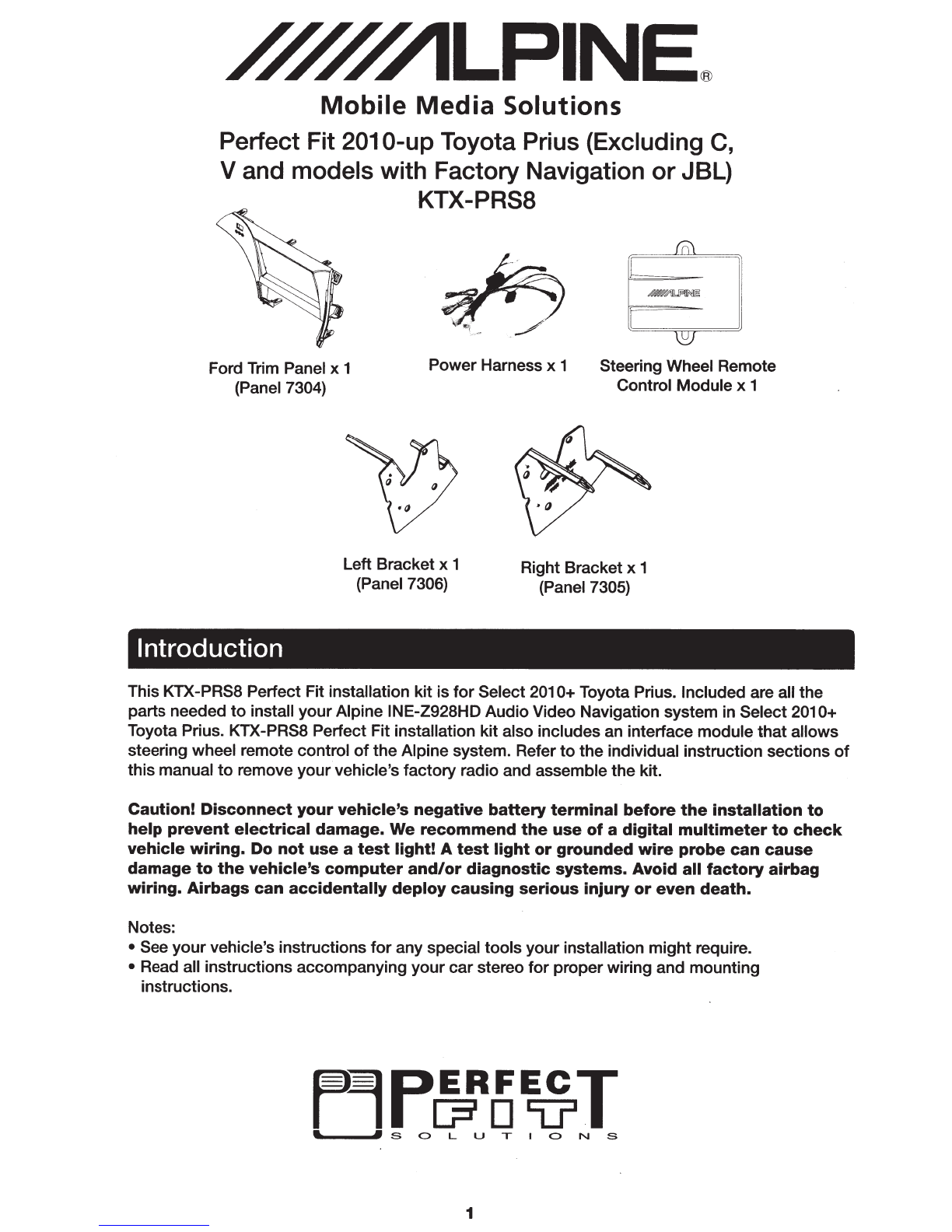

Alpine KTX-PRS8-S Manuel utilisateur
Mobile
Media
Solutions
Perfect Fit
201
0-up
Toyota Prius {Excluding
C,
V and
models
with
Factory Navigation
or
JBL)
KTX-PRS8
Ford Trim Panel x 1
(Panel 7304) Power Harness x 1 Steering Wheel Remote
Control Module x 1
Left Bracket x 1
(Panel 7306) Right Bracket x 1
(Panel 7305)
Introduction
This KTX-PRS8 Perfect Fit installation kit is
for
Select
201
0+ Toyota Prius. Included are all the
parts needed
to
install your Alpine INE-Z928HD Audio Video Navigation system in Select
201
0+
Toyota Prius. KTX-PRS8 Perfect Fit installation kit also includes
an
interface module that allows
steering wheel remote control
of
the Alpine system. Refer
to
the individual instruction sections
of
this manual
to
remove your vehicle's factory radio and assemble the kit.
Caution!
Disconnect
your
vehicle's
negative
battery
terminal
before
the
installation
to
help
prevent
electrical
damage. We
recommend
the
use
of
a
digital
multimeter
to
check
vehicle
wiring.
Do
not
use
a
test
light!
A
test
light
or
grounded
wire
probe
can
cause
damage
to
the
vehicle's
computer
and/or
diagnostic
systems.
Avoid
all
factory
airbag
wiring.
Airbags
can
accidentally
deploy
causing
serious
injury
or
even
death.
Notes:
• See your vehicle's instructions
for
any special tools your installation might require.
• Read all instructions accompanying your car stereo for proper wiring and mounting
instructions.
1

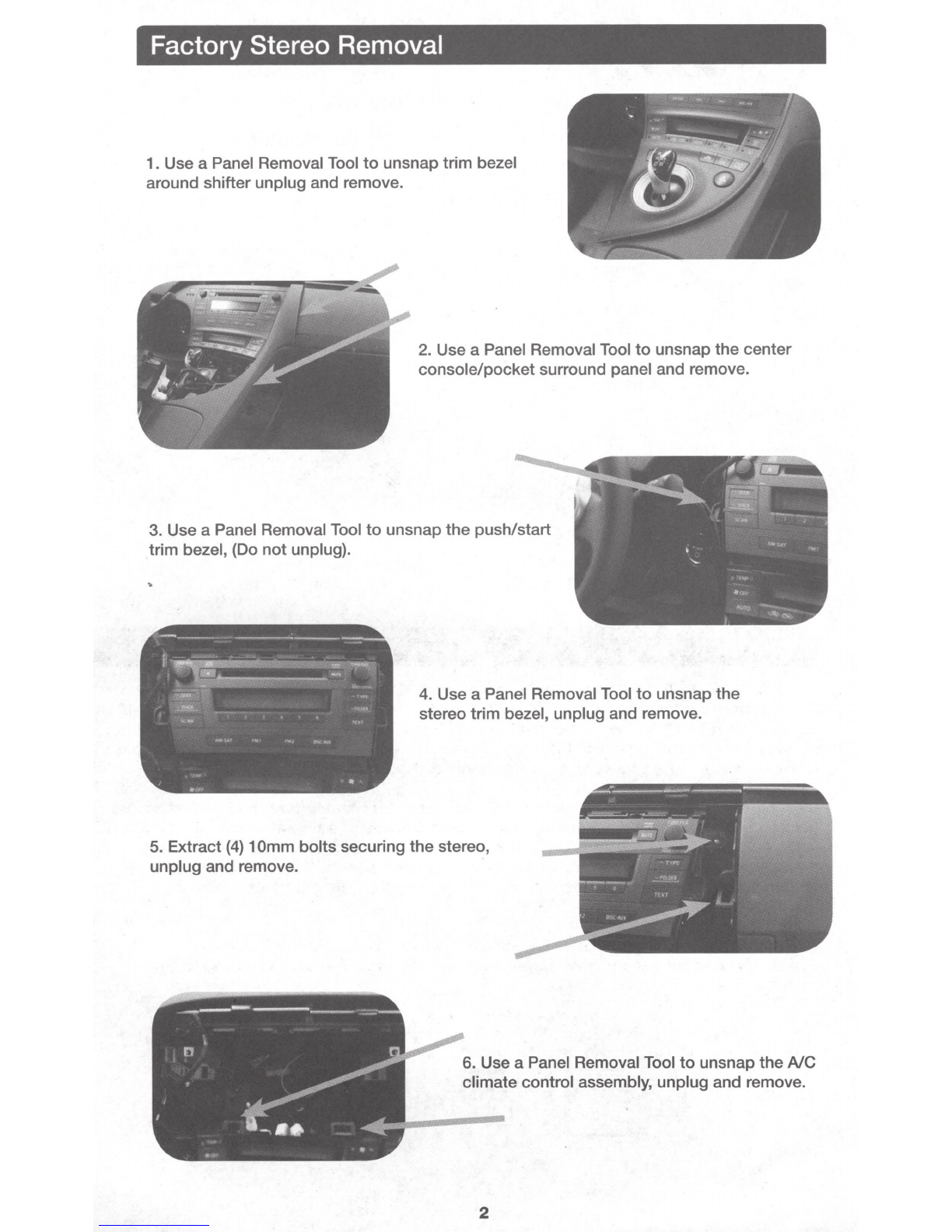

Factory Stereo Removal
1. Use a Panel Removal Tool
to
unsnap trim bezel
around shifter unplug and remove.
2. Use a Panel Removal Tool
to
unsnap the center
console/pocket surround panel and remove.
3. Use a Panel Removal Tool
to
unsnap the push/start
trim bezel, (Do
not
unplug).
4.
Use a Panel Removal Tool
to
unsnap the
stereo trim bezel, unplug and remove.
5. Extract
(4)
1
Omm
bolts securing the stereo,
unplug and remove.
6.
Use a Panel Removal Tool
to
unsnap the A/C
climate control assembly, unplug and remove.
2

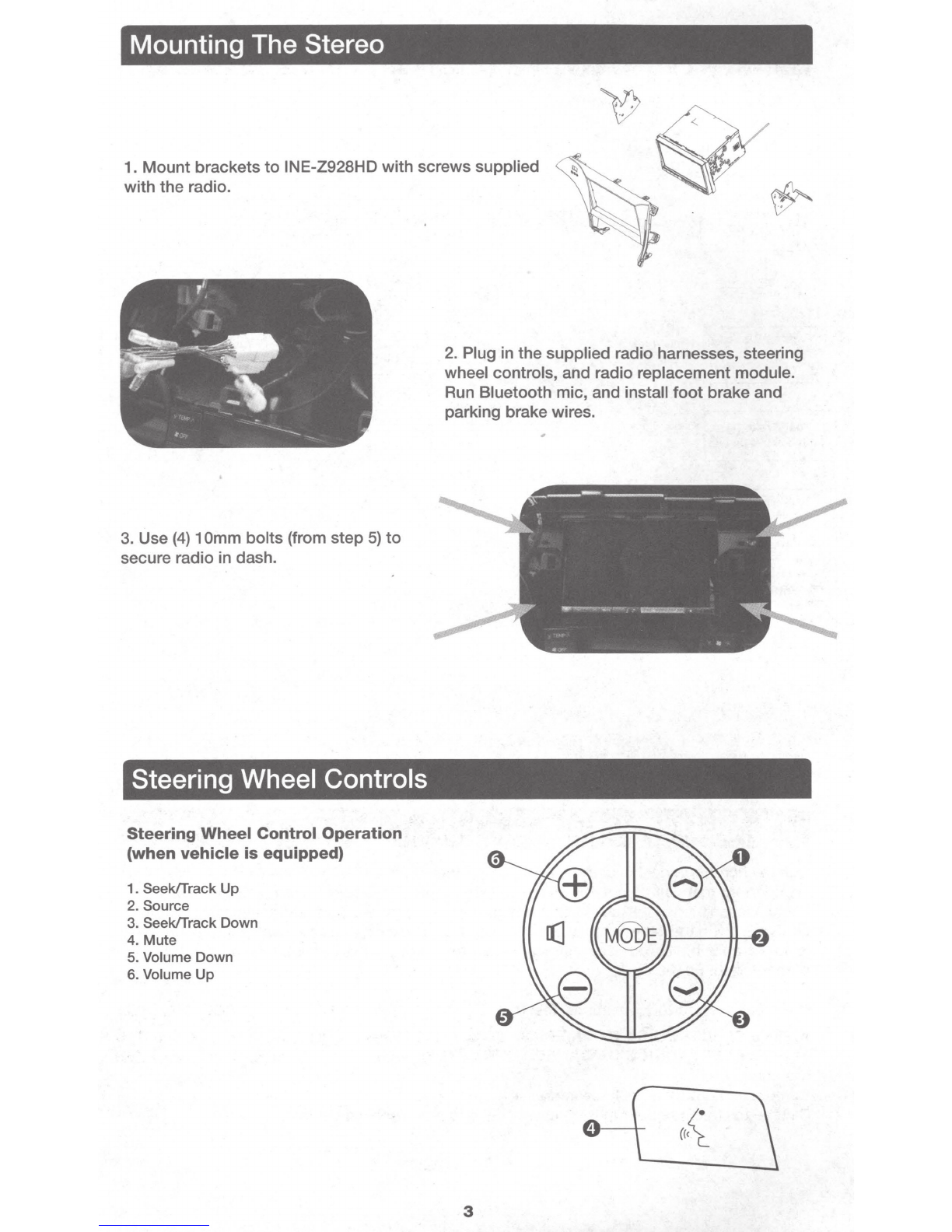

Mounting The Stereo
1.
Mount
brackets
to
INE-Z928HD with screws supplied
with the radio.
3.
Use
(4)
1
Omm
bolts (from step
5)
to
secure radio in dash.
Steering Wheel Controls
Steering Wheel Control Operation
(when vehicle is equipped}
1.
Seekffrack
Up
2. Source
3.
Seekffrack
Down
4.
Mute
5.
Volume Down
6.
Volume
Up
2.
Plug in the supplied radio harnesses, steering
wheel controls, and radio replacement module.
Run Bluetooth mic, and install
foot
brake and
parking brake wires.
3

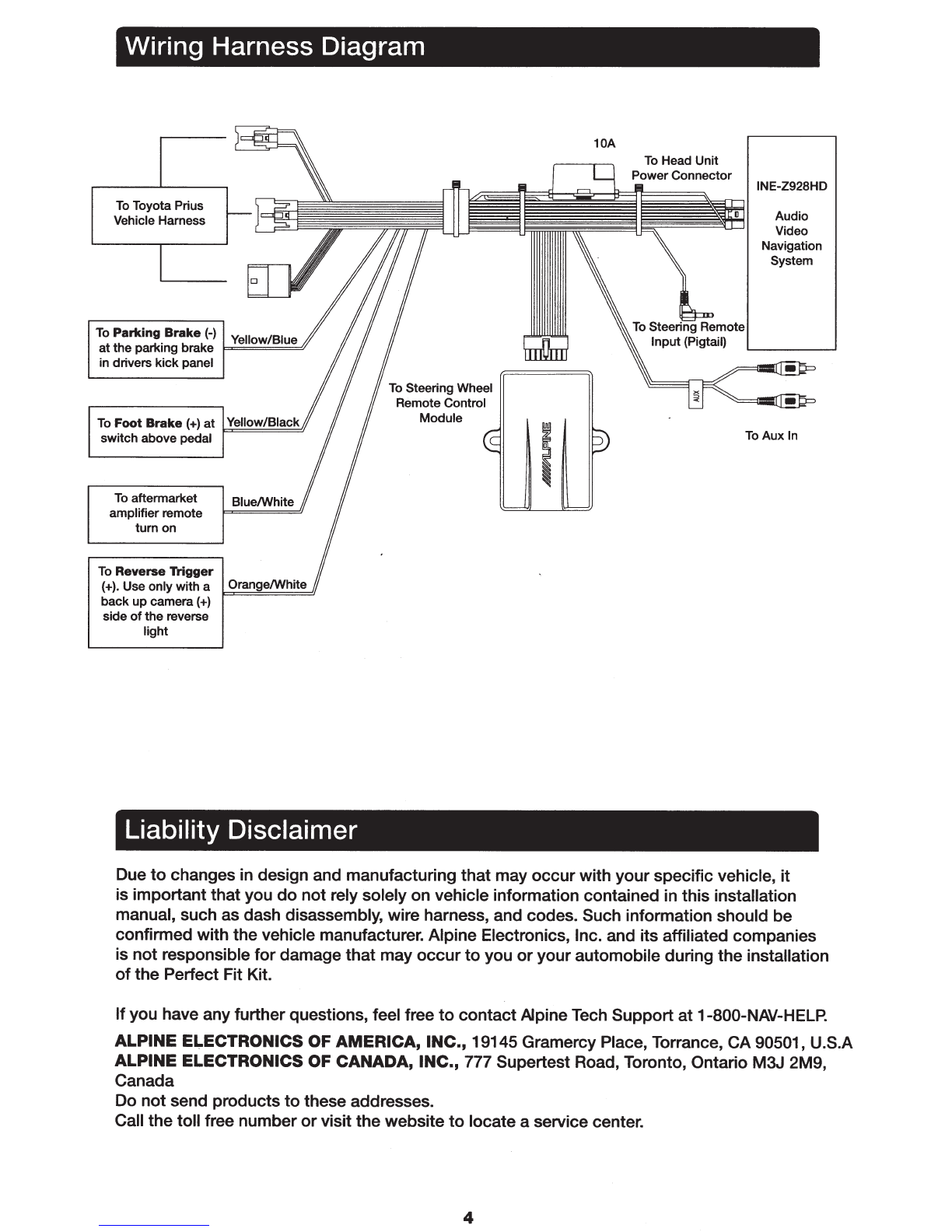

Wiring Harness Diagram
To
Toyota Prius
Vehicle Harness
To
Parking
Brake
{-)
Yellow/Blue
at
the parking brake
F====~
in drivers
kick
panel
To
aftermarket
amplifier remote
turn on
To
Reverse
Trigger
Blue/White
{+).Use only with a Orange/White
back
up
camera
{+)
side
of
the reverse
light
Liability Disclaimer
To
Steering Wheel
Remote Control
Module
10A
To
Head Unit
INE-Z928HD
Audio
Video
Navigation
System
To
AuxIn
Due
to
changes in design and manufacturing that may
occur
with your specific vehicle, it
is important that you
do
not rely solely on vehicle information contained in this installation
manual, such as dash disassembly, wire harness, and codes. Such information should be
confirmed with the vehicle manufacturer. Alpine Electronics, Inc. and its affiliated companies
is not responsible
for
damage that may occur
to
you
or
your automobile during the installation
of
the Perfect Fit Kit.
If
you have any further questions, feel free
to
contact Alpine Tech Support at 1-800-NAV-HELP.
ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, CA 90501, U.S.A
ALPINE ELECTRONICS OF CANADA, INC., 777 Supertest Road, Toronto, Ontario M3J 2M9,
Canada
Do not send products
to
these addresses.
Call the toll free number
or
visit the website
to
locate a service center.
4
-.-
--
--

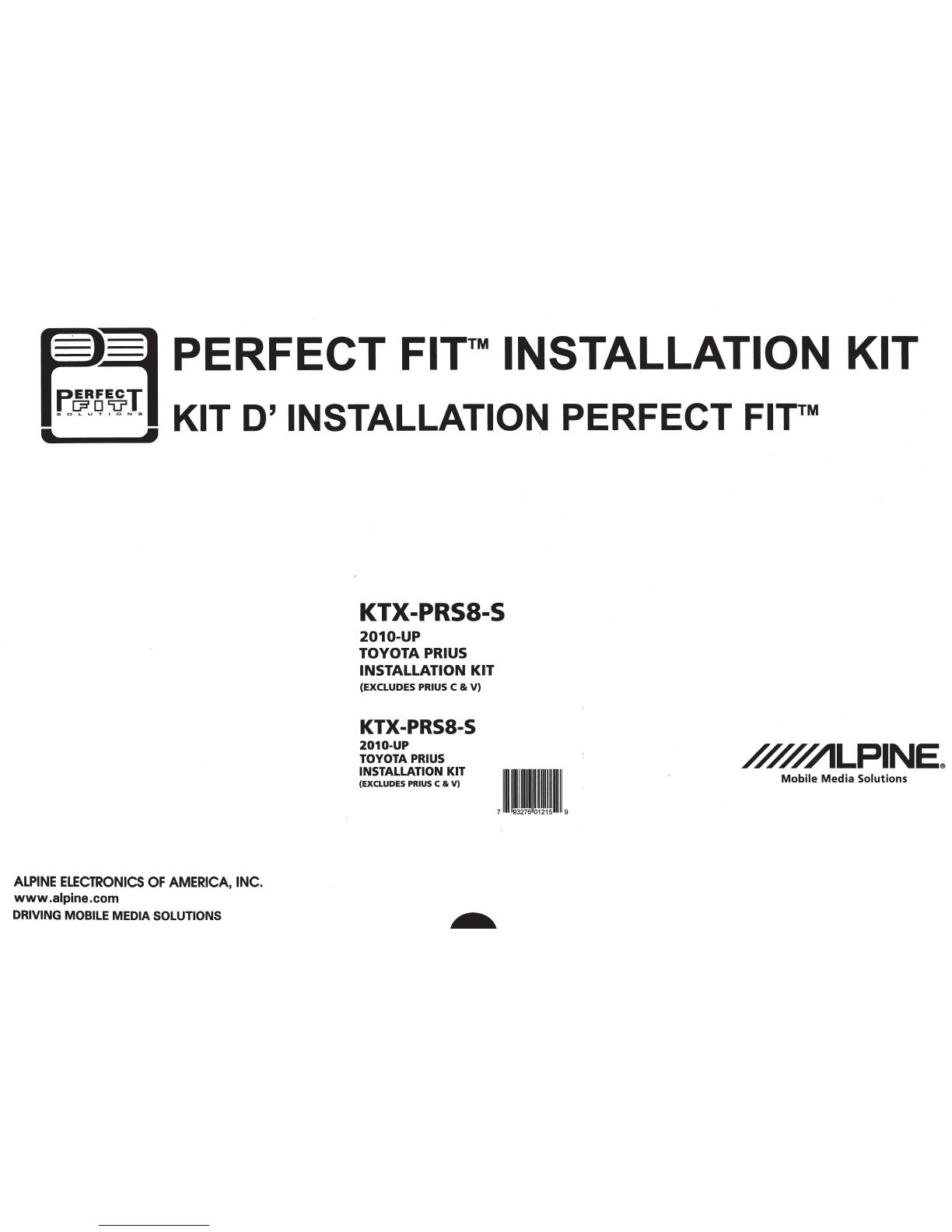

PERFECT
'oQiu[J
~N
s
• • PERFECT
FIT™
INSTALLATION KIT
KIT D' INSTALLATION PERFECT
FIT™
ALPINE
ELECTRONICS
OF
AMERICA,
INC.
www
.alpine.com
DRIVING MOBILE MEDIA SOLUTIONS
KTX-PRSS-5
2010-UP
TOYOTA PRIUS
INSTALLATION
KIT
(EXCLUDES PRIUS C & V)
KTX-PRSS-5
2010-UP
TOYOTA PRIUS
INSTALLATION KIT
(EXCLUDES PRIUS C &
V)
~
#/ff/ILPINE
®
Mobile
Media
Solutions
9

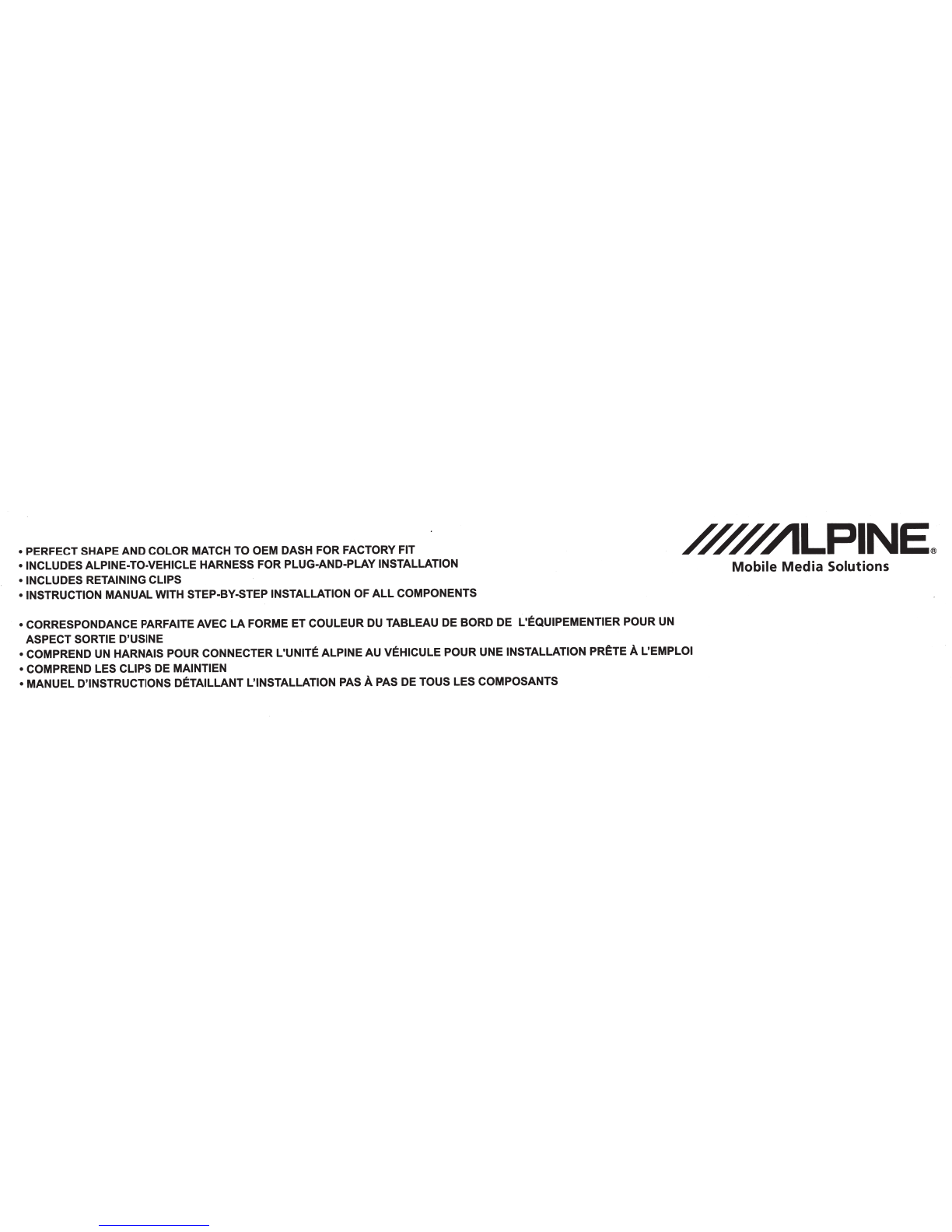

• PERFECT SHAPE
AND
COLOR MATCH TO OEM DASH FOR FACTORY FIT
##MLPINE
®
• INCLUDESALPINE-TO-VEHICLE HARNESS FOR PLUG-AND-PLAY INSTALLATION
• INCLUDES RETAINING CLIPS
Mobile
Media
Solutions
• INSTRUCTION
MANUAL
WITH STEP-BY-STEP INSTALLATION OF
ALL
COMPONENTS
• CORRESPONDANCE PARFAITE AVEC
LA
FORME ET COULEUR
DU
TABLEAU DE BORD DE L'EQUIPEMENTIER POUR UN
ASPECT SORTIE D'USINE
• COMPREND UN HARNAIS POUR CONNECTER L'UNITE ALPINE
AU
VEHICULE POUR UNE INSTALLATION
PR~TE
A
L'EMPLOI
• COMPREND LES CLIPS DE MAINTIEN
• MANUEL D'INSTRUCTIONS DETAILLANT L'INSTALLATION PAS
A
PAS DE TOUS LES COMPOSANTS

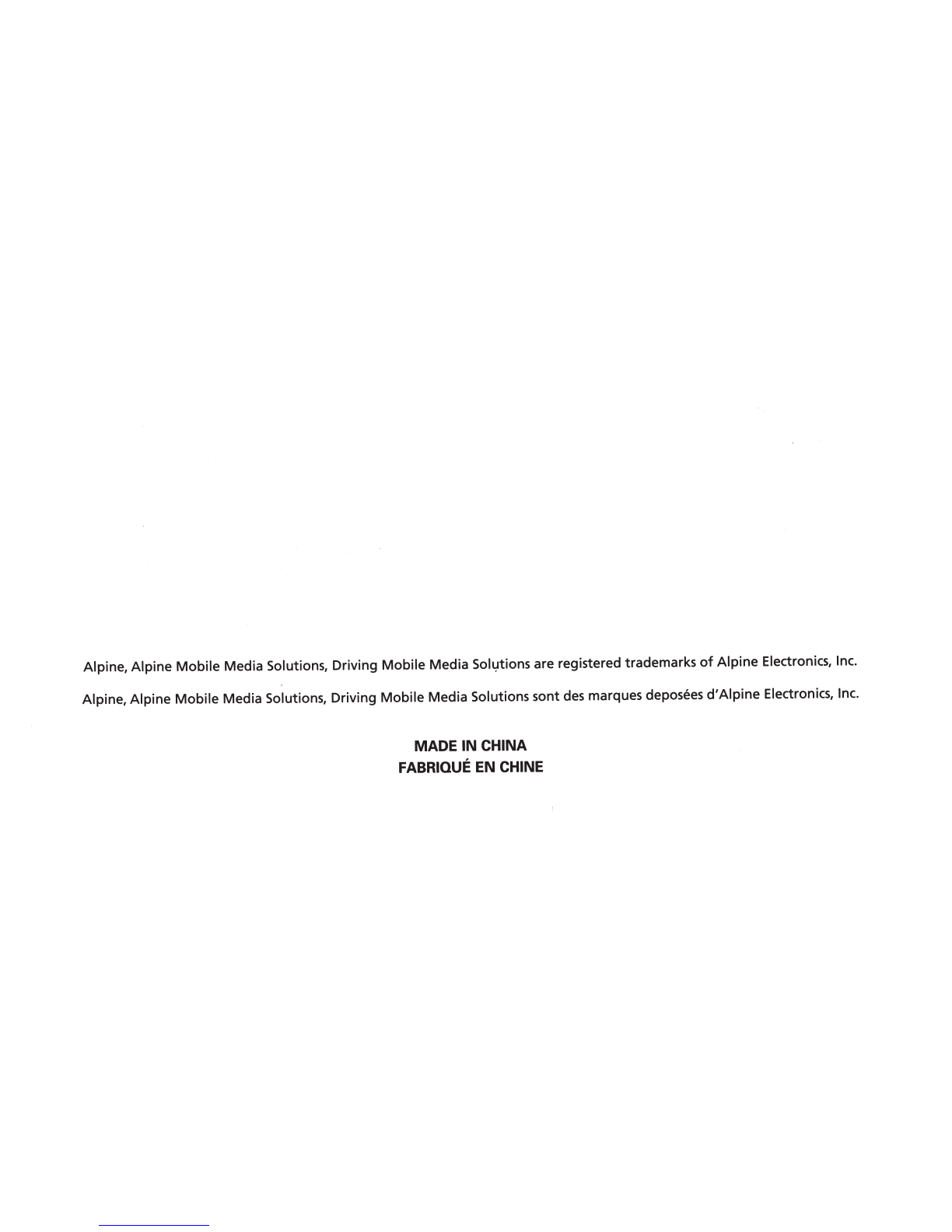

Alpine, Alpine Mobile Media Solutions, Driving Mobile Media
Sol~.:~tions
are registered trademarks
of
Alpine Electronics, Inc.
Alpine, Alpine Mobile Media Solutions, Driving Mobile Media Solutions sont
des
marques deposees d'Aipine Electronics,
Inc.
MADE IN CHINA
FABRIQUE EN CHINE
