COMPACT

Equipment Information

Heat Pumps

BR INE/ WATER

SWC – Series

Operating manual supplement

2We reserve the right to modify technical specifications without prior notice.

UK830600/210803 © Alpha-InnoTec GmbH

Please read ﬁrst

The „Equipment Information“ is an integral part of the

product. It supplements the „Brine/ water compact heat

pumps“ operating manual. The „Brine/Water compact

heat pumps“ operating manual must also be available to

you in addition to this „Equipment Information – Special

Models“ supplement.

You must abide by the parameters stipulated in the

„Equipment Information“ supplement for the specif-

ic model without fail, as the supplement has been pro-

duced for several different models.

The „Equipment Information“ is solely intended for per-

sonnel who will be working with the unit. All of the inte-

gral parts must be treated as conﬁdential. They are pro-

tected by copyright. You are not allowed to copy, repro-

duce, store in electronic systems, transfer or translate

into another language, neither in full or partially, without

the manufacturer‘s written authorisation.

We reserve the right to modify technical specifications without prior notice.

UK830600/210803 © Alpha-InnoTec GmbH

Contents

INFORMATION FOR OPERATORS AND

QUALIFIED SPECIALISTS

PLEASE READ FIRST..................................................................2

INSTRUCTIONS FOR QUALIFIED TECHNICIANS

TECHNICAL DATA/SCOPE OF DELIVERY

SWC 60HS – SWC 100HS ..................................................4

SWC 120S – SWC 170HP(/K).............................................6

PERFORMANCE CURVES

Heating Capacity/COP / Power Consumption /

Free Compression

SWC 60HS .............................................................................8

SWC 80HS .............................................................................9

SWC 100HS .........................................................................10

SWC 120S ............................................................................11

SWC 140S ............................................................................12

SWC 170HP(K) ...................................................................13

TERMINAL DIAGRAMS

SWC 60HS – SWC 140S....................................................14

SWC 170HP(/K) ..................................................................15

CIRCUIT DIAGRAMS

SWC 60HS – SWC 80HS ..................................................16

SWC 100HS .........................................................................18

SWC 120S ............................................................................20

SWC 140S ............................................................................22

SWC 170HP(/K) ..................................................................24

APPENDIX

EU DECLARATION OF CONFORMITY..............................27

Gerätebezeichnung

Heat pump type Brine/water ı Air/water ı Water/water • applicable ı — not applicable

Installation location Indoors ı Outdoors • applicable ı — not applicable

Conformity CE

Performance data Heating capacity/COP at

B0/W35 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W45 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W35 Standard point acc. to EN255 2 compresssors

1 compresssor

kW ı …

Limits of application Heating circuit °C

Heat source °C

Additional operating points …

Sound Sound level measured at distance of 1m around the device (in free field) dB(A)

Sound power level according to EN12102 dB

Heat source Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Anti-freeze agent monoethylene glycol

minimum concentration ı frost proof down to % ı °C

Heating circuit Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

General unit data Dimensions (see dimensional drawing for the specified unit size) unit size

Total weight (including cooling) kg (kg)

Additional weight module 1 kg

Additional weight module 2 kg

Connections Heating circuit …

Heat source …

Refrigerant Refrigerant type ı Quantity … ı kg

Electric Voltage code ı all-pole circuit breaker heat pump *) … ı A

Voltage code ı circuit breaker control voltage *) … ı A

Voltage code ı circuit breaker electric heating element *) ı A

Heat Pump Effective power consumption in standard point B0/W35 according to EN14511: Power consumption ı current consumption ı cosφ kW ı A ı …

Maximum device current within the limits of application A

Starting current: direct ı with soft starter A ı A

Protection type IP

Output electric heating element 3 ı 2 ı 1 phase kW ı kW ı kW

Components Circulating pump heating circuit at nominal flow rate: Power consumption ı current consumption kW ı A

Circulating pump heat source at nominal flow rate: Power consumption ı current consumption kW ı A

Passive cooling function only for units with designator K: Cooling output at nominal volume ow (15 °C heat source, 25 °C heating water) kW

Safety equipment Safety component heating circuit ı Safety component heat source scope of delivery: • yes — no

Heating and heat pump regulator scope of delivery: • yes — no

Electronic soft starter integrated: • yes — no

Expansion vessels Heat source: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Heating circuit: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Overflow valve integrated: • yes — no

Vibration decouplers Heating circuit ı heat source scope of delivery: • yes — no

UK813196-c

*) comply with local regulations n.n. = not detectable

We reserve the right to modify technical specifications without prior notice.

UK830600/210803 © Alpha-InnoTec GmbH

Technical data/scope of delivery

SWC 60HS

• ı — ı —

• ı —

•

—

7,2 ı 4,4

—

6,5 ı 3,4

—

7,3 ı 4,6

20 – 65

-5 – 25

—

1300 ı 1700 ı 2600

— ı —

0,46 ı 1300

•

25 ı -13

600 ı 1200 ı 1500

— ı —

0,42 ı 900

200

—

G1»AG

R407c ı 1,7

1~/N/PE/230V/50Hz ı C16

1~/N/PE/230V/50Hz ı B10

1~/N/PE/230V/50Hz ı C32

1,64 ı 8,1 ı 0,88

12,7

— ı 27

— ı — ı 6

0,08 ı n.n.

0,1 ı n.n.

—

• ı •

•

• ı 12 ı 0,5

• ı 25 ı 1,5

•

• ı •

813178 -c

SWC 80HS

• ı — ı —

• ı —

•

—

9,2 ı 4,5

—

8,4 ı 3,4

—

9,3 ı 4,7

20 – 65

-5 – 25

—

1700 ı 2200 ı 3300

— ı —

0,64 ı 1700

•

25 ı -13

800 ı 1600 ı 2000

— ı —

0,41 ı 1100

203

—

G1»AG

R407c ı 1,9

1~/N/PE/230V/50Hz ı C16

1~/N/PE/230V/50Hz ı B10

1~/N/PE/230V/50Hz ı C32

2,04 ı 10,2 ı 0,87

16,1

— ı 30

— ı — ı 6

0,08 ı n.n.

0,2 ı n.n.

—

• ı •

•

• ı 12 ı 0,5

• ı 25 ı 1,5

•

• ı •

813179 -c

SWC 100HS

• ı — ı —

• ı —

•

—

10,4 ı 4,4

—

9,7 ı 3,5

—

10,5 ı 4,6

20 – 65

-5 – 25

—

1900 ı 2500 ı 3200

— ı —

0,44 ı 1900

•

25 ı -13

900 ı 1800 ı 2200

— ı —

0,34 ı 1300

206

—

G1»AG

R407c ı 2,2

1~/N/PE/230V/50Hz ı C20

1~/N/PE/230V/50Hz ı B10

1~/N/PE/230V/50Hz ı C32

2,36 ı 12,1 ı 0,85

19,1

— ı 31

— ı — ı 6

0,08 ı n.n.

0,2 ı n.n.

—

• ı •

•

• ı 12 ı 0,5

• ı 25 ı 1,5

•

• ı •

813180-c

Gerätebezeichnung

Heat pump type Brine/water ı Air/water ı Water/water • applicable ı — not applicable

Installation location Indoors ı Outdoors • applicable ı — not applicable

Conformity CE

Performance data Heating capacity/COP at

B0/W35 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W45 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W35 Standard point acc. to EN255 2 compresssors

1 compresssor

kW ı …

Limits of application Heating circuit °C

Heat source °C

Additional operating points …

Sound Sound level measured at distance of 1m around the device (in free field) dB(A)

Sound power level according to EN12102 dB

Heat source Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Anti-freeze agent monoethylene glycol

minimum concentration ı frost proof down to % ı °C

Heating circuit Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

General unit data Dimensions (see dimensional drawing for the specified unit size) unit size

Total weight (including cooling) kg (kg)

Additional weight module 1 kg

Additional weight module 2 kg

Connections Heating circuit …

Heat source …

Refrigerant Refrigerant type ı Quantity … ı kg

Electric Voltage code ı all-pole circuit breaker heat pump *) … ı A

Voltage code ı circuit breaker control voltage *) … ı A

Voltage code ı circuit breaker electric heating element *) ı A

Heat Pump Effective power consumption in standard point B0/W35 according to EN14511: Power consumption ı current consumption ı cosφ kW ı A ı …

Maximum device current within the limits of application A

Starting current: direct ı with soft starter A ı A

Protection type IP

Output electric heating element 3 ı 2 ı 1 phase kW ı kW ı kW

Components Circulating pump heating circuit at nominal flow rate: Power consumption ı current consumption kW ı A

Circulating pump heat source at nominal flow rate: Power consumption ı current consumption kW ı A

Passive cooling function only for units with designator K: Cooling output at nominal volume ow (15 °C heat source, 25 °C heating water) kW

Safety equipment Safety component heating circuit ı Safety component heat source scope of delivery: • yes — no

Heating and heat pump regulator scope of delivery: • yes — no

Electronic soft starter integrated: • yes — no

Expansion vessels Heat source: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Heating circuit: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Overflow valve integrated: • yes — no

Vibration decouplers Heating circuit ı heat source scope of delivery: • yes — no

UK813196-c

*) comply with local regulations n.n. = not detectable

We reserve the right to modify technical specifications without prior notice.

UK830600/210803 © Alpha-InnoTec GmbH

Gerätebezeichnung

Heat pump type Brine/water ı Air/water ı Water/water • applicable ı — not applicable

Installation location Indoors ı Outdoors • applicable ı — not applicable

Conformity CE

Performance data Heating capacity/COP at

B0/W35 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W45 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W35 Standard point acc. to EN255 2 compresssors

1 compresssor

kW ı …

Limits of application Heating circuit °C

Heat source °C

Additional operating points …

Sound Sound level measured at distance of 1m around the device (in free field) dB(A)

Sound power level according to EN12102 dB

Heat source Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Anti-freeze agent monoethylene glycol

minimum concentration ı frost proof down to % ı °C

Heating circuit Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

General unit data Dimensions (see dimensional drawing for the specified unit size) unit size

Total weight (including cooling) kg (kg)

Additional weight module 1 kg

Additional weight module 2 kg

Connections Heating circuit …

Heat source …

Refrigerant Refrigerant type ı Quantity … ı kg

Electric Voltage code ı all-pole circuit breaker heat pump *) … ı A

Voltage code ı circuit breaker control voltage *) … ı A

Voltage code ı circuit breaker electric heating element *) ı A

Heat Pump Effective power consumption in standard point B0/W35 according to EN14511: Power consumption ı current consumption ı cosφ kW ı A ı …

Maximum device current within the limits of application A

Starting current: direct ı with soft starter A ı A

Protection type IP

Output electric heating element 3 ı 2 ı 1 phase kW ı kW ı kW

Components Circulating pump heating circuit at nominal flow rate: Power consumption ı current consumption kW ı A

Circulating pump heat source at nominal flow rate: Power consumption ı current consumption kW ı A

Passive cooling function only for units with designator K: Cooling output at nominal volume ow (15 °C heat source, 25 °C heating water) kW

Safety equipment Safety component heating circuit ı Safety component heat source scope of delivery: • yes — no

Heating and heat pump regulator scope of delivery: • yes — no

Electronic soft starter integrated: • yes — no

Expansion vessels Heat source: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Heating circuit: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Overflow valve integrated: • yes — no

Vibration decouplers Heating circuit ı heat source scope of delivery: • yes — no

UK813196-c

*) comply with local regulations n.n. = not detectable

We reserve the right to modify technical specifications without prior notice.

UK830600/210803 © Alpha-InnoTec GmbH

Technical data/scope of delivery

SWC 140S

• ı — ı —

• ı —

•

—

14,5 ı 4,4

—

13,9 ı 3,4

—

14,7 ı 4,6

20 – 55

-5 – 25

—

2600 ı 3500 ı 4300

— ı —

0,38 ı 2600

•

25 ı -13

1200 ı 2500 ı 3100

— ı —

0,56 ı 1800

212

—

G1¼»AG

R407c ı 2,7

1~/N/PE/230V/50Hz ı C32

1~/N/PE/230V/50Hz ı B10

1~/N/PE/230V/50Hz ı C40

3,29 ı 15,0 ı 0,95

26,3

— ı 45

— ı — ı 9

0,2 ı n.n.

0,25 ı n.n.

—

• ı •

•

• ı 18 ı 0,5

• ı 35 ı 1,5

•

• ı •

813182-e

SWC 170HP(/K)

• ı — ı —

• ı —

•

—

16,7 ı 4,6

—

16,9 ı 4,7

20 – 65

-5 – 25

—

2700 ı 3600 ı 5000

— ı —

1,0 (0,97) ı 2700

•

25 ı -13

1400 ı 2900 ı 3500

— ı —

0,58 (0,55) ı 2050

220 (235)

—

G1¼»AG

R407c ı 3,8

3~/PE/400V/50Hz ı C13

1~/N/PE/230V/50Hz ı B10

3~/N/PE/400V/50Hz ı C16

3,63 ı 6,7 ı 0,78

11,0

— ı 30

9 ı 6 ı 3

0,2 ı n.n.

0,25 ı n.n.

9,0

• ı •

•

• ı 18 ı 0,5

• ı 35 ı 1,5

•

• ı •

813197-b

SWC 120S

• ı — ı —

• ı —

•

—

11,7 ı 4,6

—

11,2 ı 3,5

—

11,9 ı 4,8

20 – 55

-5 – 25

—

2100 ı 2800 ı 4300

— ı —

0,5 ı 2100

•

25 ı -13

1000 ı 2000 ı 2500

— ı —

0,32 ı 1450

209

—

G1¼»AG

R407c ı 2,4

1~/N/PE/230V/50Hz ı C25

1~/N/PE/230V/50Hz ı B10

1~/N/PE/230V/50Hz ı C32

2,54 ı 13,0 ı 0,85

22,0

— ı 33

— ı — ı 6

0,09 ı n.n.

0,2 ı n.n.

—

• ı •

•

• ı 18 ı 0,5

• ı 25 ı 1,5

•

• ı •

813181-e

Gerätebezeichnung

Heat pump type Brine/water ı Air/water ı Water/water • applicable ı — not applicable

Installation location Indoors ı Outdoors • applicable ı — not applicable

Conformity CE

Performance data Heating capacity/COP at

B0/W35 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W45 Standard point acc. to EN14511 2 compresssors

1 compresssor

kW ı …

B0/W35 Standard point acc. to EN255 2 compresssors

1 compresssor

kW ı …

Limits of application Heating circuit °C

Heat source °C

Additional operating points …

Sound Sound level measured at distance of 1m around the device (in free field) dB(A)

Sound power level according to EN12102 dB

Heat source Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Anti-freeze agent monoethylene glycol

minimum concentration ı frost proof down to % ı °C

Heating circuit Volume flow: minimum flow rate ı nominal flow rate ı maximum flow rate l/h

Pressure loss heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

Free compression heat pump ∆p (with cooling ∆pK) ı volume flow bar (bar) ı l/h

General unit data Dimensions (see dimensional drawing for the specified unit size) unit size

Total weight (including cooling) kg (kg)

Additional weight module 1 kg

Additional weight module 2 kg

Connections Heating circuit …

Heat source …

Refrigerant Refrigerant type ı Quantity … ı kg

Electric Voltage code ı all-pole circuit breaker heat pump *) … ı A

Voltage code ı circuit breaker control voltage *) … ı A

Voltage code ı circuit breaker electric heating element *) ı A

Heat Pump Effective power consumption in standard point B0/W35 according to EN14511: Power consumption ı current consumption ı cosφ kW ı A ı …

Maximum device current within the limits of application A

Starting current: direct ı with soft starter A ı A

Protection type IP

Output electric heating element 3 ı 2 ı 1 phase kW ı kW ı kW

Components Circulating pump heating circuit at nominal flow rate: Power consumption ı current consumption kW ı A

Circulating pump heat source at nominal flow rate: Power consumption ı current consumption kW ı A

Passive cooling function only for units with designator K: Cooling output at nominal volume ow (15 °C heat source, 25 °C heating water) kW

Safety equipment Safety component heating circuit ı Safety component heat source scope of delivery: • yes — no

Heating and heat pump regulator scope of delivery: • yes — no

Electronic soft starter integrated: • yes — no

Expansion vessels Heat source: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Heating circuit: Scope of delivery ı Volume ı Initial pressure • yes — no ı l ı bar

Overflow valve integrated: • yes — no

Vibration decouplers Heating circuit ı heat source scope of delivery: • yes — no

UK813196-c

*) comply with local regulations n.n. = not detectable

We reserve the right to modify technical specifications without prior notice.

UK830600/210803 © Alpha-InnoTec GmbH

823008

Legende: DE823000LS

“” Volumenstrom Heizwasser

“„ Volumenstrom Wärmequelle

Temp„ Temperatur Wärmequelle

Qh Heizleistung

Pe Leistungsaufnahme

COP Coeffiicient of performance / Leistungszahl

∆p” Freie Pressung Heizkreis

∆p„ Freie Pressung Wärmequelle

Änd./Ä.M./Ersteller/Datum

Bezeichnung:

Leistungs-Druckverlustkurven

- / ÄM001-2007 / Neumann / 04.04.07

Seite: 1/1

SWC 60HS

Zeichnungsnummer: 823008

Datei: 823008 Leistungs-Druckverlustkurven SWC60HS.xls

Qh (kW)

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

35°C

50°C

65°C

COP

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

Pe (kW)

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

∆p (bar)

0,0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5

“”[m3/h]

∆p”

∆p (bar)

0,0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5

“„[m3/h]

∆p„

Legend: UK823000L/170408

“” Volume ow, heating water

“„ Volume ow, heat source

Temp„ Temperature, heat source

Qh Heating capacity

Pe Power consumption

COP Coefcient of performance / efciency rating

∆p” / ∆p”† Free compression, heating circuit / free compression, heating circuit with cooling

∆p„ / ∆p„† Free compression, heat source / free compression, heat source with cooling

We reserve the right to modify technical specifications without prior notice.

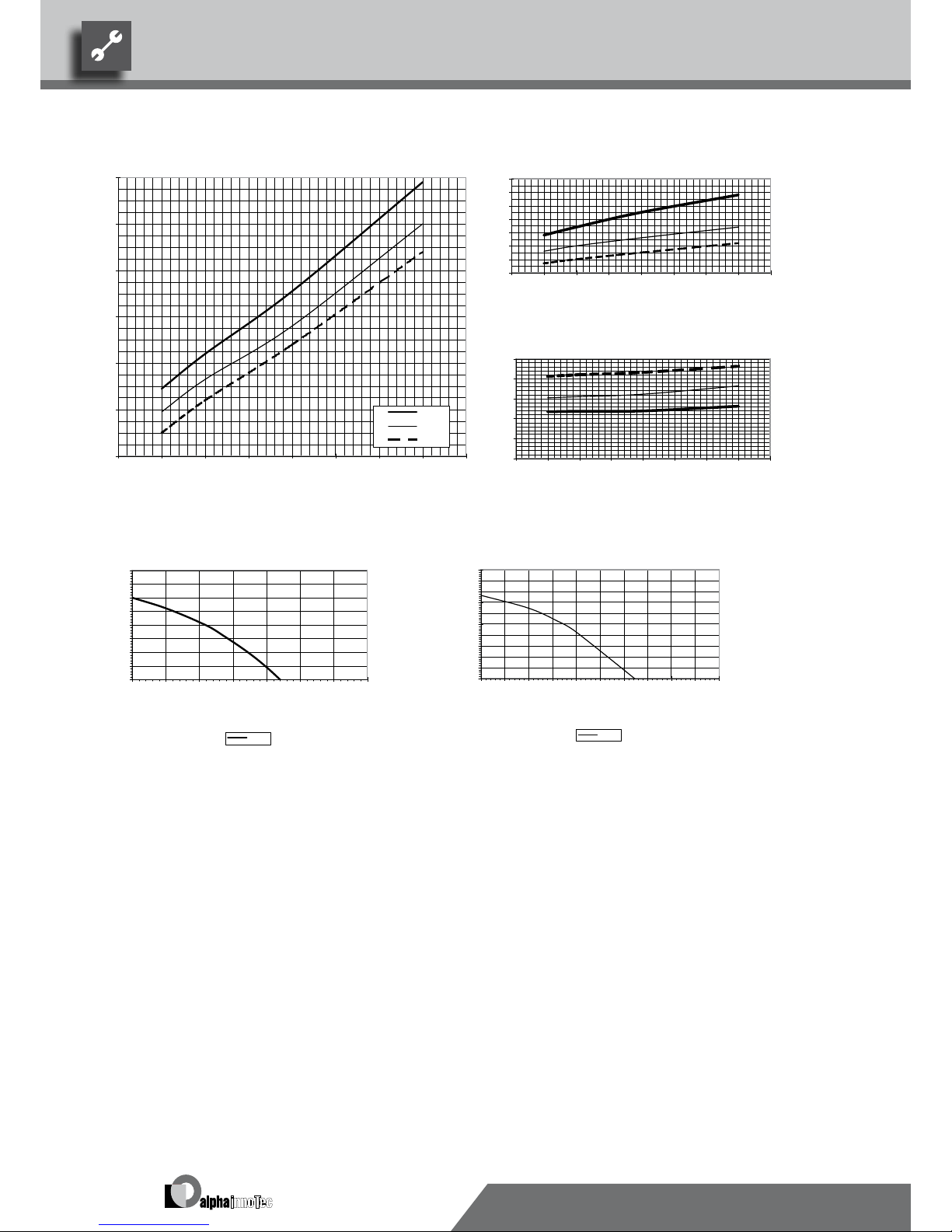

Performance curvesSWC 60HS

Legende: DE823000LS

823009

“” Volumenstrom Heizwasser

Volumenstrom Wärmequelle

Temperatur Wärmequelle

Heizleistung

“„

Temp„

COP

Leistungsaufnahme

Coeffiicient of performance / Leistungszahl

Qh (kW)

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

35°C

50°C

65°C

COP

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

Pe (kW)

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

∆p (bar)

0,0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5

“”[m3/h]

∆p”

∆p (bar)

0,0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

1,0

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0

“„[m3/h]

∆p„

Legend: UK823000L/170408

“” Volume ow, heating water

“„ Volume ow, heat source

Temp„ Temperature, heat source

Qh Heating capacity

Pe Power consumption

COP Coefcient of performance / efciency rating

∆p” / ∆p”† Free compression, heating circuit / free compression, heating circuit with cooling

∆p„ / ∆p„† Free compression, heat source / free compression, heat source with cooling

We reserve the right to modify technical specifications without prior notice.

Performance curves SWC 80HS

“„

Temp„

COP

Leistungsaufnahme

Coeffiicient of performance / Leistungszahl

Volumenstrom Heizwasser

Volumenstrom Wärmequelle

Temperatur Wärmequelle

Heizleistung

Legende: DE823000LS

823010

“”

Qh (kW)

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

35°C

50°C

65°C

COP

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

Pe (kW)

-10 -5 0 5 10 15 20 25 30

Temp„ (°C)

∆p (bar)

0,0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5

“”[m3/h]

∆p”

∆p (bar)

0,0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

1,0

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0

“„[m3/h]

∆p„

Legend: UK823000L/170408

“” Volume ow, heating water

“„ Volume ow, heat source

Temp„ Temperature, heat source

Qh Heating capacity

Pe Power consumption

COP Coefcient of performance / efciency rating

∆p” / ∆p”† Free compression, heating circuit / free compression, heating circuit with cooling

∆p„ / ∆p„† Free compression, heat source / free compression, heat source with cooling

We reserve the right to modify technical specifications without prior notice.

Performance curvesSWC 100HS

Autres manuels pour SWC - Series

Table des matières

Autres manuels alphainnoTec Pompe à chaleur

alphainnoTec

alphainnoTec LWC Series Manuel utilisateur

alphainnoTec

alphainnoTec Solterra SWP 390 Manuel utilisateur

alphainnoTec

alphainnoTec WZS Series Manuel utilisateur

alphainnoTec

alphainnoTec LWAV Series Manuel utilisateur

alphainnoTec

alphainnoTec SWP Series Manuel utilisateur

alphainnoTec

alphainnoTec WZSV Series Manuel utilisateur

alphainnoTec

alphainnoTec HMD 1/E Manuel utilisateur

alphainnoTec

alphainnoTec LWAV alira Manuel utilisateur

alphainnoTec

alphainnoTec LW 160H/V Manuel utilisateur

alphainnoTec

alphainnoTec WZS 42H3M Manuel utilisateur

alphainnoTec

alphainnoTec Hydraulic tower HT 1 Manuel utilisateur

alphainnoTec

alphainnoTec SWP 371 Manuel utilisateur

alphainnoTec

alphainnoTec Solair LW 70M-A Manuel utilisateur

alphainnoTec

alphainnoTec Solterra SWP 230H Manuel utilisateur

alphainnoTec

alphainnoTec SWC V Series Manuel utilisateur

alphainnoTec

alphainnoTec WWC100HX Manuel utilisateur

alphainnoTec

alphainnoTec WZSV 42K3M Manuel utilisateur

alphainnoTec

alphainnoTec WZS Series Manuel utilisateur

alphainnoTec

alphainnoTec LWDV Series Manuel utilisateur

alphainnoTec

alphainnoTec LW 101 Manuel utilisateur

alphainnoTec

alphainnoTec WZS V series Manuel utilisateur

alphainnoTec

alphainnoTec SWC H1 Series Manuel utilisateur

alphainnoTec

alphainnoTec LWD 50A Manuel utilisateur

alphainnoTec

alphainnoTec LWC Series Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur

alphainnoTec SWC - Series Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques
